Climate Controls With A Touchscreen Overview

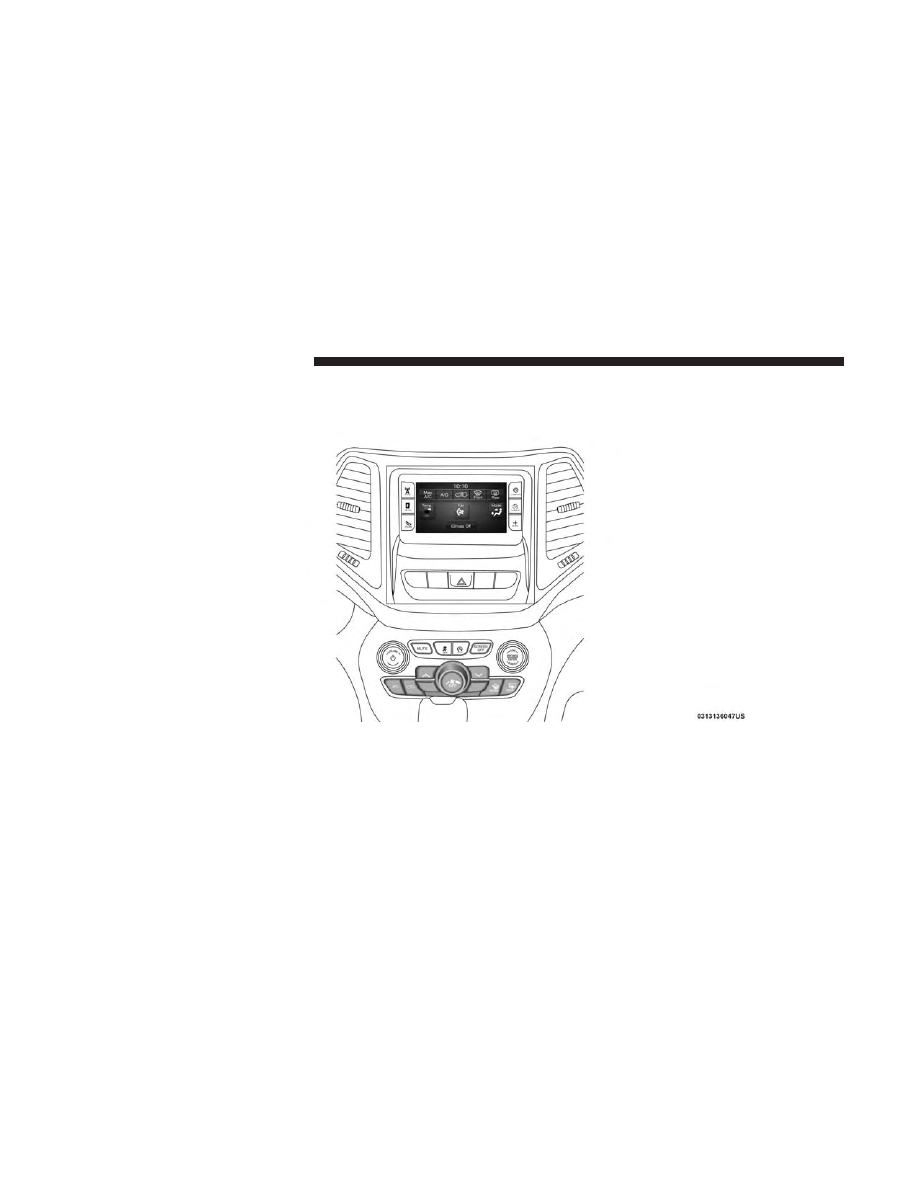

Uconnect 3 With 5–inch Display With Manual Temperature Controls

GETTING TO KNOW YOUR VEHICLE

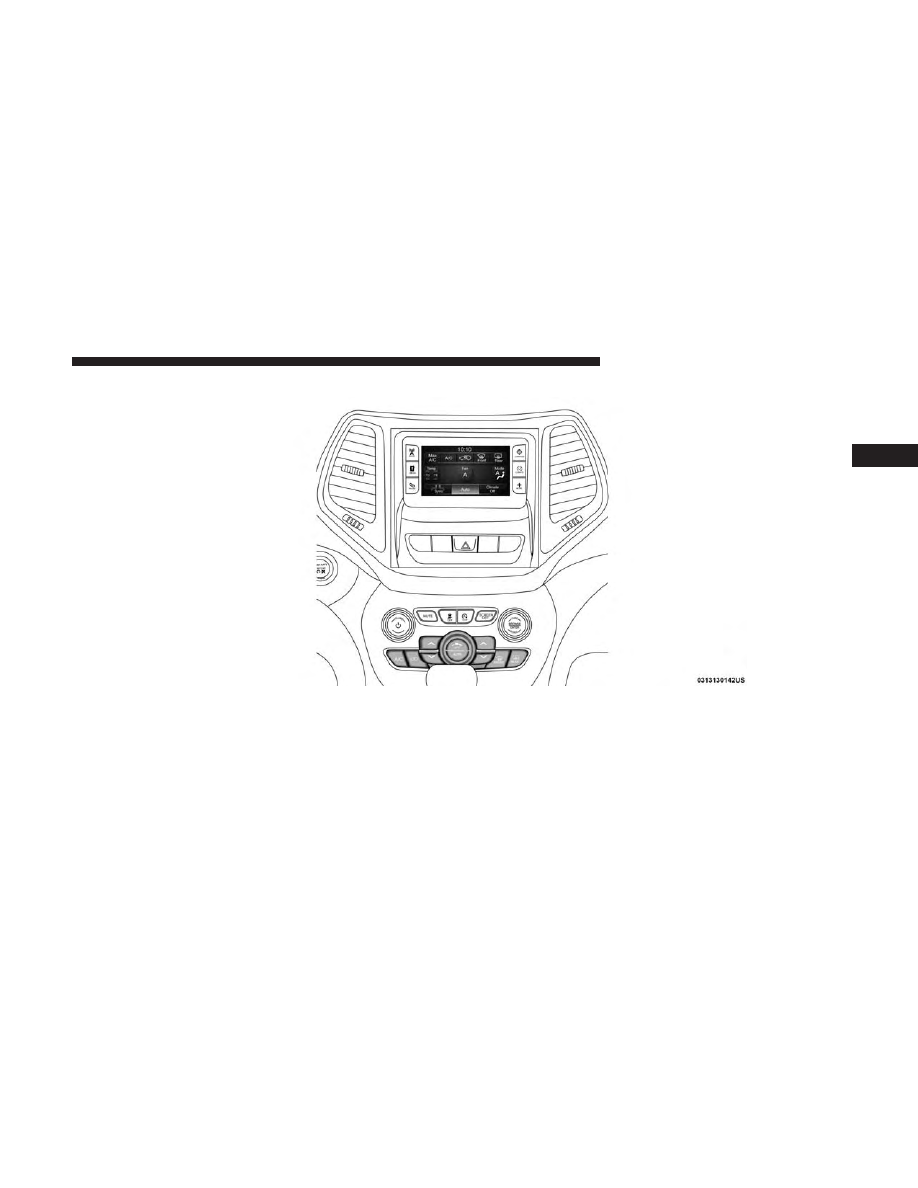

Uconnect 4 With 7–inch Display With Manual Temperature Controls

GETTING TO KNOW YOUR VEHICLE

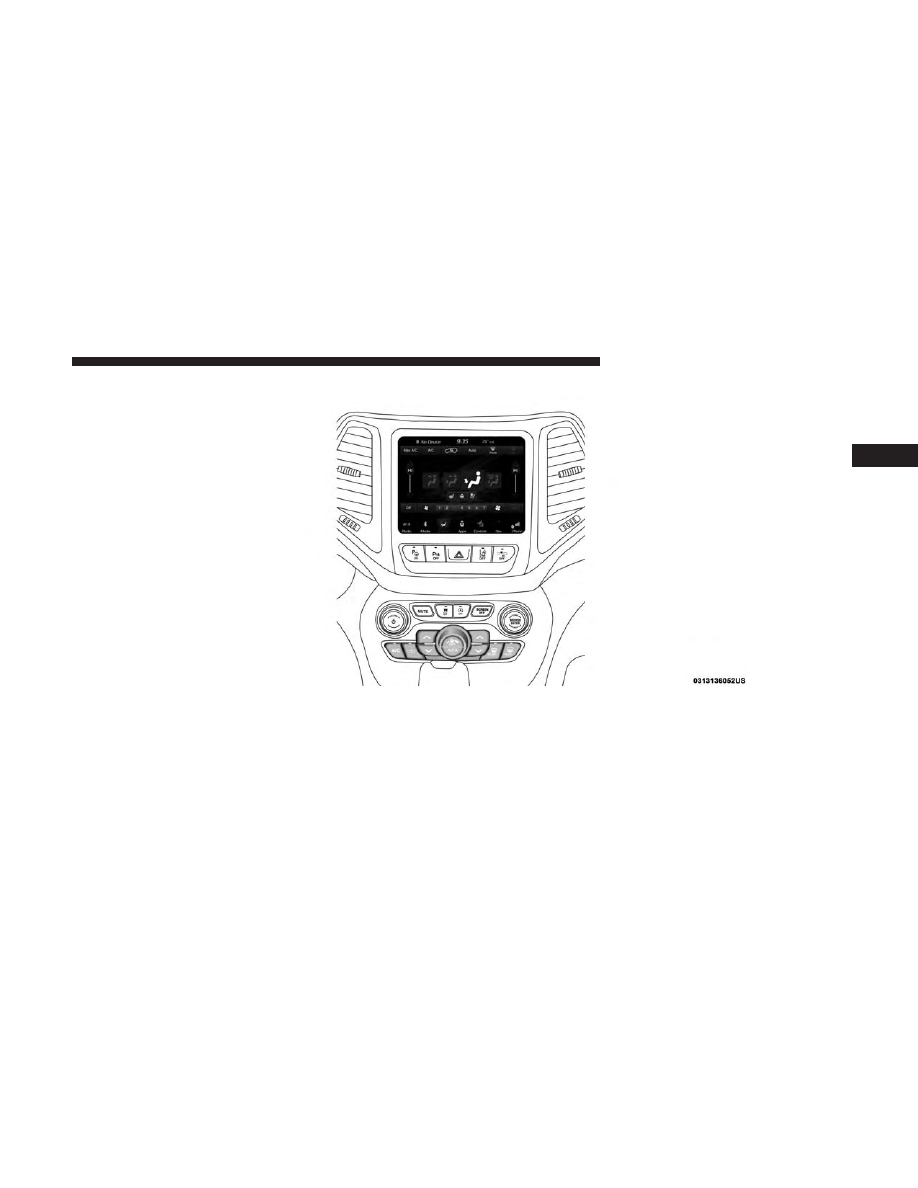

Uconnect 4C/4C NAV With 8.4–inch Display With Manual Temperature Controls

GETTING TO KNOW YOUR VEHICLE

Uconnect 3 With 5–inch Display With Automatic Temperature Controls

GETTING TO KNOW YOUR VEHICLE

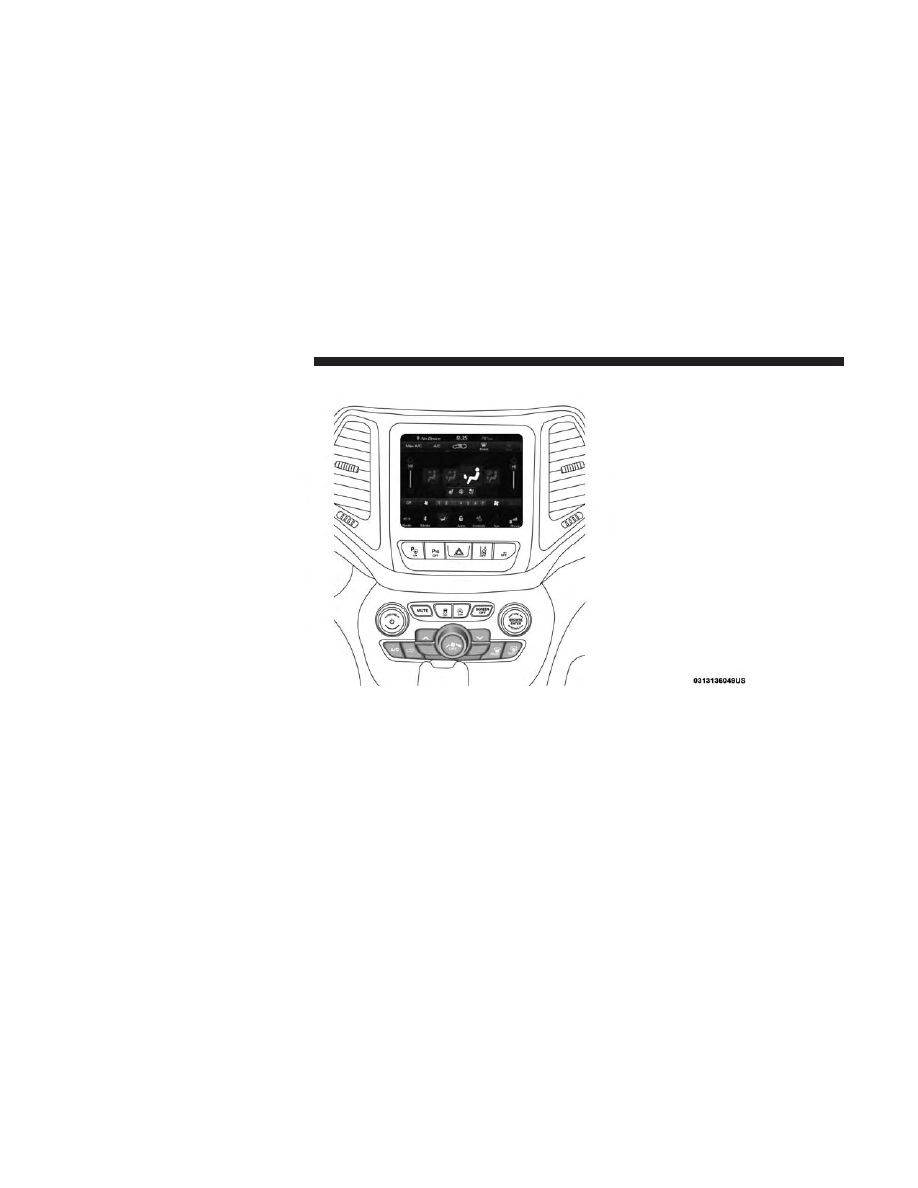

Uconnect 4 With 7–inch Display With Automatic Temperature Controls

GETTING TO KNOW YOUR VEHICLE

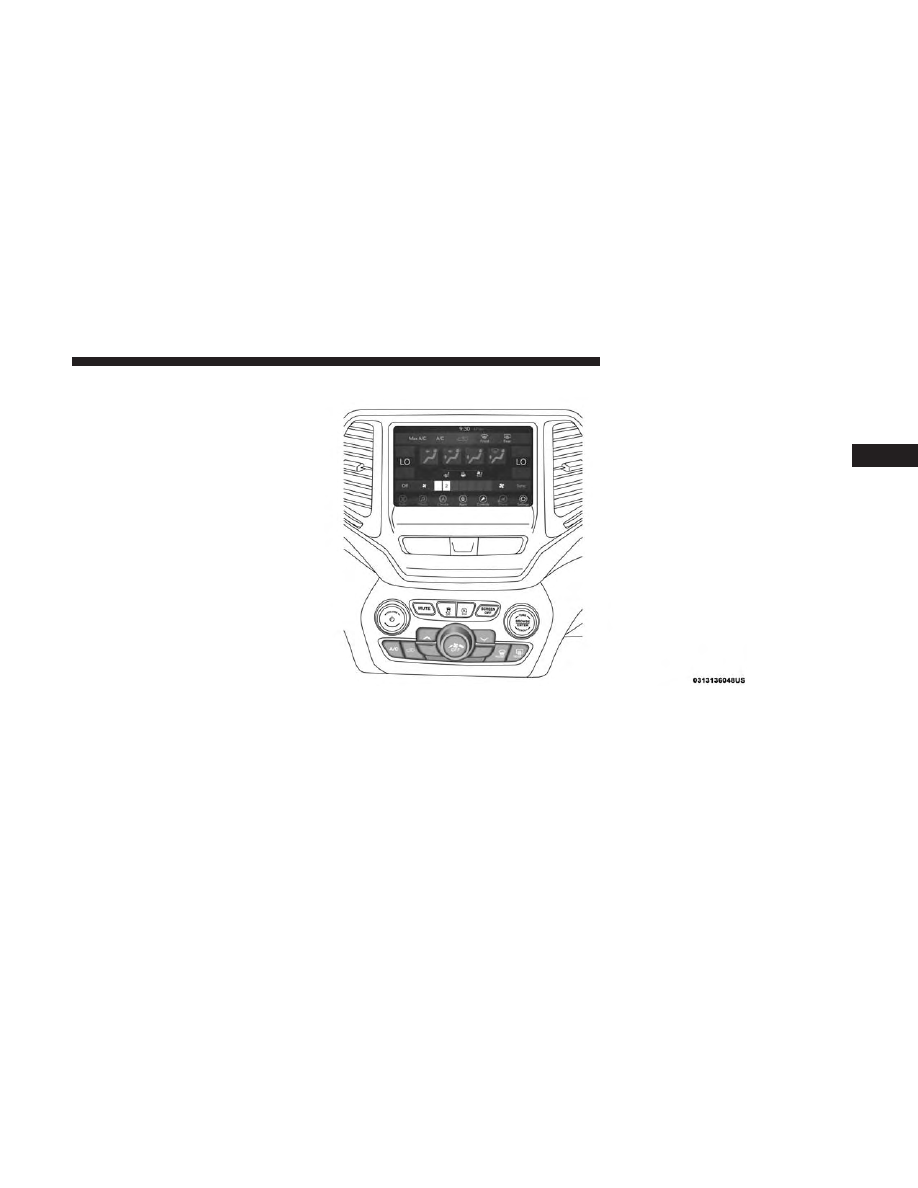

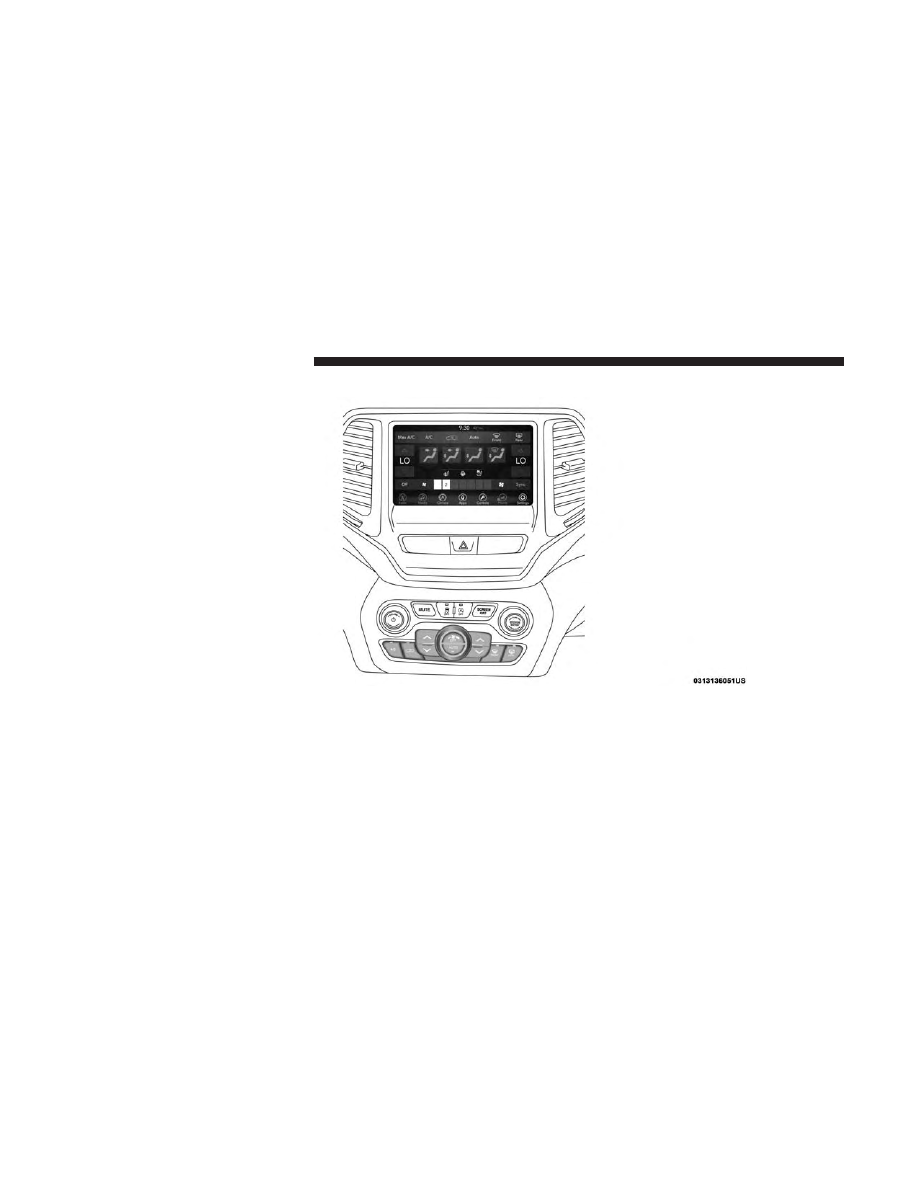

Uconnect 4C/4C NAV With 8.4–inch Display With Automatic Temperature Controls

GETTING TO KNOW YOUR VEHICLE

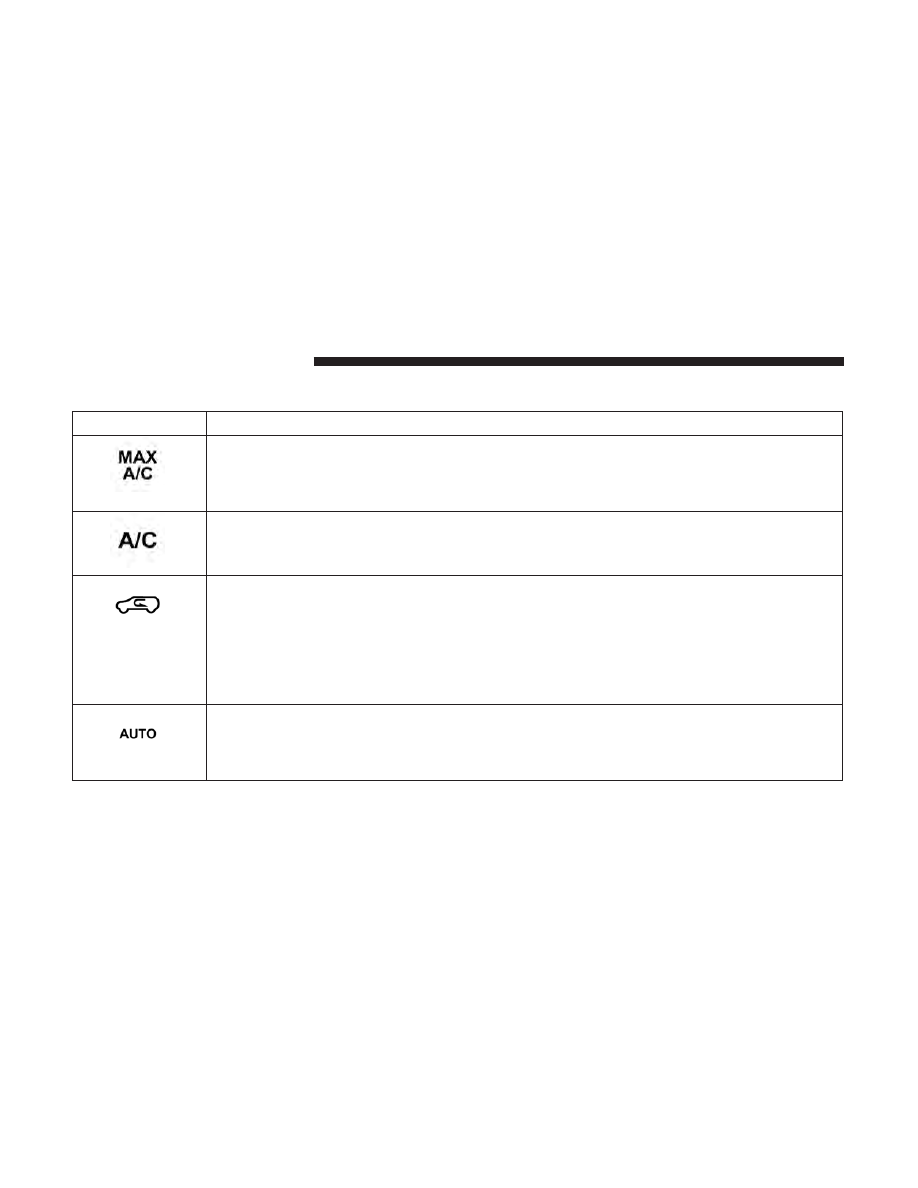

Climate Control With A Touchscreen Descriptions

Icon

Description

MAX A/C Button
Press and release to change the current setting, the indicator illuminates when MAX A/C is on.
Performing this function again will cause the MAX A/C operation to switch into manual mode
and the MAX A/C indicator will turn off.
A/C Button
Press and release to change the current setting, the indicator illuminates when A/C is on.

Recirculation Button
Press and release this button on the touchscreen, or push the button on the faceplate, to change
the system between recirculation mode and outside air mode. Recirculation can be used when
outside conditions, such as smoke, odors, dust, or high humidity are present. Recirculation can
be used in all modes. The A/C can be deselected manually without disturbing the mode control
selection. Continuous use of the Recirculation mode may make the inside air stuffy and window
fogging may occur. Extended use of this mode is not recommended.
AUTO Button — If Equipped
Automatically controls the interior cabin temperature by adjusting airflow distribution and
amount. Toggling this button will cause the system to switch between manual mode and auto-
matic modes. Refer to “Automatic Operation” in this section for more information.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

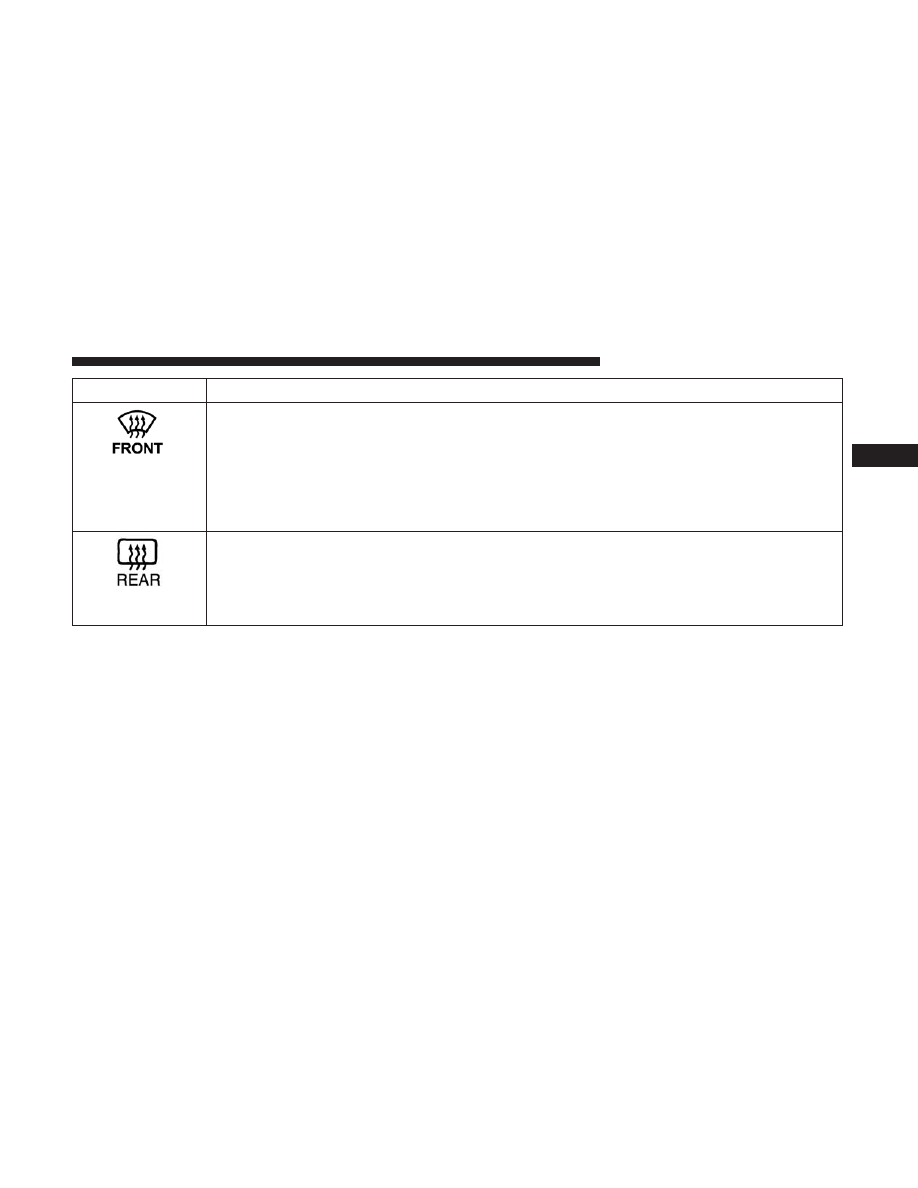

Front Defrost Button
Press and release the touchscreen button, or push and release the button on the faceplate, to
change the current airflow setting to Defrost mode. The indicator illuminates when this feature
is on. Air comes from the windshield and side window demist outlets. When the defrost button
is selected, the blower level may increase. Use Defrost mode with maximum temperature set-
tings for best windshield and side window defrosting and defogging. When toggling the front
defrost mode button, the climate system will return to the previous setting.
Rear Defrost Button
Push and release the button on the touchscreen, or push and release the button on the faceplate,
to turn on the rear window defroster and the heated outside mirrors (if equipped). An indicator
will illuminate when the rear window defroster is on. The rear window defroster automatically
turns off after ten minutes.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

Uconnect 3

Uconnect 4/4C/4C

NAV

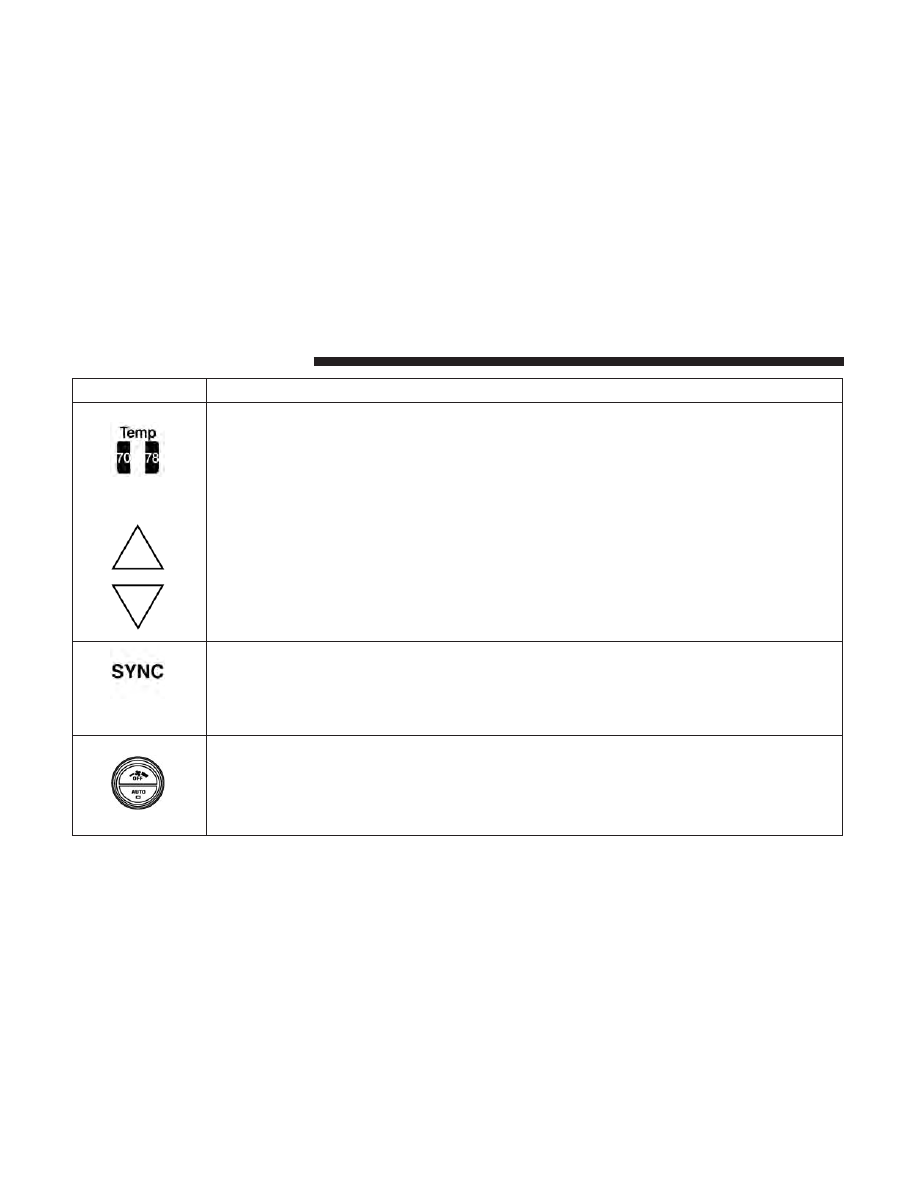

Driver and Passenger Temperature Up and Down Buttons
Provides the driver and passenger with independent temperature control. Push the red button
on the faceplate or touchscreen or press and slide the temperature bar towards the red arrow
button on the touchscreen for warmer temperature settings. Push the blue button on the face-
plate or touchscreen or press and slide the temperature bar towards the blue arrow button on
the touchscreen for cooler temperature settings.

NOTE:

The numbers within the temperature display will only appear if the system is equipped

with an automatic climate control system.

SYNC Button — If Equipped
Press the SYNC button on the touchscreen to toggle the SYNC feature on/off. The SYNC indica-
tor is illuminated when this feature is enabled. SYNC is used to synchronize the passenger tem-
perature setting with the driver temperature setting. Changing the passenger’s temperature set-
ting while in SYNC will automatically exit this feature.

Faceplate Knob

Touchscreen

Blower Control
Blower Control is used to regulate the amount of air forced through the climate system. There
are seven blower speeds available. Adjusting the blower will cause automatic mode to switch to
manual operation. The speeds can be selected using either the blower control knob on the face-
plate or the buttons on the touchscreen.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

Buttons

• Faceplate: The blower speed increases as you turn the blower control knob clockwise from

the lowest blower setting. The blower speed decreases as you turn the blower control knob
counterclockwise.

• Touchscreen: Use the small blower icon to reduce the blower setting and the large blower

icon to increase the blower setting. Blower can also be selected by pressing the blower bar
area between the icons.

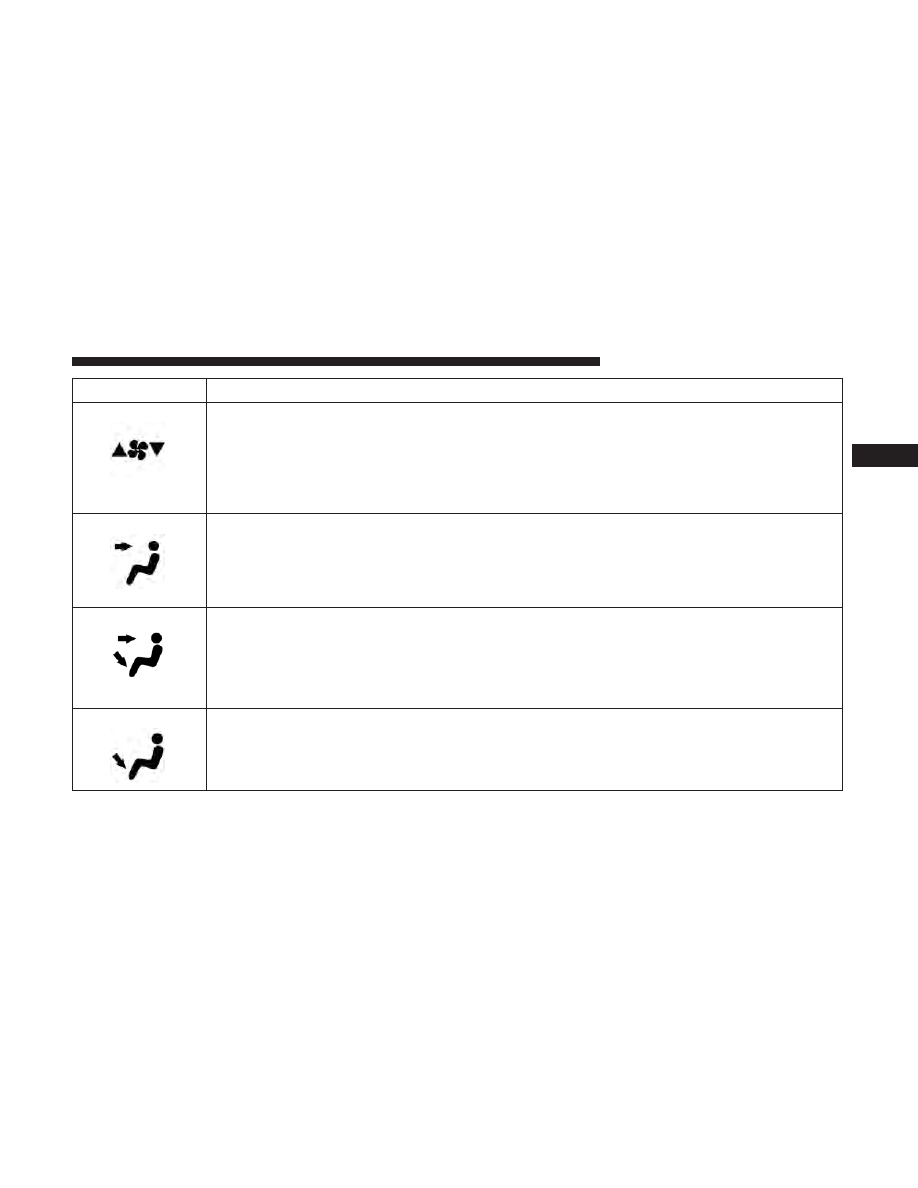

Panel Mode

Panel Mode
Air comes from the outlets in the instrument panel. Each of these outlets can be individually
adjusted to direct the flow of air. The air vanes of the center outlets and outboard outlets can be
moved up and down or side to side to regulate airflow direction. There is a shut off wheel lo-
cated below the air vanes to shut off or adjust the amount of airflow from these outlets.

Bi-Level Mode

Bi-Level Mode
Air comes from the instrument panel outlets and floor outlets. A slight amount of air is directed
through the defrost and side window demister outlets.

NOTE:

Bi-Level mode is designed under comfort conditions to provide cooler air out of the

panel outlets and warmer air from the floor outlets.

Floor Mode

Floor Mode
Air comes from the floor outlets. A slight amount of air is directed through the defrost and side
window demister outlets.

GETTING TO KNOW YOUR VEHICLE

Icon

Description

Mix Mode

Mix Mode
Air is directed through the floor, defrost, and side window demister outlets. This setting works
best in cold or snowy conditions that require extra heat to the windshield. This setting is good
for maintaining comfort while reducing moisture on the windshield.

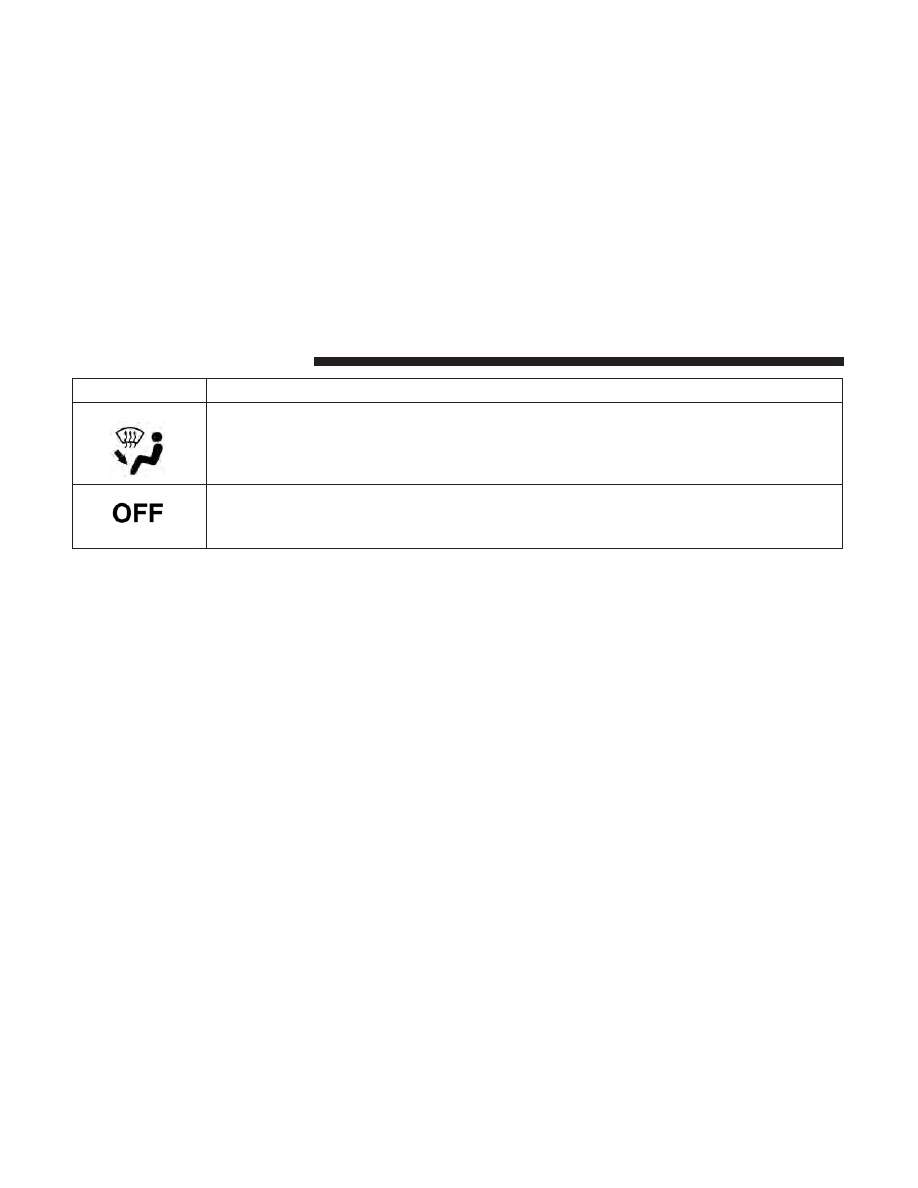

Climate Control OFF Button
Press and release this button to turn the Climate Controls off.

Climate Control Functions

A/C (Air Conditioning)

The Air Conditioning (A/C) button allows the operator to
manually activate or deactivate the air conditioning sys-
tem. When the air conditioning system is turned on, cool
dehumidified air will flow through the outlets into the
cabin. For improved fuel economy, press the A/C button to
turn off the air conditioning and manually adjust the
blower and airflow mode settings. Also, make sure to select
only Panel, Bi-Level, or Floor modes.

NOTE:
• If fog or mist appears on the windshield or side glass,

select Defrost mode, and increase blower speed if
needed.

• If your air conditioning performance seems lower than

expected, check the front of the A/C condenser (located
in front of the radiator), for an accumulation of dirt or
insects. Clean with a gentle water spray from the front of
the radiator and through the condenser.

GETTING TO KNOW YOUR VEHICLE

MAX A/C

MAX A/C sets the control for maximum cooling perfor-
mance.

Press and release to toggle between MAX A/C and the
prior settings. The button illuminates when MAX A/C is
on.

In MAX A/C, the blower level and mode position can be
adjusted to desired user settings. Pressing other settings
will cause the MAX A/C operation to switch to the selected
setting and MAX A/C to exit.

Recirculation

In cold weather, use of Recirculation mode may lead to
excessive window fogging. The Recirculation feature may
be unavailable (button on the touchscreen greyed out) if
conditions exist that could create fogging on the inside of
the windshield.

On systems with Manual Climate Controls, the Recircula-
tion mode is not allowed in Defrost mode to improve
window clearing operation. Recirculation is disabled auto-
matically if this mode is selected. Attempting to use
Recirculation while in this mode causes the LED in the
control button to blink and then turns off.

Automatic Temperature Control (ATC) — If
Equipped

Automatic Operation

1. Push the AUTO button on the faceplate, or the AUTO

button on the touchscreen on the Automatic Tempera-
ture Control (ATC) Panel.

2. Next, adjust the temperature you would like the system

to maintain by adjusting the driver and passenger
temperature control buttons. Once the desired tempera-
ture is displayed, the system will achieve and automati-
cally maintain that comfort level.

3. When the system is set up for your comfort level, it is

not necessary to change the settings. You will experience
the greatest efficiency by simply allowing the system to
function automatically.

GETTING TO KNOW YOUR VEHICLE

NOTE:
• It is not necessary to move the temperature settings for

cold or hot vehicles. The system automatically adjusts
the temperature, mode, and blower speed to provide
comfort as quickly as possible.

• The temperature can be displayed in U.S. or Metric units

by selecting the US/Metric customer-programmable fea-
ture. Refer to the “Uconnect Settings” in “Multimedia”
for further information.

To provide you with maximum comfort in the Automatic
mode during cold start-ups, the blower fan will remain on
low until the engine warms up. The blower will increase in
speed and transition into Auto mode.

Manual Operation Override

This system offers a full complement of manual override
features. The AUTO symbol in the front ATC display will
be turned off when the system is being used in the manual
mode.

Operating Tips

NOTE:

Refer to the chart at the end of this section for

suggested control settings for various weather conditions.

Summer Operation

The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corrosion
protection and to protect against engine overheating. OAT
coolant (conforming to MS.90032) is recommended.

Winter Operation

To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is functioning
properly and the proper amount, type, and concentration
of coolant is used. Use of the Air Recirculation mode
during Winter months is not recommended, because it may
cause window fogging.

Vacation/Storage

Before you store your vehicle, or keep it out of service (i.e.,
vacation) for two weeks or more, run the air conditioning
system at idle for about five minutes, in fresh air with the
blower setting on high. This will ensure adequate system
lubrication to minimize the possibility of compressor dam-
age when the system is started again.

GETTING TO KNOW YOUR VEHICLE

Window Fogging

Vehicle windows tend to fog on the inside in mild, rainy,
and/or humid weather. To clear the windows, select De-
frost or Mix mode and increase the front blower speed. Do
not use the Recirculation mode without A/C for long
periods, as fogging may occur.

CAUTION!

Failure to follow these cautions can cause damage to
the heating elements:
• Use care when washing the inside of the rear win-

dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and a
mild washing solution, wiping parallel to the heat-
ing elements. Labels can be peeled off after soaking
with warm water.

• Do not use scrapers, sharp instruments, or abrasive

window cleaners on the interior surface of the win-
dow.

• Keep all objects a safe distance from the window.

Outside Air Intake

Make sure the air intake, located directly in front of the
windshield, is free of obstructions, such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
Winter months, make sure the air intake is clear of ice,
slush, and snow.

Cabin Air Filter

The climate control system filters out dust and pollen from
the air. Contact an authorized dealer to service your cabin
air filter, and to have it replaced when needed.

GETTING TO KNOW YOUR VEHICLE

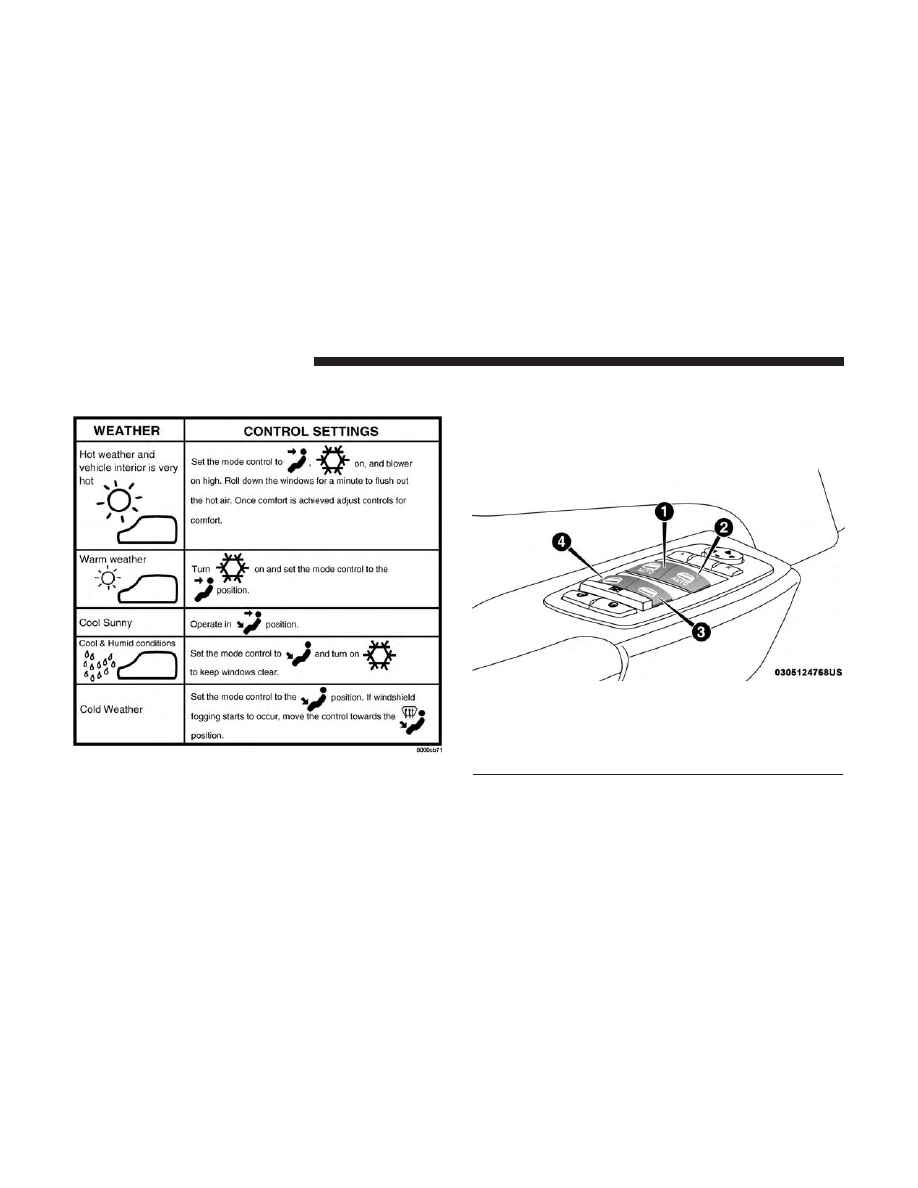

Operating Tips Chart

WINDOWS

Power Window Controls

The window controls on the driver’s door control all the
door windows.

Power Window Switches

1 — Front Driver’s Side Power Window Switch
2 — Front Passenger’s Side Power Window Switch
3 — Rear Passenger’s Side Power Window Switch
4 — Rear Driver’s Side Power Window Switch

GETTING TO KNOW YOUR VEHICLE

There are single window controls on each passenger door
trim panel, which operate the passenger door windows.
The window controls will operate only when the ignition is
in the ACC or ON/RUN position.

NOTE:

For vehicles equipped with the Uconnect, the

power window switches will remain active for up to 10
minutes after the ignition is cycled to the OFF position.
Opening either front door will cancel this feature. The time
is programmable. Refer to “Uconnect Settings” in “Multi-
media” for further information.

WARNING!

Never leave children unattended in a vehicle, and do not
let children play with power windows. Do not leave the
key fob in or near the vehicle, or in a location accessible
to children, and do not leave the ignition of a vehicle
equipped with Keyless Enter-N-Go in the ACC or ON/
RUN mode. Occupants, particularly unattended chil-
dren, can become entrapped by the windows while
operating the power window switches. Such entrapment
may result in serious injury or death.

Auto-Down Feature

The driver door power window switch and the front and
rear passenger doors window switches have an Auto-
Down feature.

Push the window switch down for half a second and
release. The window will go down automatically.

To stop the window from going all the way down during
the Auto-Down operation, pull up or push down on the
switch briefly.

To open the window part way (manually), push the
window switch down briefly and release.

Auto-Up Feature With Anti-Pinch Protection

Lift the window switch up, for a short period of time, and
release and the window will go up automatically.

To stop the window from going all the way up during the
Auto-Up operation, push down on the switch briefly.

To close the window part way, lift the window switch
briefly and release it when you want the window to stop.

GETTING TO KNOW YOUR VEHICLE

Content .. 4 5 6 7 ..
