Jeep Cherokee (2019 year). Instruction

Programming The Memory Feature

To create a new memory profile, perform the following:

NOTE:

Saving a new memory profile will erase an existing

profile from memory.

1. Cycle the vehicle’s ignition to the ON/RUN position.

2. Adjust all memory profile settings to desired prefer-

ences (i.e., seat, side mirror and radio station presets).

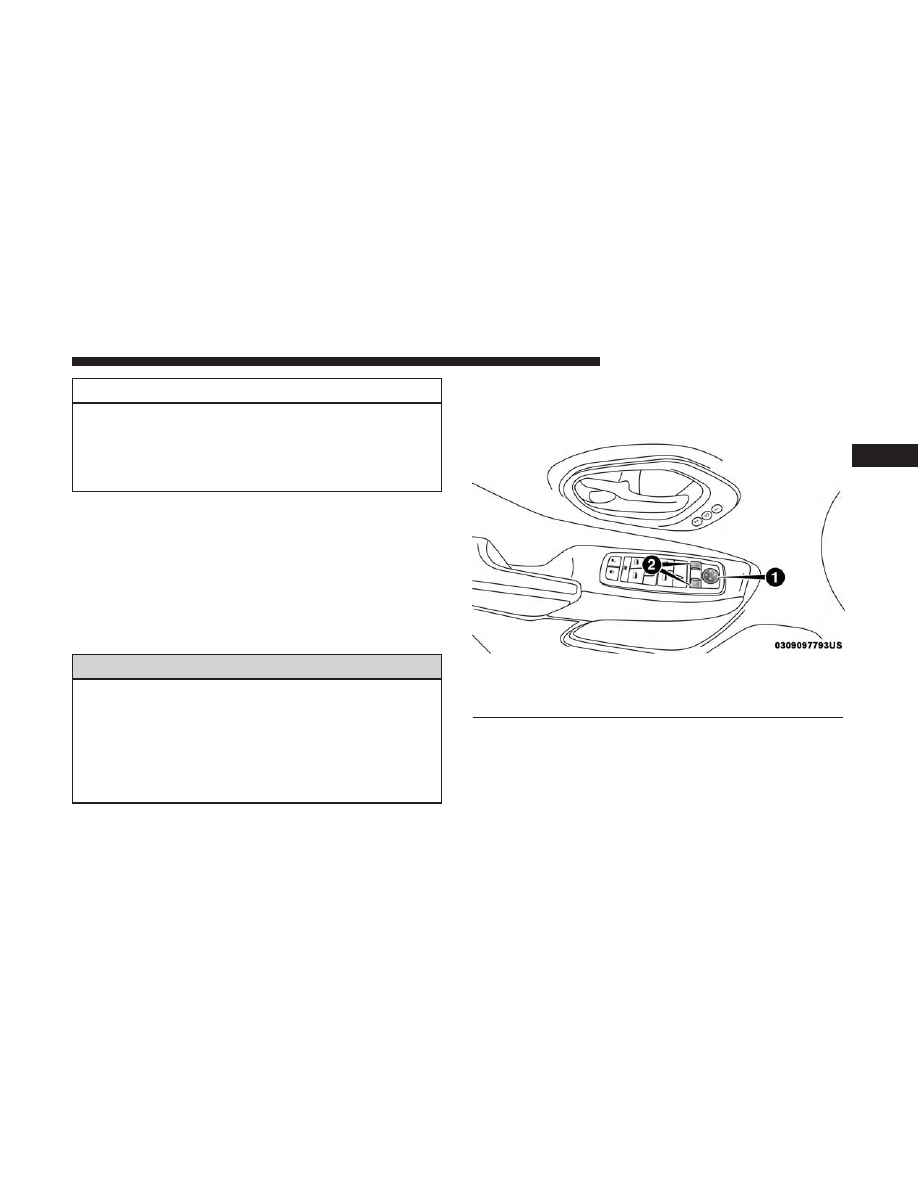

3. Push and release the set (S) button on the memory

switch, then push memory button (1) within five sec-
onds. The instrument cluster display will display which
memory position is being set.

If desired, a second memory profile can be stored into
memory as follows:

1. Cycle the vehicle’s ignition to the ON/RUN position.

2. Adjust all memory profile settings to desired prefer-

ences (i.e., seat, side mirror and radio station presets).

3. Push and release the set (S) button on the memory

switch, then push memory button (2) within five sec-
onds. The instrument cluster display will display which
memory position is being set.

NOTE:
• Memory profiles can be set without the vehicle in PARK,

but the vehicle must be in PARK to recall a memory
profile.

• To set a memory profile to your key fob, refer to

“Linking And Unlinking The Remote Keyless Entry Key
Fob To Memory” in this section.

Linking And Unlinking The Remote Keyless Entry
Key Fob To Memory

Your remote keyless entry key fob can be programmed to
recall one of two pre-programmed memory profiles with a
push of the unlock button on the key fob.

NOTE:

Before programming your key fob you must select

the “Personal Settings Linked to Key Fob” feature through
the Uconnect system screen.

Refer to “Uconnect Settings” in “Multimedia” for further
information.

To program your key fob, perform the following:

1. Cycle the vehicle’s ignition to the OFF position.

2. Select the desired memory profile 1 or 2.

GETTING TO KNOW YOUR VEHICLE

NOTE:

If a memory profile has not already been set, refer

⬙Programming The Memory Feature⬙ in this section for

instructions on how to set a memory profile.

3. Push and release the set (S) button on the memory switch,

then within five seconds push and release the button
labeled (1) or (2) accordingly. “Memory Profile Set” (1 or
2) will display in the instrument cluster display.

4. Push and release the lock button on the key fob within

10 seconds.

NOTE:

Your key fob can be unlinked to your memory

settings by pushing the set (S) button, followed by pushing
the unlock button on the key fob within 10 seconds.

Memory Position Recall

NOTE:

The vehicle must be in PARK to recall memory

positions. If a recall is attempted when the vehicle is not in
PARK, a message will display in the instrument cluster
display.
• To recall the memory settings for driver one, push

memory button number (1) or the unlock button on the
key fob linked to memory position 1.

• To recall the memory settings for driver two, push

memory button number (2) or the unlock button on the
key fob linked to memory position 2.

A recall can be canceled by pushing any of the memory
buttons (S, 1, or 2) during a recall. When a recall is
canceled, the driver seat will stop moving. A delay of one
second will occur before another recall can be selected.

Easy Entry/Exit Seat — If Equipped

This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle.

The distance the driver seat moves depends on where you
have the driver seat positioned when you cycle the vehi-
cle’s ignition to the OFF position.
• When you cycle the vehicle’s ignition to the OFF posi-

tion, the driver seat will move about 2.4 inches (60 mm)
rearward if the driver seat position is greater than or
equal to 2.7 inches (67.7 mm) forward of the rear stop.
The seat will return to its previously set position when
you cycle the vehicle’s ignition to the ACC or RUN
position.

• The Easy Entry/Easy Exit feature is disabled when the

driver seat position is less than 0.9 of an inch (22.7 mm)
forward of the rear stop. At this position, there is no
benefit to the driver by moving the seat for Easy Exit or
Easy Entry.

GETTING TO KNOW YOUR VEHICLE

Each stored memory setting will have an associated Easy
Entry and Easy Exit position.

NOTE:

The Easy Entry/Exit feature is not enabled when

the vehicle is delivered from the factory. The Easy Entry/
Exit feature is enabled (or later disabled) through the
programmable features in the Uconnect system.

Refer to “Uconnect Settings/Customer Programmable Fea-
tures” in “Multimedia” for further information.

Heated Seats — If Equipped

On some models, the front and rear seats may be equipped
with heaters located in the seat cushions and seat backs.

WARNING!

• Persons who are unable to feel pain to the skin

because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time.

(Continued)

WARNING! (Continued)

• Do not place anything on the seat or seatback that

insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting in a
seat that has been overheated could cause serious burns
due to the increased surface temperature of the seat.

Front Heated Seats — If Equipped

The front heated seats control buttons are located within
the Uconnect system. You can gain access to the control
buttons through the climate screen or the controls screen.
• Press the heated seat button

once to turn the HI

setting on.

• Press the heated seat button

a second time to turn

the LO setting on.

• Press the heated seat button

a third time to turn the

heating elements off.

If the HI-level setting is selected, the system will automati-
cally switch to LO-level after approximately 60 minutes of
continuous operation. At that time, the display will change
from HI to LO, indicating the change. The LO-level setting
will turn off automatically after approximately 45 minutes.

GETTING TO KNOW YOUR VEHICLE

NOTE:

The engine must be running for the heated seats to

operate.

Vehicles Equipped With Remote Start

On models that are equipped with remote start, the heated
seats can be programmed to come on during a remote start.

This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.

WARNING!

• Persons who are unable to feel pain to the skin

• Do not place anything on the seat or seatback that

insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting in
a seat that has been overheated could cause serious
burns due to the increased surface temperature of the
seat.

Rear Heated Seats — If Equipped

On some models, the two outboard rear seats are equipped
with heated seats. The heated seat switches for these seats
are located on the rear of the center console.

There are two heated seat switches that allow the rear
passengers to operate the seats independently. Amber
indicator lights in each switch indicate the level of heat in
use. Two indicator lights will illuminate for HI, one for LO
and none for OFF.
• Push the heated seat button

once to turn the HI

setting on.

• Push the heated seat button

a second time to turn

the LO setting on.

• Push the heated seat button

a third time to turn the

heating elements off.

NOTE:
• Once a heat setting is selected, heat will be felt within

two to five minutes.

• The engine must be running for the heated seats to

operate.

GETTING TO KNOW YOUR VEHICLE

When the HI-level setting is selected, the heater will
provide a boosted heat level during the first four minutes
of operation. Then, the heat output will drop to the normal
HI-level. If the HI-level setting is selected, the system will
automatically switch to LO-level after approximately 60
minutes of continuous operation. At that time, the number
of illuminated LEDs changes from two to one, indicating
the change. The LO-level setting will turn OFF automati-
cally after approximately 45 minutes.

Front Ventilated Seats — If Equipped

Located in the seat cushion and seat back are fans that
draw the air from the passenger compartment and move
air through fine perforations in the seat cover to help keep
the driver and front passenger cooler in higher ambient
temperatures. The fans operate at two speeds, HI and LO.

The front ventilated seats control buttons are located
within the Uconnect system. You can gain access to the
control buttons through the climate screen or the controls
screen.
• Press the ventilated seat button

once to choose HI.

• Press the ventilated seat button

a second time to

choose LO.

• Press the ventilated seat button

a third time to turn

the ventilated seat off.

NOTE:

The engine must be running for the ventilated seats

to operate.

Vehicles Equipped With Remote Start

On models that are equipped with remote start, the venti-
lated seats can be programmed to come on during a remote
start.

This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.

60/40 Split Folding Rear Seat With Fold-Flat
Feature

To provide additional storage area, each rear seat can be
folded flat. This allows for extended cargo space and still
maintains some rear seating room.

NOTE:

Prior to folding the rear seat, it may be necessary to

position the front seat to its mid-track position. Also, be
sure that the front seats are fully upright and positioned
forward. This will allow the rear seat to fold down easily.

GETTING TO KNOW YOUR VEHICLE

WARNING!

• It is extremely dangerous to ride in a cargo area,

inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.

• Do not allow people to ride in any area of your

vehicle that is not equipped with seats and seat belts.

• Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

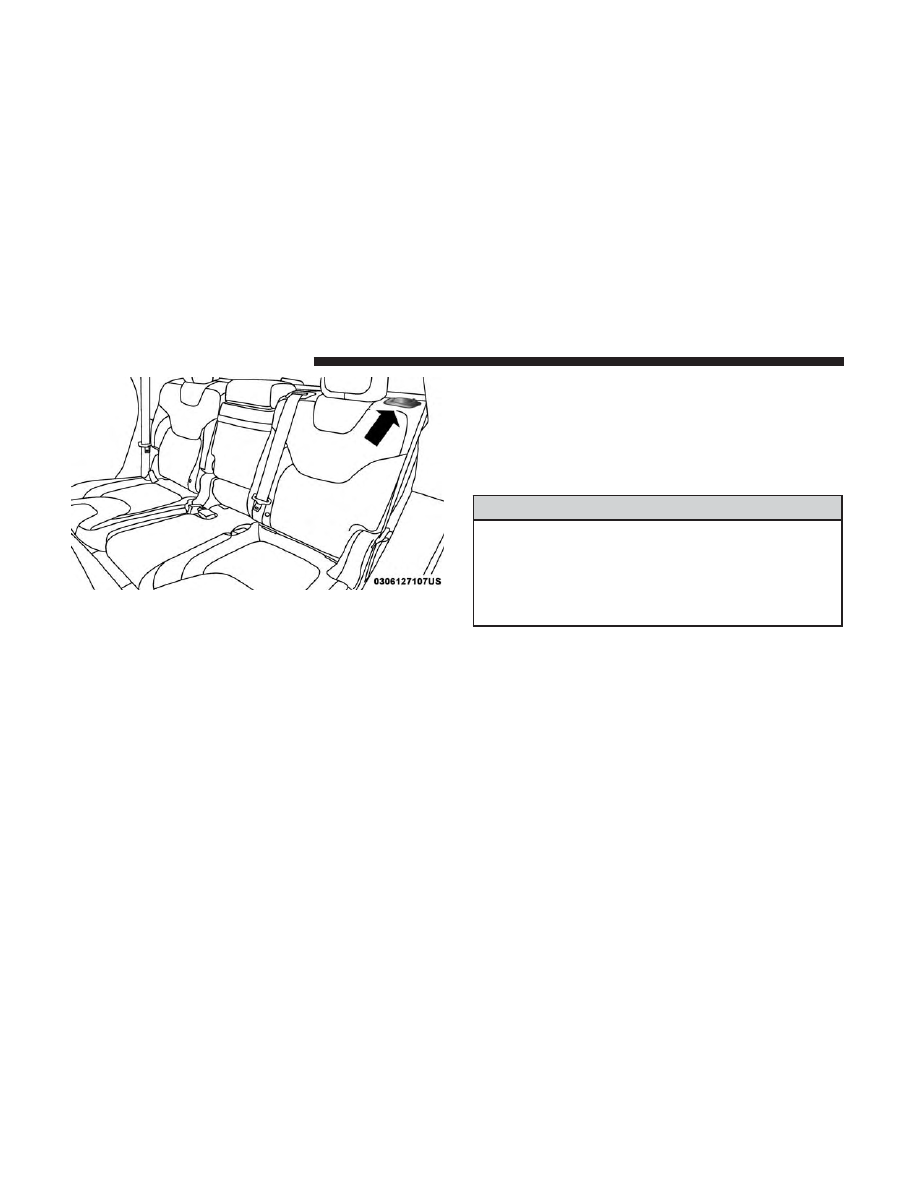

To Lower The Rear Seat

1. Lift the seatback release lever located on the upper outer

edge of the seat. If your vehicle is equipped with a
sliding rear seat, you can also pull the pull strap located
on the middle outer edge of the seat.

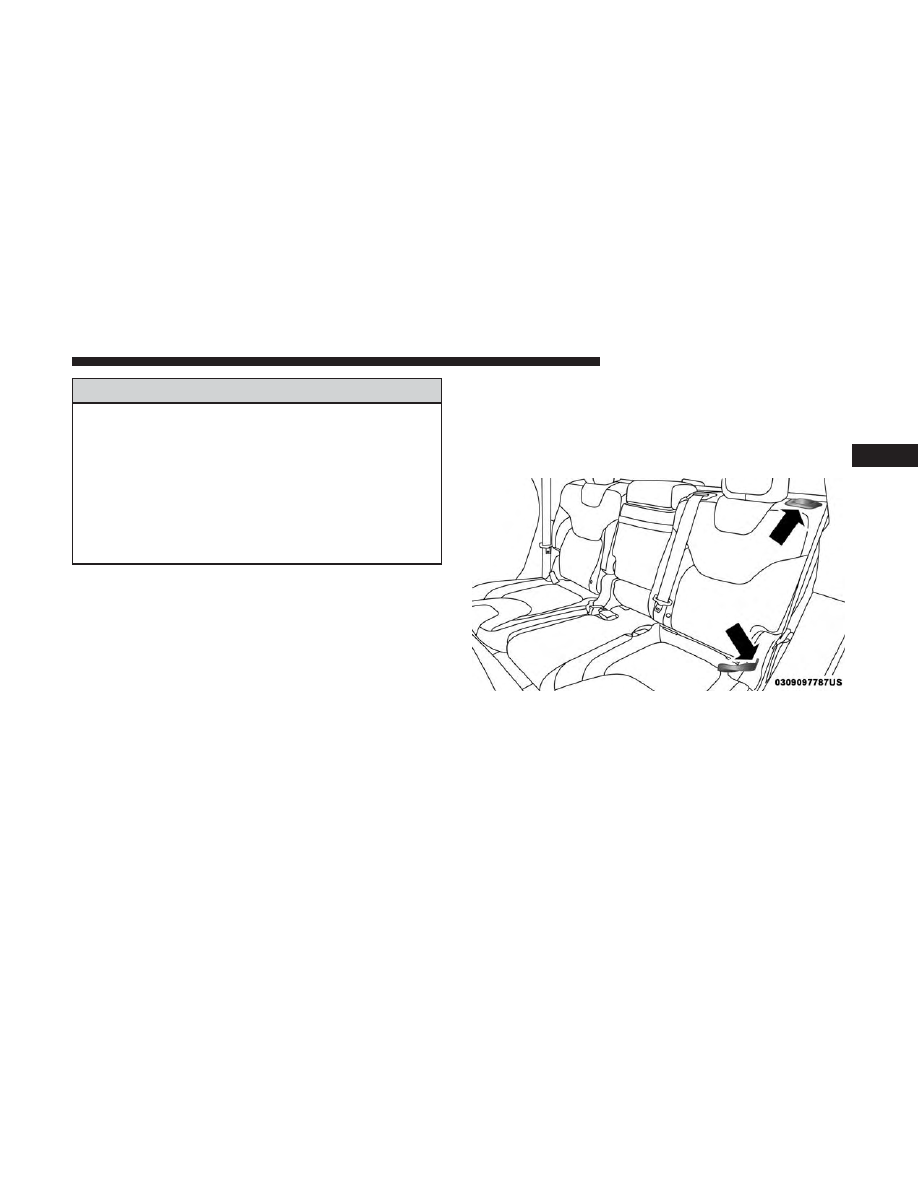

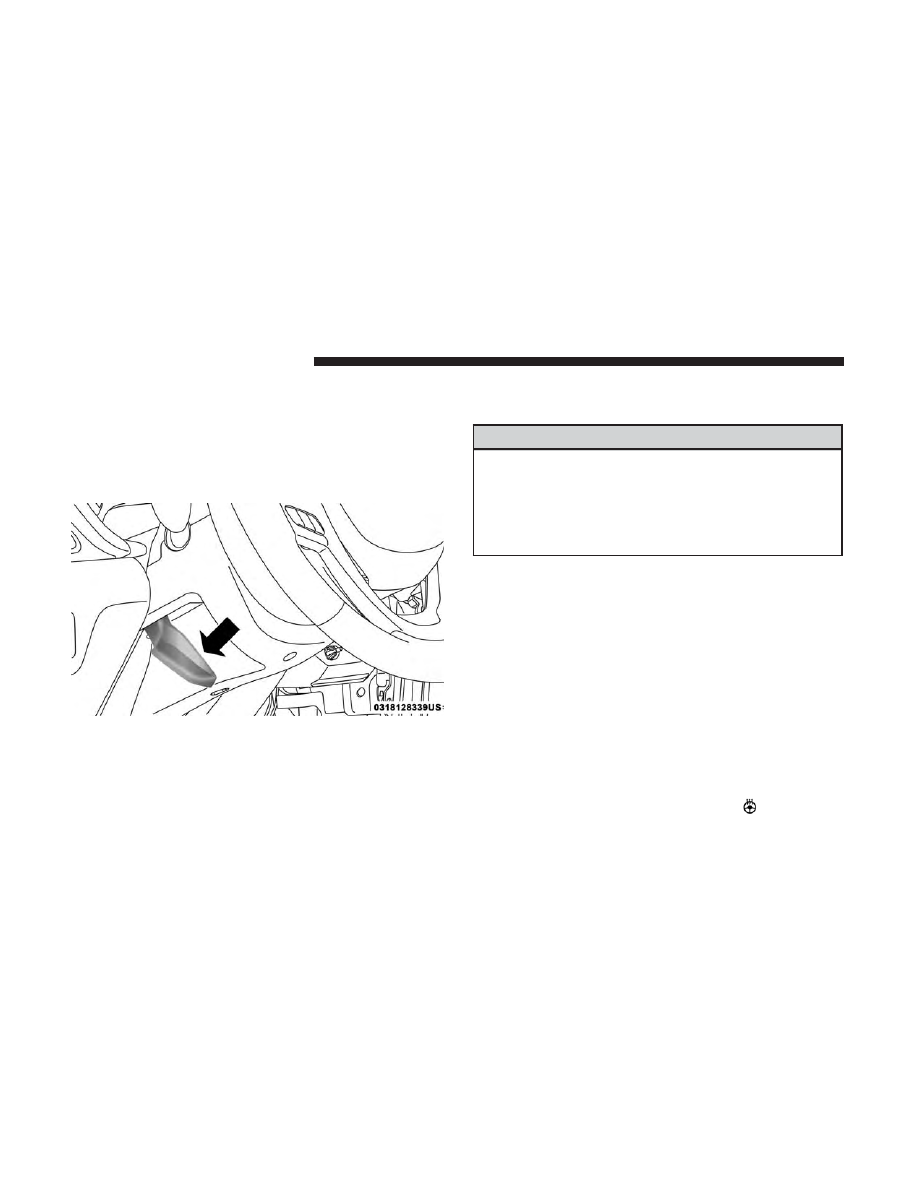

Rear Sliding Seat Release Lever And Pull Strap

GETTING TO KNOW YOUR VEHICLE

2. Fold the rear seatback completely forward.

NOTE:

You may experience deformation in the seat cush-

ion from the seat belt buckles if the seats are left folded for
an extended period of time. This is normal and by simply
placing the seats to the open position, over time the seat
cushion will return to its normal shape.

To Raise The Rear Seat

NOTE:

If interference from the cargo area prevents the

seatback from fully locking, you will have difficulty return-
ing the seat to its proper position.

Raise the seatback and lock it into place.

WARNING!

Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.

HEAD RESTRAINTS

Head restraints are designed to reduce the risk of injury by
restricting head movement in the event of a rear impact.
Head restraints should be adjusted so that the top of the
head restraint is located above the top of your ear.

Rear Fixed Seat Release Lever

GETTING TO KNOW YOUR VEHICLE

WARNING!

• All occupants, including the driver, should not oper-

ate a vehicle or sit in a vehicle’s seat until the head
restraints are placed in their proper positions in
order to minimize the risk of neck injury in the event
of a crash.

• Head restraints should never be adjusted while the

vehicle is in motion. Driving a vehicle with the head
restraints improperly adjusted or removed could
cause serious injury or death in the event of a
collision.

NOTE:

Do not reverse the head restraints (making the rear

of the head restraint face forward) in an attempt to gain
additional clearance to the back of your head.

Reactive Head Restraints — Front Seats

The front driver and passenger seats are equipped with
Reactive Head Restraints (RHR). In the event of a rear
impact, the RHRs will automatically extend forward mini-
mizing the gap between the back of the occupant’s head
and the RHR.

The RHRs will automatically return to their normal posi-
tion following a rear impact. If the RHRs do not return to
their normal position, see your authorized dealer immedi-
ately.

To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, push the adjustment
button, located at the base of the head restraint, and push
downward on the head restraint.

NOTE:

To remove the head restraint, raise it as far as it can

go. Then, push the release button and the adjustment
button at the base of each post while pulling the head
restraint up. Seatback angle may need to be adjusted to
fully remove the head restraint. To reinstall the head
restraint, put the head restraint posts into the holes and
push downward. Then adjust the head restraint to the
appropriate height.

GETTING TO KNOW YOUR VEHICLE

WARNING!

• A loose head restraint thrown forward in a collision

or hard stop could cause serious injury or death to
occupants of the vehicle. Always securely stow re-
moved head restraints in a location outside the
occupant compartment.

(Continued)

WARNING! (Continued)

• ALL the head restraints MUST be reinstalled in the

vehicle to properly protect the occupants. Follow the
re-installation instructions above prior to operating
the vehicle or occupying a seat.

• Do not place items over the top of the Reactive Head

Restraint, such as coats, seat covers or portable DVD
players. These items may interfere with the opera-
tion of the Reactive Head Restraint in the event of a
collision and could result in serious injury or death.

Rear Head Restraints

The rear outboard and center head restraints have two
positions: up and down. When the center seat is being
occupied the head restraint should be in the raised posi-
tion. When there is no occupant in the center seat, the head
restraint can be lowered for maximum visibility for the
driver.

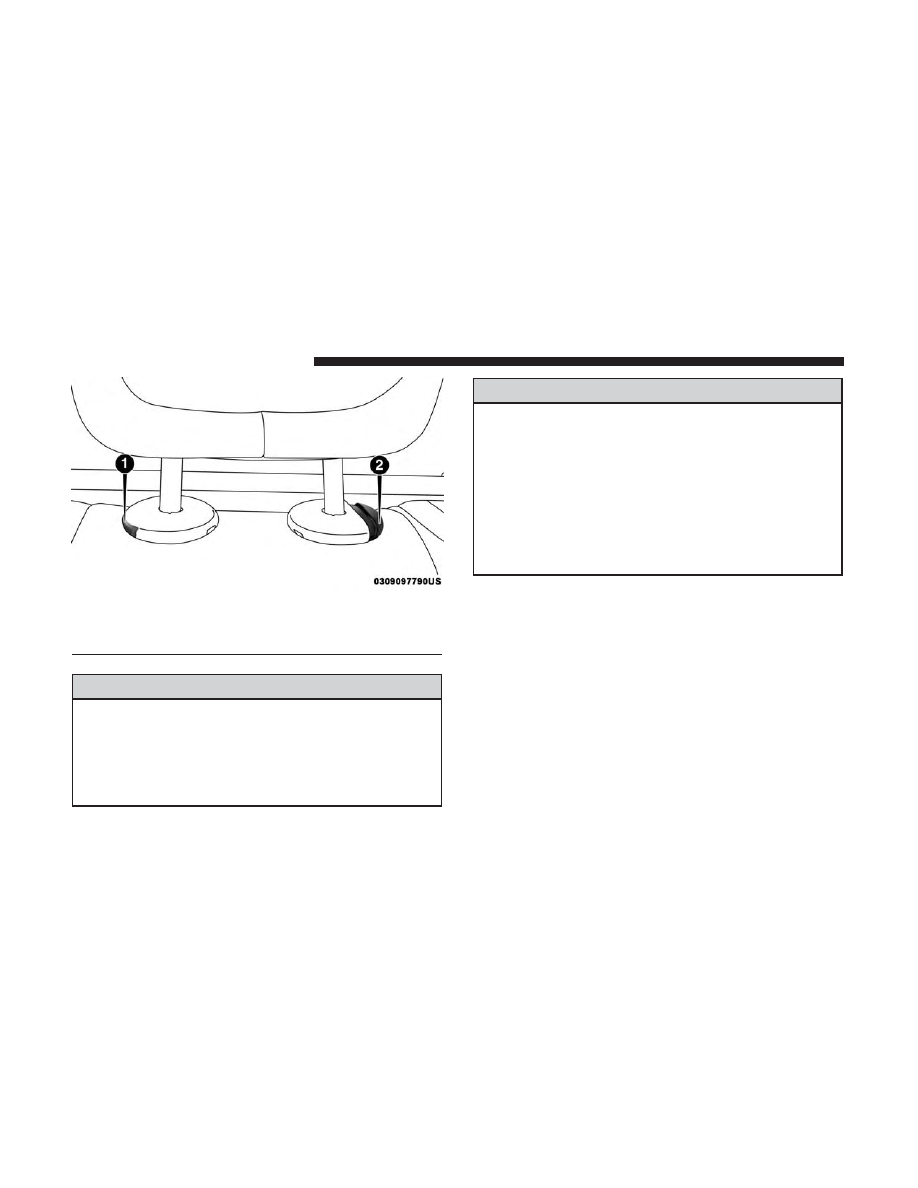

Front Head Restraint

1 — Release Button
2 — Adjustment Button

GETTING TO KNOW YOUR VEHICLE

NOTE:

To remove the head restraint, raise it as far as it can

go. Then, push the release button and the adjustment
button at the base of each post while pulling the head
restraint up. To reinstall the head restraint, put the head
restraint posts into the holes and push downward. Then,
adjust the head restraint to the appropriate height.

WARNING!

ALL the head restraints MUST be reinstalled in the
vehicle to properly protect the occupants. Follow the
re-installation instructions above prior to operating the
vehicle or occupying a seat.

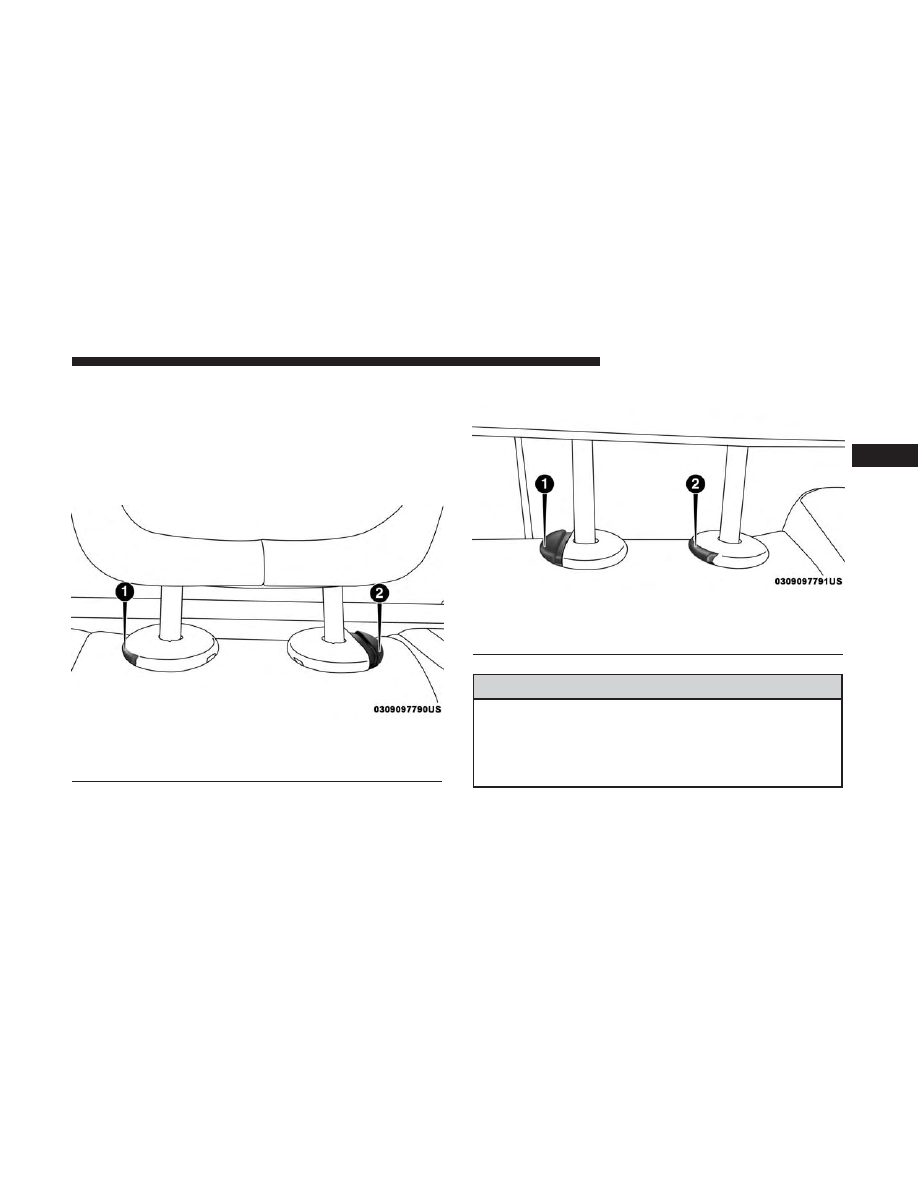

Outboard Head Restraint

1 — Release Button
2 — Adjustment Button

Center Head Restraint

1 — Adjustment Button
2 — Release Button

GETTING TO KNOW YOUR VEHICLE

STEERING WHEEL

Tilt/Telescoping Steering Column

This feature allows you to tilt the steering column upward
or downward. It also allows you to lengthen or shorten the
steering column. The tilt/telescoping lever is located below
the steering wheel at the end of the steering column.

To unlock the steering column, push the control handle
downward (toward the floor). To tilt the steering column,
move the steering wheel upward or downward as desired.
To lengthen or shorten the steering column, pull the
steering wheel outward or push it inward as desired. To

lock the steering column in position, push the control
handle upward until fully engaged.

WARNING!

Do not adjust the steering column while driving.
Adjusting the steering column while driving or driv-
ing with the steering column unlocked, could cause the
driver to lose control of the vehicle. Failure to follow
this warning may result in serious injury or death.

Heated Steering Wheel — If Equipped

The steering wheel contains a heating element that helps
warm your hands in cold weather. The heated steering
wheel has only one temperature setting. Once the heated
steering wheel has been turned on, it will stay on for an
average of 80 minutes before automatically shutting off.
This time will vary based on environmental temperatures.
The heated steering wheel can shut off early or may not
turn on when the steering wheel is already warm.

The heated steering wheel control button is located within
the Uconnect system. You can gain access to the control
button through the climate screen or the controls screen.
• Press the heated steering wheel button

once to turn

the heating element on.

Tilt/Telescoping Lever

GETTING TO KNOW YOUR VEHICLE

• Press the heated steering wheel button

a second time

to turn the heating element off.

NOTE:

The engine must be running for the heated steering

wheel to operate.

Vehicles Equipped With Remote Start

On models that are equipped with remote start, the heated
steering wheel can be programmed to come on during a
remote start through the Uconnect system. Refer to
“Uconnect Settings” in “Multimedia” for further informa-
tion.

WARNING!

• Persons who are unable to feel pain to the skin

because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion, or other physical conditions must exercise care
when using the steering wheel heater. It may cause
burns even at low temperatures, especially if used
for long periods.

• Do not place anything on the steering wheel that

insulates against heat, such as a blanket or steering
wheel covers of any type and material. This may
cause the steering wheel heater to overheat.

MIRRORS

Inside Day/Night Mirror — If Equipped

The mirror head can be adjusted up, down, left, and right
for various drivers. The mirror should be adjusted to center
on the view through the rear window.

Headlight glare from vehicles behind you can be reduced
by moving the small control under the mirror to the night
position (toward the rear of the vehicle). The mirror should
be adjusted while set in the day position (toward the
windshield).

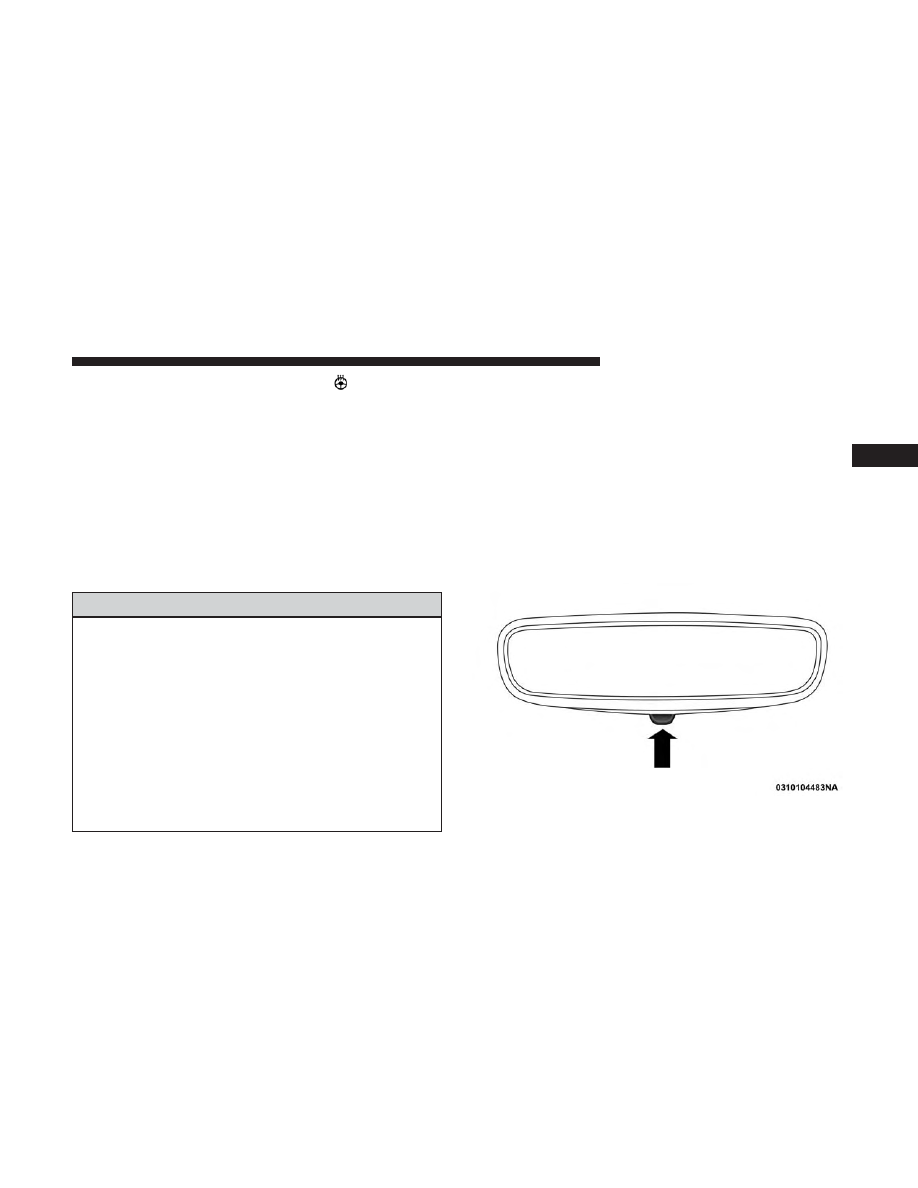

Adjusting Rearview Mirror

GETTING TO KNOW YOUR VEHICLE

NOTE:

The vehicle is equipped with either a single ball

joint mirror or a two ball adjustable prism mirror.
• The single ball joint is a twist-on mirror that has a fixed

position at the windshield. The mirror installs on the
windshield button with a counterclockwise rotation and
requires no tools for mounting.

• The two ball joint is mounted to a tombstone button on

the windshield with a set screw. Tools are required for
mounting and dismounting.

Electrochromic Mirror — If Equipped

A single ball joint mirror is provided in the vehicle. It is a
twist on mirror that has a fixed position at the windshield.
The mirror installs on the windshield button with a coun-
terclockwise rotation and requires no tools for mounting.
The mirror head can be adjusted up, down, left, and right
for various drivers. The mirror should be adjusted to center
on the view through the rear window.

NOTE:

The automatic dimming feature is disabled when

the vehicle is in REVERSE to improve rear view viewing.

The automatic dimming feature can be turned on or off
through the touchscreen, or using the power button on the
base of the mirror.
• Press the mirror dimmer button once to turn the feature

on.

• Press the mirror dimmer button a second time to turn

the feature off.

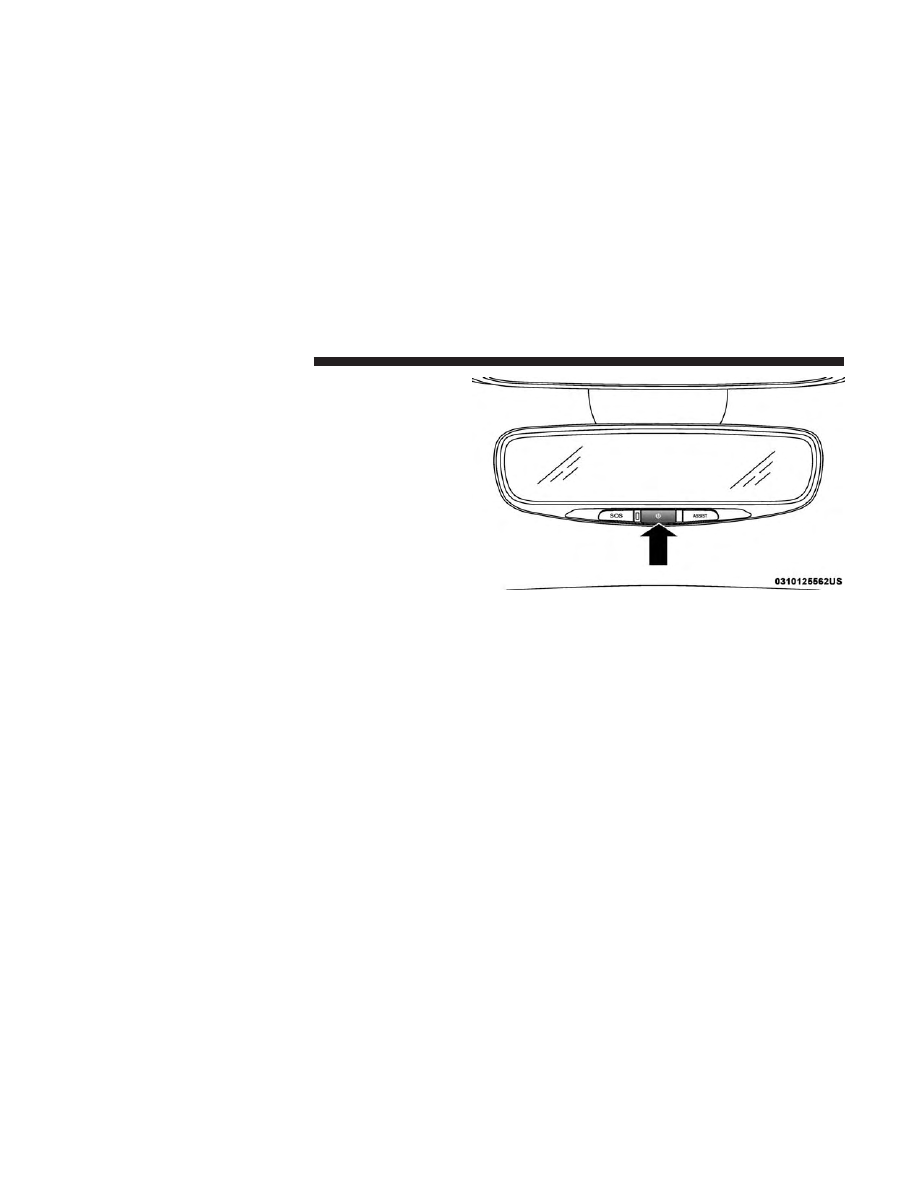

Automatic Dimming Button

GETTING TO KNOW YOUR VEHICLE

CAUTION!

To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.

Outside Mirrors

To receive maximum benefit, adjust the outside mirror(s) to
center on the adjacent lane of traffic and a slight overlap of
the view obtained from the inside mirror.

NOTE:

The passenger side convex outside mirror will give

a much wider view to the rear, and especially of the lane
next to your vehicle.

WARNING!

Vehicles and other objects seen in an outside convex
mirror will look smaller and farther away than they
really are. Relying too much on side convex mirrors
could cause you to collide with another vehicle or other
object. Use your inside mirror when judging the size or
distance of a vehicle seen in a side convex mirror.

Power Mirrors

The power mirror switches are located on the driver’s door
trim panel.

Power Mirror Switches

1 — Mirror Direction Control
2 — Left And Right Mirror Select

GETTING TO KNOW YOUR VEHICLE

Heated Mirrors — If Equipped

These mirrors are heated to melt frost or ice. This
feature will be activated whenever you turn on
the rear window defroster (if equipped).

Refer to “Climate Controls” in “Getting To Know Your
Vehicle” for further information.

Illuminated Vanity Mirrors

An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the mirror
cover upward. The lights will turn on automatically. Clos-
ing the mirror cover will turn off the light.

Sun Visor “Slide-On-Rod” Feature

The sun visor “Slide-On-Rod” feature allows for additional
flexibility in positioning the sun visor to block out the sun.

1. Fold down the sun visor.

2. Unclip the visor from the center clip.

3. Pull the sun visor toward the inside rearview mirror to

extend it.

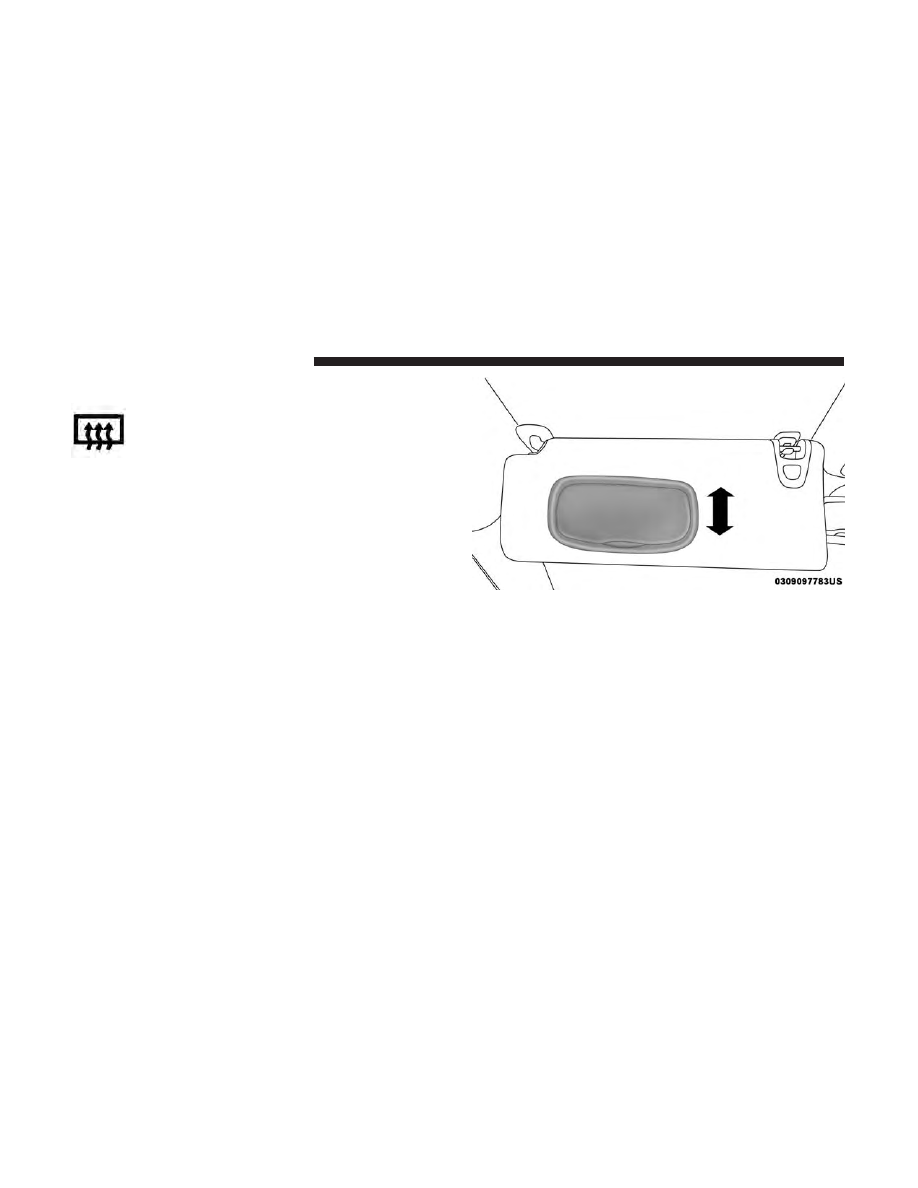

Illuminated Vanity Mirror

GETTING TO KNOW YOUR VEHICLE

EXTERIOR LIGHTS

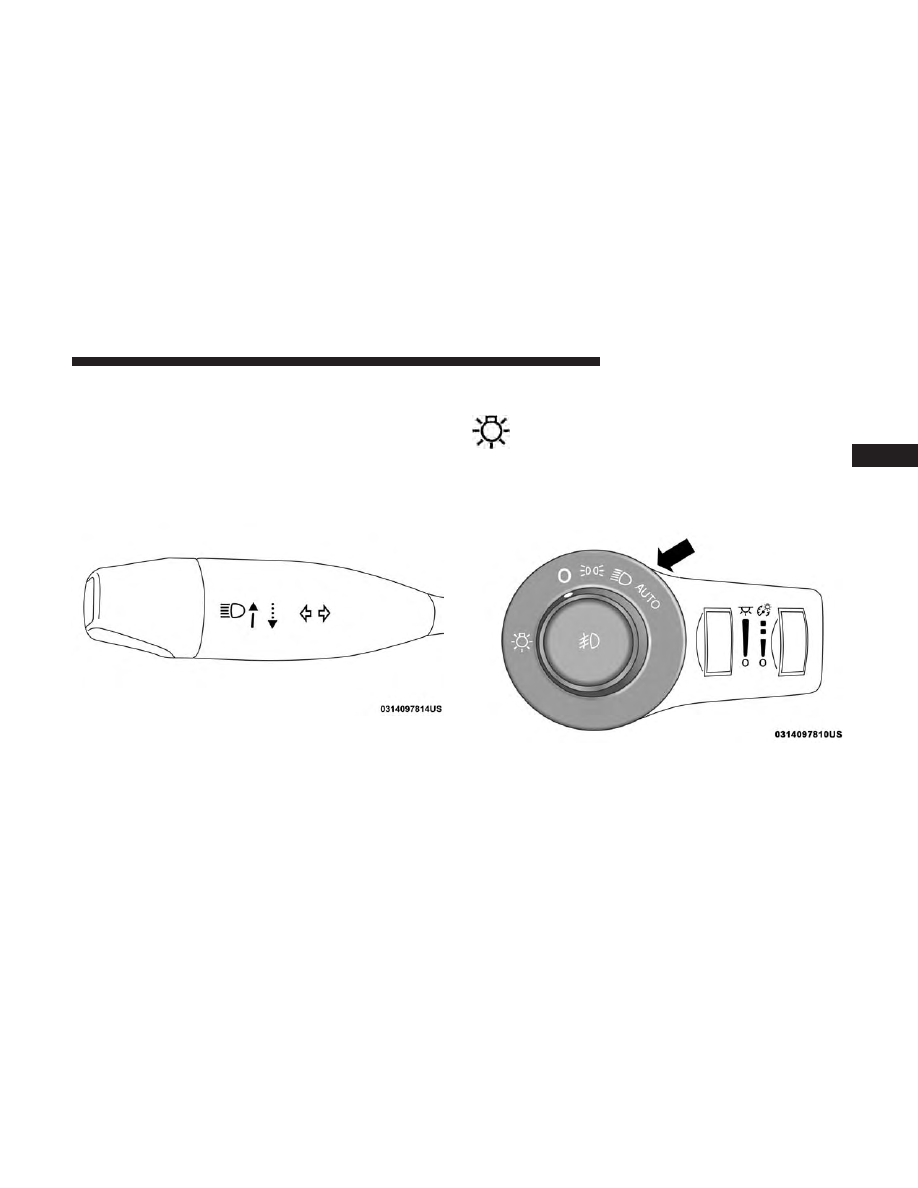

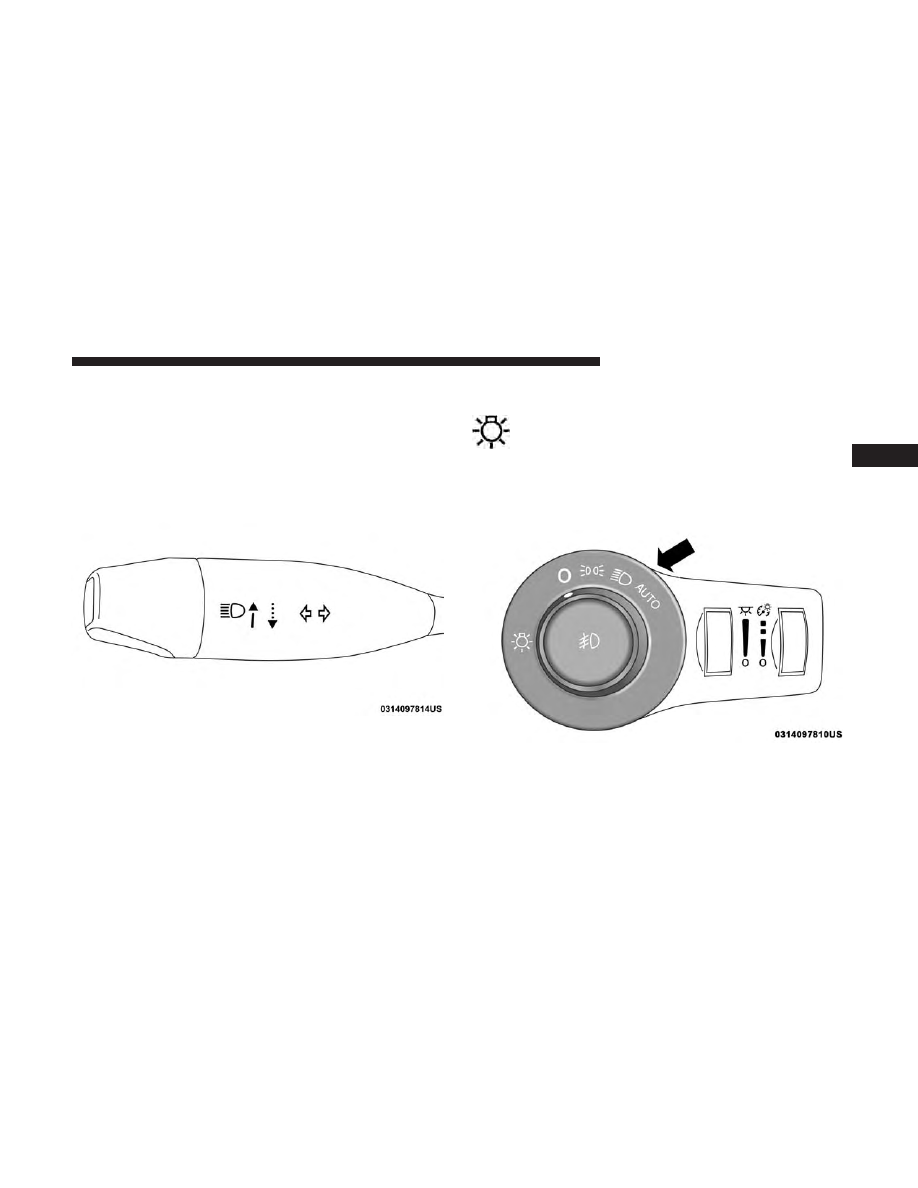

Multifunction Lever

The multifunction lever controls the operation of the turn
signals, headlight beam selection and passing lights. The
multifunction lever is located on the left side of the steering
column.

Headlight Switch

The headlight switch is located on the left side of
the instrument panel. This switch controls the op-
eration of the headlights, parking lights, automatic

headlights — if equipped, instrument panel lights, instru-
ment panel light dimming, interior lights, and fog lights —
if equipped.

Rotate the headlight switch clockwise to the first detent for
parking light and instrument panel light operation. Rotate
the headlight switch to the second detent for headlight,
parking light and instrument panel light operation.

Multifunction Lever

Headlight Switch

GETTING TO KNOW YOUR VEHICLE

Jeep Cherokee (2019 year). Instruction - part 4
