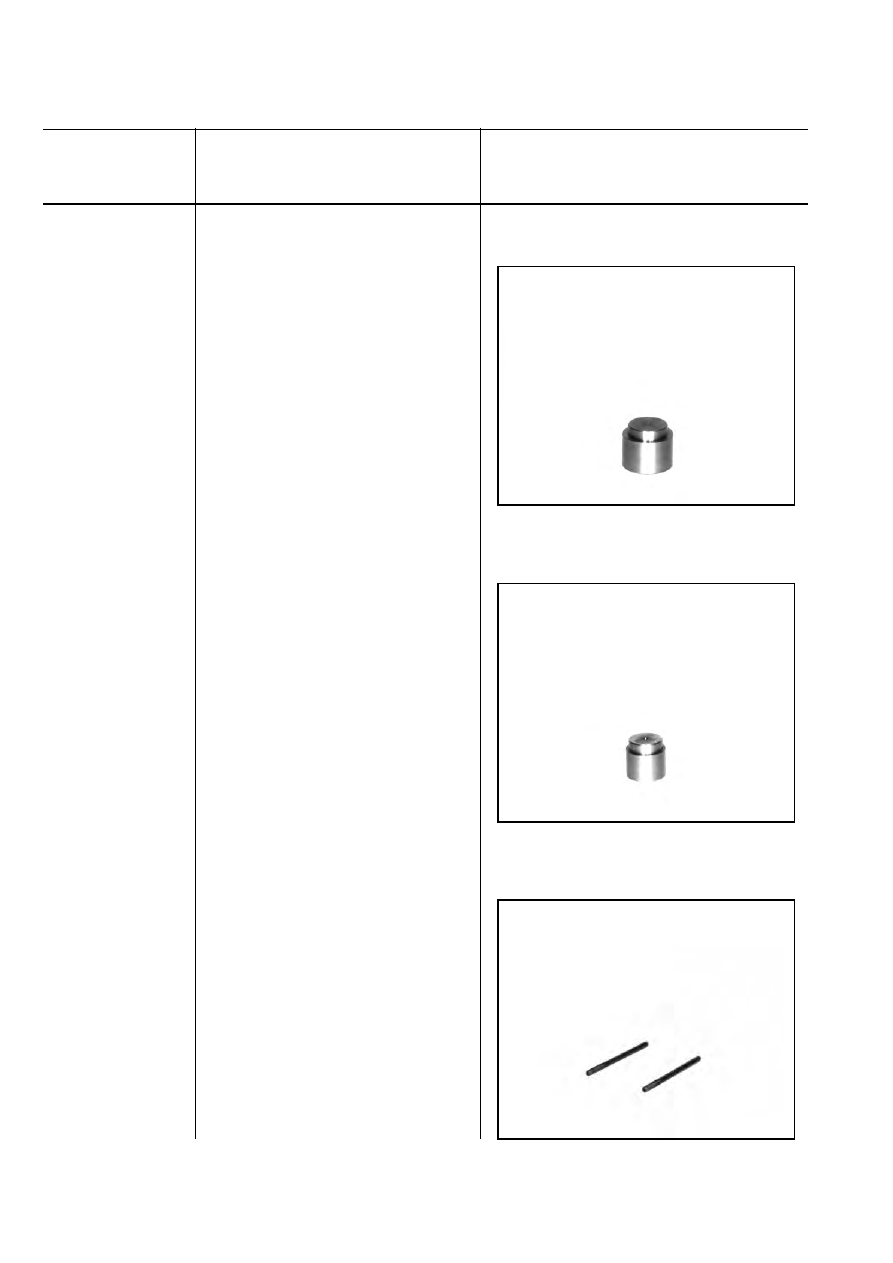

Jaguar 5HP24 transmission. Manual - part 10

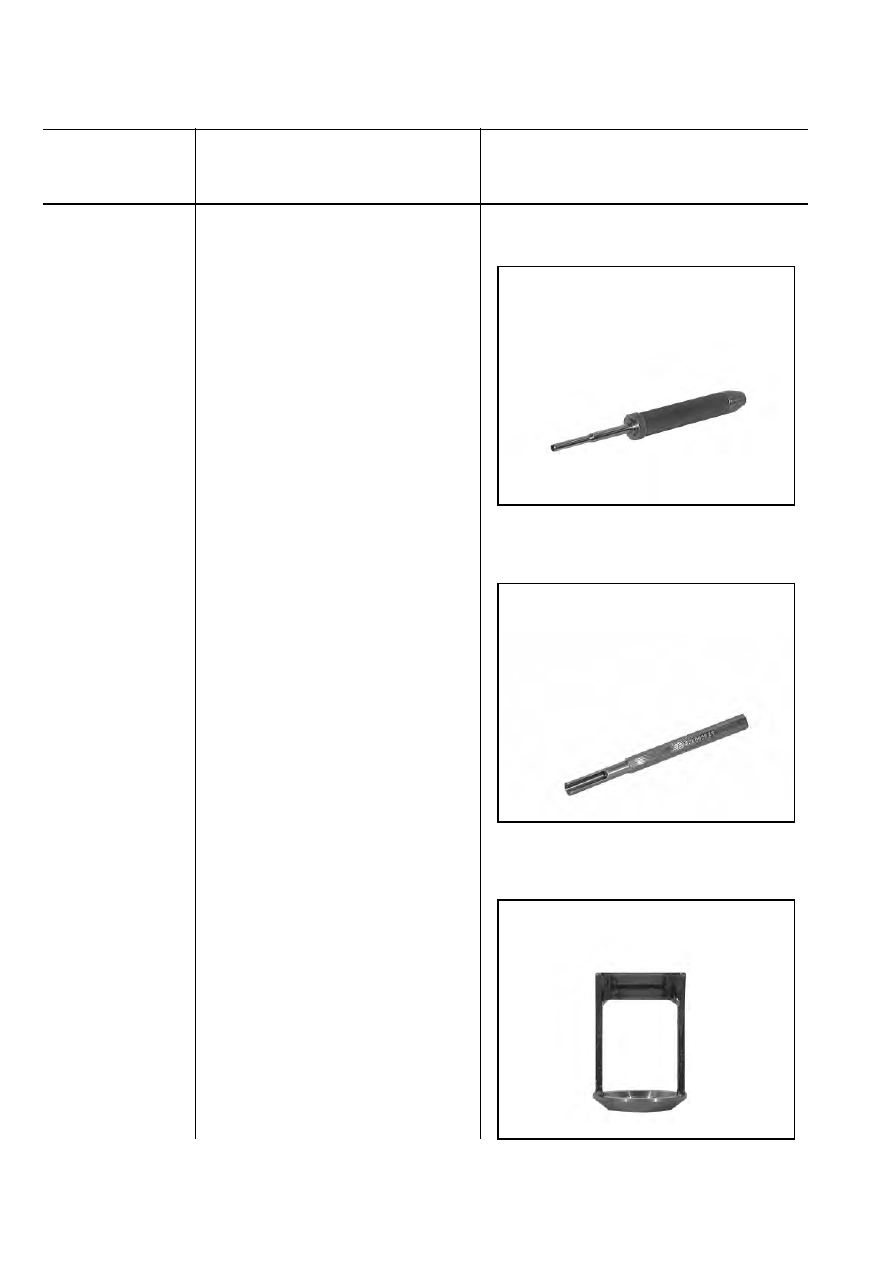

Order No. / Application

OBJECT

5x46 000 954
- Assembly for needle roller bear-

ing, pump

5x46 001 006
- Assembly drift for needle roller

bearing, cylinder F

5x46 001 007
- Locating pin for oil supply

(2 items)

1.7/8

97220

97222

97223

Remarks

Identical

5 HP 30

Identical

5 HP 30

Identical

5 HP 30

22

23

24

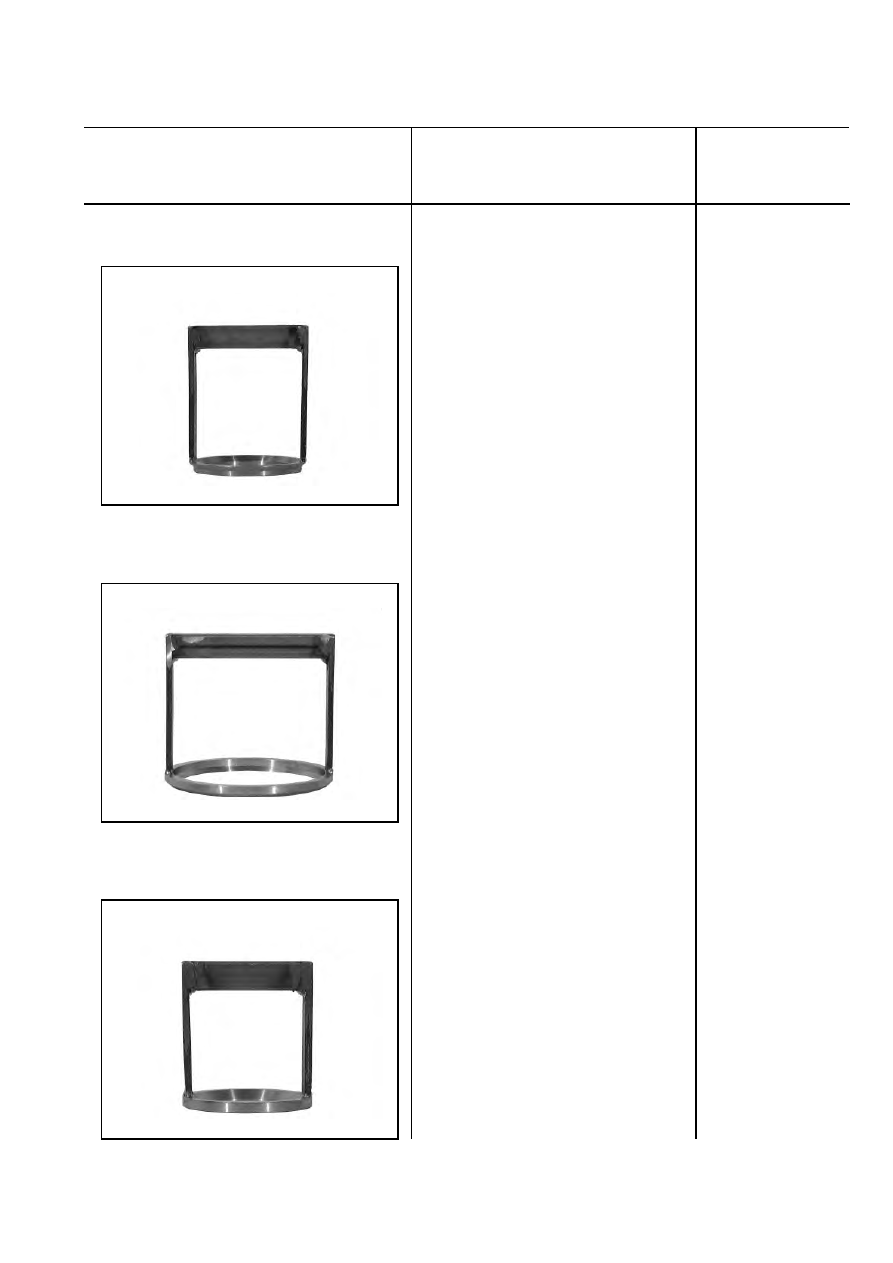

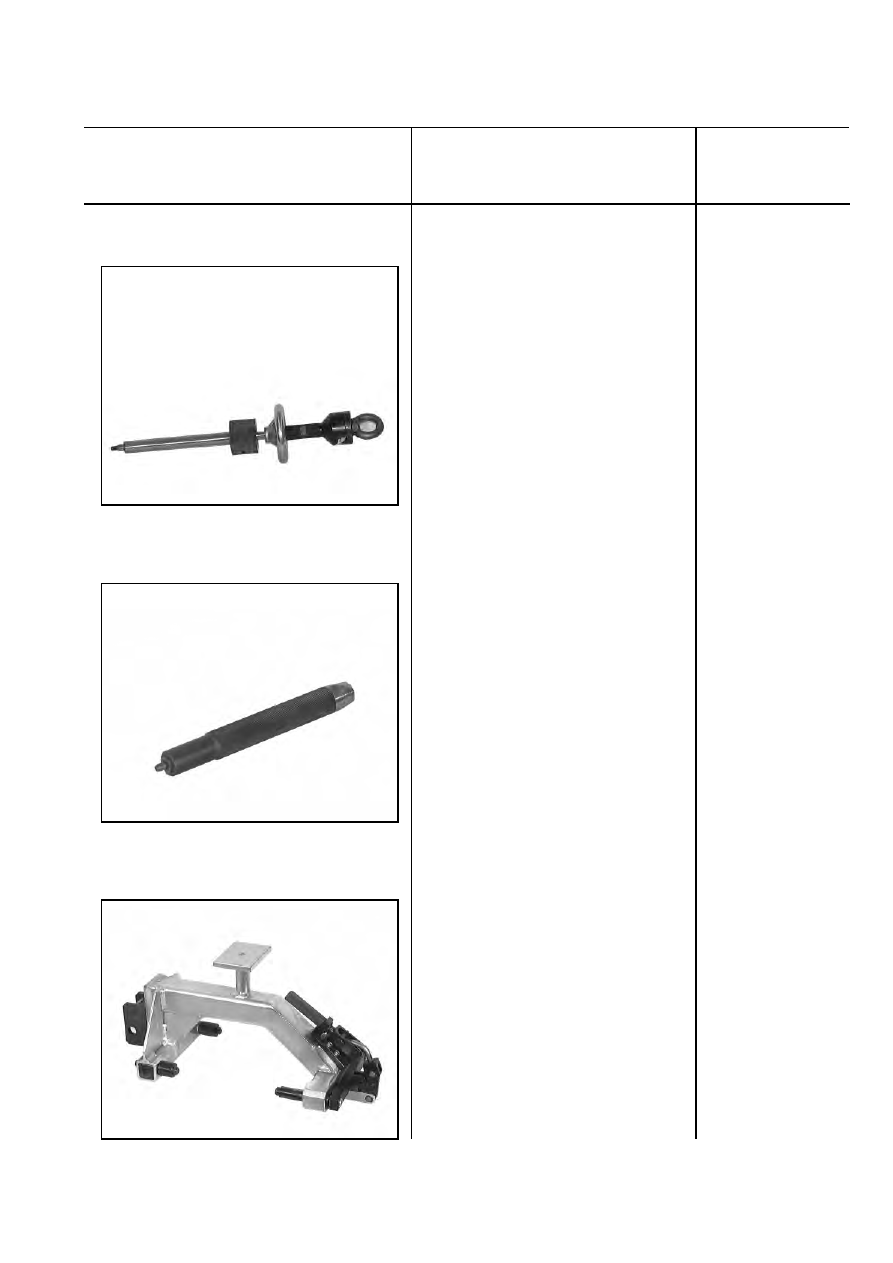

OBJECT

Remarks

Order No. / Application

5x46 001 077
- Lifting device, tower I

5x46 001 135
- Drift for plug in transmission

housing

5x46 001 208
- Assembly bracket, transmission,

complete

1.7/9

98003

97307

97308

25

26

27

Order No. / Application

OBJECT

5x46 001 261
- Drift, shaft seal, selector shaft

5x46 001 534
- Drift for oil pipe

5x46 001 499
- Assembly bracket for pressing

down cup spring A

1.7/10

98001

97314

97310

Remarks

28

29

30

OBJECT

Remarks

Order No. / Application

5x46 001 500
- Assembly bracket for pressing

down cup spring B

5x46 001 501
- Assembly bracket for pressing

down cup spring D

5x46 001 502
- Assembly bracket for pressing

down cup spring E

1.7/11

97311

97312

97313

31

32

33
