Jaguar 5HP24 transmission. Manual - part 9

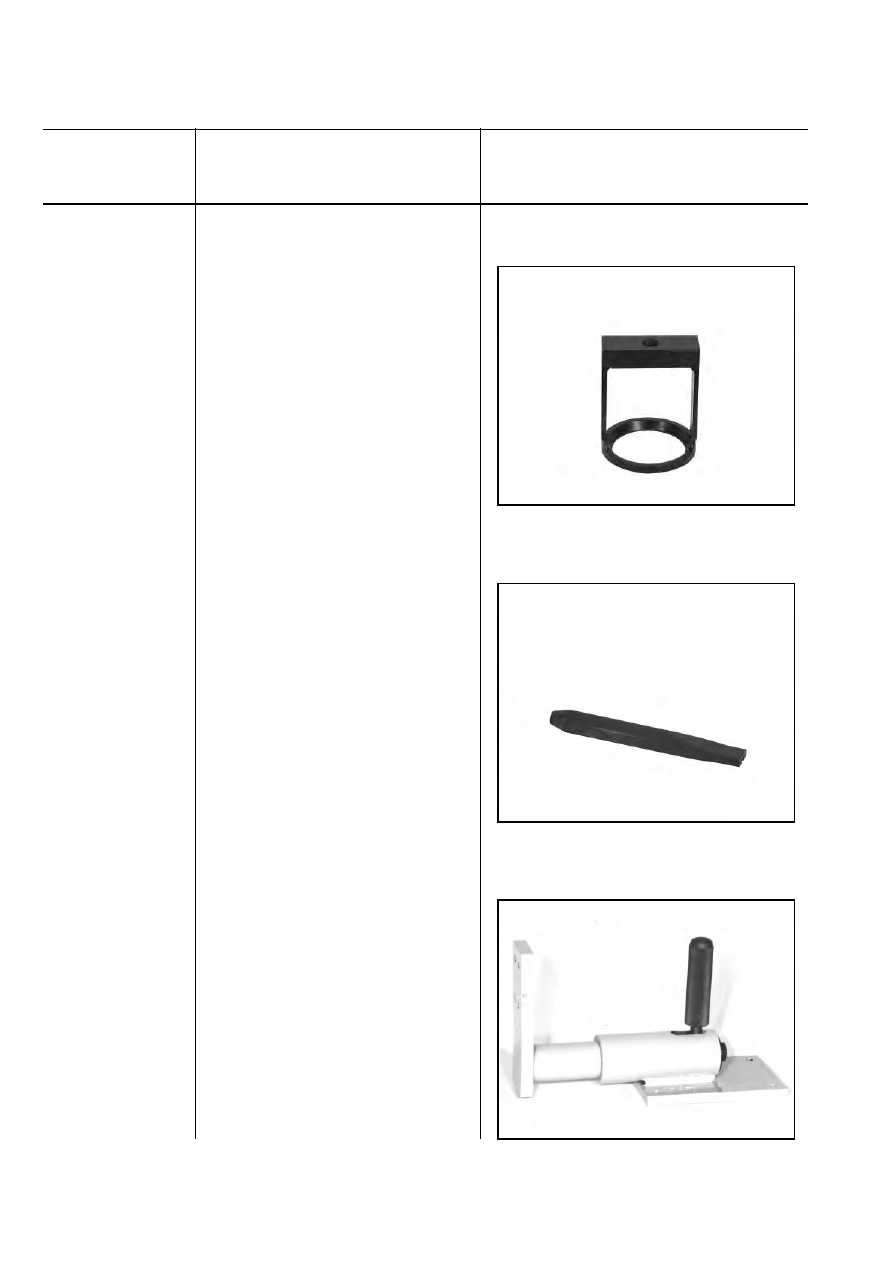

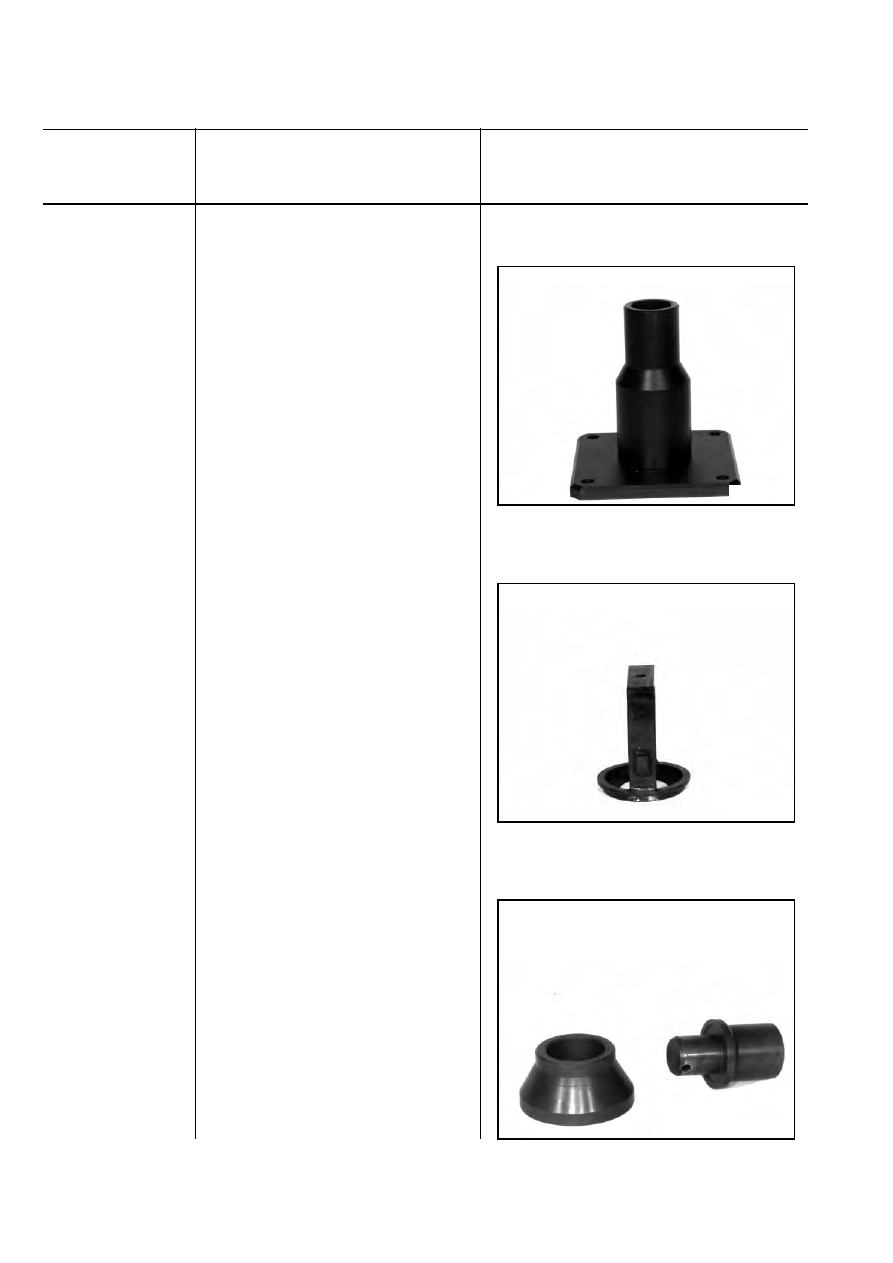

Order No. / Application

OBJECT

5x46 000 167
- Assembly bracket for pressing

down cup spring C

(equivalent to part 3 of device

5x46 000 167)

5x46 000 291
- Drift for dowel pin in the selec-

tor shaft

5x46 000 763
- Work bench holder for assembly

bracket

1.7/4

97305

97306

91199

Remarks

Identical

4 HP 14 Q
4 HP 18 Q
4 HP 22
5 HP 18

Identical

4 HP 18 Q

Identical

5 HP 18
5 HP 30

10

11

12

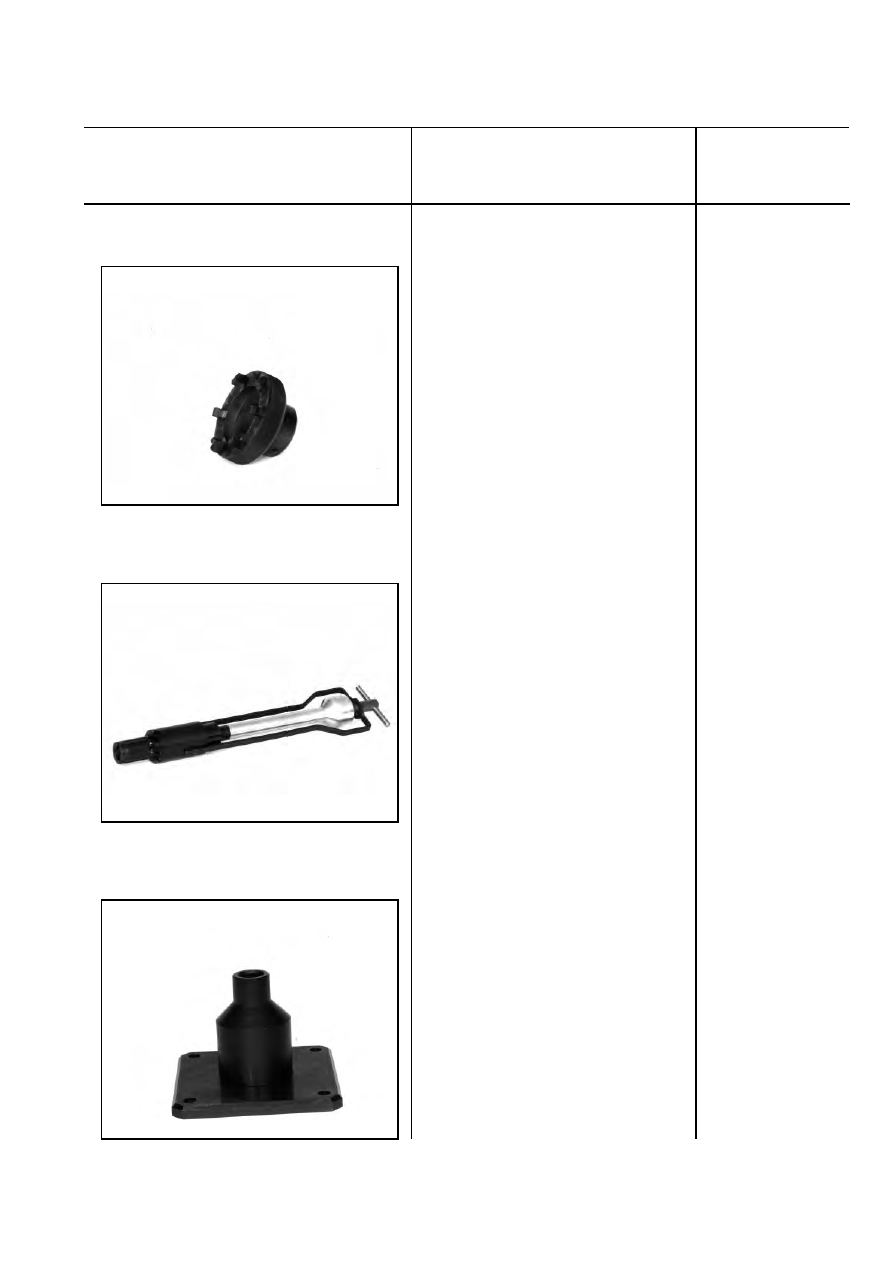

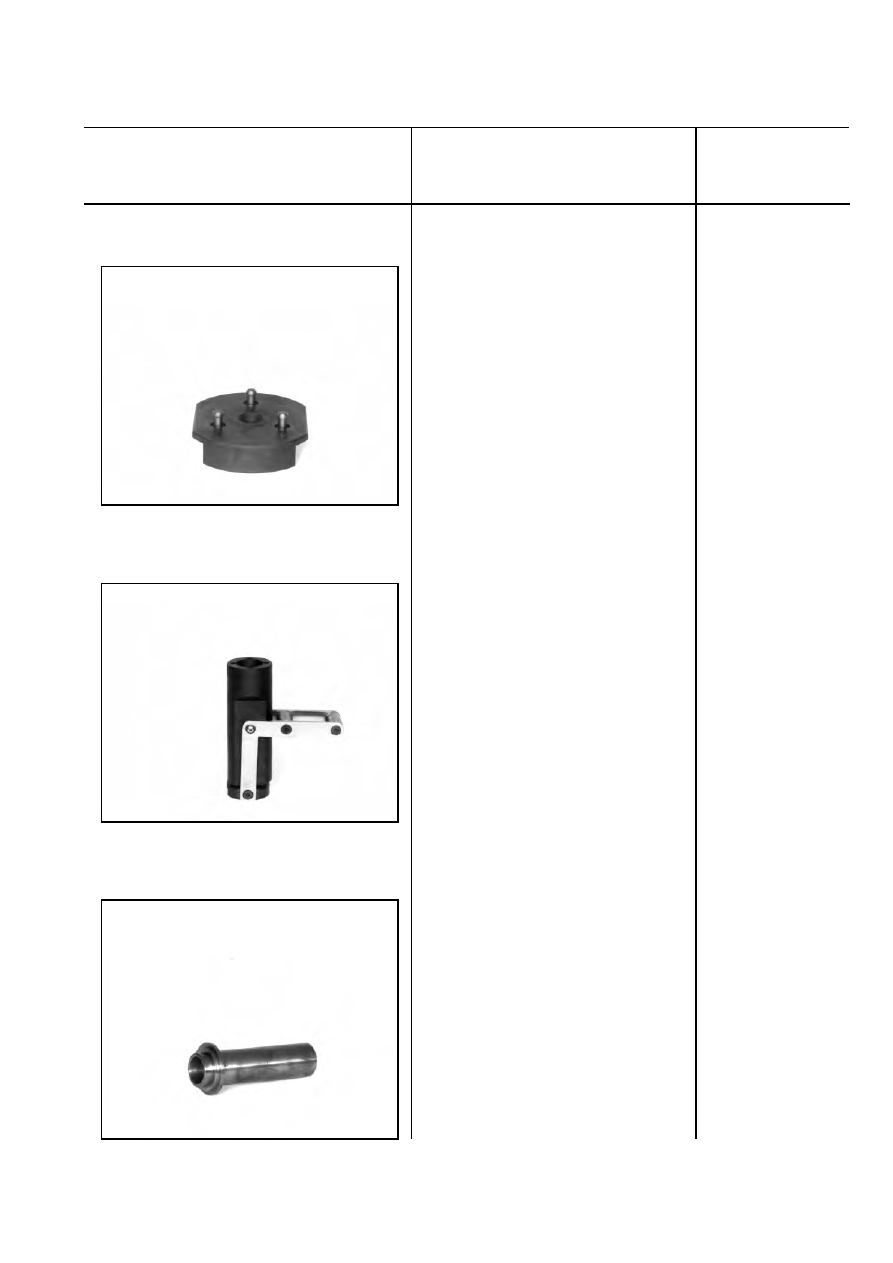

OBJECT

Remarks

Order No. / Application

5x46 000 787
- Slotted-nut wrench

5x46 000 831
- Lifting device for cylinder F

5x46 000 916
- Supporting fixture for tower I

1.7/5

92208

92209

92213

Identical

5 HP 30

Identical

5 HP 30

Identical

5 HP 30

13

14

15

Order No. / Application

OBJECT

5x46 000 917
- Supporting fixture for tower II

5x46 000 931
- Assembly bracket for pressing

down cup spring F

5x46 000 945
- Press-in fixture for ball thrust

bearing, transmission extension

1.7/6

97214

97216

91197

Remarks

Identical

5 HP 30

Identical

5 HP 30

Identical

5 HP 30

16

17

18

OBJECT

Remarks

Order No. / Application

5x46 000 946
- Counter support for output

flange

5x46 000 949
- Lifting device fixture for tower II

5x46 000 953
- Assembly drift for shaft seal,

pump

1.7/7

91188

92217

97219

Identical

5 HP 30

Identical

5 HP 30

Identical

5 HP 30

19

20

21
