Radio

R

RBDS troubleshooting guide

Incorrect response from RBDS

Reason and rectification

Radio does not display programme
name.

Check that RBDS is turned on by pressing and
holding the TA button until the display confirms
RBDS ON. If the radio does not display a
programme service name, it is not broadcasting
RBDS data, or you are in a poor reception area.
Try retuning to another station with RBDS.

Station name is lost and displays
frequency only.

Radio has lost reception of the RBDS data due
to vehicle moving out of transmitter range, loss
of signal in a tunnel, under a garage forecourt
canopy, or similar screening. If the latter is the
case, when the vehicle is clear of the screening,
the station name will return after a short delay.

Upon operating A MEM, NO FM is
displayed when most or all of the
preset positions are selected.

The radio cannot locate nine FM, RBDS FM or
TP stations dependent upon the mode selected.
If this occurs, switch off RBDS or TA and
reselect A MEM.

Upon pressing the TA button the
radio re-tunes to another station
and displays TP SEEK.

The station selected does not have TP/TA
facility, the radio will retune to one that does.

Radio sound goes off and the
display shows PI SEEK.

The RBDS radio station selected is unable to
confirm that the frequency tuned to has the
correct RBDS data – Programme Identification
(PI). It will then seek for a frequency that has the
correct data.

Radio ‘beeps’ and the display
shows NO TA/TP and turns off TA.

The vehicle is in an area where TA broadcasts
cannot be received from any FM stations. The
radio will automatically de-select the TA feature.

Radio

290

L

RADIO - STANDARD AUDIO

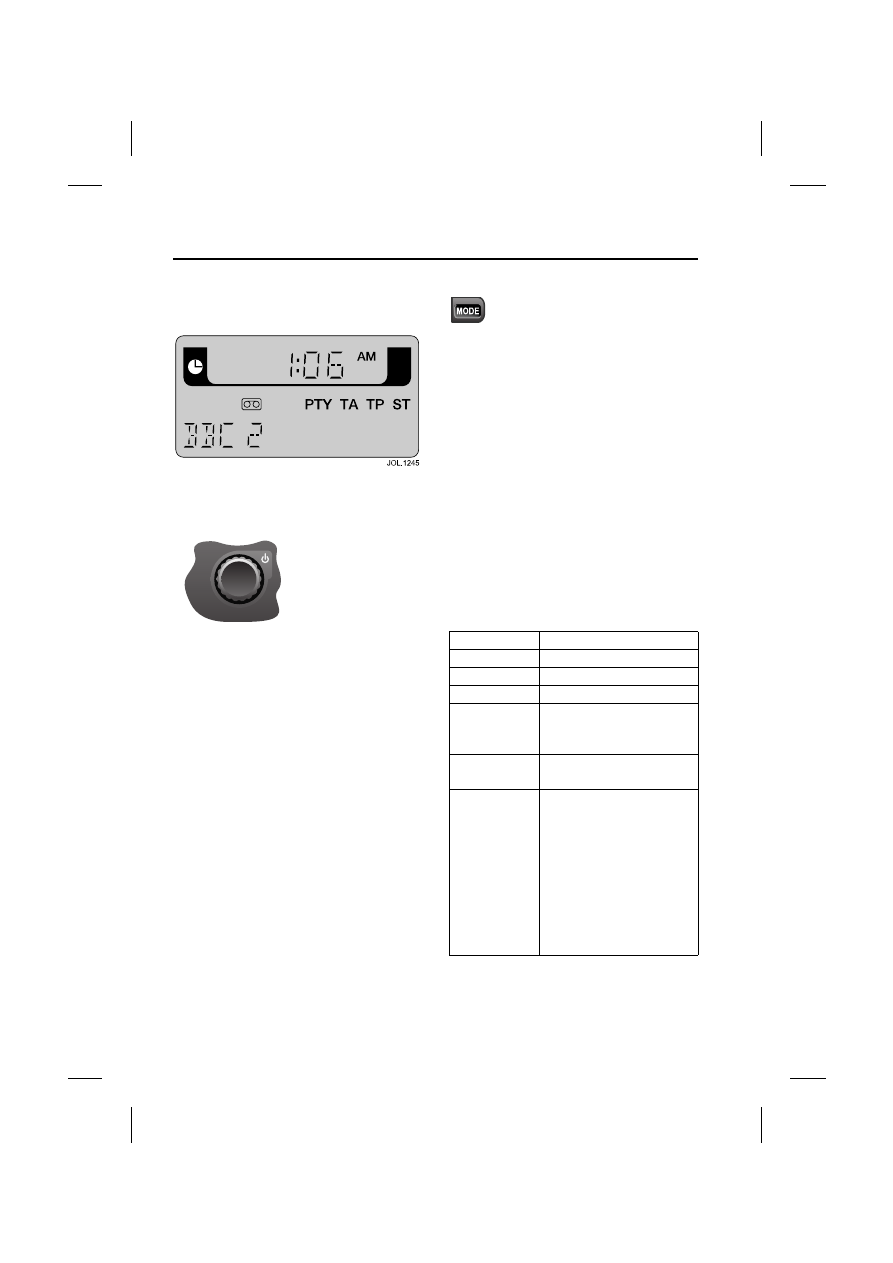

Audio System Display Panel

Shown in BAND mode

On/Off and volume control

Press the control knob to switch the radio
on, press again to switch off. Turn the
control knob clockwise to increase or
counter clockwise to decrease volume.

Any volume setting made whilst in audio,
phone, or voice activation mode, will be
memorised for that system.

Automatic Volume Control (AVC)

This maintains radio volume at a level
sufficient to overcome road noise as
vehicle speed increases or decreases. To
activate AVC, press and hold the volume
control knob until AVC is displayed. To
deactivate AVC, momentarily press the
volume control knob again. The level of
AVC control can be adjusted by turning
the volume control knob whilst in AVC ON
mode. When AVC is ON, manual
adjustment of volume will override the
AVC setting.

MODE button

The MODE button functions at
two levels. Mode level 1 is used to
adjust sound performance. Mode

level 2 can be used to adjust the audio
display clock, to adjust Traffic
Announcement (TA) and Voice Activation
volume and to select Voice Activation
Training.It can also inhibit the rear
multimedia system controls.

Mode level 1

A short press and release of the MODE
button will access the mode level 1 menu.
Subsequent short presses of the MODE
button will scroll through the available
modes. When the desired mode is
displayed, use the rotary volume control
to adjust the setting.

Available modes

BASS

Increase/decrease

TREBLE

Increase/decrease

BALANCE

Left to right

FADE

Front to rear

SUB LEVEL

Premium audio only.
Increase/decrease
subwoofers

DSP
POSITION

See detailed DSP text

ADVANCED
MODE

Allows access to mode
level 2. When ADV
MODE N/Y is displayed,
turn the rotary volume
control to select ADV
MODE YES.
Subsequent short
presses of the MODE
button will scroll through
the mode level 2 menu.

291

Radio

R

Digital Signal Processing (DSP)

(Premium audio system only)

DSP can optimise sound performance for
specific seating positions. To adjust the
setting:
• In Mode level 1, scroll to DSP

POSITION.

• Use the rotary volume control to cycle

through POS F-LEFT (front left),
POS F-RIGHT (front right),
POS REAR and POS FRONT until the
desired setting is achieved.

After approximately five seconds with no
further actions or adjustments, the audio
system will return to the previous display.

Note: To improve the comfort of
passengers in the rear of the vehicle, the
bass performance of the subwoofer is
reduced when DSP mode is set to
POS ALL or POS REAR.

For optimum bass performance, do not
select POSS ALL or POS REAR

Mode level 2 - ADVANCED MODE

When ADV MODE YES is selected
subsequent short presses of the MODE
button will scroll through the available
modes. When the desired mode is
displayed, use the rotary volume control
to adjust the setting.

Note: Mode level 2 can also be accessed
via a long press of the MODE button.

Available modes

Press and hold the MODE button to exit.

The display will now revert to the screen in
use before entering CLOCK SET.

Rear Seat Entertainment (RSE)
controls

To inhibit the RSE controls, press and
hold the MODE button until the current
RMS MODE is displayed.

CLOCK
FORMAT
SET

Select 12HR or 24 HR
clock display. Press the
MODE button to move
to the next clock
setting.

CLOCK
HOUR SET

Adjust then press the
MODE button to move
to the next clock
setting.

CLOCK
MINUTE
SET

Adjust then press the
MODE button to save
the clock settings and
move to the next mode.

TA VOLUME Increase/decrease.
VOICE
VOLUME

Increase/decrease.

VOICE A

Press the ‘seek up’
button to adjust.

VOICE B

Press the ‘seek up’
button to adjust.

Radio

292

L

Rotate the volume control to select:
• RMS ON - This enables the RSE

controls.

• RMS H/PHONE - The RSE control of

the cabin speakers is inhibited.
Control using headphones is still
available.

• RMS OFF - This disables the RSE

controls.

Change audio system source

Press the desired audio system source
button.

Source tone memory

Bass and Treble positions are
automatically memorised for AM radio,
FM radio and CD, allowing individual
settings for each mode.

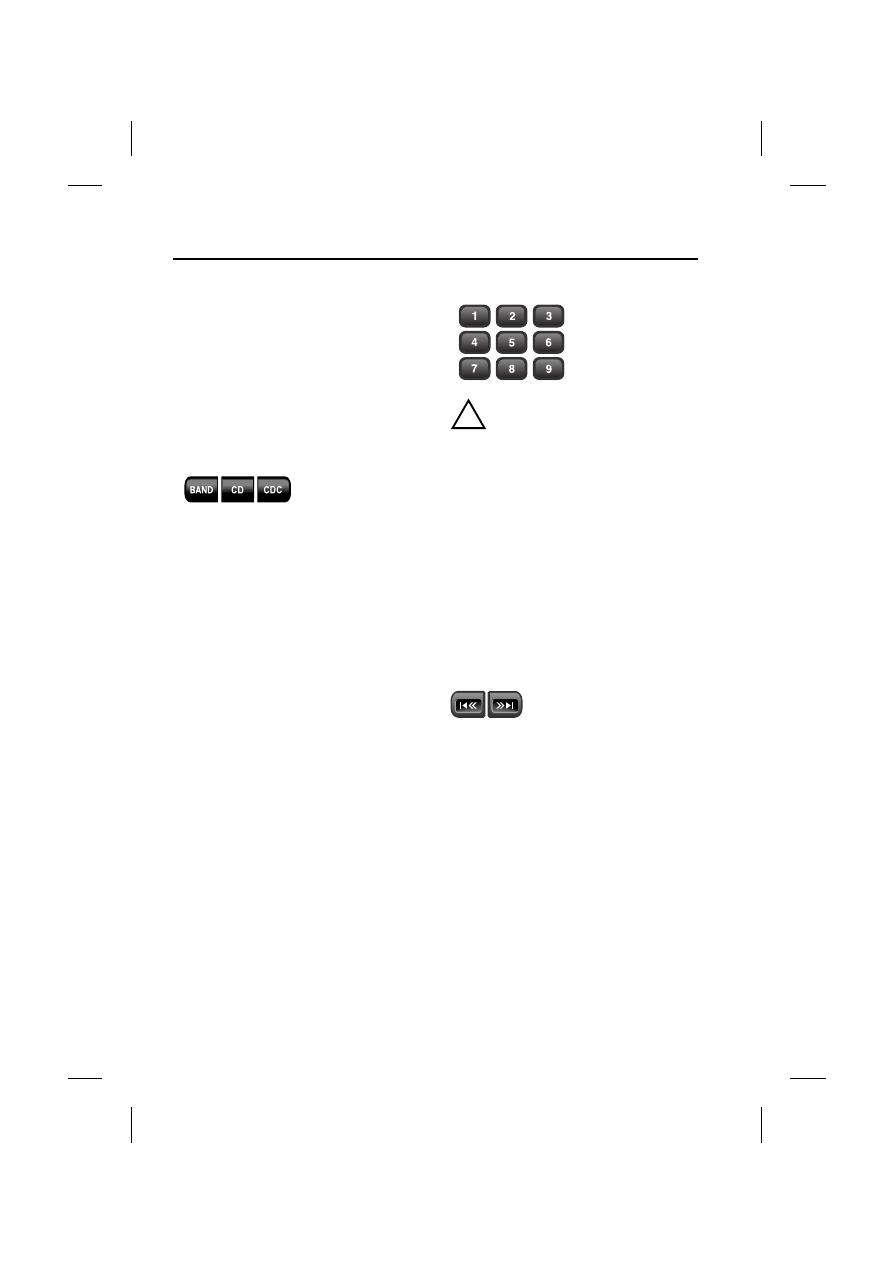

BAND button

Pressing BAND repeatedly will cycle the
radio through FM and Long wavebands.
Band selection will be shown in the
display panel. When a CD is being played,
pressing the band switch will select radio
operation.

Presetting memorised radio stations

!

WARNING:

In the interests of road safety, do not
attempt to preset a station while
driving.

On each waveband, nine stations can be
memorised using keypad buttons 1 to 9.
After tuning to a station, press and hold
the selected button until the unit ‘beeps’.
A station can be recalled from the preset
memory by pressing and immediately
releasing the button.

Pressing the steering wheel preset
selector button will cycle through the
preset stations.

Seek and manual tuning

In BAND mode, pressing
and releasing the left or
right button will activate the

radio in seek mode, tuning through the
frequency range to the next available
station. Pressing either button for more
than two seconds will enter manual tuning
mode.
