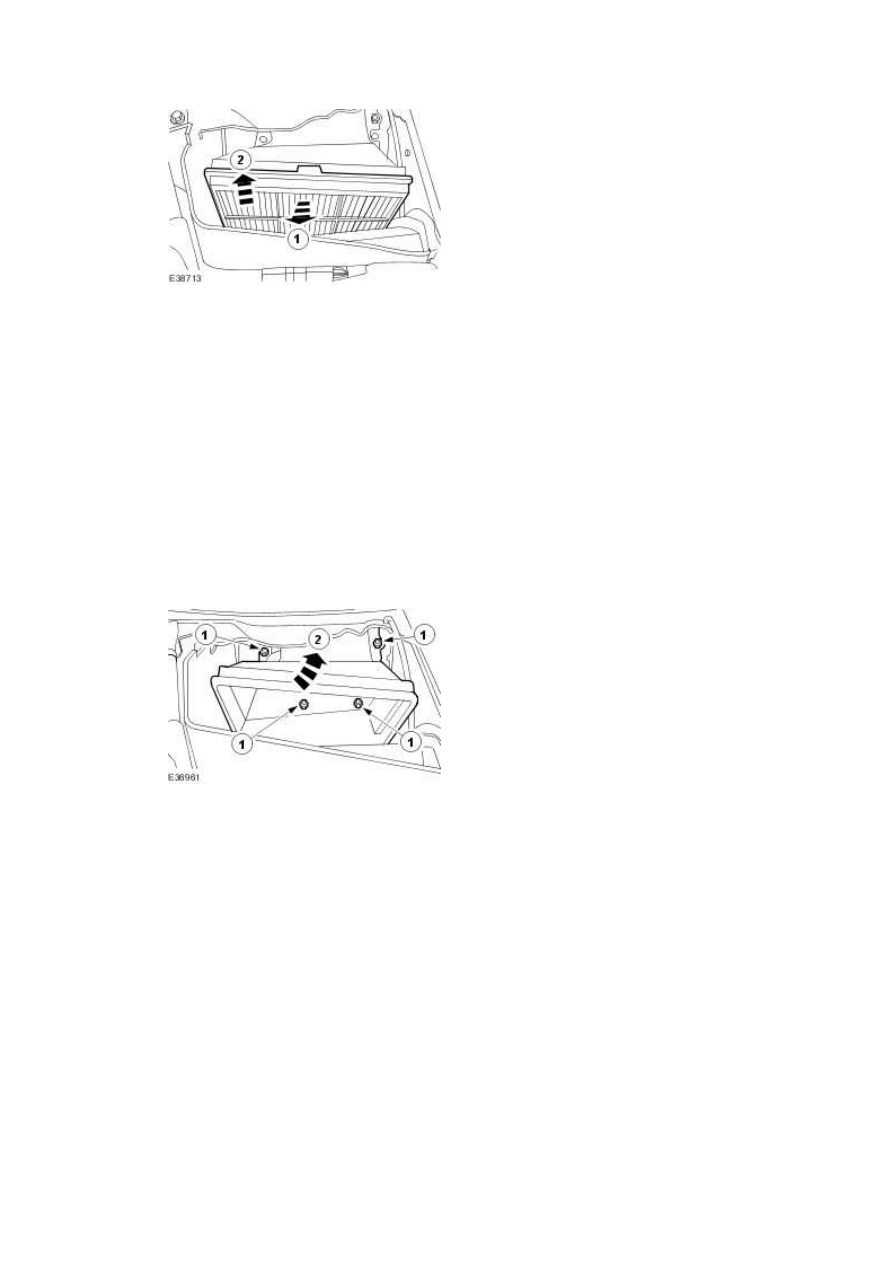

13 . NOTE:
Right-hand drive vehicles shown, left-hand drive vehicles similar.
Remove the cabin filter housing.
1) Remove the cabin filter housing retaining nuts.
2) Remove the cabin filter housing.

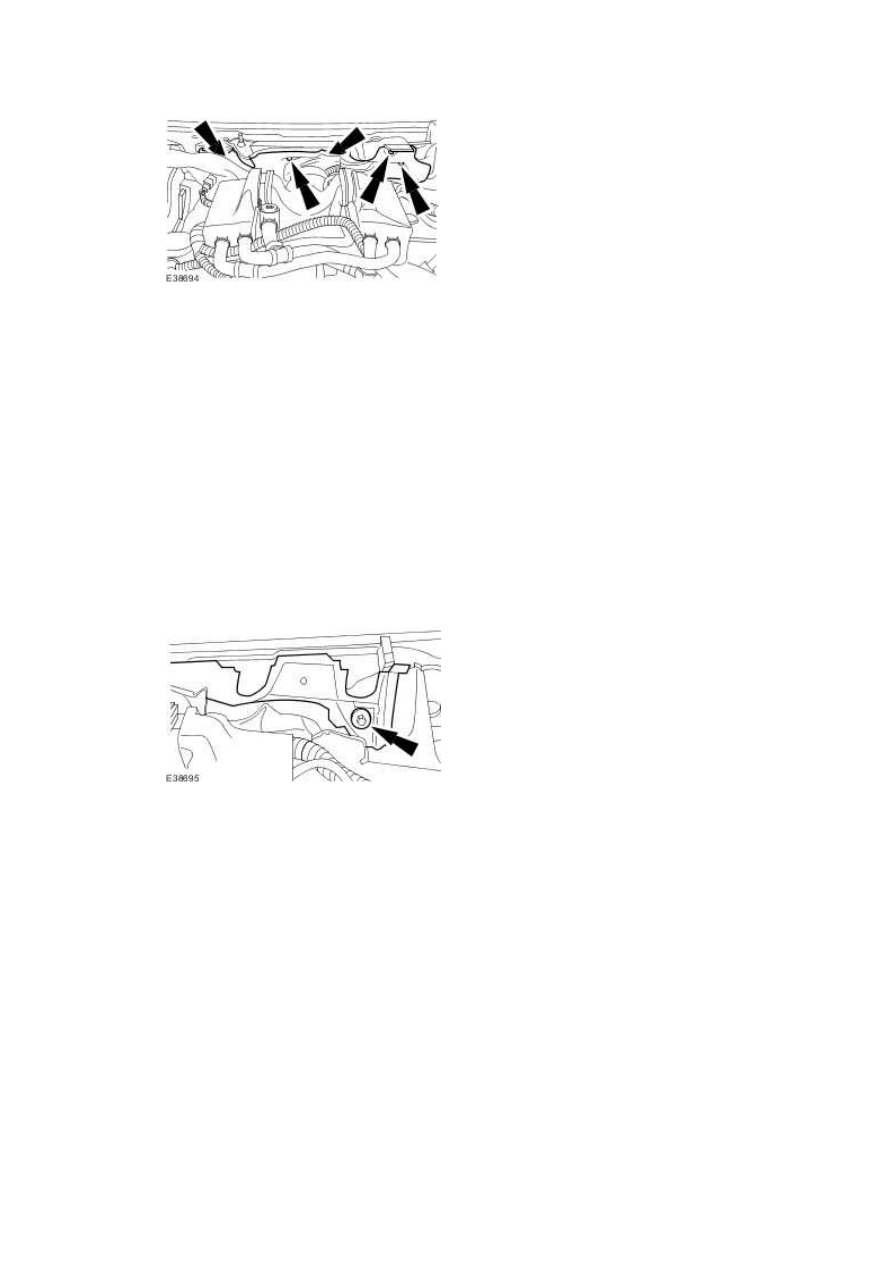

14 . NOTE:
Right-hand drive vehicles shown, left-hand drive vehicles similar.
Detach the engine compartment outer panel.
1) Remove the engine compartment outer panel retaining bolt.
2) Detach the engine compartment outer panel.
|
