Jaguar XJ (X350). Manual - part 595

Cooling Fan Motor and Shroud (26.25.25)

Removal

All Vehicles

Remove fuse 14 from the engine compartment fuse box prior to performing any under hood

service in the area of the cooling fan.

2 . Drain the cooling system.

For additional information, refer to

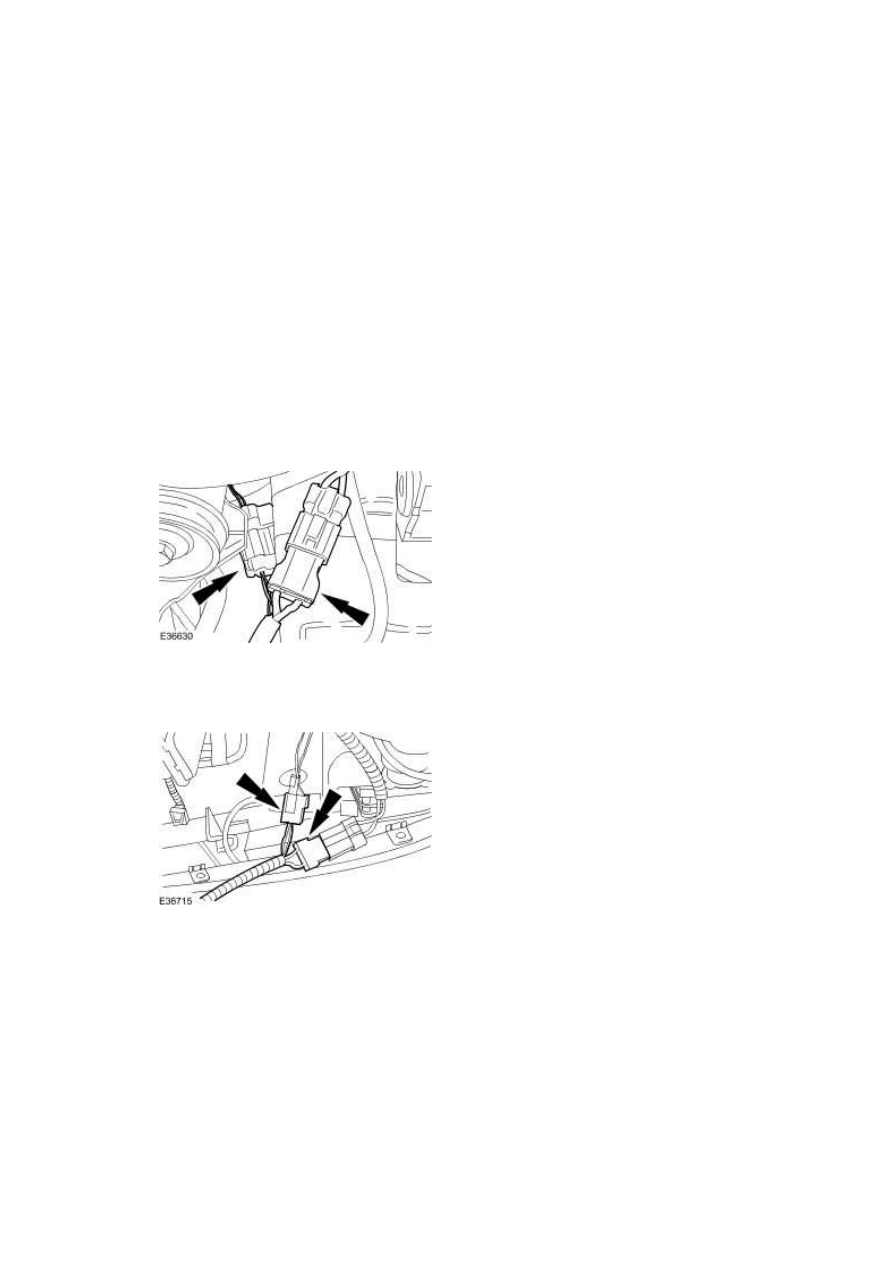

3 . Detach the electrical connectors.

4 . Disconnect the electric fan electrical connectors.

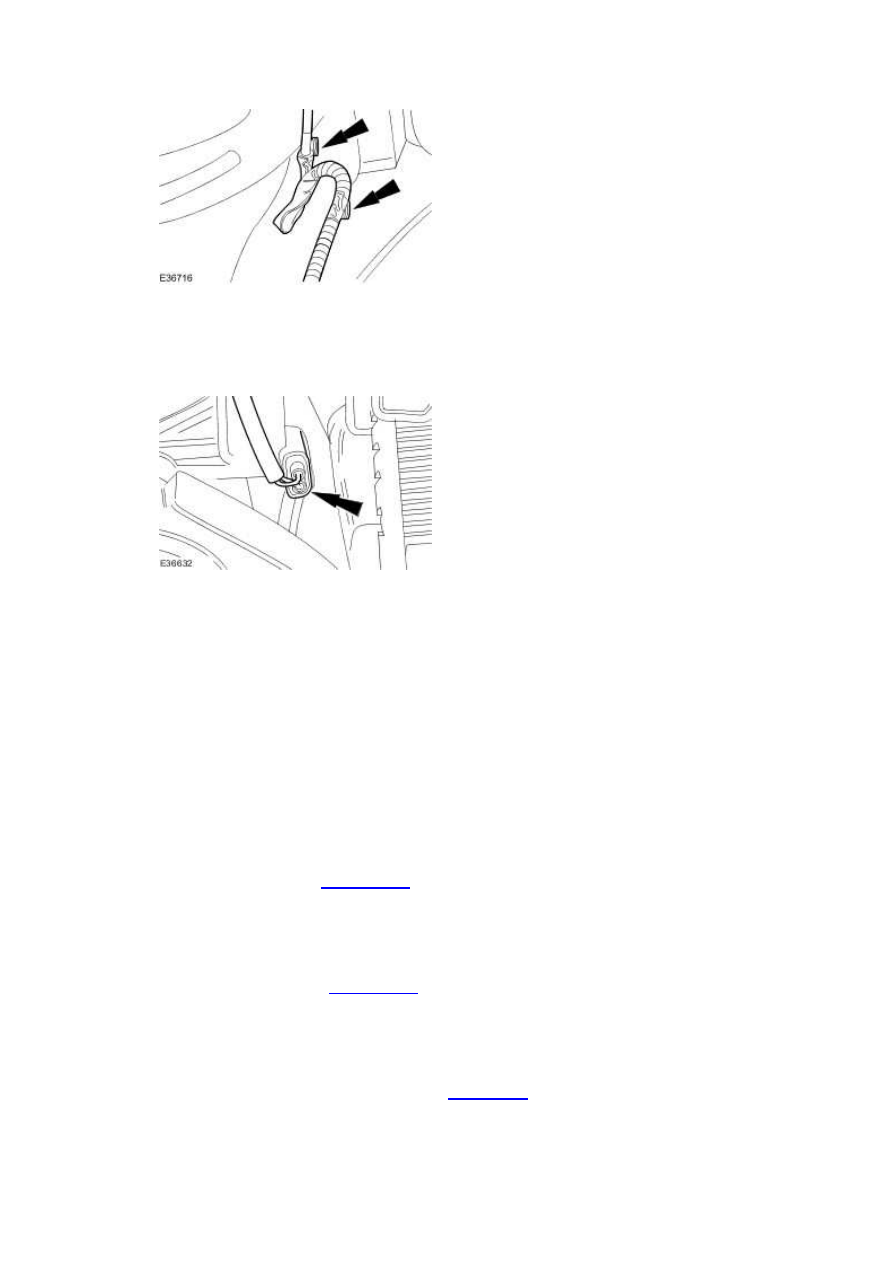

5 . Detach the wiring harness.

Vehicles with supercharger

6 . Disconnect the supercharger water pump electrical connector.

All vehicles

7 . Lower the vehicle.

8 . Remove the coolant expansion tank.

For additional information, refer to

Vehicles with 3.0L engine

9 . Remove the air cleaner. <<303-12A>>

Vehicles with 3.5L or 4.2L engine

10 . Remove the air cleaner. <<303-12B>>

All Vehicles

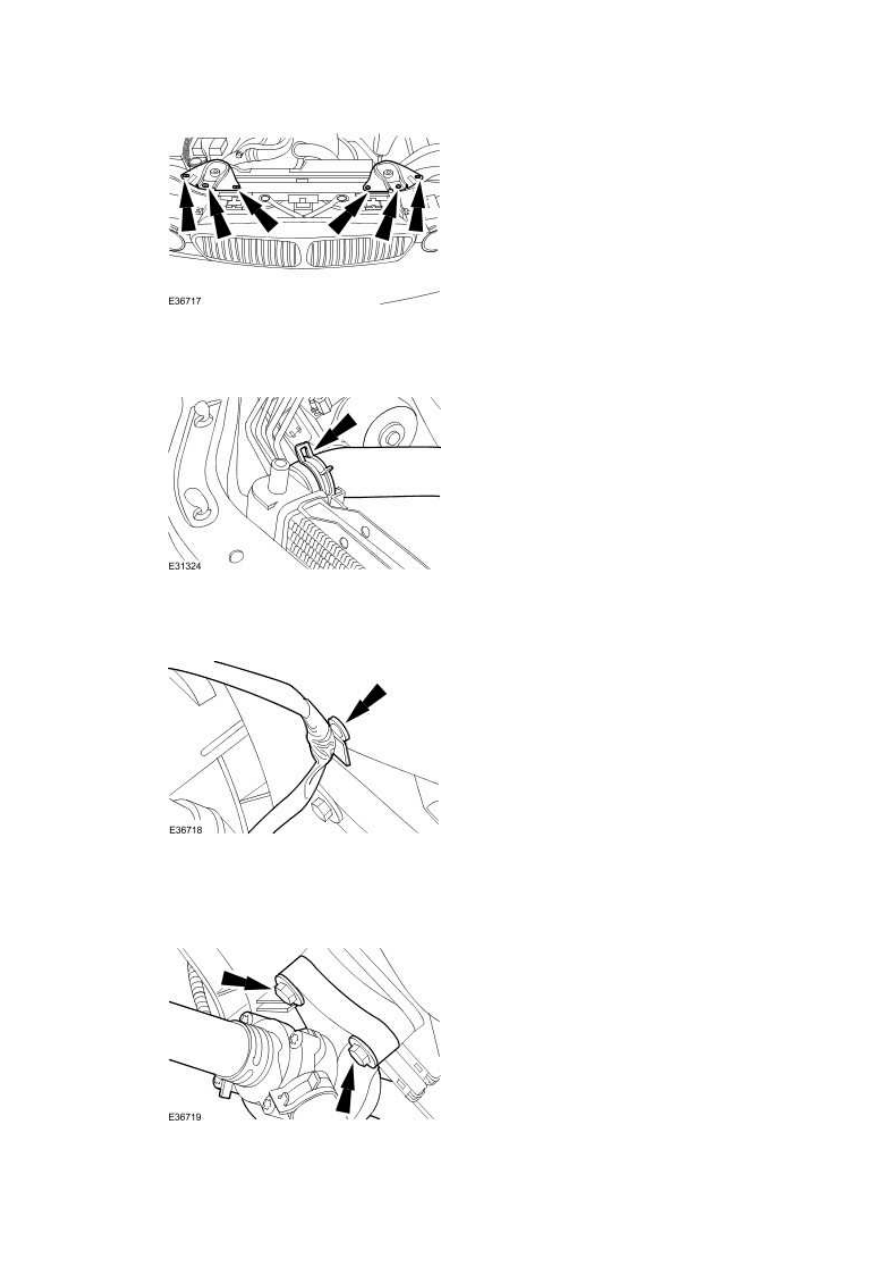

11 . Remove the radiator grille opening panel. <<501-02>>

www.

12 . Remove the radiator mounting brackets.

13 . Detach the upper coolant hose.

14 . Detach the wiring harness.

Vehicles with 3.5L or 4.2L engine

15 . Detach the auxiliary coolant flow pump.

All vehicles

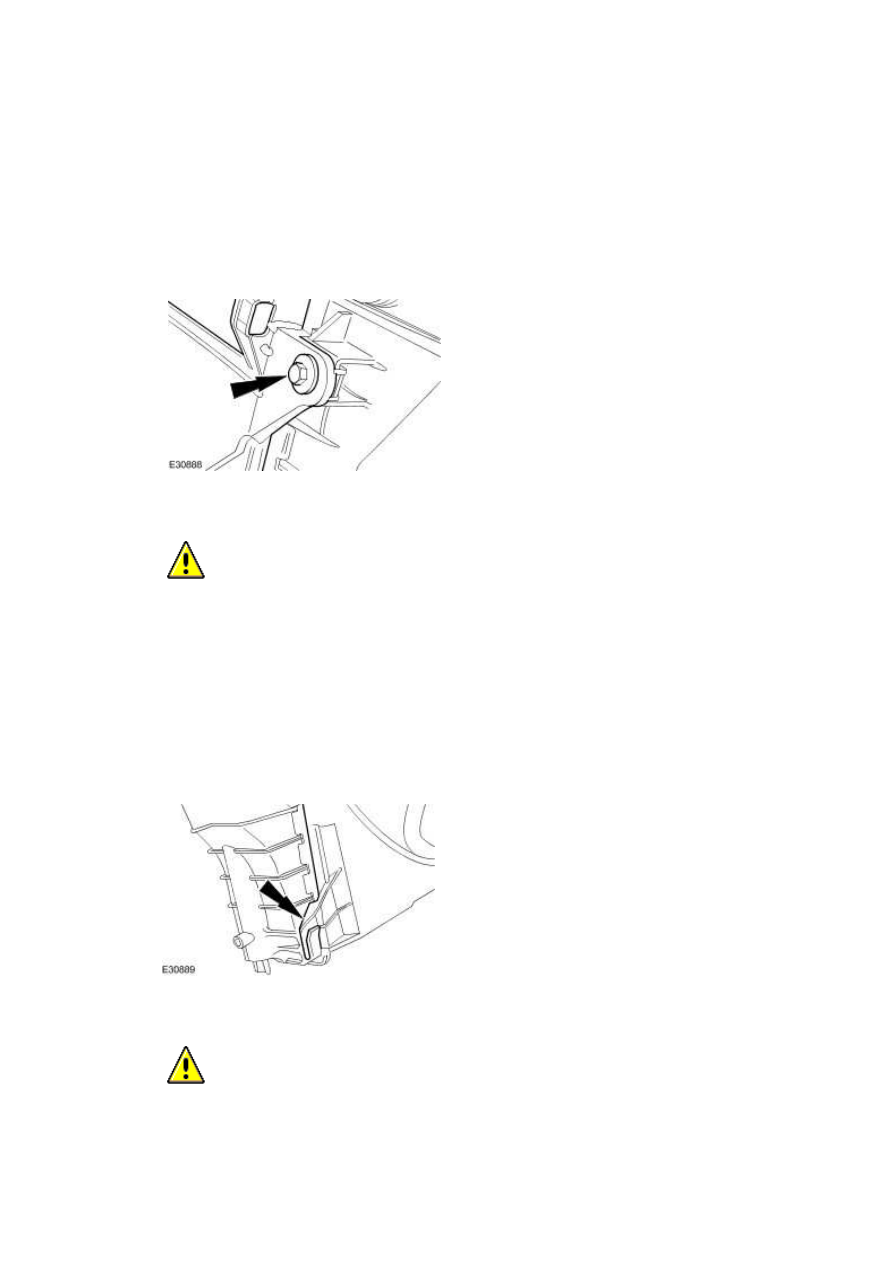

16 . NOTE:

Right-hand shown left-hand similar.

Remove the cooling fan motor and shroud retaining bolt.

CAUTION: Make sure that the retaining lugs of the radiator are not damaged when

detaching the cooling fan motor and shroud. Failure to follow this instruction may result

in damage to the vehicle.

NOTE:

Left-hand shown right-hand similar.

Detach the cooling fan motor and shroud retaining lugs from the radiator.

CAUTION: Make sure that the radiator is not damaged when removing the cooling

fan motor and shroud. Failure to follow this instruction may result in damage to the
