Jaguar XJ (X350). Manual - part 430

Engine Mount LH (12.45.01)

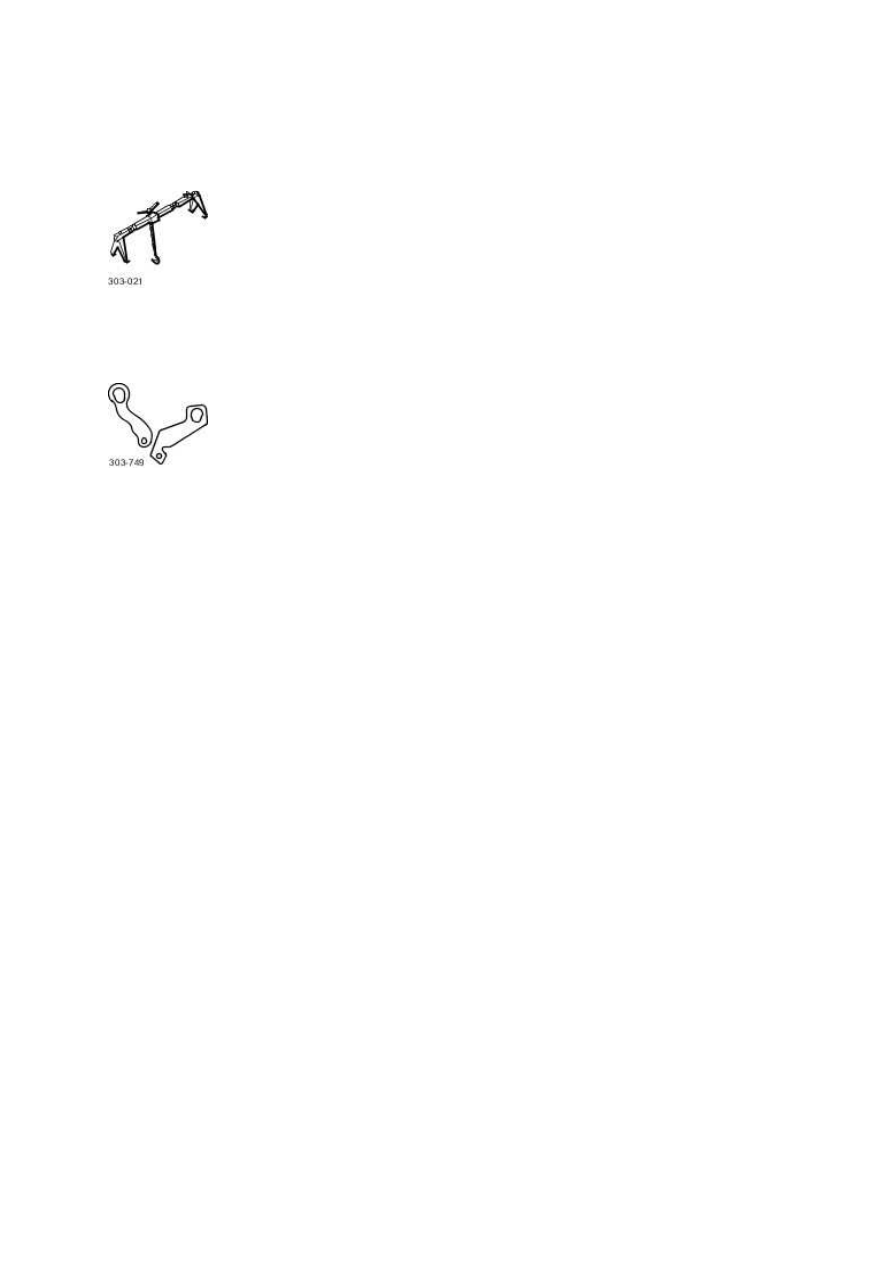

Special Service Tools

Engine Support Beam

303-021

Engine Lifting Brackets

303-749

Removal

Vehicles without supercharger

1 . Remove the throttle body.

For additional information, refer to Throttle Body - VIN Range: G00442->G45703 (19.70.04)

For additional information, refer to Throttle Body - VIN Range: G45704->G99999 (19.70.04)

Vehicles with supercharger

2 . Remove the air cleaner outlet pipe.

For additional information, refer to Air Cleaner Outlet Pipe (19.10.31)

All vehicles

NOTE:

Vehicles with 3.5L or 4.2L engine without supercharger shown, vehicles with 4.2L engine

with supercharger similar.

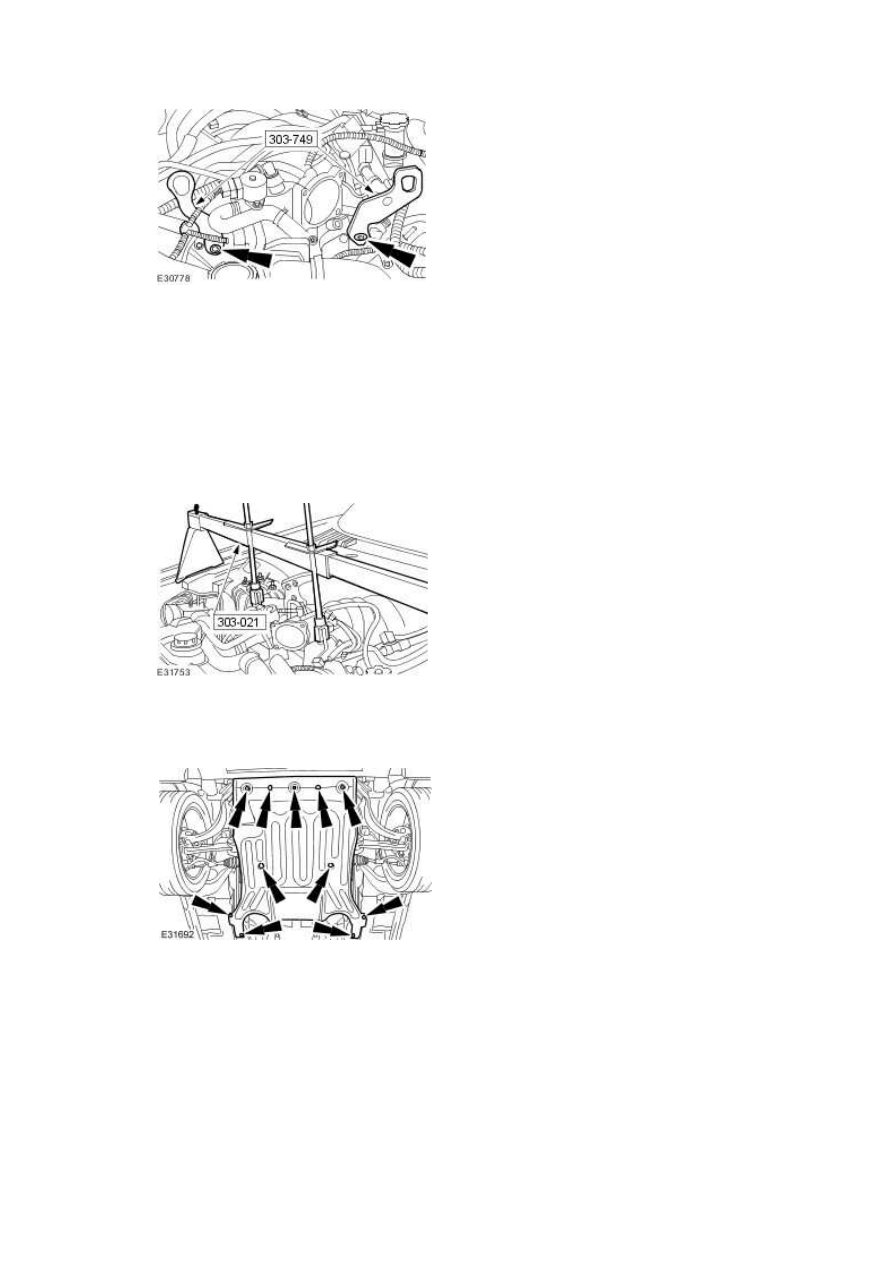

Install the special tools.

NOTE:

Vehicles with 3.5L or 4.2L engine without supercharger shown, vehicles with 4.2L engine

with supercharger similar.

Install the special tool.

5 . Remove the air deflector.

6 . Remove the left-hand front wheel and tire assembly.

For additional information, refer to Wheel and Tire (74.20.05)

www.

Left-hand drive vehicle shown, right-hand drive vehicle similar.

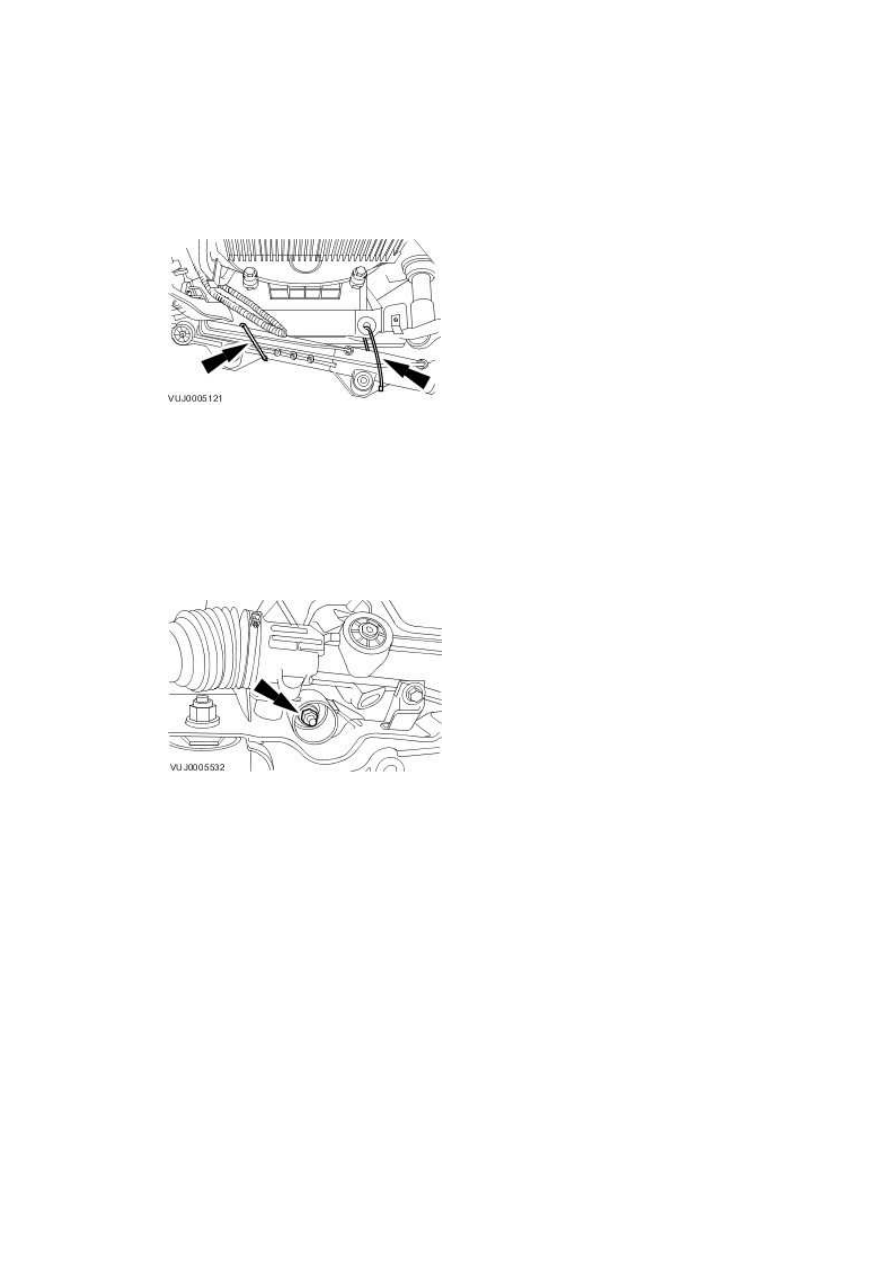

Remove the steering gear shaft pinch bolt.

8 . NOTE:

Left-hand drive vehicle shown, right-hand drive vehicle similar.

Detach the steering gear.

9 . NOTE:

Right-hand drive vehicle shown, left-hand drive vehicle similar.

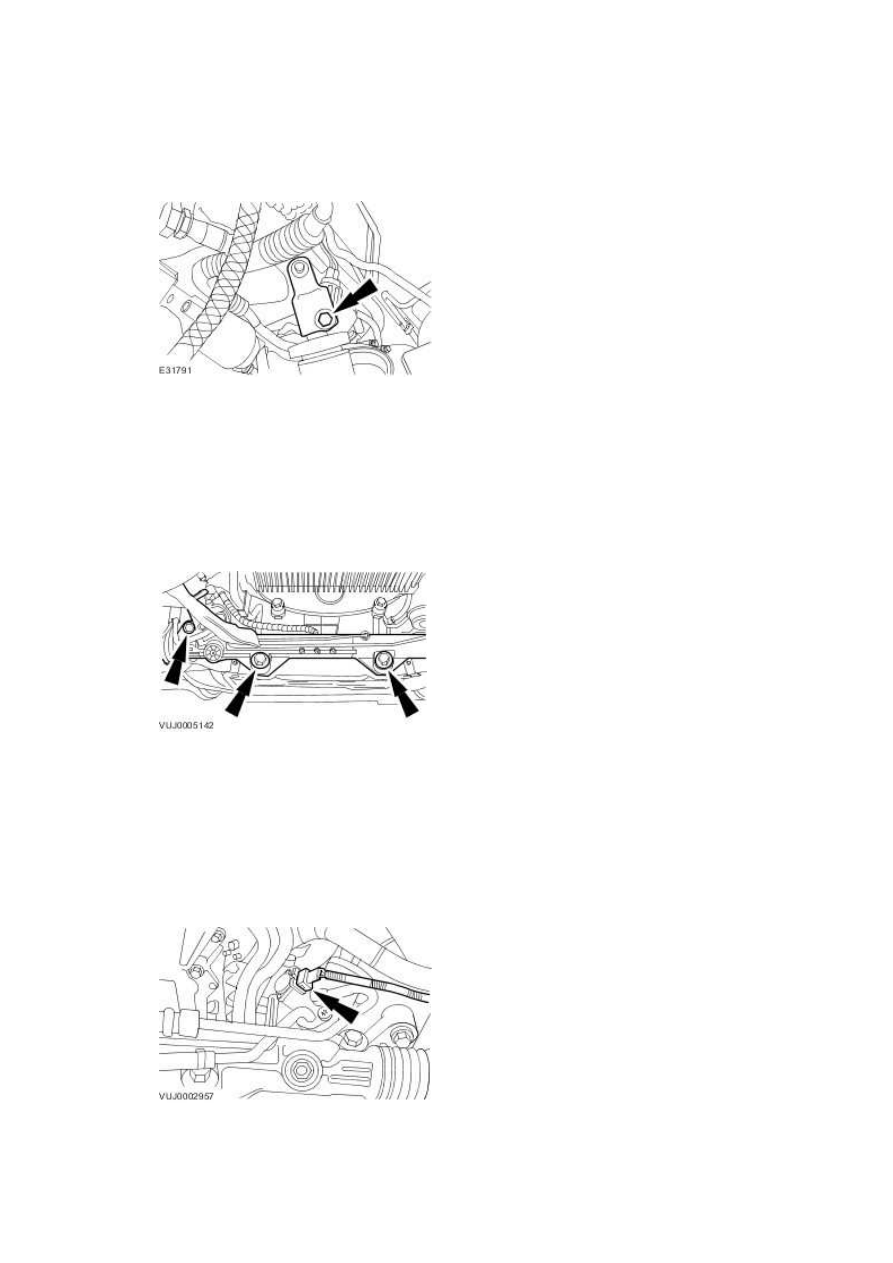

Disconnect the power steering control valve actuator electrical connector.

7 . NOTE:

10 . NOTE:

Left-hand drive vehicle shown, right-hand drive vehicle similar.

Secure the steering gear.

11 . NOTE:

Remove and discard the engine mounting securing nut.

Remove the engine mounting retaining nut.

12 . Lower the vehicle.

NOTE:

Vehicles with 4.2L engine with supercharger shown, vehicles with 3.5L or 4.2L engine

without supercharger similar.

Using the special tools, raise the engine to a suitable height.

1) Adjust the engine support beam (clockwise).
