Jaguar XJ (X350). Manual - part 376

51 . Detach the right-hand ignition coil wiring harness.

52 . Disconnect the right-hand ignition coil electrical connectors.

53 . Detach the right-hand ignition coil wiring harness.

Detach the engine wiring harness.

Detach the ground cable.

Disconnect the variable camshaft timing (VCT) solenoid electrical

connector.

Detach the engine wiring harness.

55 . NOTE:

Left-hand shown, right-hand similar.

Remove the ignition coils.

Remove the retaining bolts.

Vehicles without supercharger

56 . Disconnect the positive crankcase ventilation (PCV) pipe.

www.

All vehicles

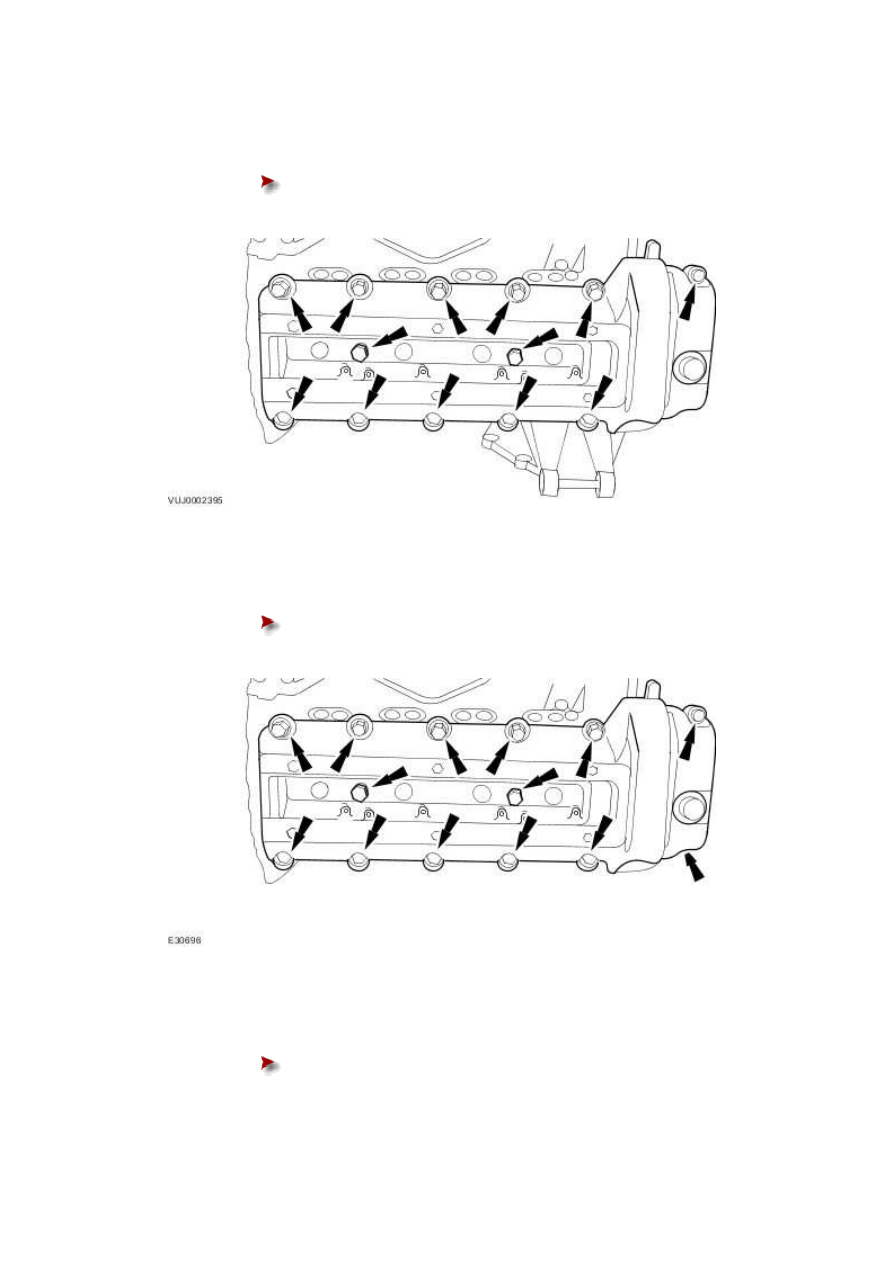

57 . Remove the right-hand valve cover.

Remove and discard the valve cover gaskets.

58 . Remove the left-hand valve cover.

Remove and discard the valve cover gaskets.

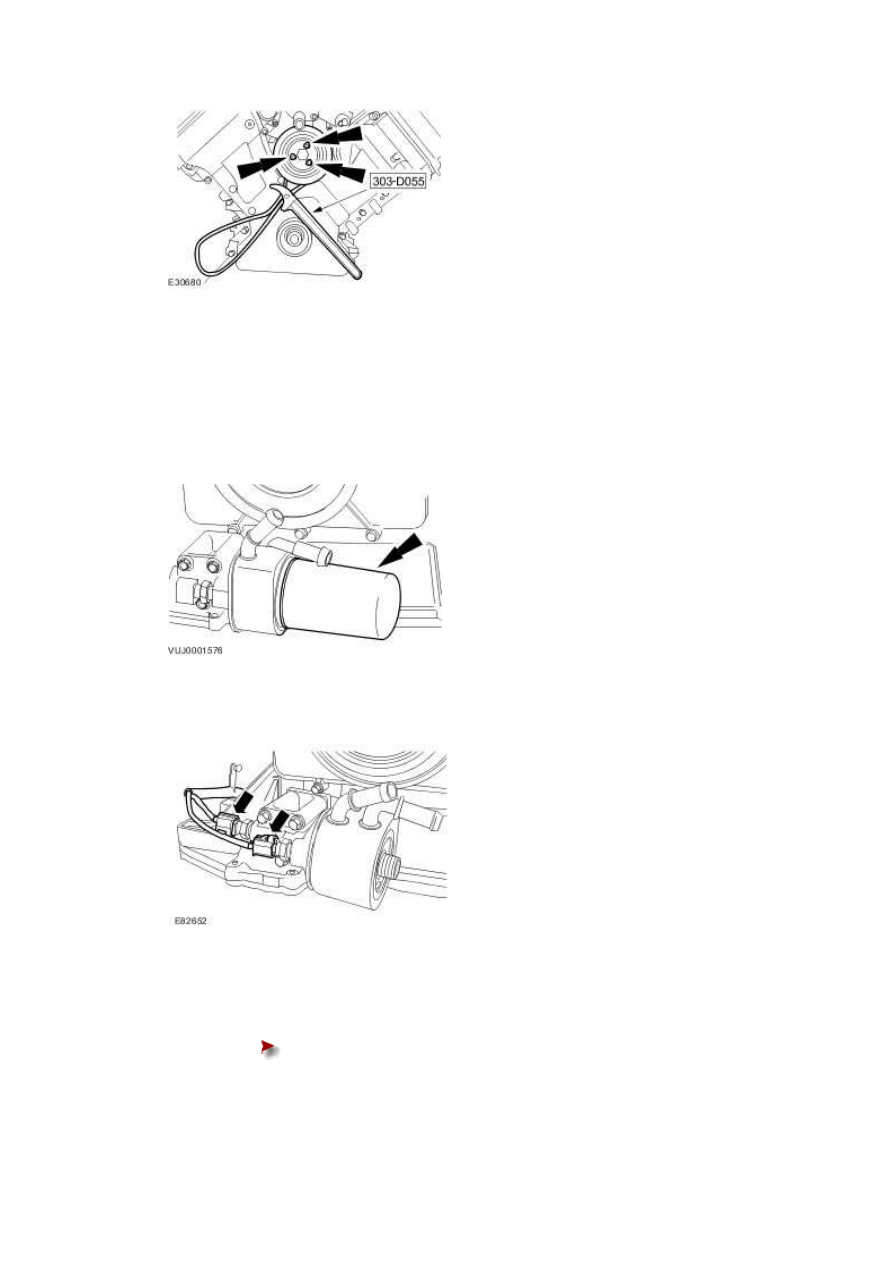

59 . Using the special tool, remove the water pump pulley.

Using the special tool, retain the water pump pulley.

60 . NOTE:

Place a suitable container underneath the oil filter housing to prevent oil spillage.

Remove the oil filter.

61 . Disconnect the oil pressure switch and oil temperature sensor electrical connectors.

62 . Remove the oil filter housing.

Remove and discard the O-ring seal.
