Jaguar XJ (X350). Manual - part 371





All moving parts are lubricated either by pressure or splash oil. Pressurized oil is also provided for

operation of the variable valve timing units and the timing gear chain tensioners.



All of the oil system components are installed on the structural sump.



Oil is returned to the oil pan under gravity through large drain holes in the cylinder heads and the

engine block to make sure quick return of the oil.

Oil Pick-Up

The plastic moulded oil pick-up is attached to the underside of the structural sump. It is immersed in

the oil reservoir to provide a supply to the oil pump during all normal vehicle attitudes. A castellated

inlet allows the supply to be maintained after any deformation of the sump pan (e.g. after

grounding). A mesh screen in the inlet prevents debris from entering the oil system.

Oil Pressure Switch

Installed at the right front of the structural sump, the oil pressure switch connects a ground input to

the instrument cluster when oil pressure is present. This switch operates at a pressure of 0,15 to 0,41

bar (2.2 to 5.9 lbf.in2).

Oil Pump

The oil pump is fitted at the front of the engine and is driven directly by the crankshaft. The inlet and

outlet ports align with oil passages in the bedplate, with a rubber coated metal gasket to seal the

pump to bedplate interface.



An integral pressure relief valve regulates pump outlet pressure at 4,5 bar (65.25lbf.in2).

Oil Pan

The oil pan/sump comprises an aluminium-alloy structural sump bolted to the bedplate and a

pressed steel pan with integral sump plug, bolted to the structural sump.

Oil Filler Cap

The oil filler cap is located on the top of the left-hand bank valve cover.

Windage Tray

A windage tray attached to the top of the structural sump isolates the oil pan from the disturbed air

flow, caused by the rotation of the crankshaft; preventing oil aeration and improving oil drainage.

Crankcase Ventilation

The engine is ventilated through a part-load and a full-load breather; one on each valve cover. These

flexible plastic hoses incorporate O-ring seals and quick release connectors.



The part-load breather ventilates the left-hand valve cover (B-bank) and feeds onto the throttle body

adaptor and the purge valve. This breather is connected between the oil separator in the cover and

the induction elbow.



The full-load breather ventilates the right-hand cover (A-bank) and is connected between the oil

separator in the cover and the air intake duct between the mass air flow (MAF) sensor and the

throttle body.



The MAF sensor unit combines the two sensors: one for air flow and one for air inlet temperature. It

is a hot wire sensor that provides an input which is (approximately) proportional to the mass air flow

into the engine.



Each valve cover oil separator consists of wire gauze packed into an open ended enclosure in the top

of the cover, below the breather outlet.

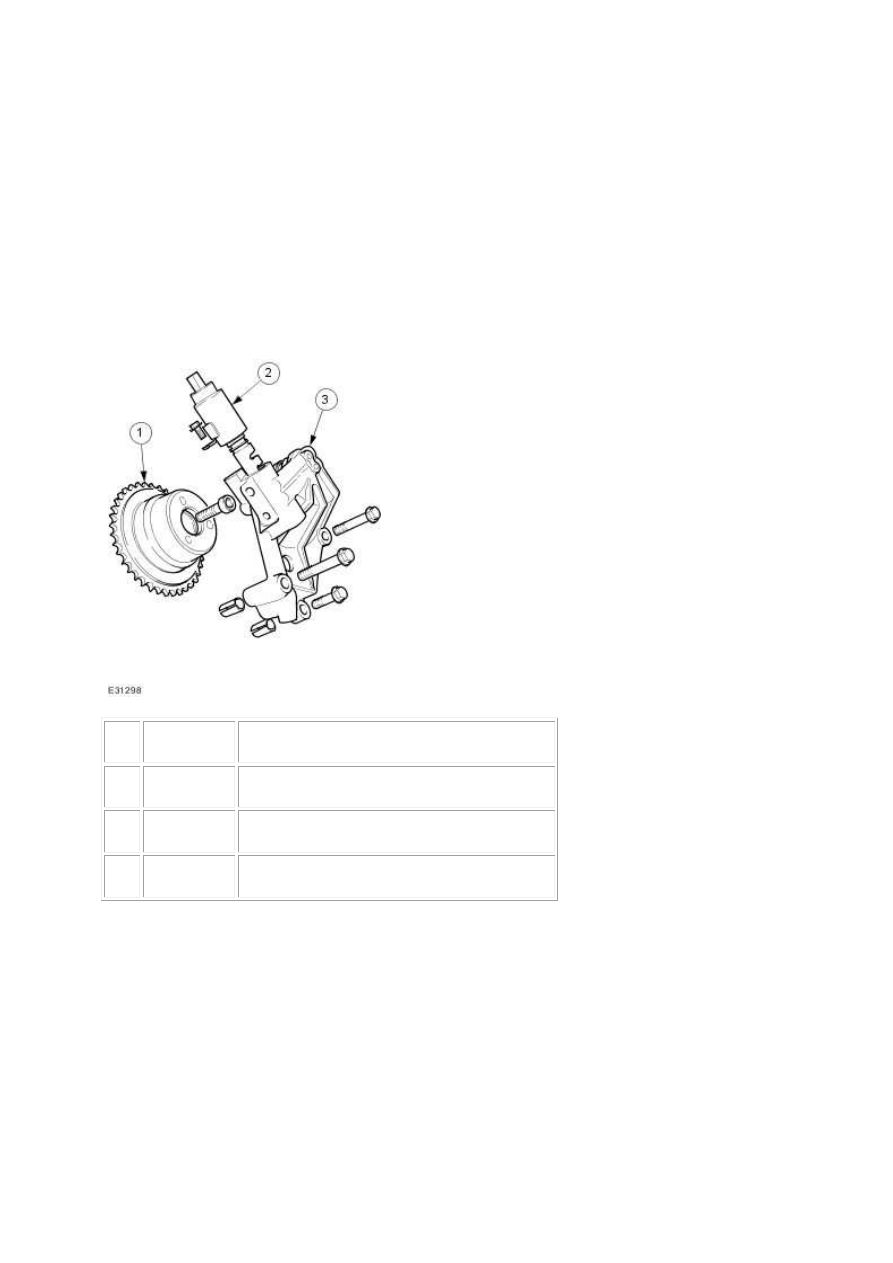

Variable Valve Timing (VVT)



Item



Part Number



Description



1



 —



Variable valve timing (VCT) oil control unit



2



 —



Variable valve timing (VCT) oil control solenoid



3



 —



Bush carrier





The variable valve timing system improves both low speed and high speed engine performance,

engine idle quality and exhaust emissions. It is an infinitely variable system operating on the intake

camshafts only. There is the equivalent of 48º of crankshaft movement between the retarded and

advanced positions. Engine oil pressure operates the system under the control of the ECM.





www.

Diagnosis and testing





Engine

For additional information, refer to <<303-00>>





Removal and installation





Crankshaft Main Bearing Carrier

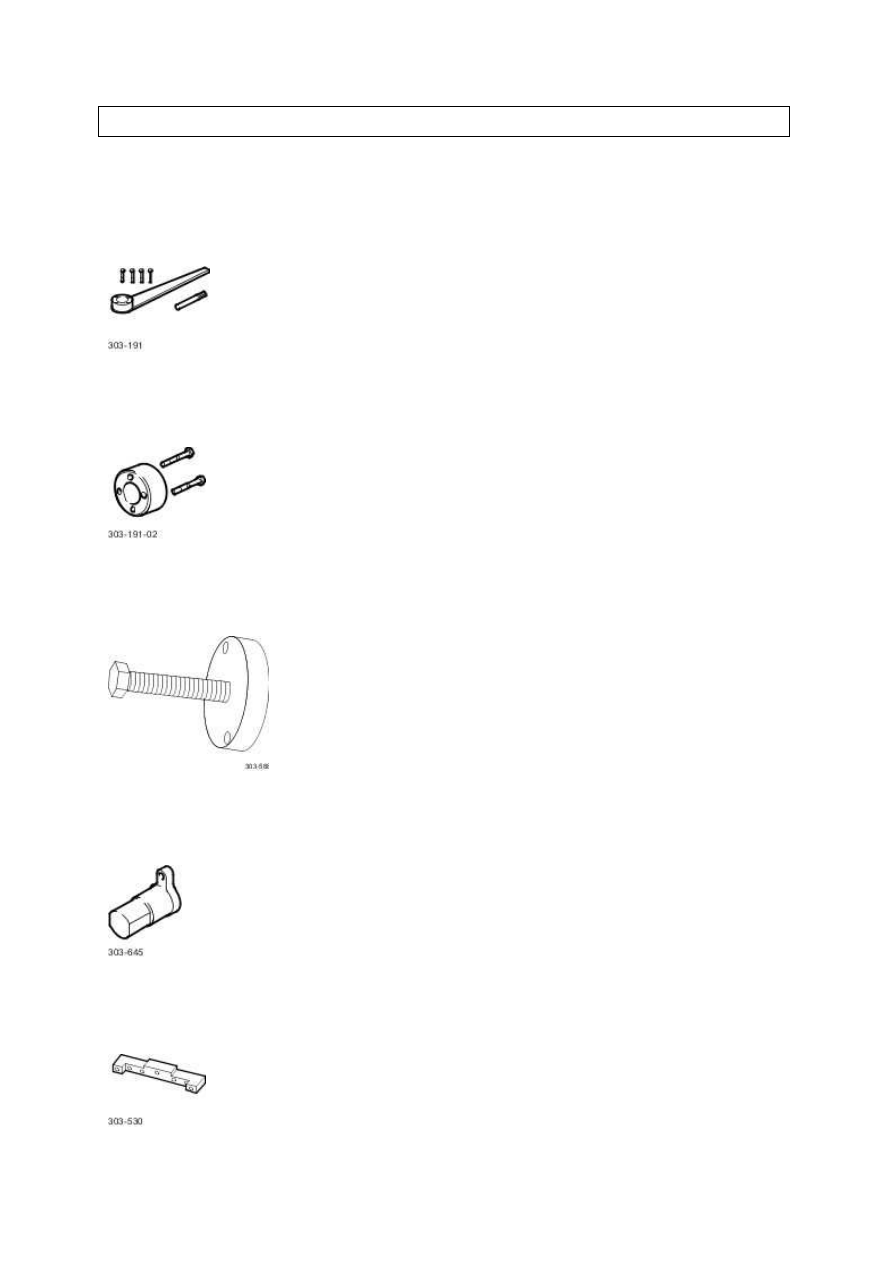

Special Service Tools





Crankshaft locking, main tool

303-191







Adapter

303-191-02







Crankshaft pulley/damper remover

303-588







Crankshaft setting, main tool

303-645







www.
