Jaguar XJ (X350). Manual - part 359

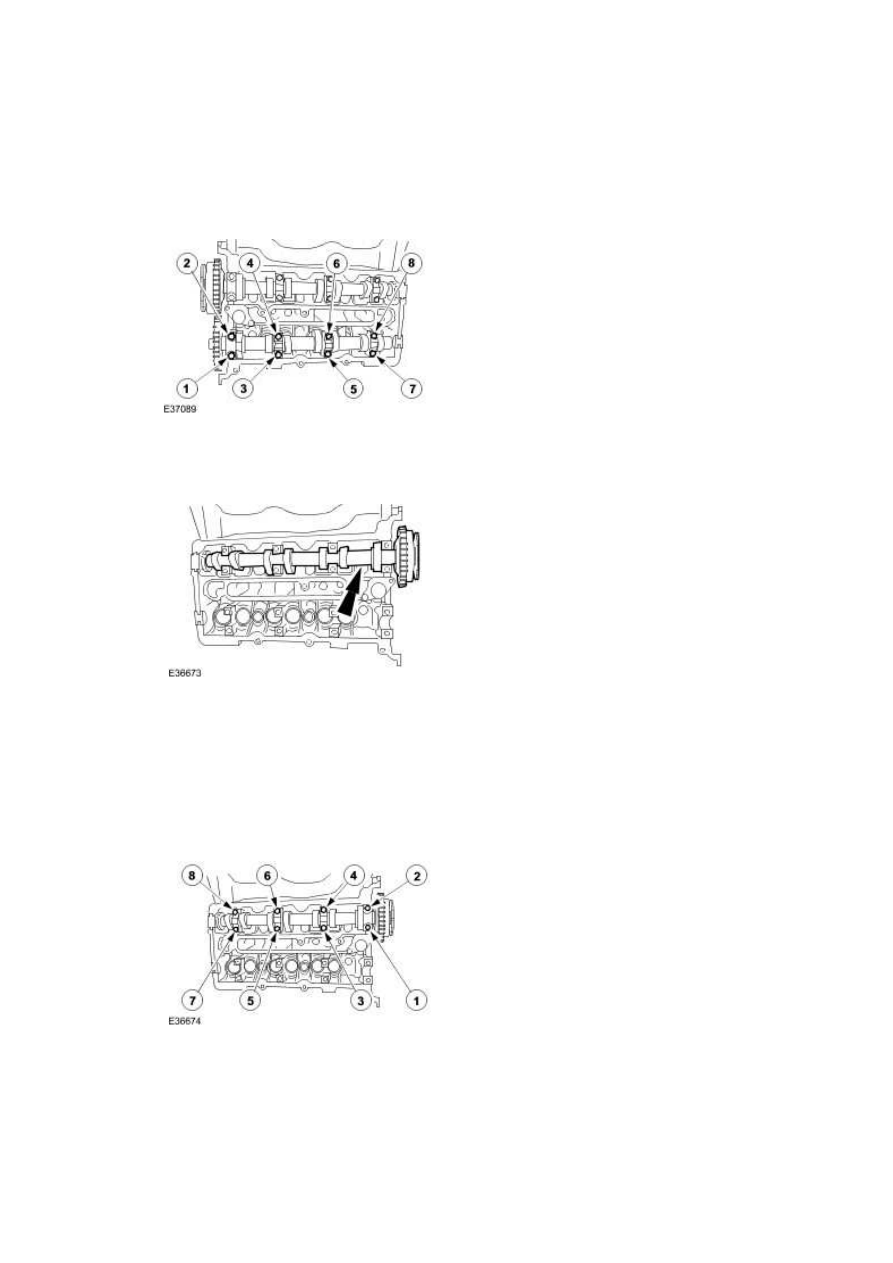

Install the left-hand exhaust camshaft bearing cap bolts evenly.

•

Install the exhaust camshaft bearing caps.

29 . Install the right-hand inlet camshaft.

30 . Install the right-hand inlet camshaft bearing cap bolts evenly.

•

Install the inlet camshaft bearing caps.

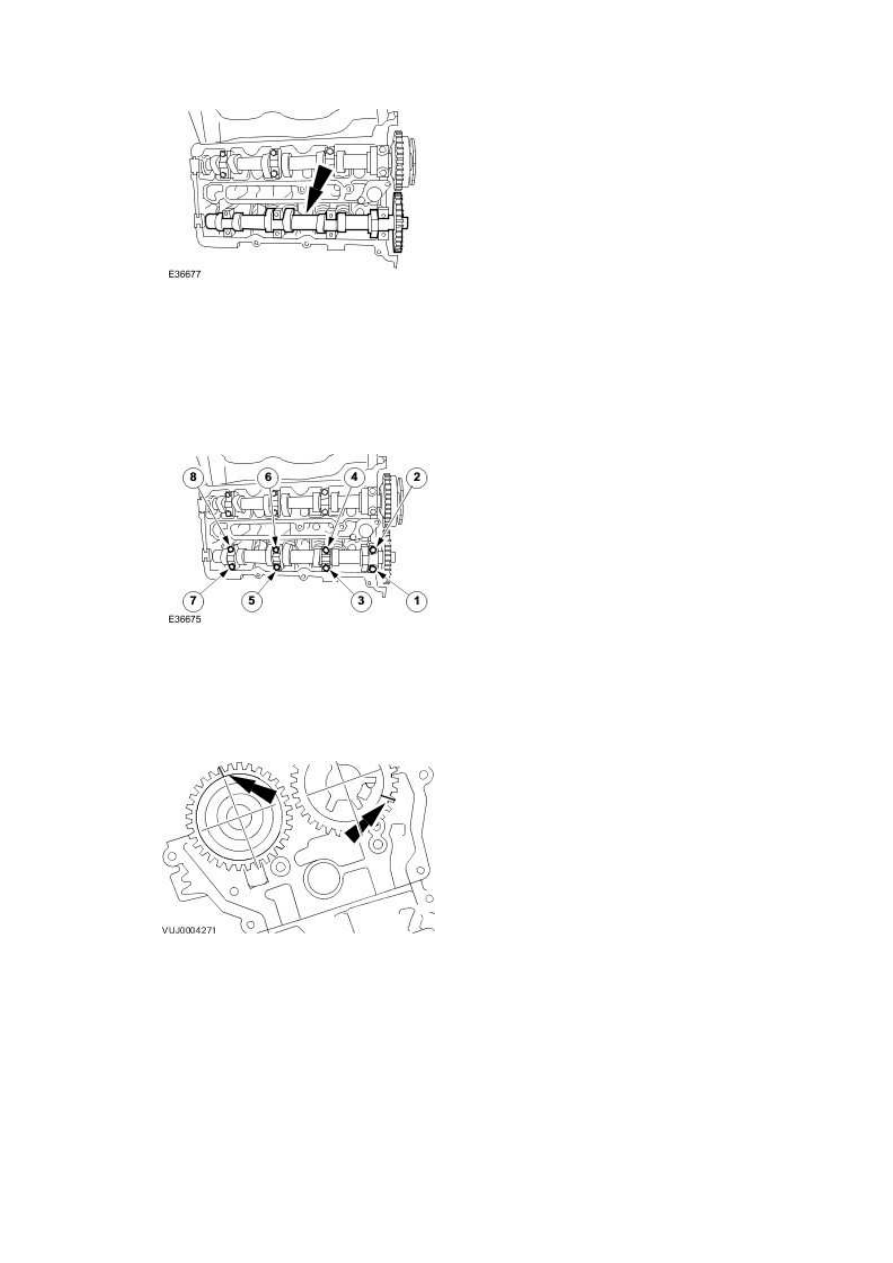

31 . Install the right-hand exhaust camshaft.

32 . Install the right-hand exhaust camshaft bearing cap bolts evenly.

•

Install the exhaust camshaft bearing caps.

Rotate the right-hand intake camshaft clockwise until the camshaft sprocket alignment mark

is at the 5 O'clock position and rotate the right-hand exhaust camshaft sprocket clockwise

until the camshaft sprocket alignment mark is at the 12 O'clock position.

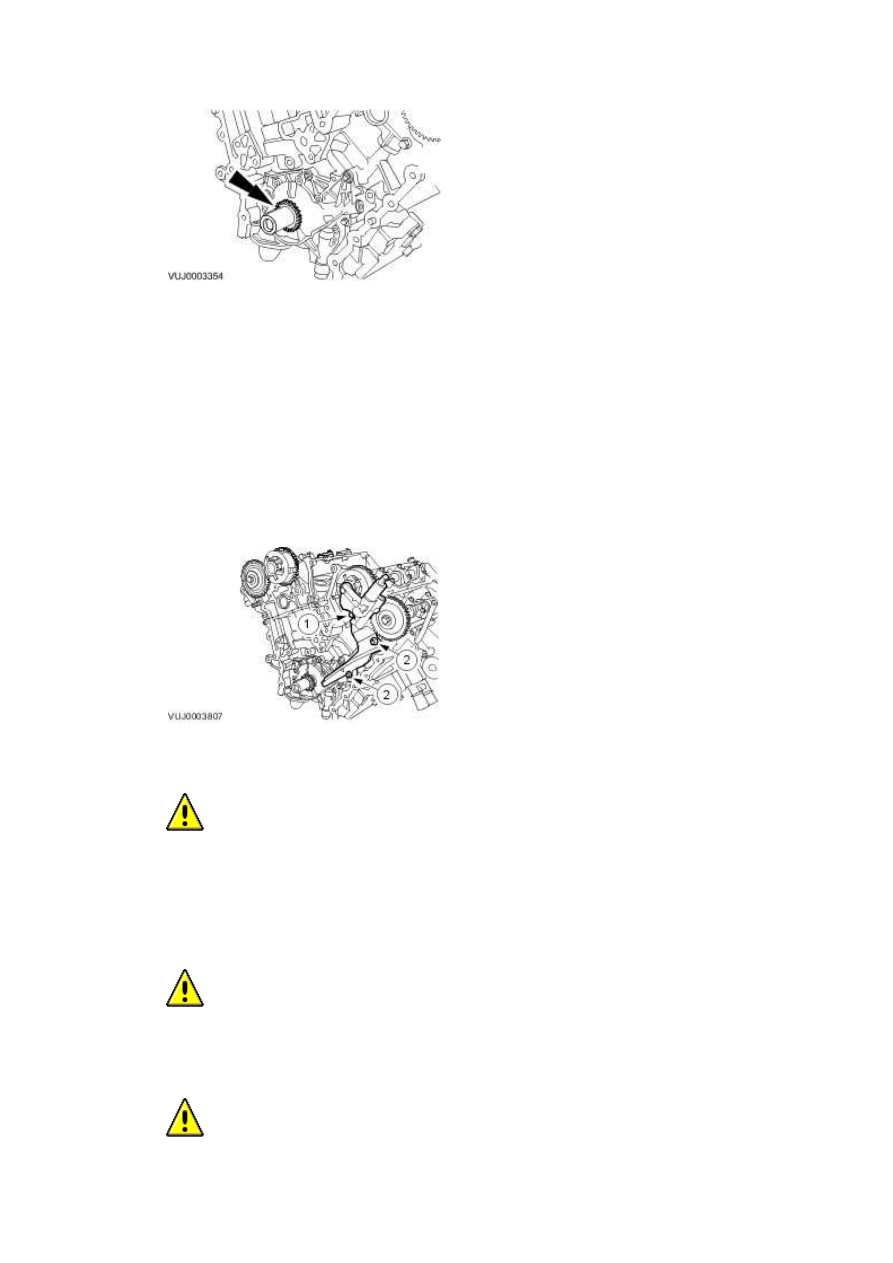

34 . Install the crankshaft inner sprocket.

www.

35 . Install the left-hand timing chain outer guide.

•

Tighten the retaining bolts in the sequence shown in two stages.

•

Stage 1: Tighten bolt 1 to 25 Nm.

•

Stage 2: Tighten bolts 2 to 25 Nm.

CAUTION: Make sure the crankshaft keyway is at the 11 O'clock position, the

alignment mark on the left-hand intake camshaft sprocket is at the 9 O'clock position and

the alignment mark on the left-hand exhaust camshaft sprocket is at the 2 O'clock

position.

CAUTION: Make sure the timing chain alignment marks are correctly positioned to

the crankshaft sprocket and camshaft sprocket alignment marks.

CAUTION: Make sure the timing chain slack is on the tensioned side of the timing

chain.

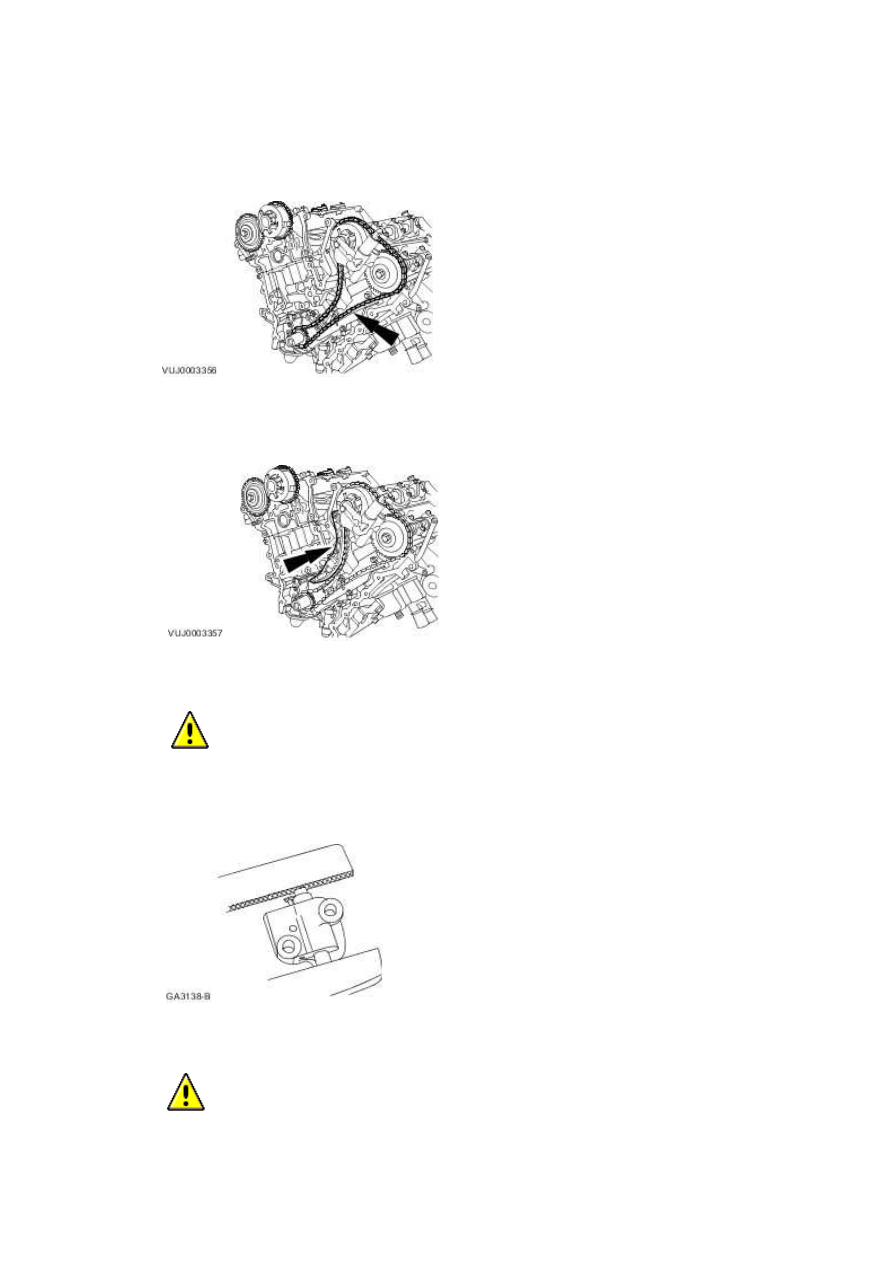

Install the left-hand timing chain.

37 . Install the left-hand timing chain inner guide.

CAUTION: Use suitable protective covers on the vice jaws to protect the timing

chain tensioner.

Secure the left-hand timing chain tensioner in the vice jaws.

CAUTION: During timing chain tensioner compression, do not release the ratchet

stem until the timing chain tensioner piston is fully bottomed in its bore or damage to the
