Description and operation





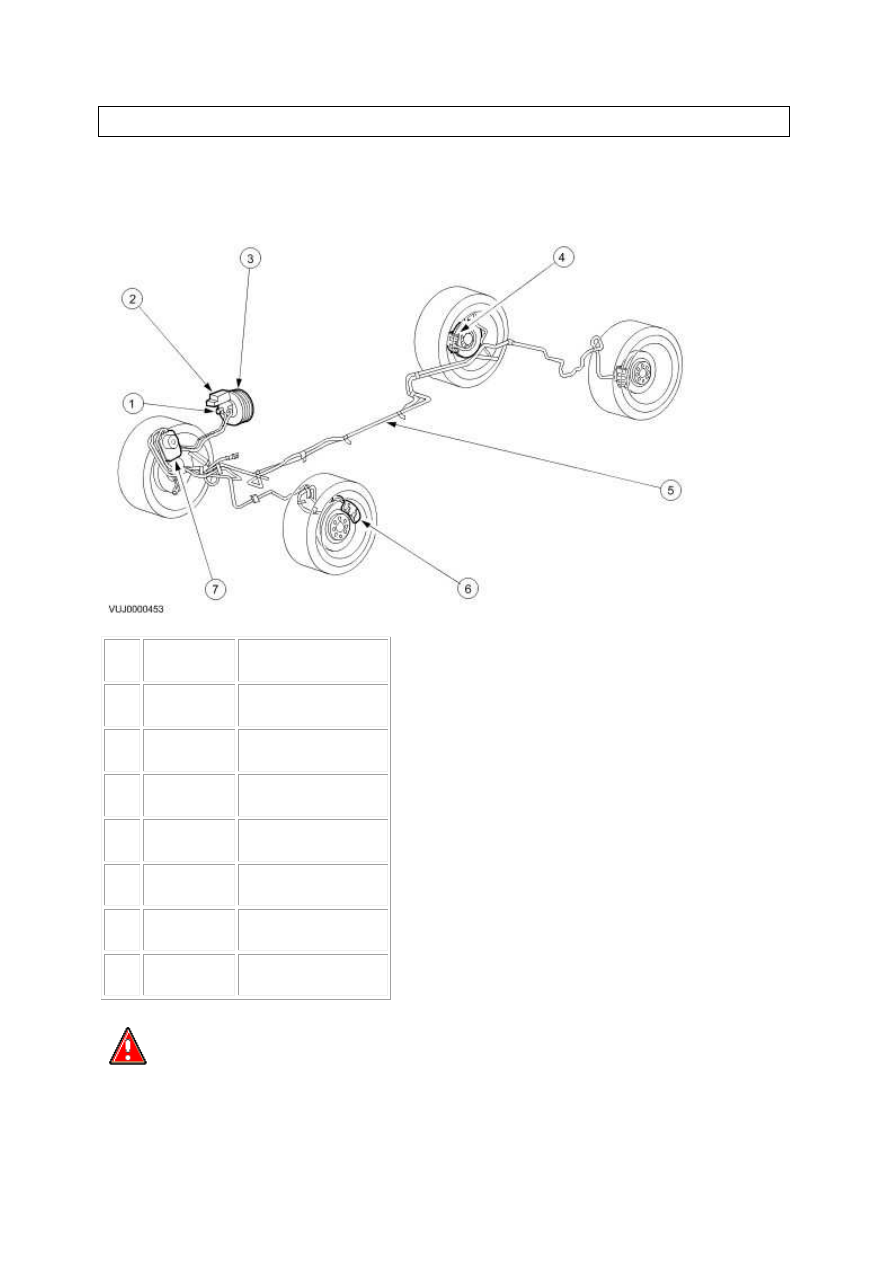

Hydraulic Brake Actuation



Item



Part Number



Description



1



 —



Brake master cylinder



2



 —



Brake fluid reservoir



3



 —



Brake booster



4



 —



Rear brake caliper



5



 —



Brake lines



6



 —



Front brake caliper



7



 —



Hydraulic control unit





  WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with the

eyes. Wash hands thoroughly after handling, as prolonged contact may cause irritation and

dermatitis. If brake fluid contacts the eyes, flush the eyes with cold water or eyewash solution and

seek medical attention. If taken internally, do not induce vomiting, seek immediate medical

attention. Failure to follow these instructions may result in personal injury.





The hydraulic brake system is of a pedal operated, diagonally split dual line brake system that

consists of the following components:



A brake booster.



A brake master cylinder.



Front brake discs.



Front brake disc calipers.



Rear brake discs.



Rear brake disc calipers.



Brake tubes and hoses.



Anti-lock brake system (ABS).

Brake Master Cylinder

The brake master cylinder is a dual piston type. The master cylinder operates as follows:



When the brake pedal is applied, pressure is applied by mechanical linkage to the primary
and secondary systems.



Brake master cylinder pistons apply hydraulic pressure to the two circuits.

The master cylinder consists of the following components:



Primary and secondary pistons.



Brake master cylinder fluid reservoir with integral fluid level warning indicator.

Adjustable Pedals

The adjustable pedal system comprises of a throttle pedal assembly with an adjustment motor and

drive cables. The drive cables are attached to the brake and clutch adjustment mechanisms. The

pedals move forward and rearward together. Two seperate pedal positions can be set and stored in

the memory for driver recall. The pedal position adjustment is by a switch fitted on the steering

column shroud.





www.

Hydraulic Brake Actuation

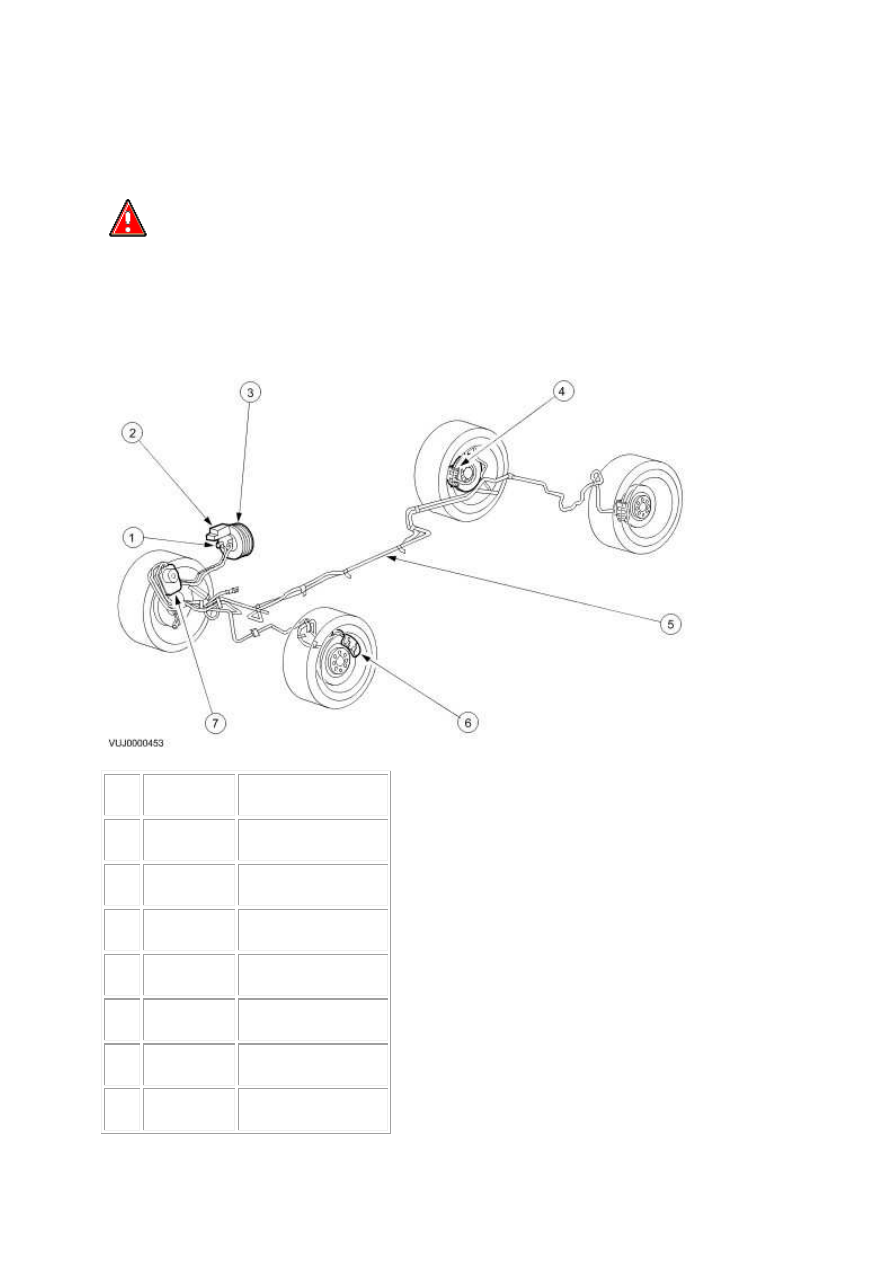

COMPONENT LOCATION

  WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with the

eyes. Wash hands thoroughly after handling, as prolonged contact may cause irritation and

dermatitis. If brake fluid contacts the eyes, flush the eyes with cold water or eyewash solution and

seek medical attention. If taken internally, do not induce vomiting, seek immediate medical

attention. Failure to follow these instructions may result in personal injury.







Item



Part Number



Description



1







Brake master cylinder



2







Brake fluid reservoir



3







Brake booster



4







Rear brake caliper



5







Brake lines



6







Front brake caliper



7







Hydraulic control unit





OVERVIEW

The hydraulic brake system is of a pedal-operated, diagonally split dual line brake system that

consists of the following components:



A brake booster



A brake master cylinder



Front brake discs



Front brake disc calipers



Rear brake discs



Rear brake disc calipers



Brake tubes and hoses



Anti-lock brake system (ABS)

BRAKE MASTER CYLINDER

The brake master cylinder is a dual piston type. The master cylinder operates as follows:



When the brake pedal is applied, pressure is applied by mechanical linkage to the primary
and secondary systems



Brake master cylinder pistons apply hydraulic pressure to the two circuits

The master cylinder consists of the following components:



Primary and secondary pistons



Brake master cylinder fluid reservoir with integral fluid level warning indicator

ADJUSTABLE PEDALS

The adjustable pedal system comprises of a throttle pedal assembly with an adjustment motor and

drive cables. The drive cables are attached to the brake adjustment mechanisms. The pedals move

forward and rearward together. Two separate pedal positions can be set and stored in the memory

for driver recall. The pedal position adjustment is by a switch fitted on the steering column shroud.





www.
