Parking Brake Release Actuator - VIN
Range: G00001->G03445 (70.35.45)

Removal

Carry out the parking brake cable tension release.

For additional information, refer to

Parking Brake Cable Tension Release - VIN Range:

G00442->G45703

2 . Raise and support the vehicle.

For additional information, refer to

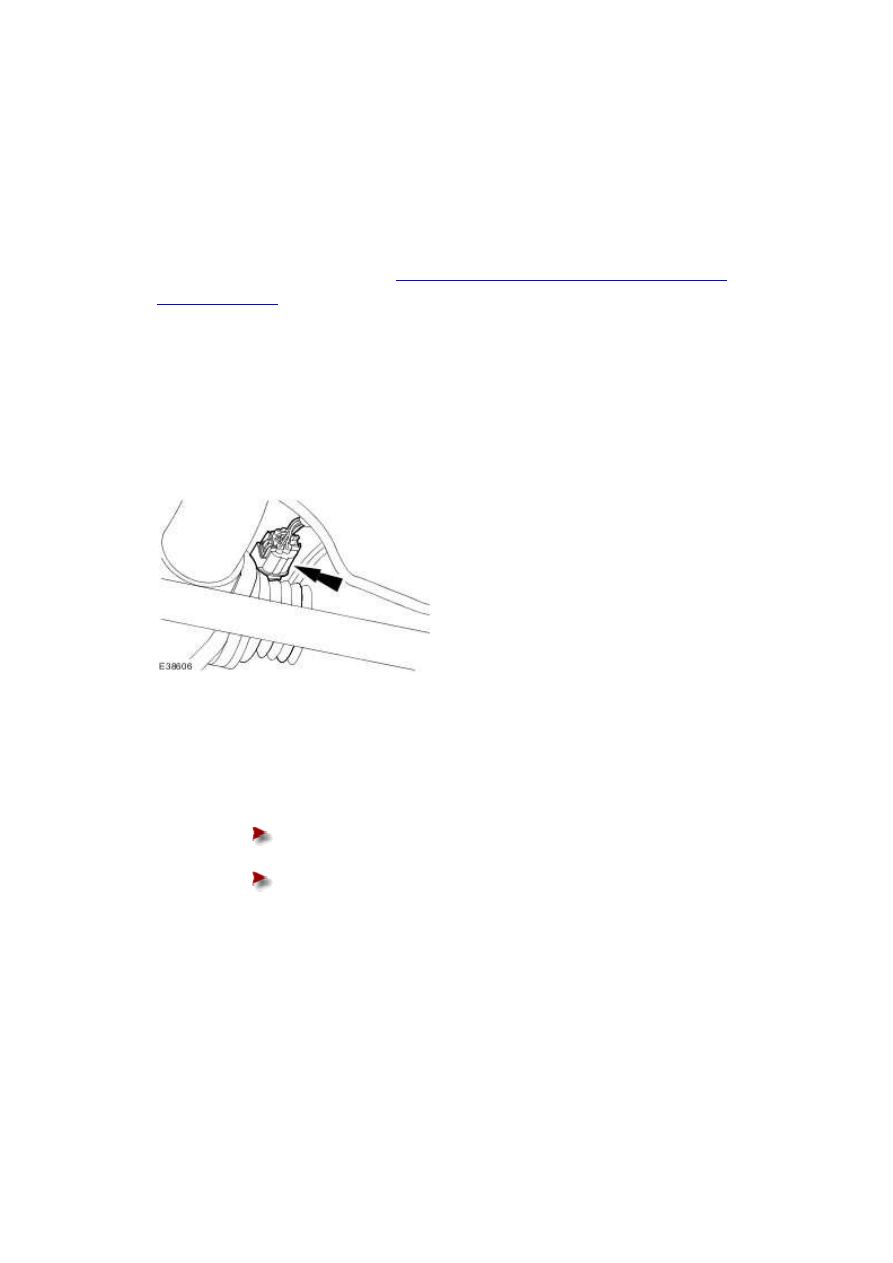

3 . Disconnect the parking brake release actuator electrical connector.

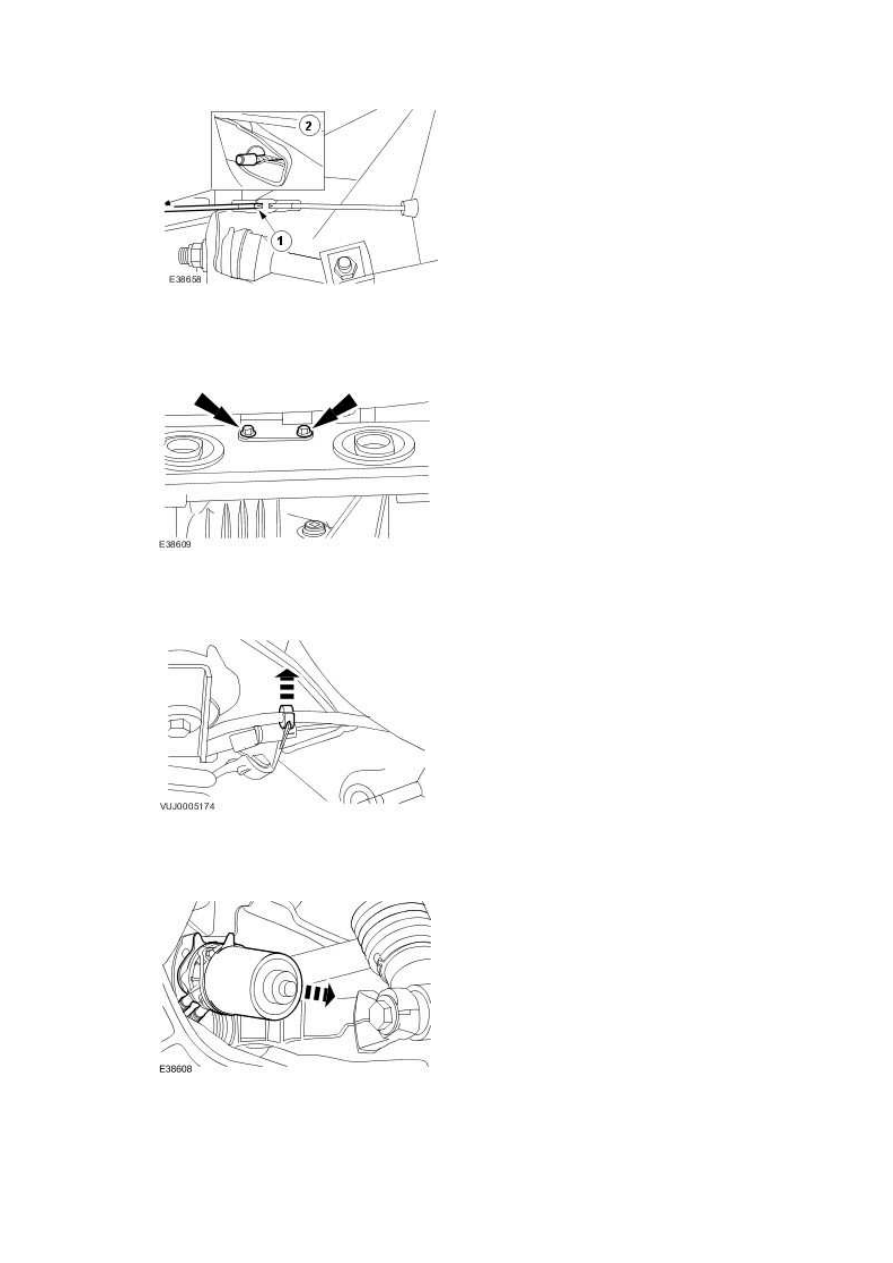

4 . Detach the parking brake cable.

1) For right-hand side connector bracket:

reposition the retaining tang.

detach the parking brake cable.

4) For left-hand side reaction bracket, detach the parking brake cable.

5 . Remove the parking brake release actuator retaining bolts.

6 . Detach the parking brake release actuator cable.

7 . Remove the parking brake release actuator.

www.

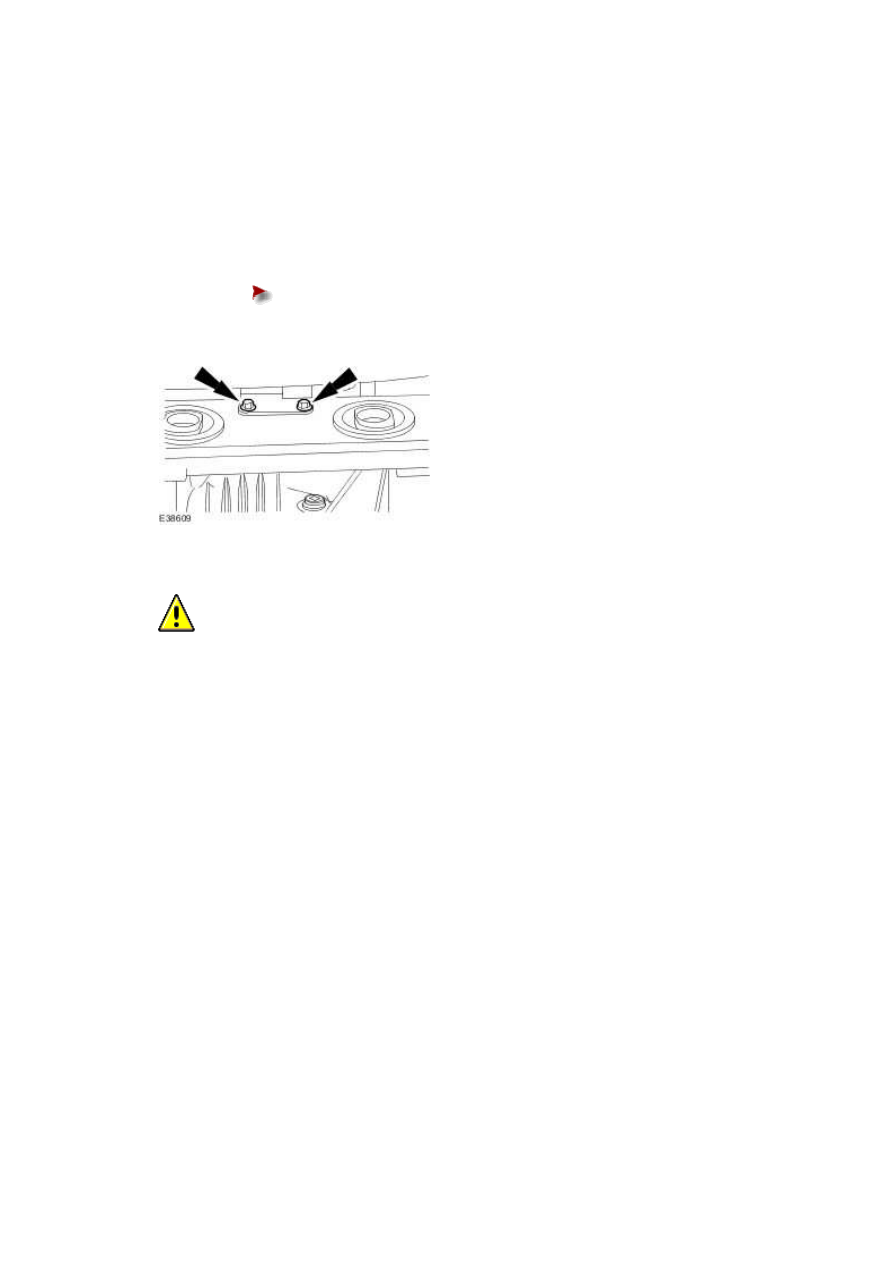

Installation

1 . NOTE:

Make sure the parking brake cable is correctly routed.

To install, reverse the removal procedure.

Tighten to 20 Nm.

CAUTION: Calibrate the electric park brake using Jaguar approved diagnostic system.

If the Jaguar approved diagnostic system is not available disconnect the battery for

approximately 30 seconds, the vehicle will then prompt the driver to carry out the

calibration procedure as per the vehicle hand book on re-connection.

Calibrate the electric parking brake module using the Jaguar approved diagnostic system.

Parking Brake Release Actuator - VIN
Range: G03446->H99999 (70.35.45)

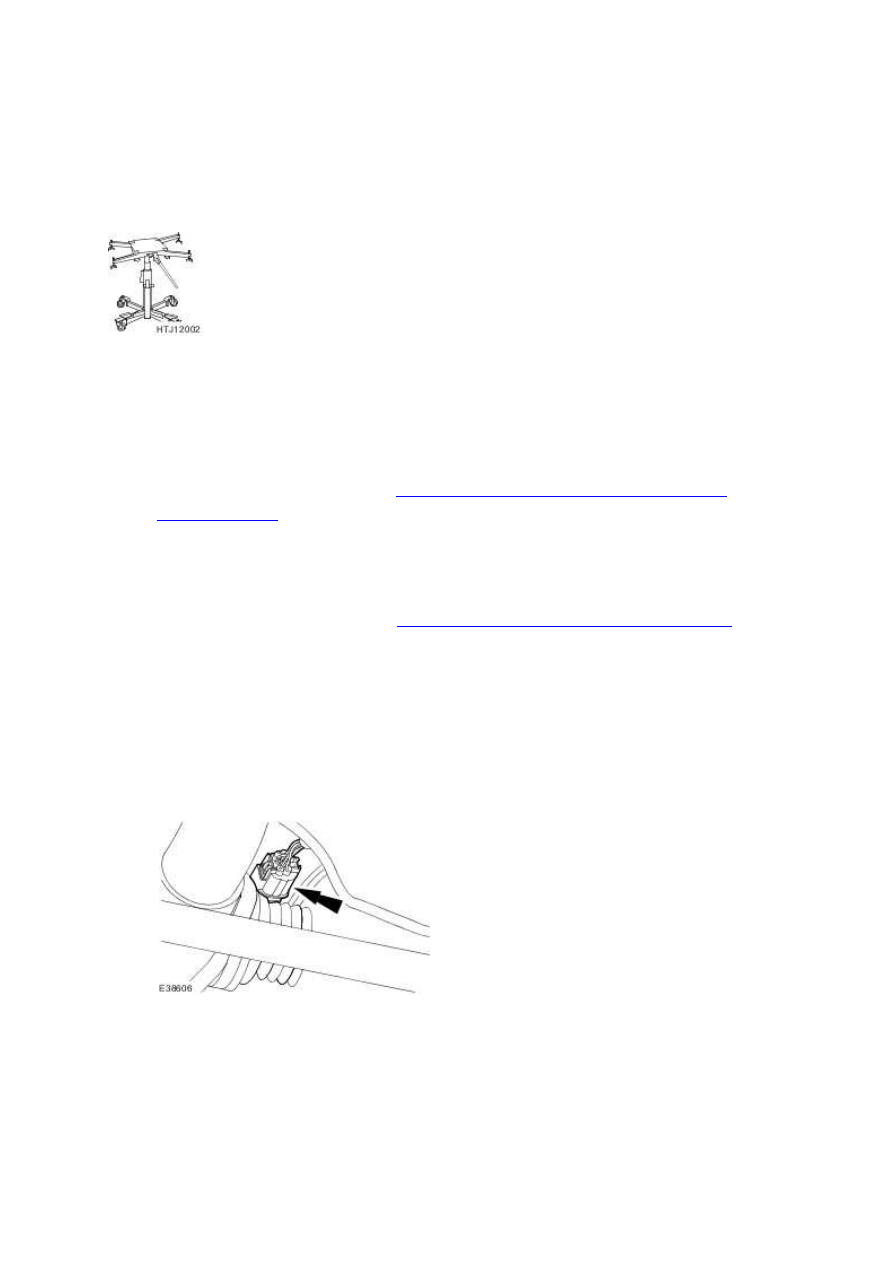

Special Service Tools

Powertrain assembly jack

HTJ1200-02

Removal

Carry out the parking brake cable tension release.

For additional information, refer to

Parking Brake Cable Tension Release - VIN Range:

G45704->G99999

2 . Drain the fuel tank.

For additional information, refer to

Fuel Tank Draining - VIN Range: G45704->G99999

3 . Raise and support the vehicle.

For additional information, refer to

4 . Disconnect the parking brake release actuator electrical connector.

5 . NOTE:

Left-hand shown, right-hand similar.
