The tool shown must only be used in the event of an emergency.

2. Move the selector lever to the ' P' position.

3. Release the parking brake.

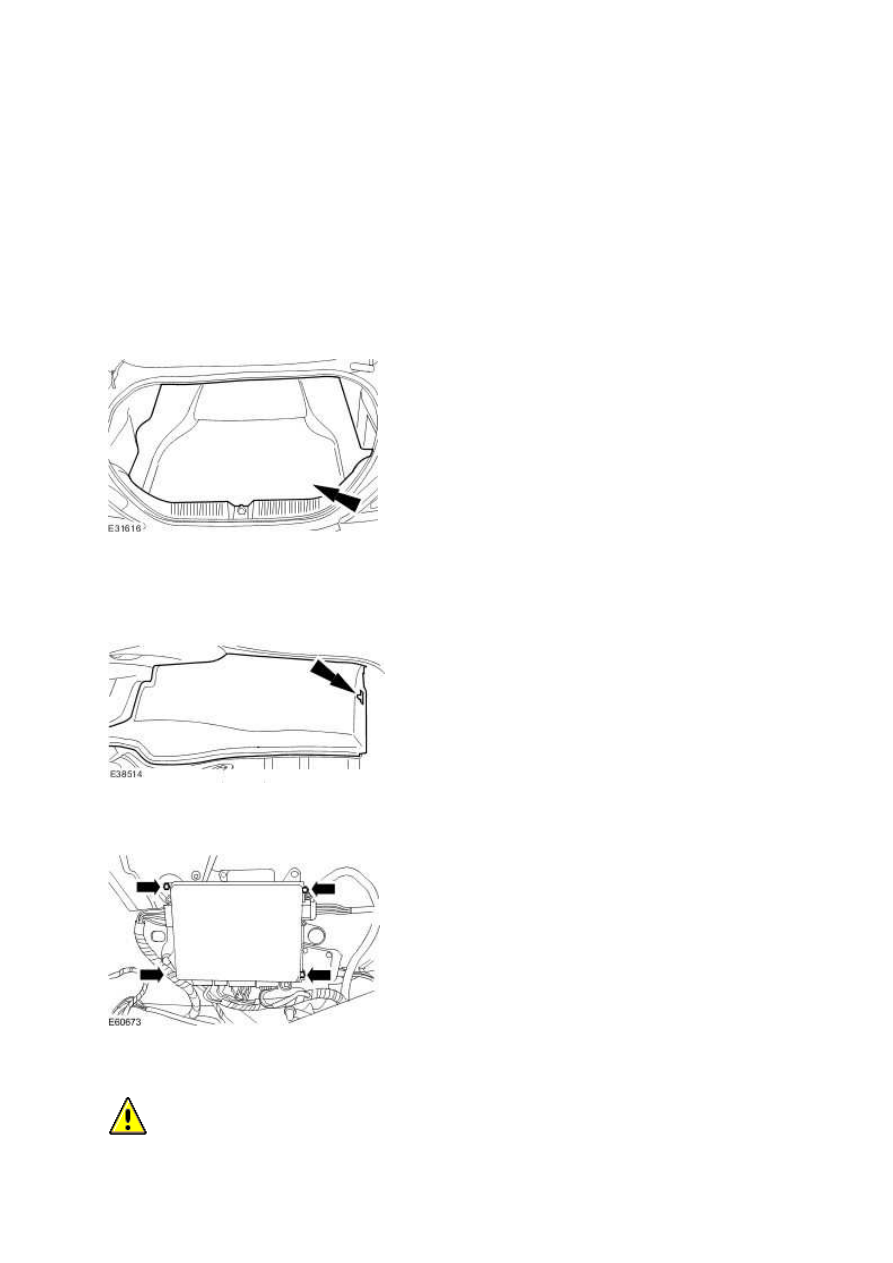

4. Remove the luggage compartment floor covering.

5. Remove the luggage compartment side trim panel.

6. Detach the rear electronic module (REM).

CAUTION: Disconnect the parking brake module electrical connectors in the sequence

NOTE:

shown. Failure to follow this instruction may result in diagnostic trouble codes being stored in the

module.

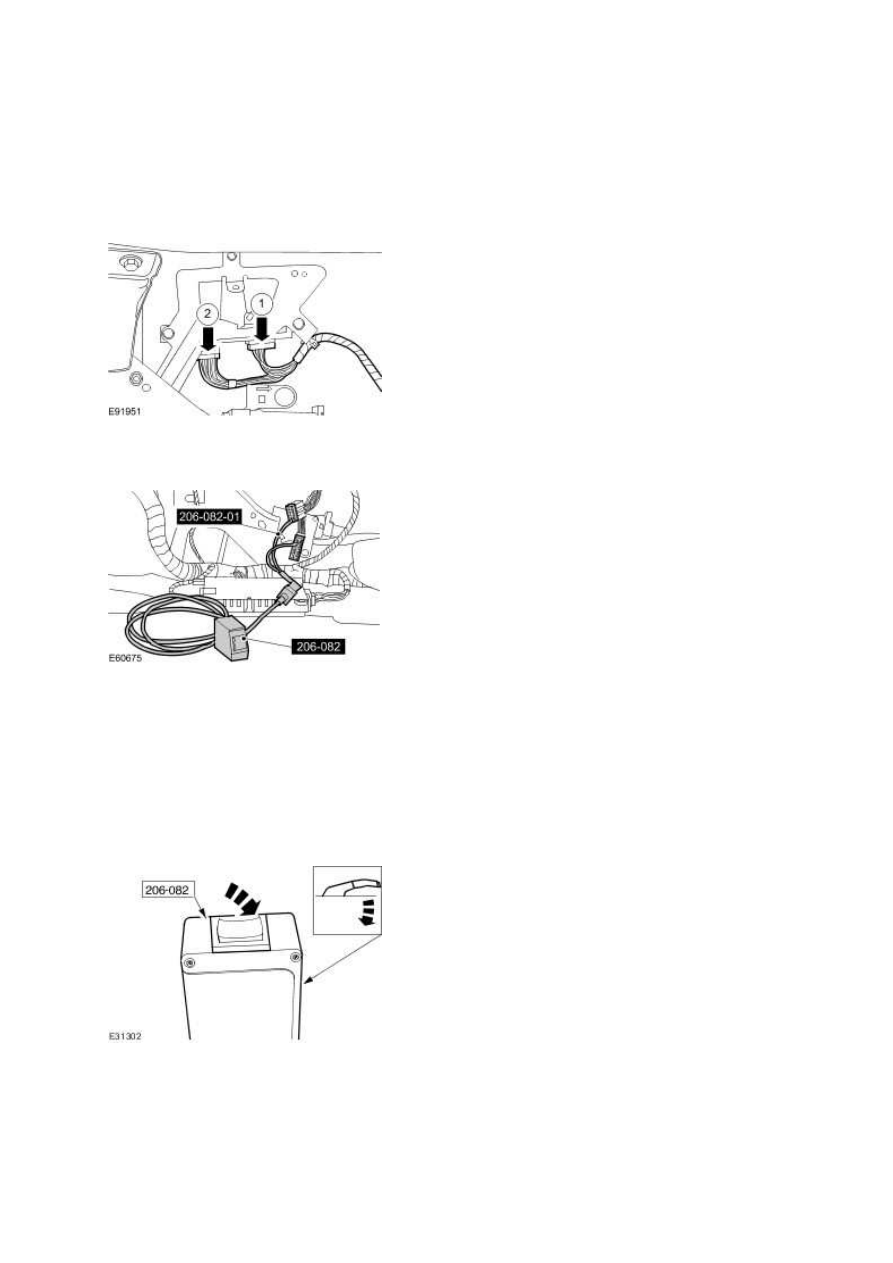

Disconnect the parking brake module electrical connectors.

8. Connect the special tools to the parking brake module wiring harness electrical connectors.

9. NOTE:

Operate the parking brake release tool until an audible noise is heard from the parking brake

release actuator.

Release the parking brake cable tension.

10. Remove the special tool and carry out any necessary repair to the system.

www.

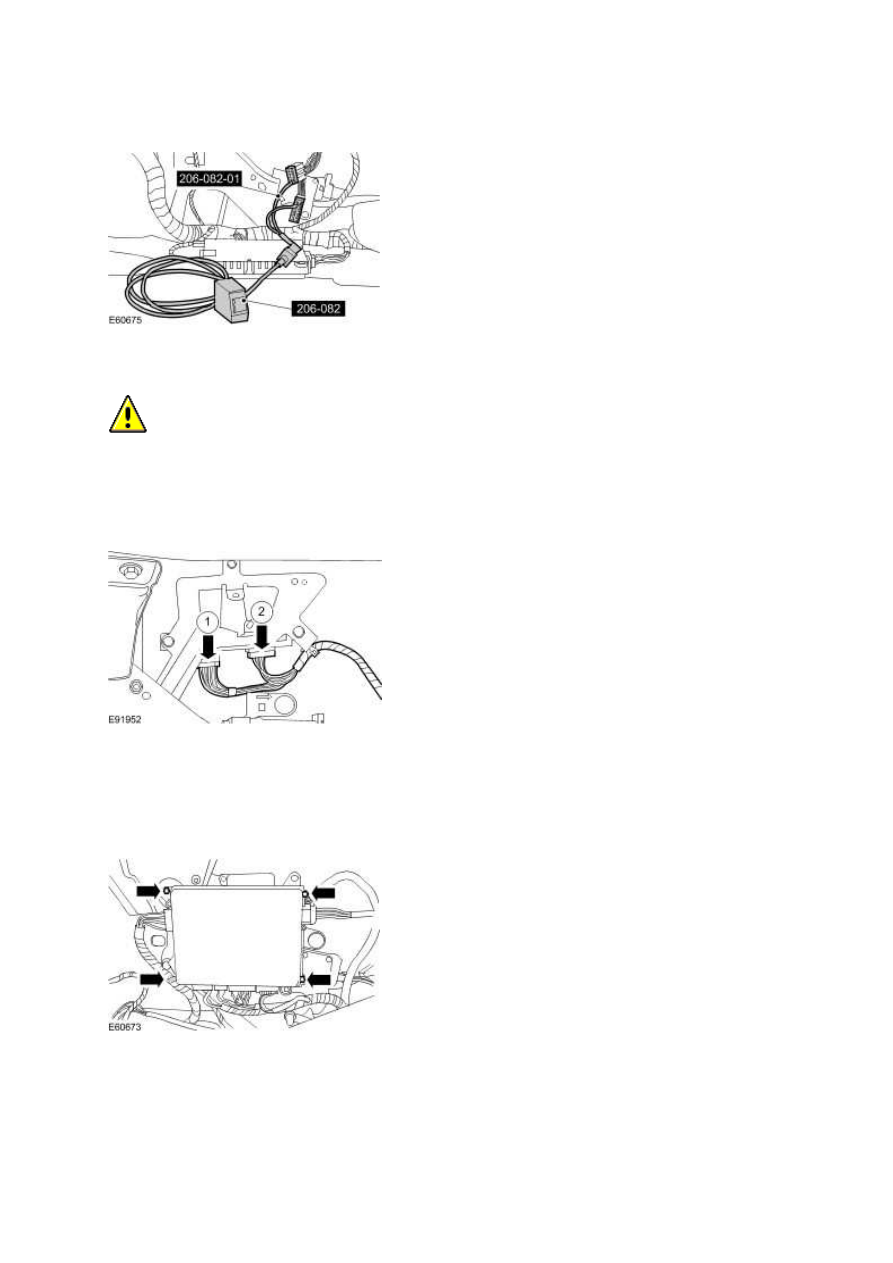

11. Disconnect the special tools from the parking brake module wiring harness electrical connectors.

12.

CAUTION: Connect the parking brake module electrical connectors in the sequence shown.

Failure to follow this instruction may result in diagnostic trouble codes being stored in the module.

Connect the parking brake module electrical connectors.

13. Attach the REM.

•

Tighten to 6 Nm.

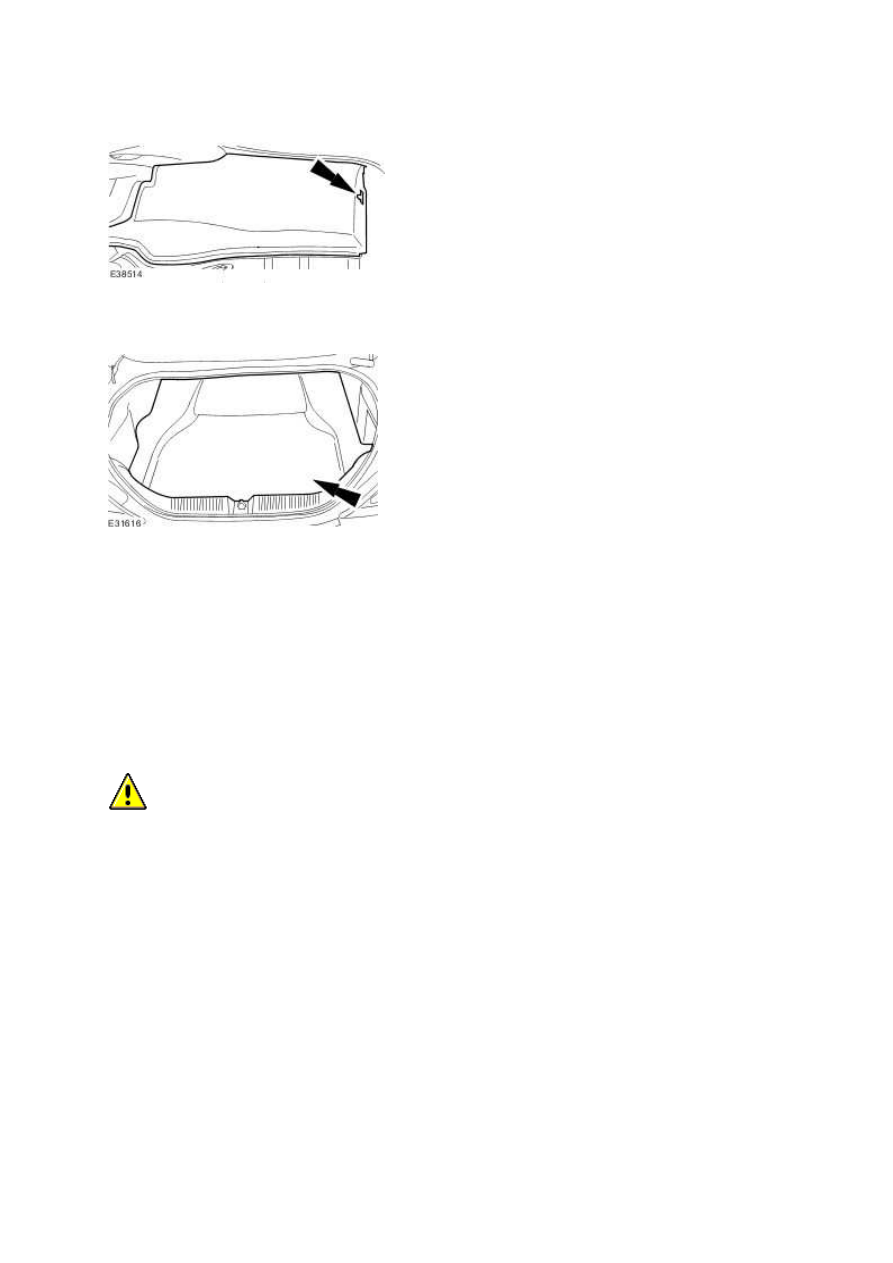

14. Install the luggage compartment side trim panel.

15. Install the luggage compartment floor covering.

16. NOTE:

The brake pedal must be applied when calibrating the parking brake switch.

Apply the parking brake.

17.

CAUTION: Calibrate the electric park brake using Jaguar approved diagnostic system. If the

Jaguar approved diagnostic system is not available disconnect the battery for approximately 30

seconds, the vehicle will then prompt the driver to carry out the calibration procedure as per the

vehicle hand book on re-connection.

Calibrate the electric parking brake module using the Jaguar approved diagnostic system.
