Jaguar XJ (X350). Manual - part 156



Left-hand shown, right-hand similar.


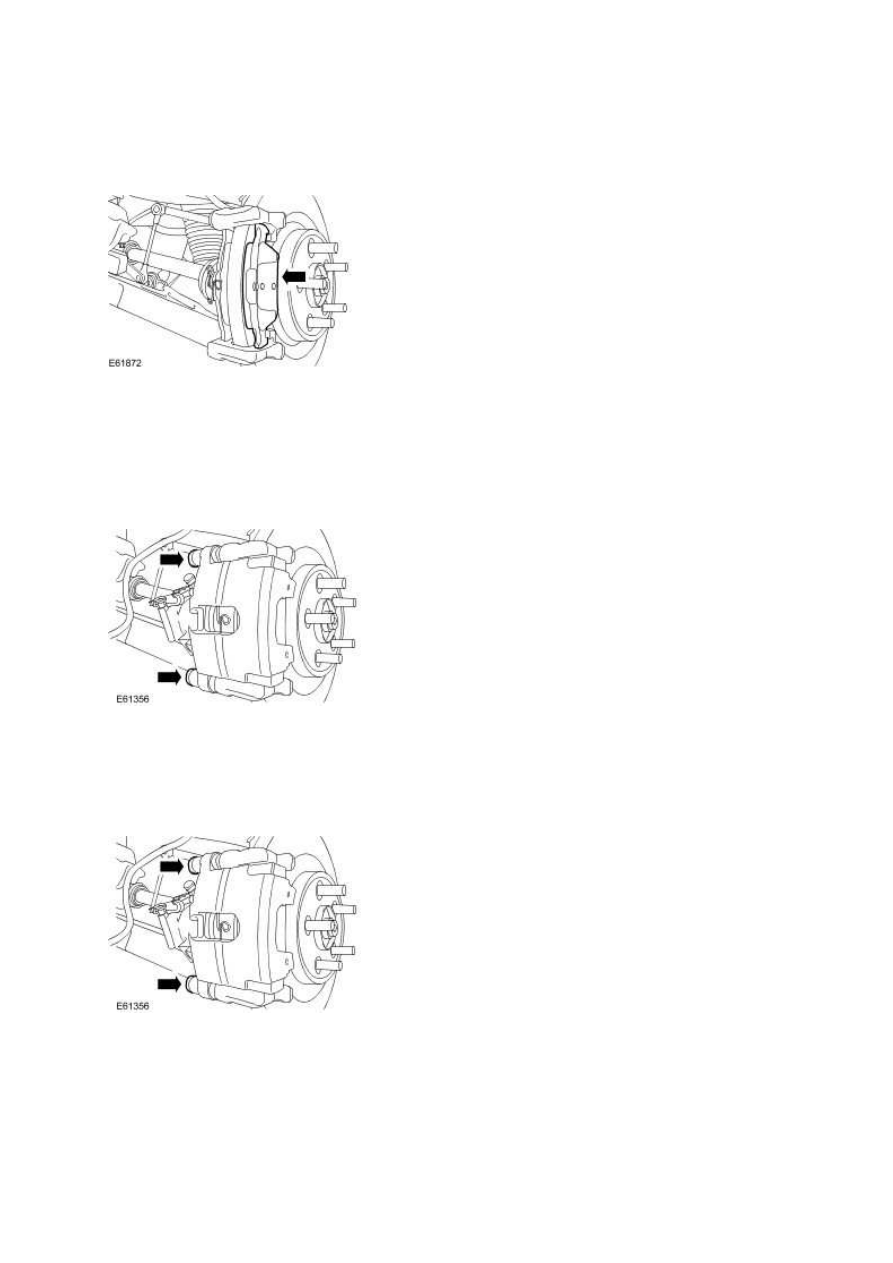

Install the outer brake pad.





18.  NOTE:


Left-hand shown, right-hand similar.


Install the brake caliper.



•

  Tighten to 28 Nm.






19.  NOTE:


Left-hand shown, right-hand similar.


Install the brake caliper retaining bolt dust covers.





20.  NOTE:


Left-hand shown, right-hand similar.


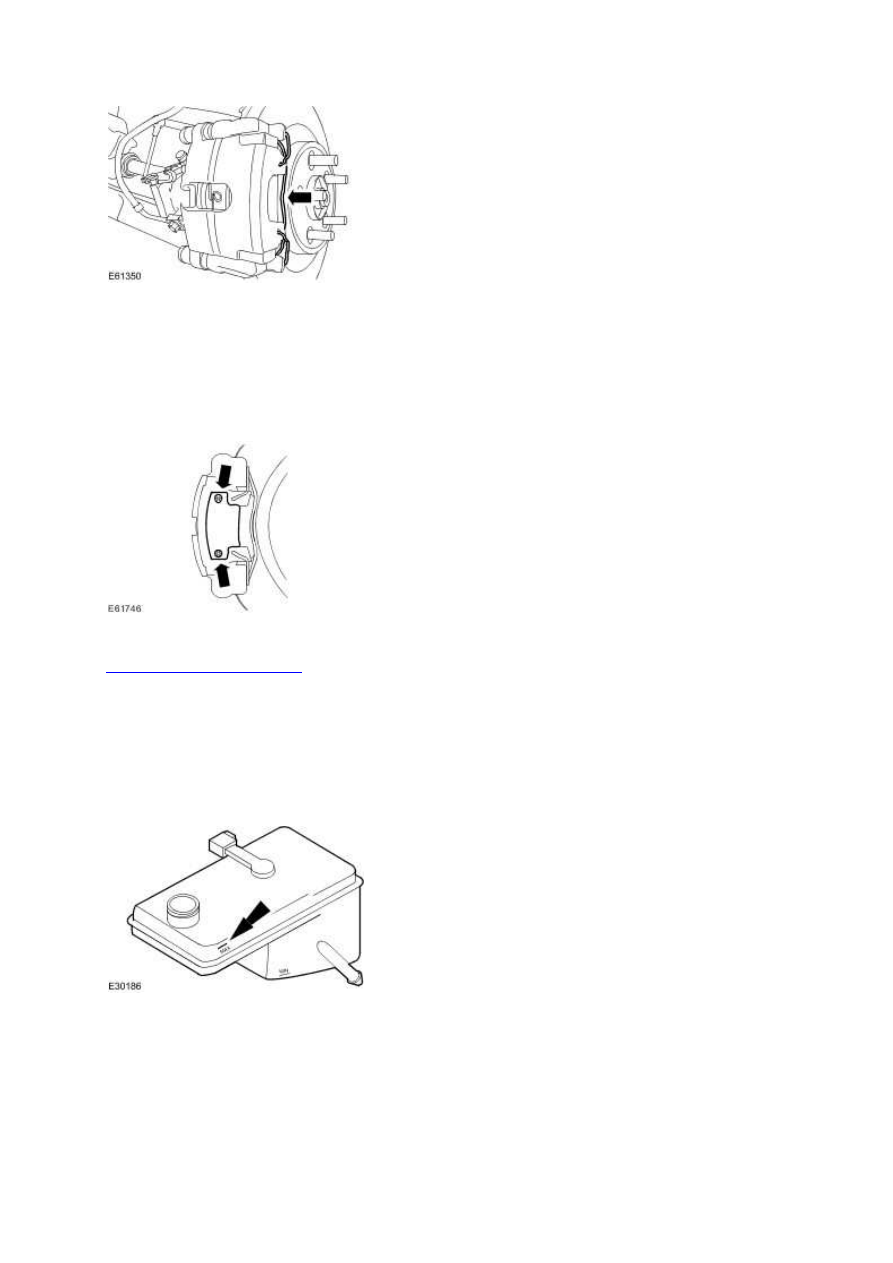

Install the anti-rattle spring.


17.  NOTE:




21.  NOTE:


Left-hand shown, right-hand similar.


Install the logo badge.



•

  Tighten to 5 Nm.






22.  Install the wheels and tires.

Wheel and Tire (74.20.05)





23.  NOTE:


Always use fluid from a sealed container and dispose of used fluid safely.


Fill up the brake master cylinder reservoir to the MAX mark as necessary.












www.









24.

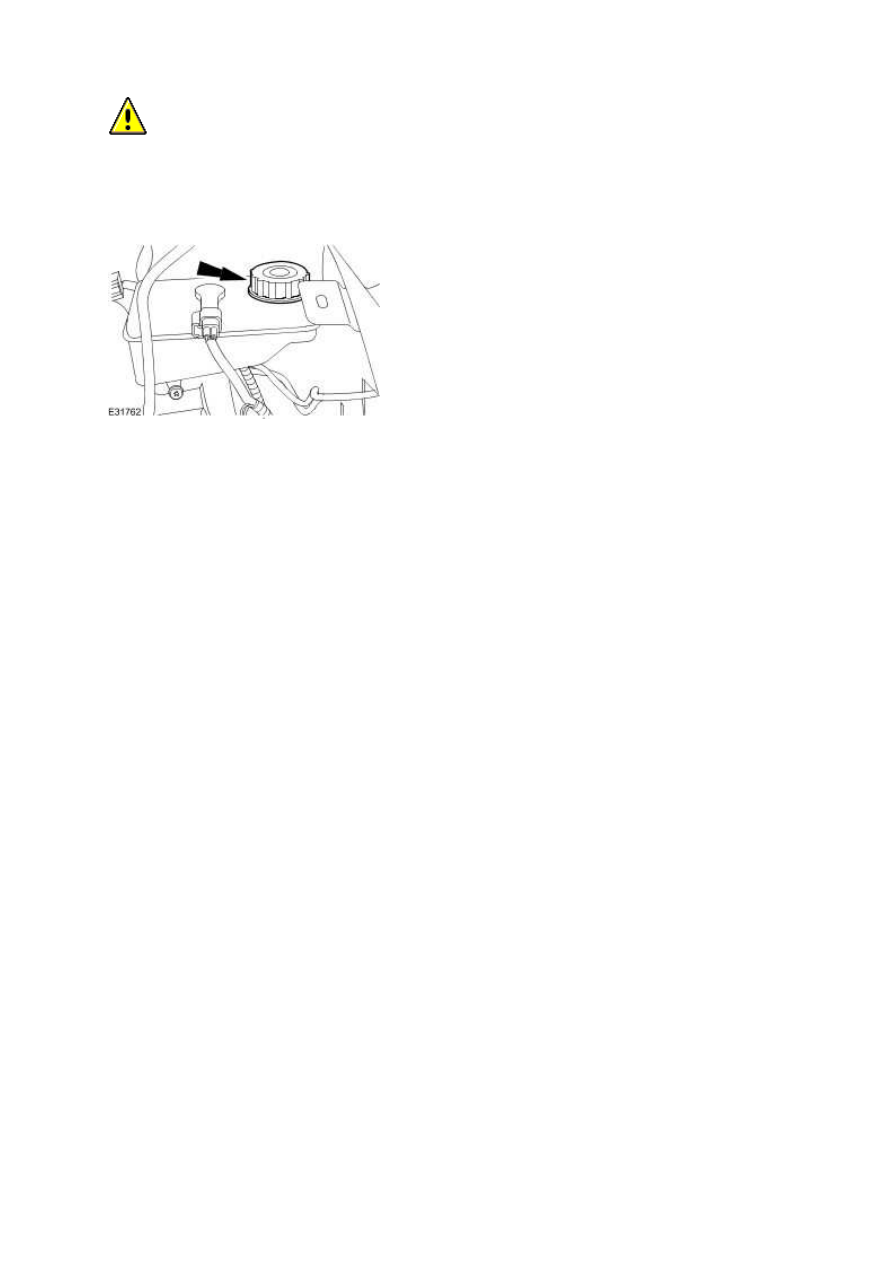

 CAUTION: Make sure that the brake master cylinder reservoir filler cap does

not become contaminated.

Install the brake master cylinder reservoir filler cap.





Brake System Bleeding (70.25.03) – Armoured

 WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with the eyes. Wash hands

thoroughly after handling, as prolonged contact may cause irritation and dermatitis. If brake fluid contacts the eyes,
flush the eyes with cold water or eyewash solution and seek medical attention. If taken internally do not induce vomiting,
seek immediate medical attention. Failure to follow these instructions may result in personal injury.



 CAUTION: Make sure that the vehicle is standing on a level surface or supported on a wheel free lift. Failure to

follow these instructions may result in damage to the vehicle.



 CAUTION: If brake fluid comes into contact with the paintwork, the affected area must be immediately washed

down with cold water. Failure to follow this instruction may result in damage to the vehicle.


NOTE:



The system consists of separate circuits for each front and diagonally opposite rear wheel. Each front to rear circuit and each
wheel circuit can be bled individually of each other.


NOTE:



The front brake calipers and rear brake calipers have two bleed nipples each.


NOTE:



The service anti-lock braking system (ABS) hydraulic control unit is supplied pre-filled with brake fluid. Therefore, a
conventional bleed procedure should be adequate to remove all the air from the brake system.


1.

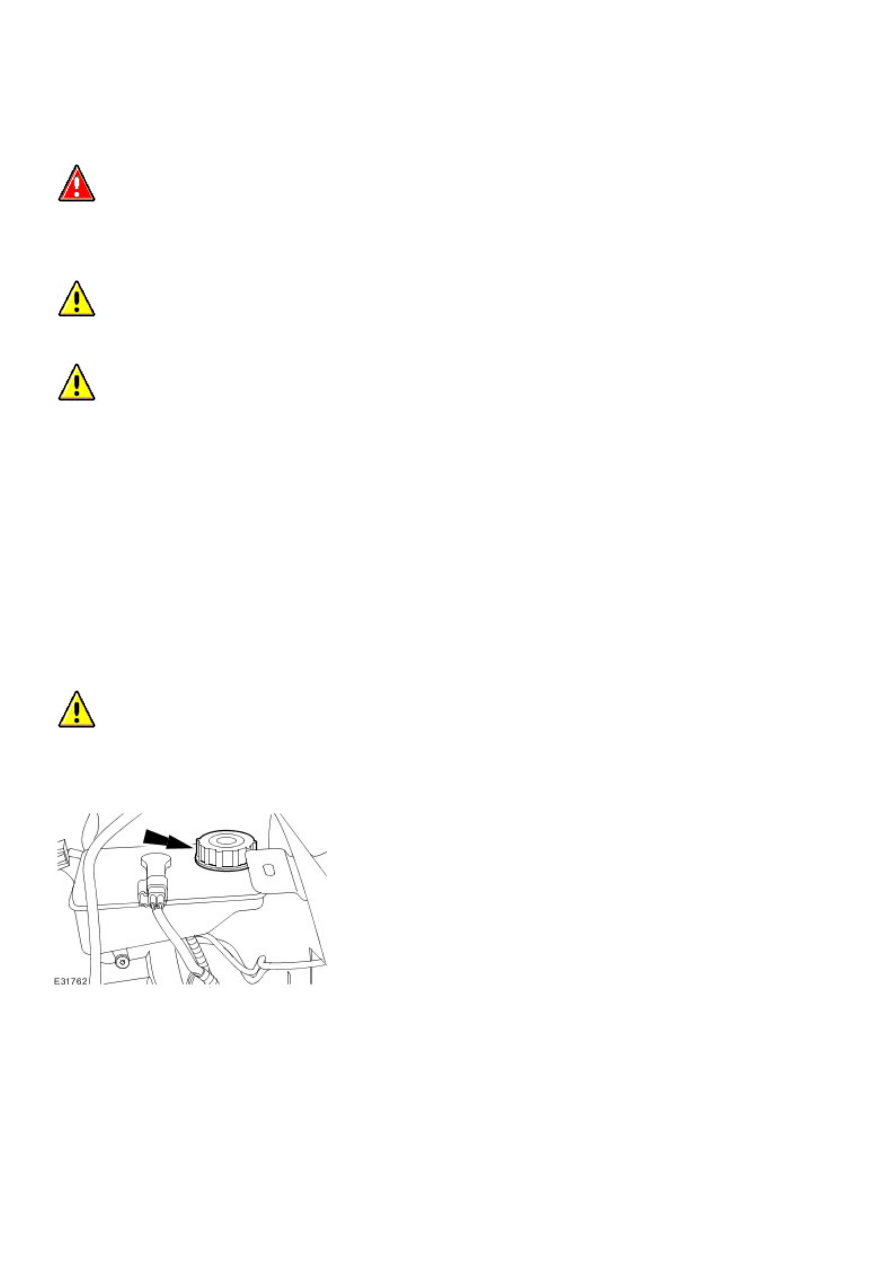

 CAUTION: Make sure that the brake master cylinder reservoir filler cap does not become contaminated. Failure to

follow this instruction may result in damage to the vehicle.


Remove the brake master cylinder reservoir filler cap.





2.  NOTE:



Always use fluid from a sealed container and dispose of used fluid safely.







Published: Mar 12, 2014
