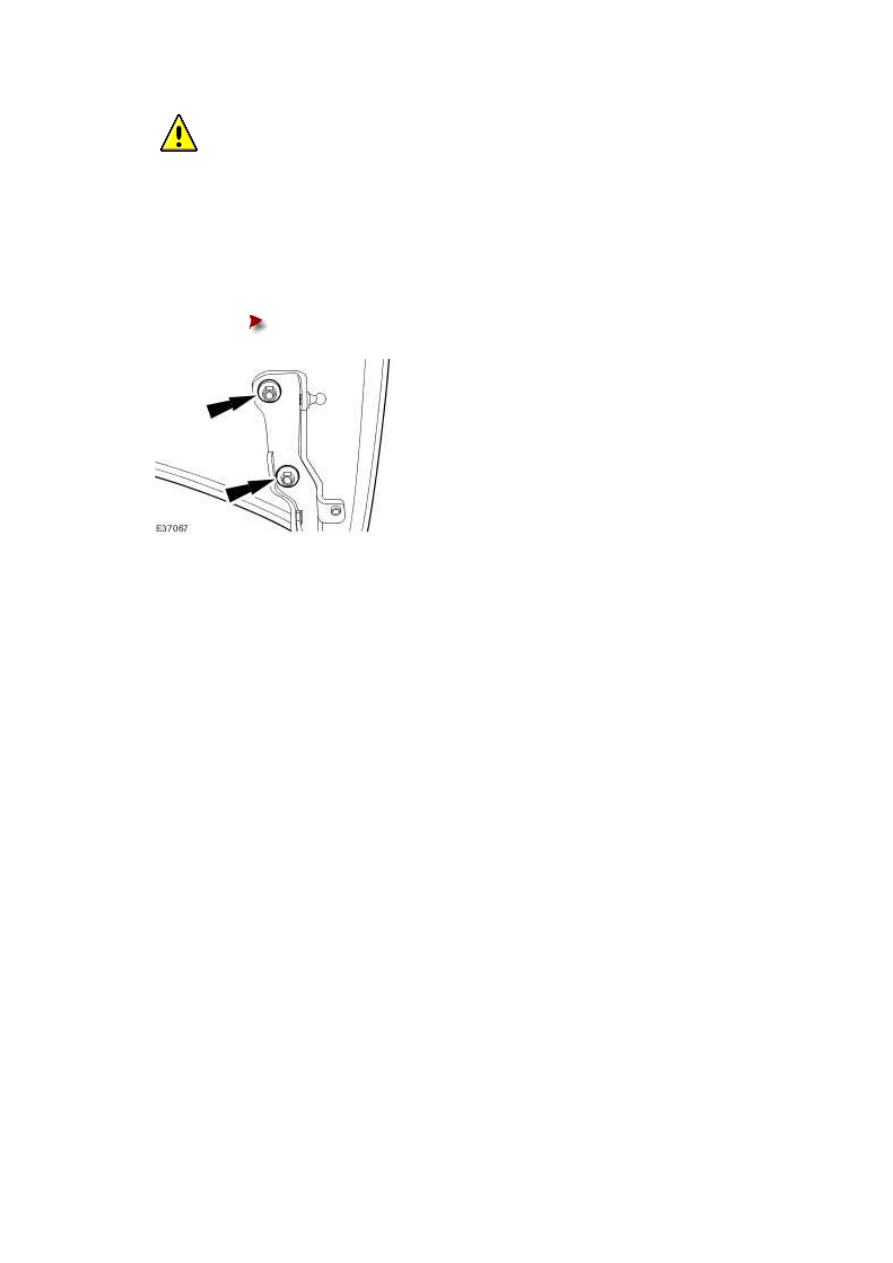

  CAUTION: Make sure the hood does not contact the vehicle body while

installing. Failure to carry out these instructions may cause damage to the
vehicle.


NOTE:



Left-hand shown, right-hand similar.


To install, reverse the removal procedure.





Tighten to 25 Nm.









2 . Align the hood.

For additional information, refer to







Installation




Door Check Arm – Armoured

Removal

NOTE:



Rear door check arm shown, front door check arm similar.





1 . Remove the rear door trim panel.

For additional information, refer to

Rear Door Trim Panel (76.34.04)

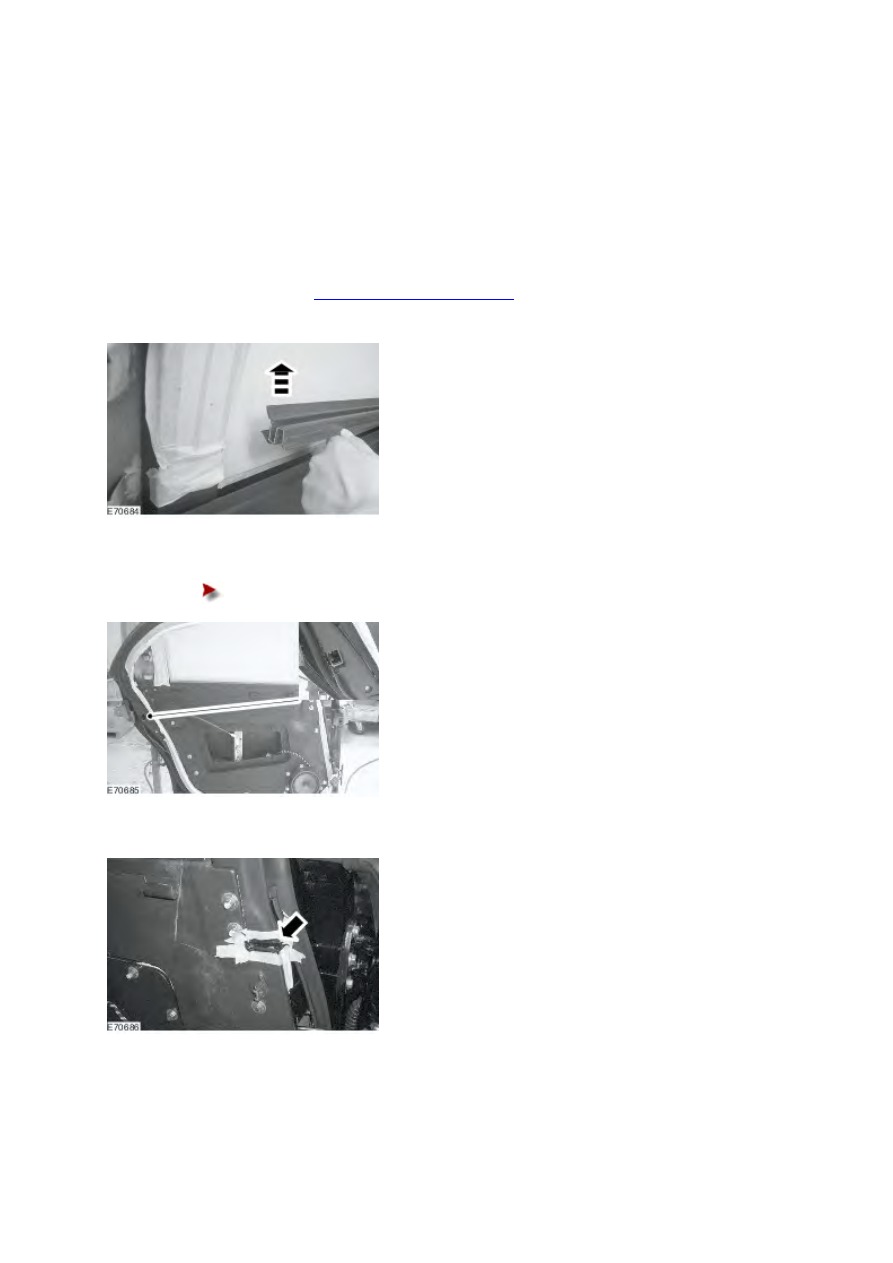

2 . Remove the rear door inner weather strip.





3 . Remove the rear door latch trim panel.





Remove the retaining screw.









4 . Using a suitable tool, cut the rear door panel seal.





Published: Mar 28, 2014

Vehicles

www.

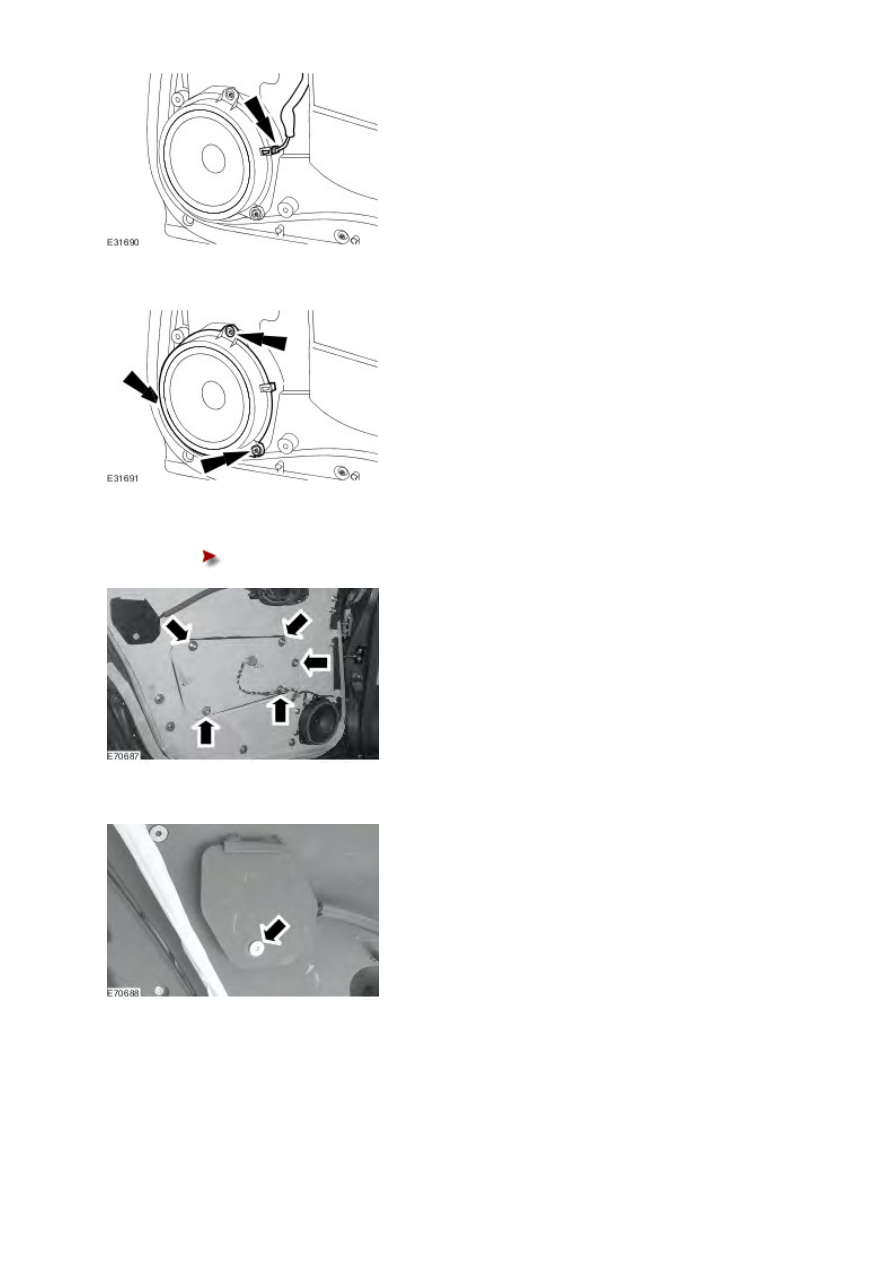

5 . Disconnect the rear door speaker electrical connector.







6 . Remove the rear door speaker.





7 . Remove the rear door access panel.





Remove the retaining bolts.









8 . Remove the rear door handle release cable access panel.







9 . Remove the rear door armour panel.

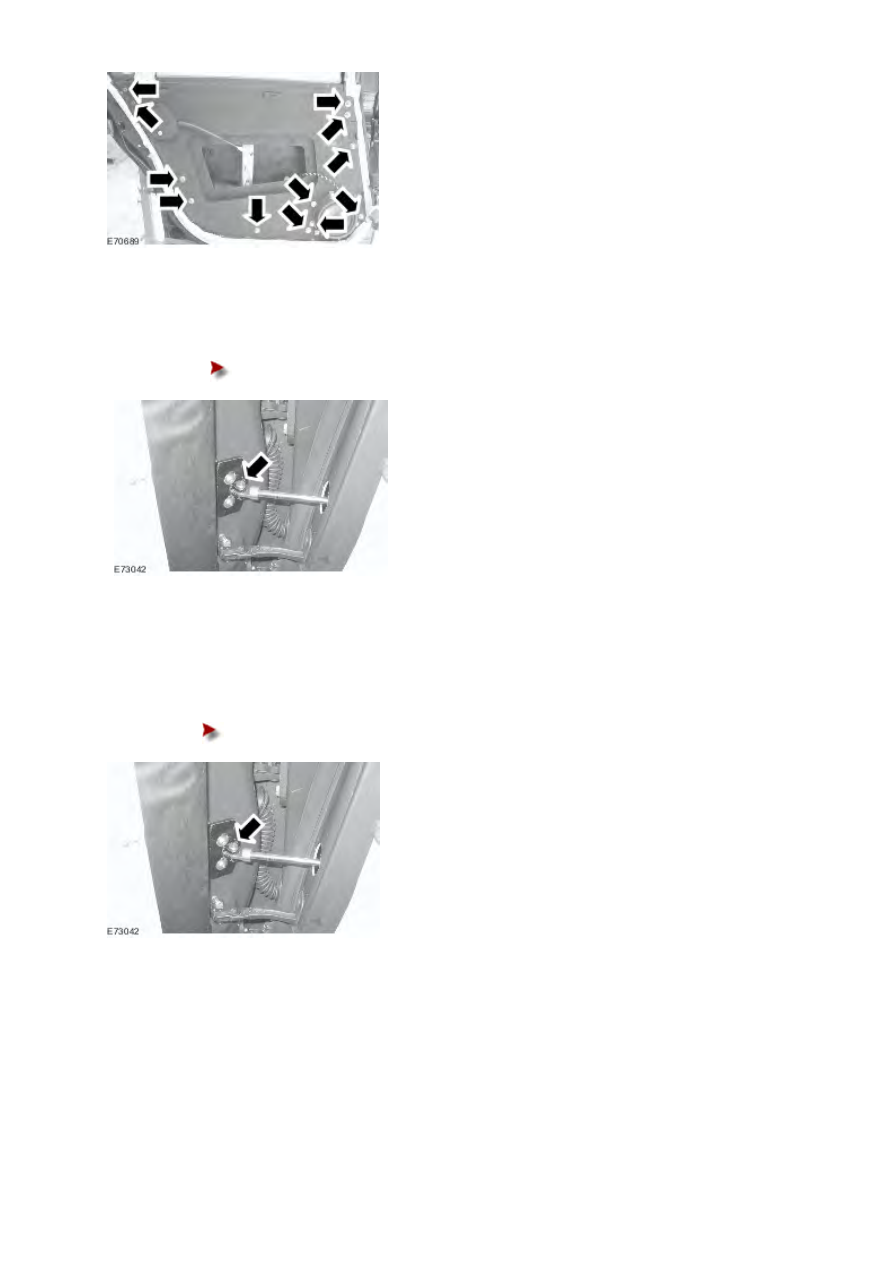

10 . Remove the door check arm retaining bolt.





11 . Remove the door check arm.





Remove the retaining circlip and the retaining pin.








Installation



1 . Install the door check arm.





Install the retaining circlip and the retaining pin.









2 . Install the door check arm retaining bolt.
