Jaguar XJ (X350). Manual - part 1060

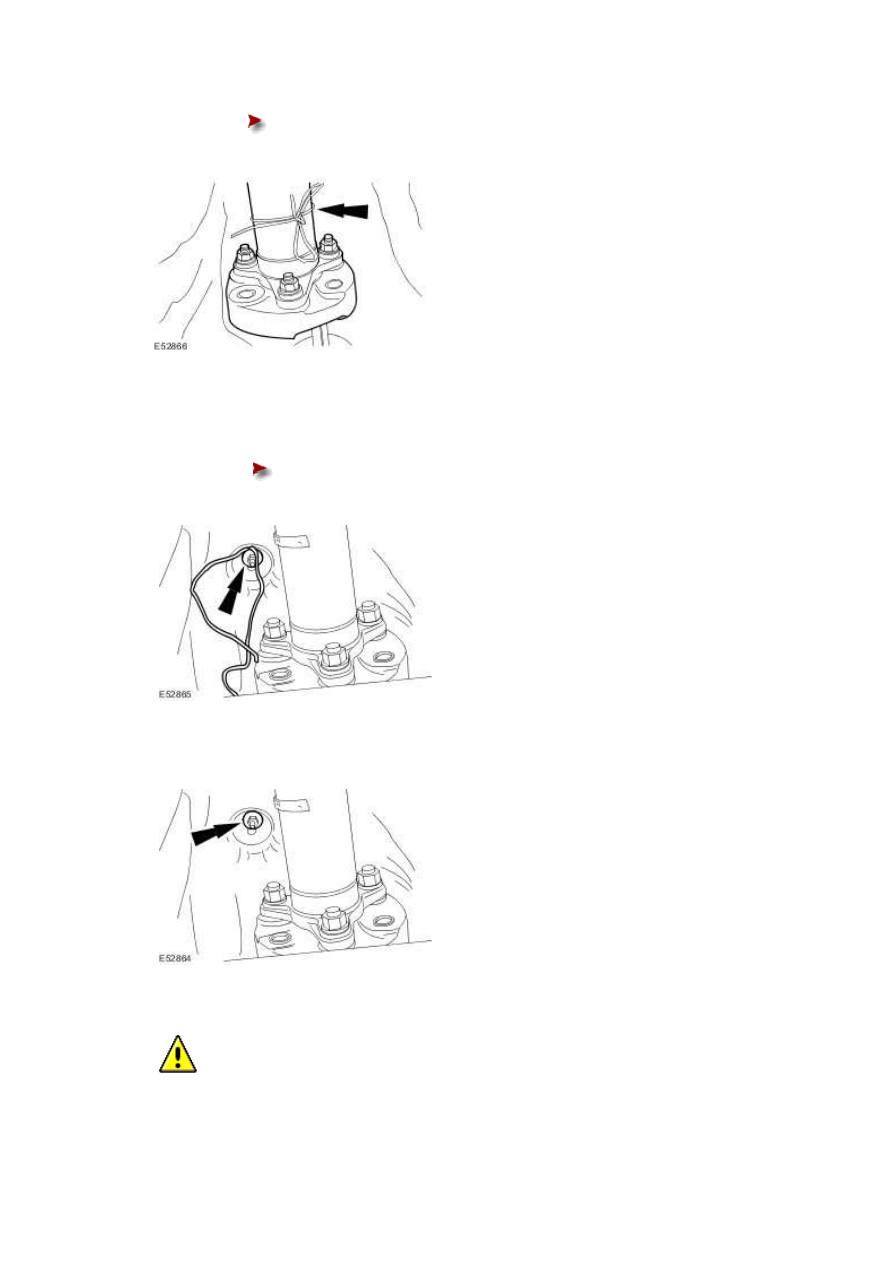

Undo the cord.

6 . Loosen the retaining nut.

Remove the cord from the heat shield retaining nut stud.

7 . Tighten the retaining nut.

CAUTION: Make sure the front of the driveshaft does not put an excessive load on

the center bearing. Failure to follow this instruction may result in damage to the vehicle.

CAUTION: Make sure all components are installed to the position they were

removed from. Failure to follow this instruction may result in damage to the vehicle.

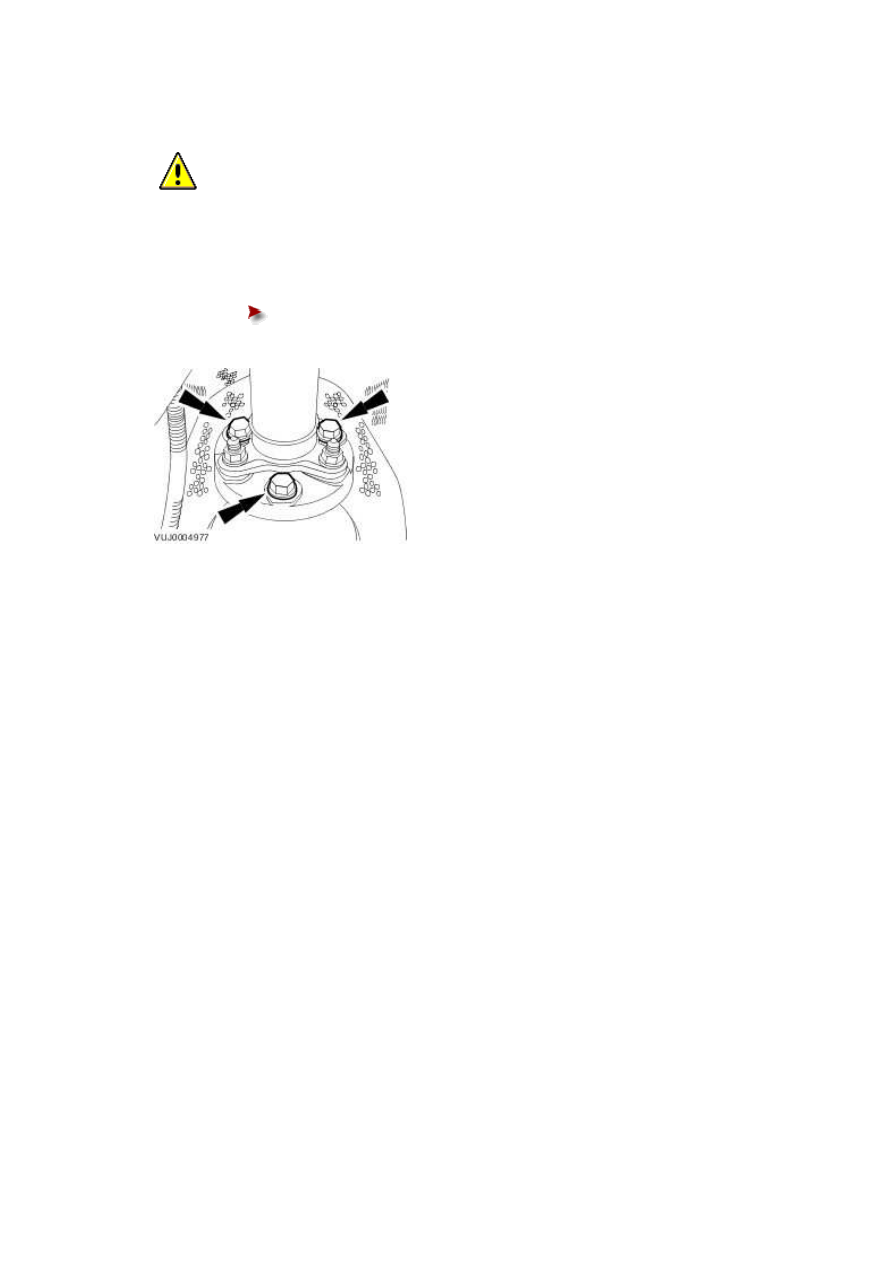

Attach the driveshaft to the transmission flange.

Tighten to 88 Nm.

9 . Carry out a transmission fluid level check.

For additional information, refer to

Vehicles with diesel engine

10 . Install the diesel particulate filter.

For additional information, refer to Diesel Particulate Filter (DPF)

11 . Install the air deflector.

For additional information, refer to Air Deflector (76.11.41)

www.

Transmission Fluid Pan, Gasket and Filter
(44.24.07)

Removal

All vehicles

1 . Disconnect the battery ground cable.

For additional information, refer to Battery Disconnect and Connect

Vehicles with diesel engine

2 . Remove the air deflector.

For additional information, refer to Air Deflector (76.11.41)

All vehicles

3 . Drain the transmission.

For additional information, refer to Transmission Fluid Drain and Refill (44.24.02)

Vehicles with diesel engine

4 . Detach the catalytic converter temperature sensor wiring harness from the fluid pan.

All vehicles

5 . NOTE:

Discard the fluid pan, gasket and filter.

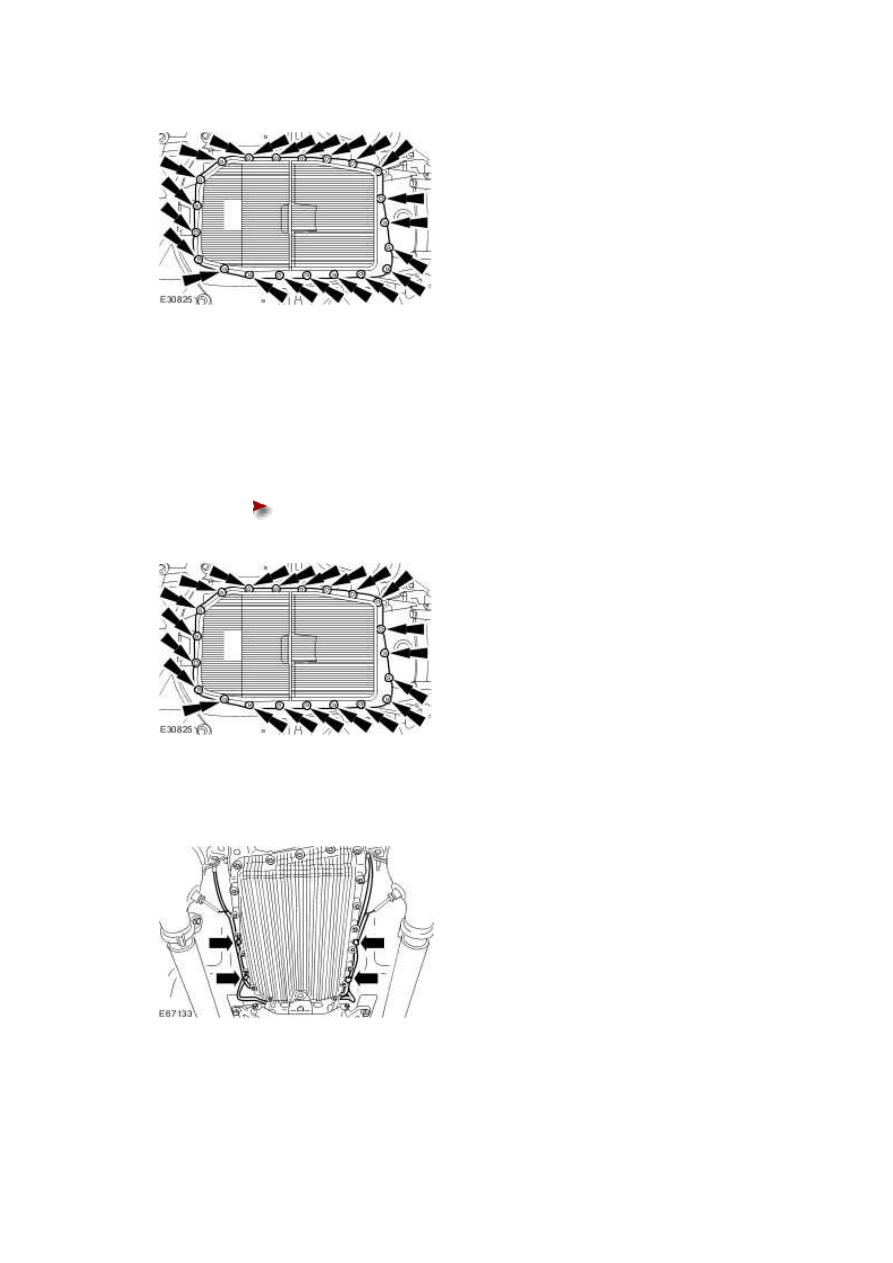

Remove the fluid pan, gasket and filter.

Remove the retaining bolts.

Installation

All vehicles

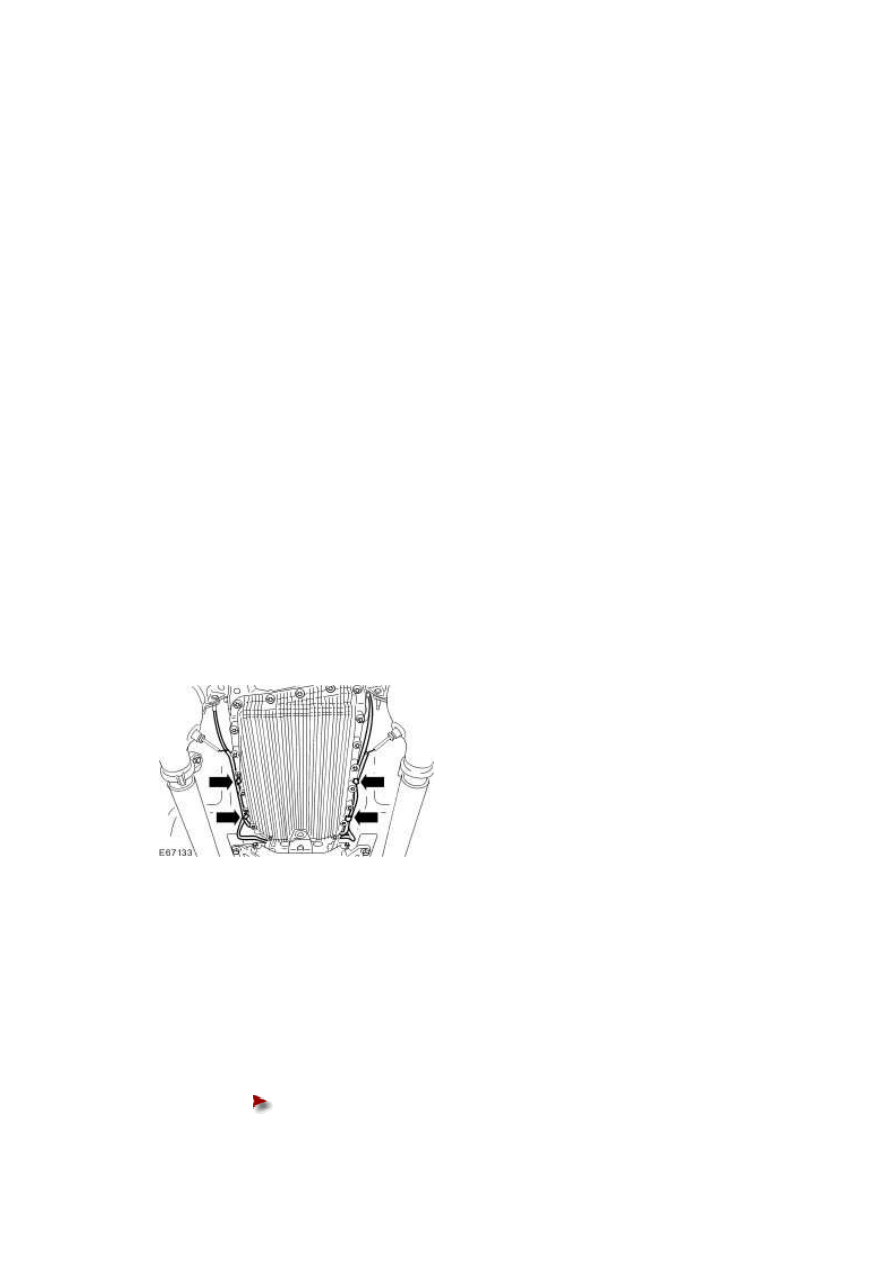

1 . Install the new fluid pan, gasket and filter.

Tighten to 8 Nm.

Vehicles with diesel engine

2 . Attach the catalytic converter temperature sensor wiring harness onto the fluid pan.

All vehicles

3 . Fill the transmission.
