Installation

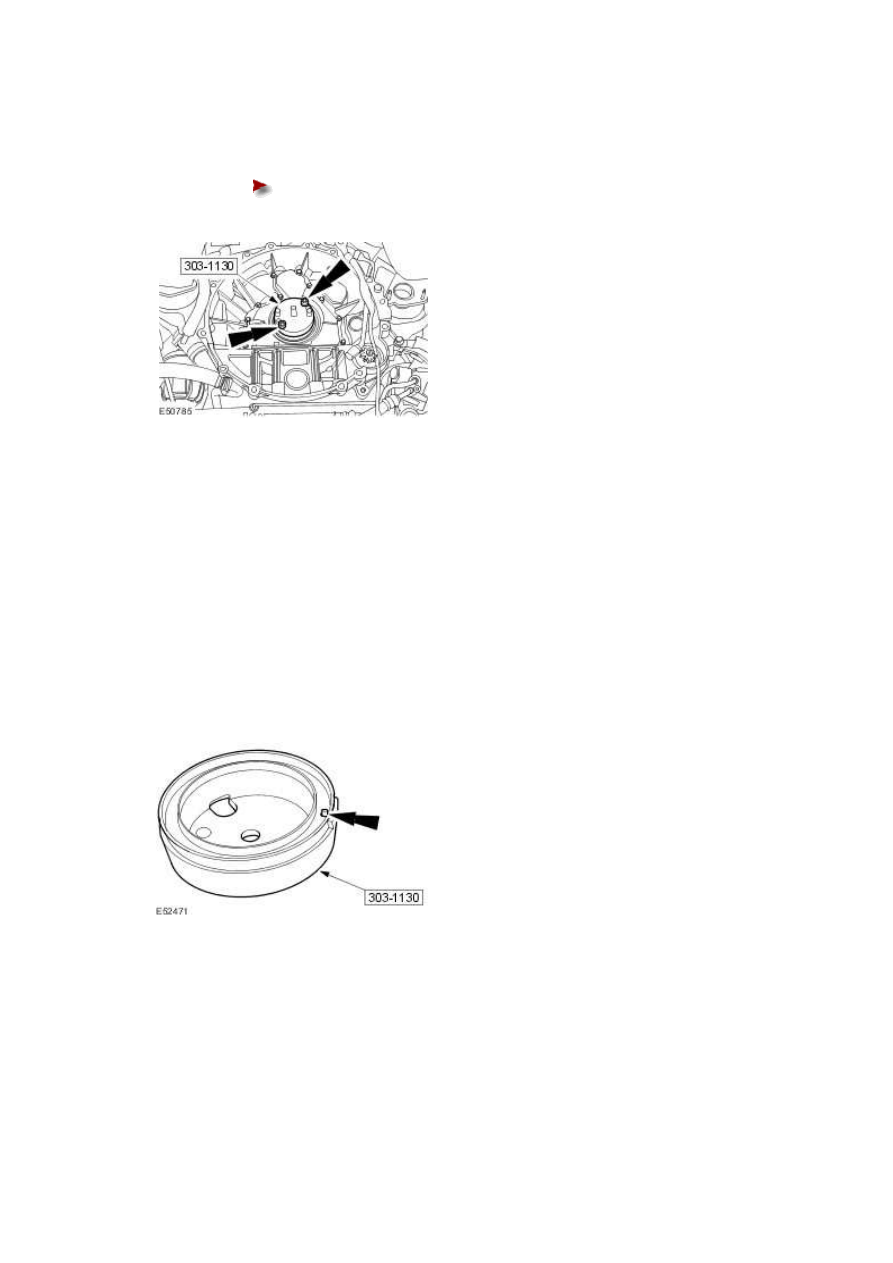

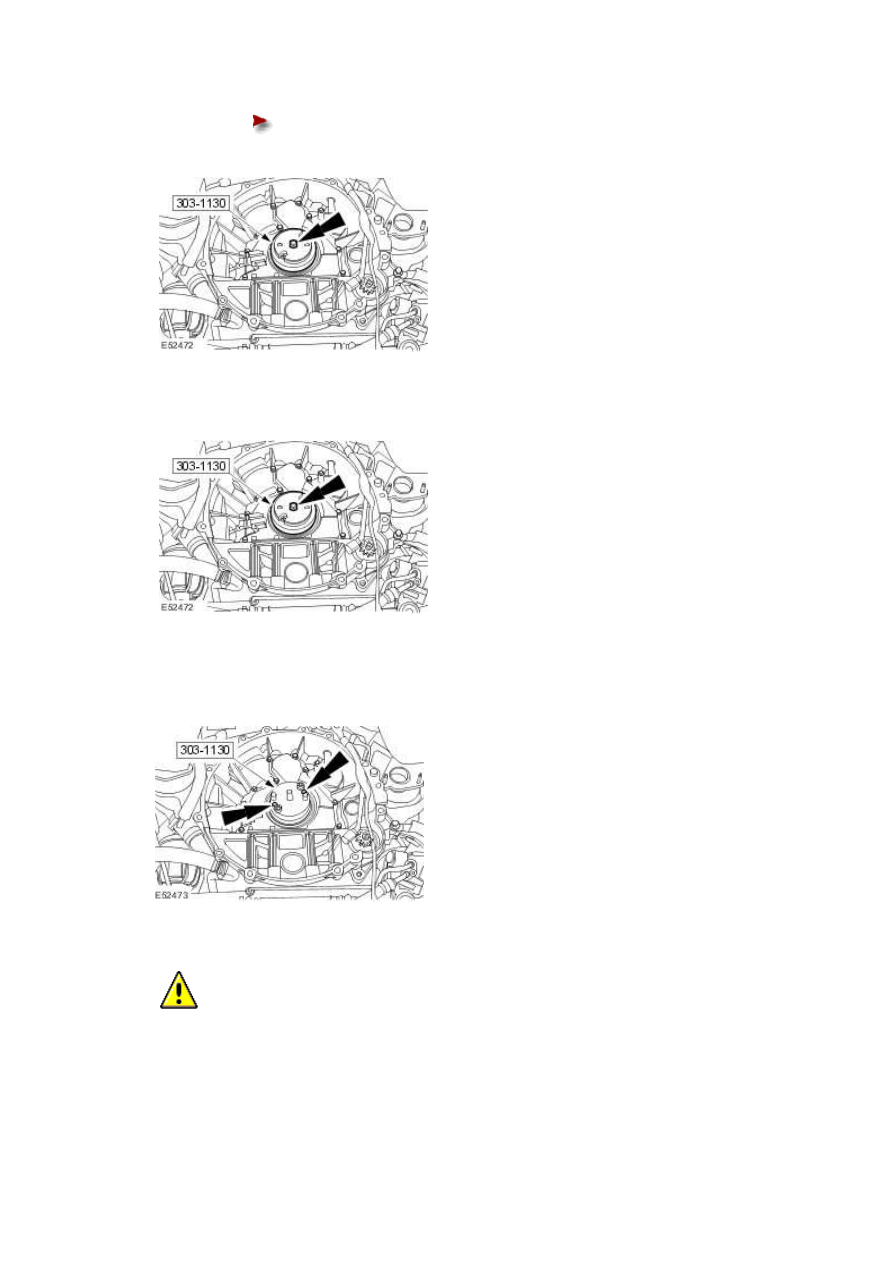

1 . Install the alignment special tool to the crankshaft.
Align the special tool alignment peg to the timing hole on the crankshaft.
2 .
NOTE:
Install a new CKP ring.
NOTE:
Make sure that the CKP sensor ring is aligned correctly with the special tool pip and that both mating surfaces are fully seated.
Install the CKP sensor ring to the installation special tool.

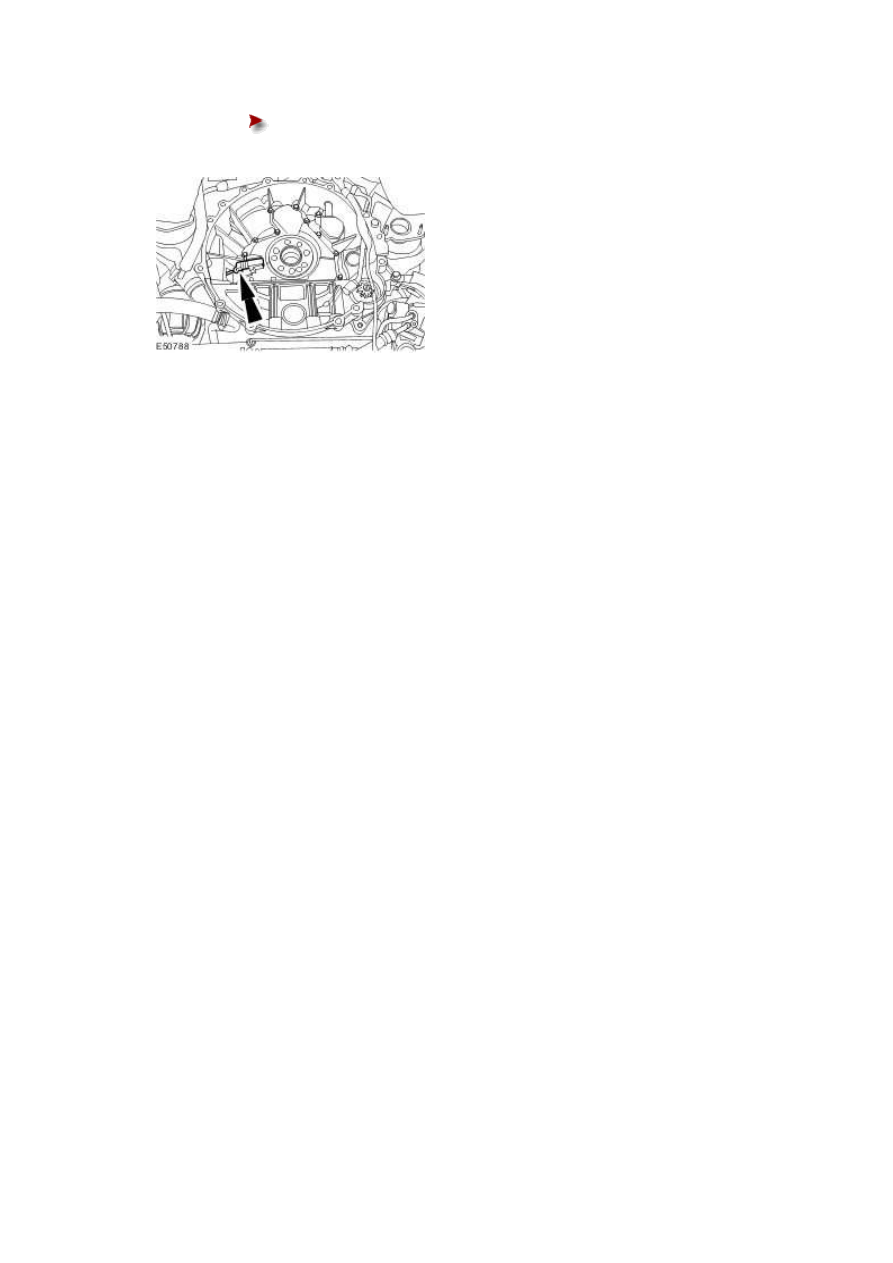

3 . NOTE:
Assemble the installation special tool to the alignment special tool.
Using the special tool, install the CKP sensor ring. |
