Jaguar XJ (X350). Manual - part 78

Rear Wheel Bearing (64.15.14)

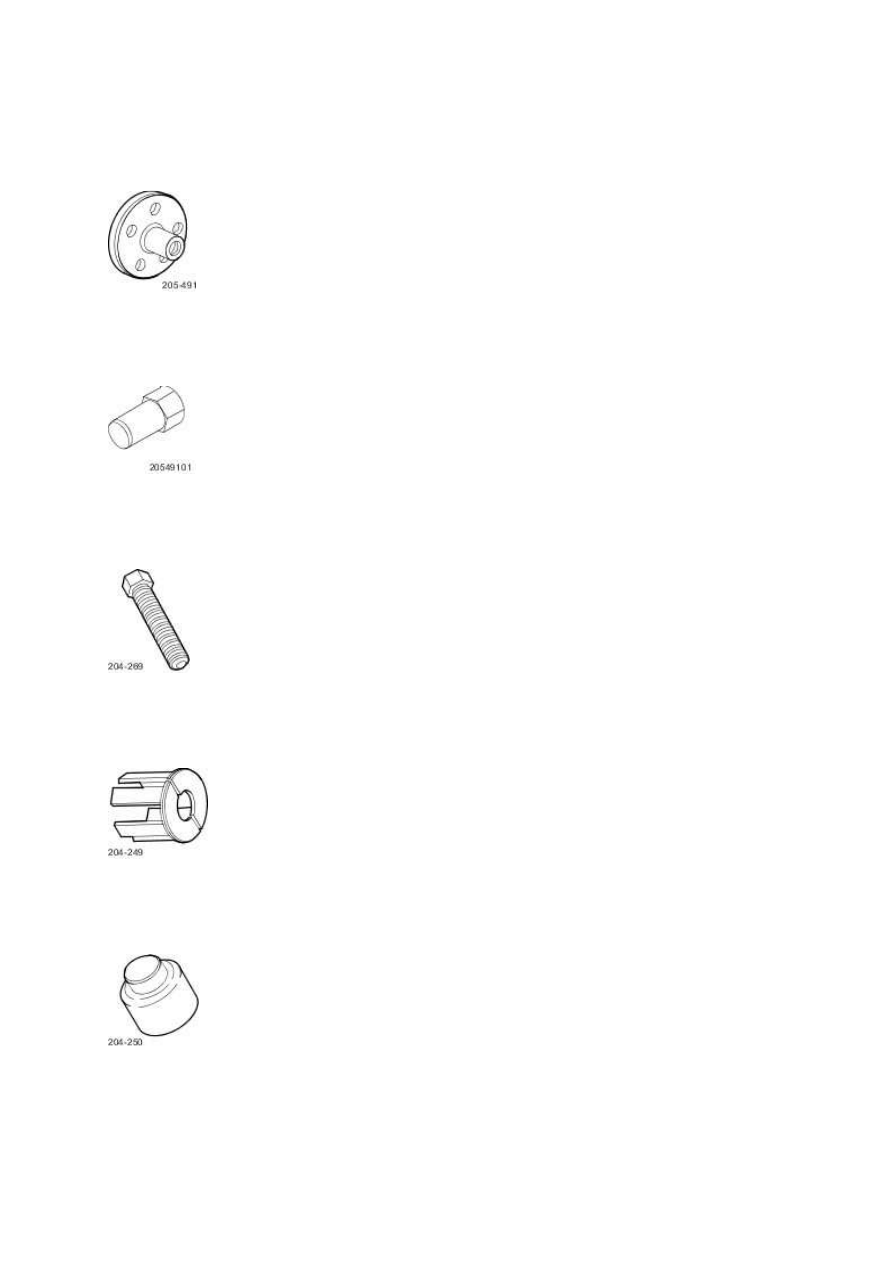

Special Service Tools

Hub puller

205-491

Adaptor nuts

205-491-01

Flange remover forcing screw

204-269

Rear hub support tool

204-249

Rear hub bearing removal tool

204-250

Front hub remover

204-193

Bearing support

204-252

Removal

1 . Loosen the wheel hub nut.

Remove the brake disc.

For additional information, refer to

Brake Disc - Vehicles With: Standard Brakes, VIN Range:

G00442->G45703 (70.10.11)

For additional information, refer to

Brake Disc - Vehicles With: High Performance Brakes, VIN

Range: G00442->G45703 (70.10.11)

For additional information, refer to

Brake Disc - VIN Range: G45704->G99999 (70.10.11)

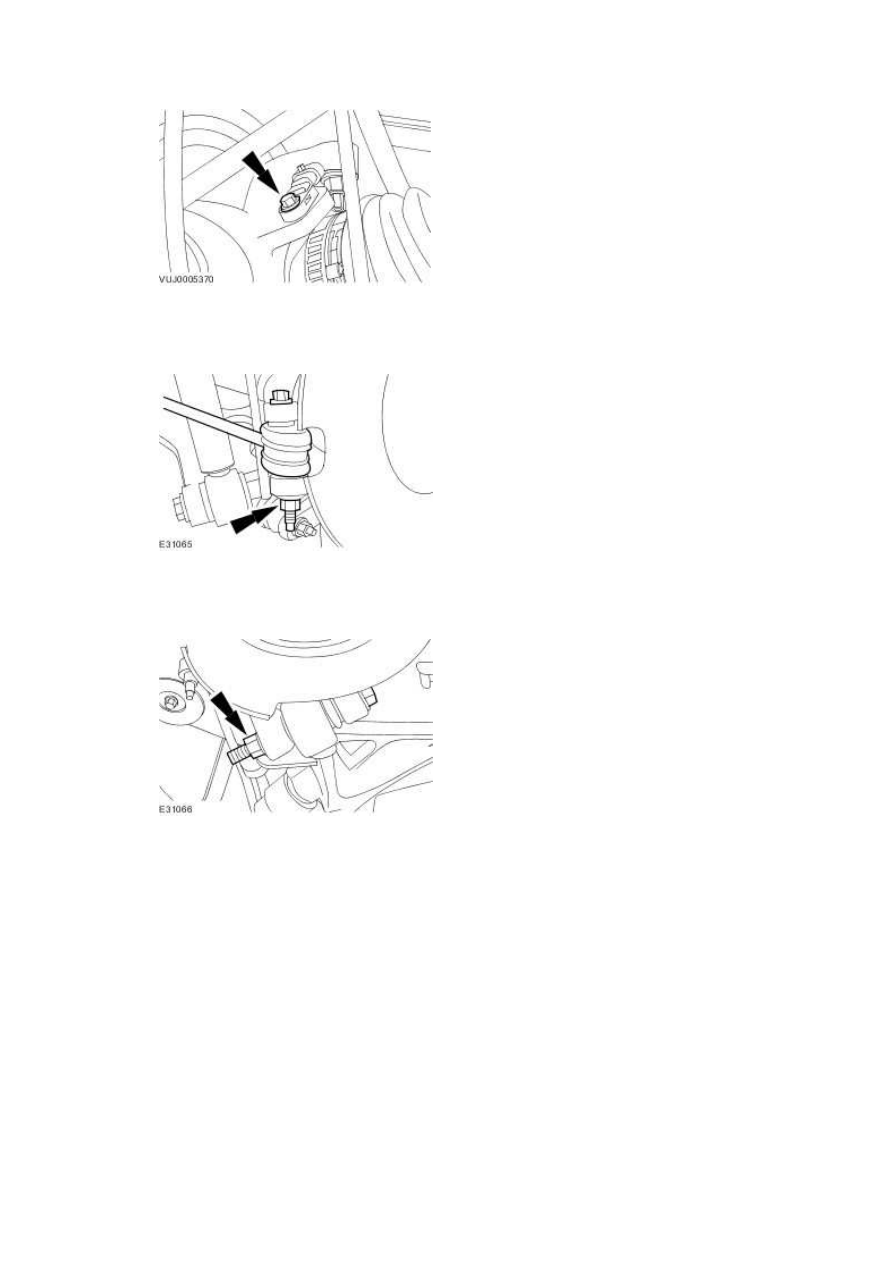

3 . Detach the anti-lock brake system (ABS) sensor.

www.

4 . Detach the outer tie rod.

5 . Detach the lower arm from the wheel knuckle.

6 . Remove the wheel hub nut.

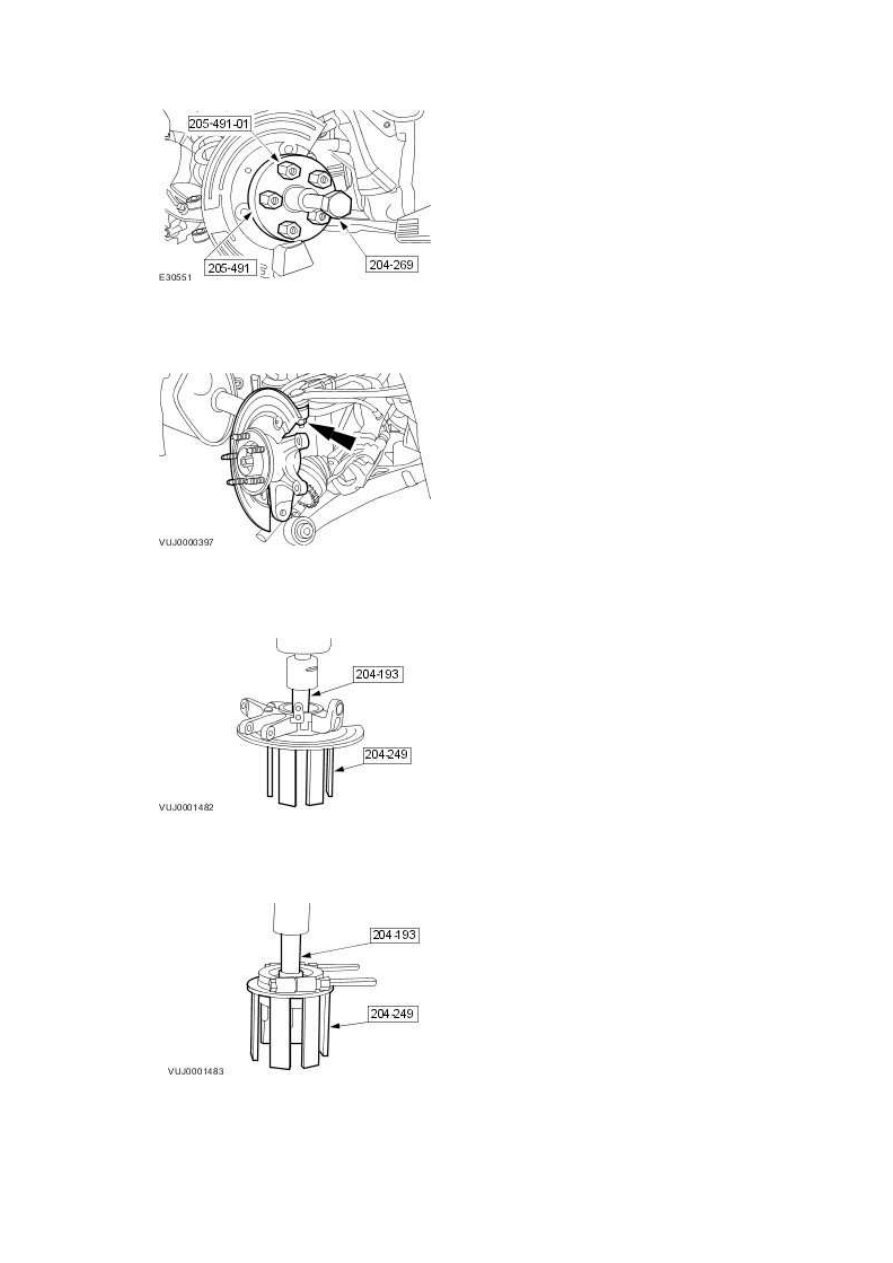

7 . Using the special tools, detach the halfshaft.

8 . Remove the wheel knuckle assembly.

9 . Using the special tools, remove the wheel hub from the bearing.

10 . Using the special tools, remove the inner bearing race from the hub.
