Engine JAC HFC4DA1-2C. Manual - part 148





FAX

FAX

FAX

FAX Front

Front

Front

Front Suspension

Suspension

Suspension

Suspension

---- 114

114

114

114 ----

Use

Use

Use

Use and

and

and

and Maintenance

Maintenance

Maintenance

Maintenance

1.

Inspect the wear condition of brake pad. After the
first 40000km or 24-month driving of the vehicle,
inspect the wear condition of friction linings and
measure the thickness of the most worn part of
brake caliper friction linings with the standard
value of 18mm and limit value of 17mm.When the
thickness of brake lining is lower than the limit
value, the brake lining should be replaced.

2.

In Level III maintenance, the front suspension may
be removed for cleaning of interiors of the steering
knuckle with bushing and wheel hub as well as
bearings. Please tighten bolts and nuts of each
component with specified torques.

3.

Precautions:
The vehicle loading should not exceed the max.

loading weight.

Diagnosis

Diagnosis

Diagnosis

Diagnosis and

and

and

and Testing

Testing

Testing

Testing

Inspection

Inspection

Inspection

Inspection and

and

and

and Maintenance

Maintenance

Maintenance

Maintenance of

of

of

of Front

Front

Front

Front Suspension

Suspension

Suspension

Suspension

1.

Special measuring apparatuses and tools should be
applied in part inspection. For damaged parts, carry
out maintenance or replacement according to
relevant requirements. In the case of one of the
matching parts is worn and its clearance exceeds the
specified one, please replace this worn part together
with its matching part according to relevant
requirements. Measure the starting torque of the
front wheel hub at wheel bolts, it should be 17 ~
25N.m.

2.

From the point of view of preventive maintenance,
some parts which are still in maintenance or within
wear limit should be replaced before exceeding the
limit.

3.

Carry out appearance inspections of all parts with
specified visual method or red pigment penetration
method. In the case of following abnormalities in
part outside surfaces, carry out maintenance or
replacement

for

relevant

parts

according

to

corresponding

requirements:

Abnormalities

Failure or fatigue (in helical spring)

Bending deformation (generally in steering

knuckle)

Abnormal noise(for bearings)

Looseness (in bolts of anti-roll bar and lower
swing arm)

Discoloration or seizure(for steering knuckle
ball joint etc.)

Rusting

Deterioration(for brake lining)

4.

For all rubber parts like oil seals, gaskets,
bushings,etc., they should be replaced with new
ones

after

removal.

For

standard

parts

like

pre-riveted nuts and bolts with rubber, they are not
reusable.

5.

Abnormal sound is a kind of noise, mainly
appearing as abnormal sounds like clash or harsh
screaming,etc. under different service conditions
(like vehicle speed or road

conditions). Some of

these sounds may fade out with running-in while
some may increase gradually due to improper
adjustment in assembling. On condition that the part
is qualified, adjustment of part assembly clearance
may be taken as solution.

FAX

FAX

FAX

FAX Front

Front

Front

Front Suspension

Suspension

Suspension

Suspension

-115

115

115

115 -

Fault

Fault

Fault

Fault Diagnosis

Diagnosis

Diagnosis

Diagnosis

Common

Common

Common

Common Fault

Fault

Fault

Fault Diagnosis

Diagnosis

Diagnosis

Diagnosis Table

Table

Table

Table

Fault Symptom

Possible Cause of fault

Troubleshooting

Arduous steering

No power steering

Repair or replace

Improper front wheel alignment

Adjust

Excessively low tire pressure

Carry out tire inflation

Steering exceeding the lower swing arm ball joint

Replace

Poor return

Improper front wheel alignment

Adjust

Fault in the shock absorber

Repair or replace

Wear or damage in the front anti-roll bar

Replace

Wear or damage in the helical spring

Replace

Wear in the lower swing arm bushing

Replace

Abnormal tire wear

Improper front wheel alignment

Adjust

Excessively low or high tire pressure

Adjust the tire pressure

Fault in the shock absorber

Repair or replace

Vehicle deviation

Improper front wheel alignment

Adjust

Insufficient steering resistance of the lower swing arm

ball joint connection

Replace

Looseness or wear in the lower swing arm bushing

Replace

Unilateral vehicle deviation

Improper front wheel alignment

Adjust

Insufficient steering resistance of the lower swing arm

ball joint connection

Replace

Bending of the lower swing arm

Replace

Wear or damage in the helical spring

Replace

Steering wheel fight

Fault in the shock absorber

Repair or replace

Insufficient steering resistance of the lower swing arm

ball joint connection

Replace

Looseness or wear in the lower swing arm bushing

Replace

Wear or damage in the helical spring

Replace

Wear or damage in the front anti-roll bar

Replace

Looseness in mounting screws of the steering gear

Repair

Improper front wheel alignment

Adjust

Vehicle sinkage

Vehicle body welding failure

Repair

Wear or damage in the helical spring

Replace

Fault in the shock absorber

Repair or replace

FAX

FAX

FAX

FAX Front

Front

Front

Front Suspension

Suspension

Suspension

Suspension

---- 116

116

116

116 ----

Removal

Removal

Removal

Removal and

and

and

and Installation

Installation

Installation

Installation of

of

of

of Subframe

Subframe

Subframe

Subframe

Removal

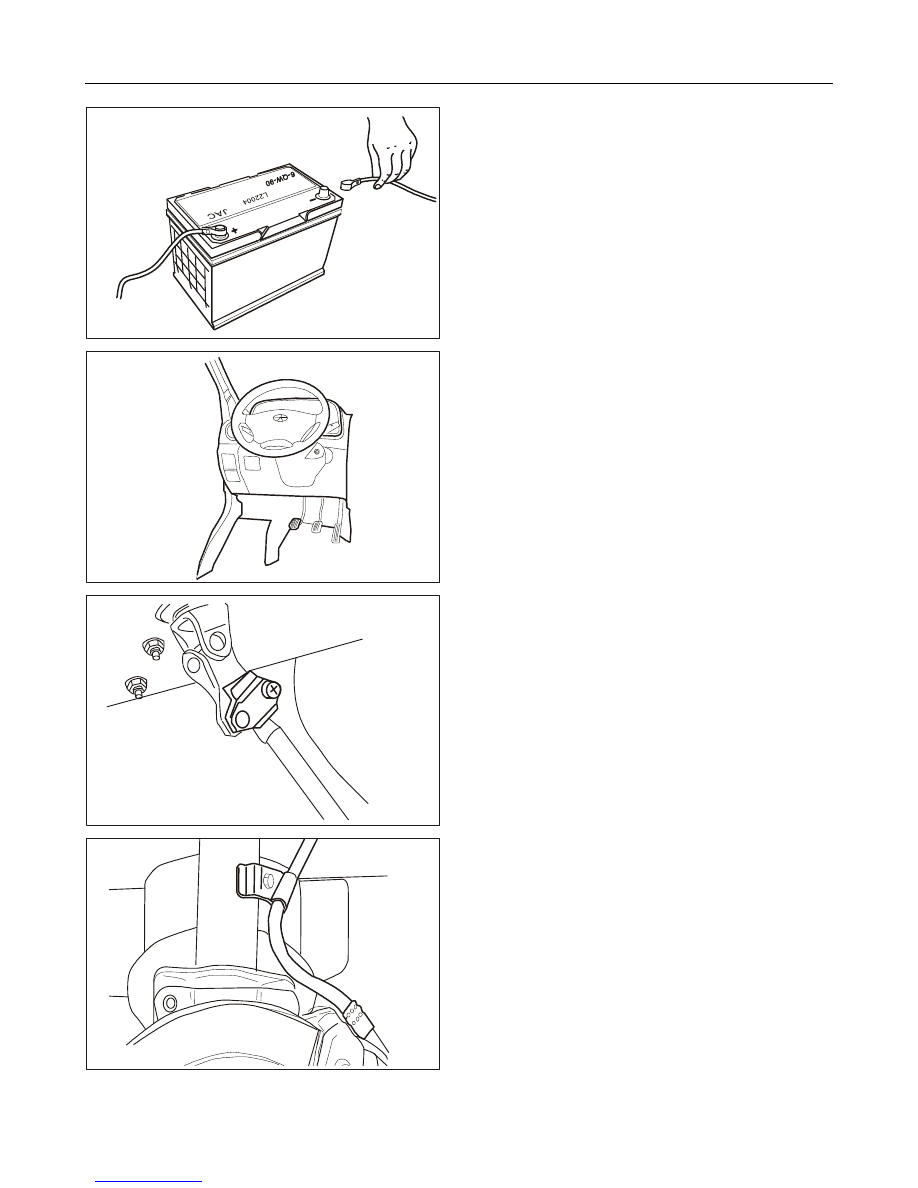

1.

Disconnect the negative cable of battery.

2.

Place the steering wheel in the center and lock it up
in the position of straight-ahead.

3.

Remove track bolts for fixing the steering column
onto the cross shaft. Rotate clamped plates to make
them separated.

4.

Loosen front wheel nuts and lift the vehicle.

5.

Remove the front wheel.

6.

Remove the brake hose from the shock absorber.

FAX

FAX

FAX

FAX Front

Front

Front

Front Suspension

Suspension

Suspension

Suspension

-117

117

117

117 -

Removal

Removal

Removal

Removal and

and

and

and Installation

Installation

Installation

Installation of

of

of

of Subframe

Subframe

Subframe

Subframe (Continued)

(Continued)

(Continued)

(Continued)

Note:

Note:

Note:

Note:

Mounting bolts on the top of the brake caliper
can not be loosened completely until the
complete removal of the brake caliper has been
done.

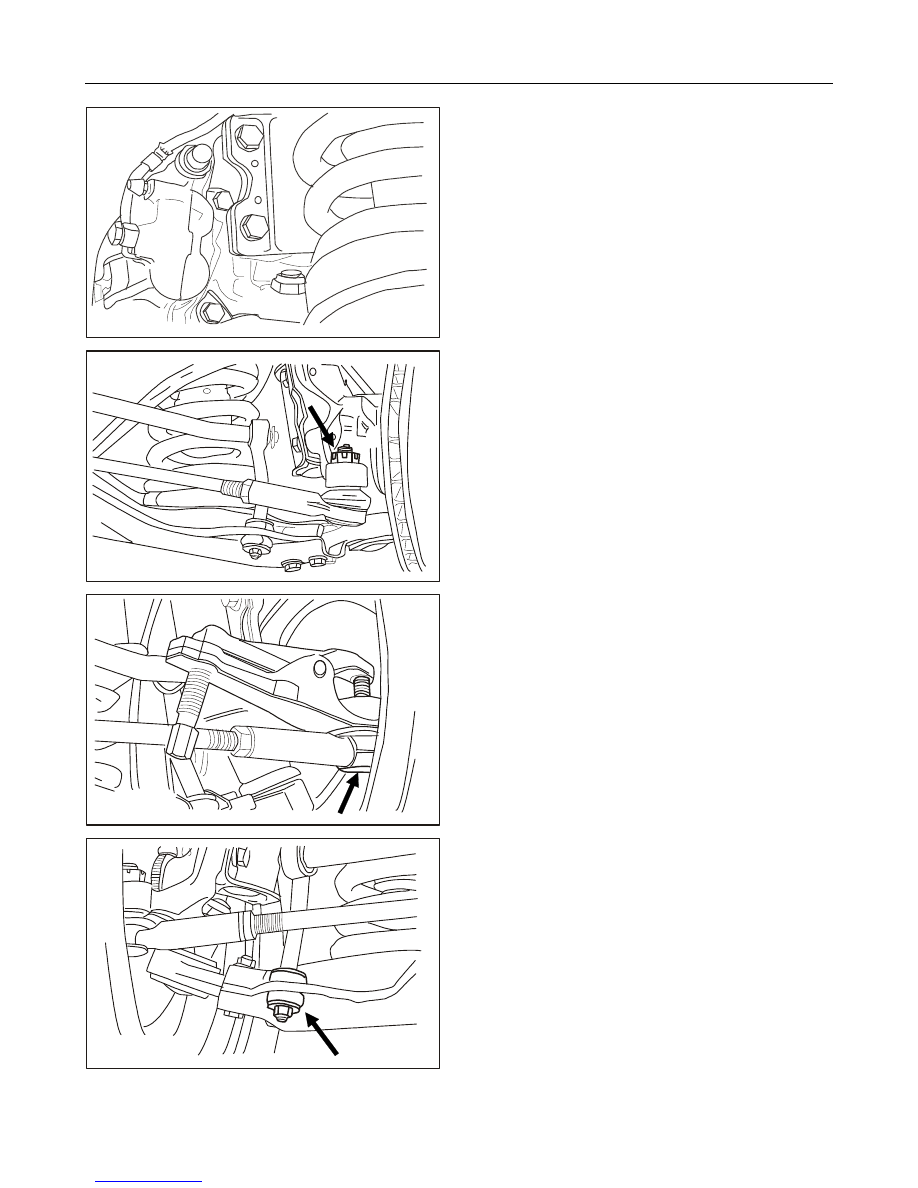

7.

Remove the brake caliper.

Hang the brake caliper up to avoid brake hose
damage.

8.

Remove cotter pin and castle nuts for fixing the
steering tie rod onto the steering knuckle. (Discard
the removed cotter pin)

Note:

Note:

Note:

Note:

In the separation of the steering tie rod end from

the steering knuckle, sealing protection should be
carried out for the ball joint at any time.

9.

Remove the ball joint of the steering tie rod from
the steering knuckle.

10. Remove the front anti-roll bar link from the lower

swing arm.

11. Support the lower swing arm assembly.
