Engine JAC HFC4DA1-2C. Manual - part 117

EC

EC

EC

EC Circuit

Circuit

Circuit

Circuit Diagram

Diagram

Diagram

Diagram

- 255 -

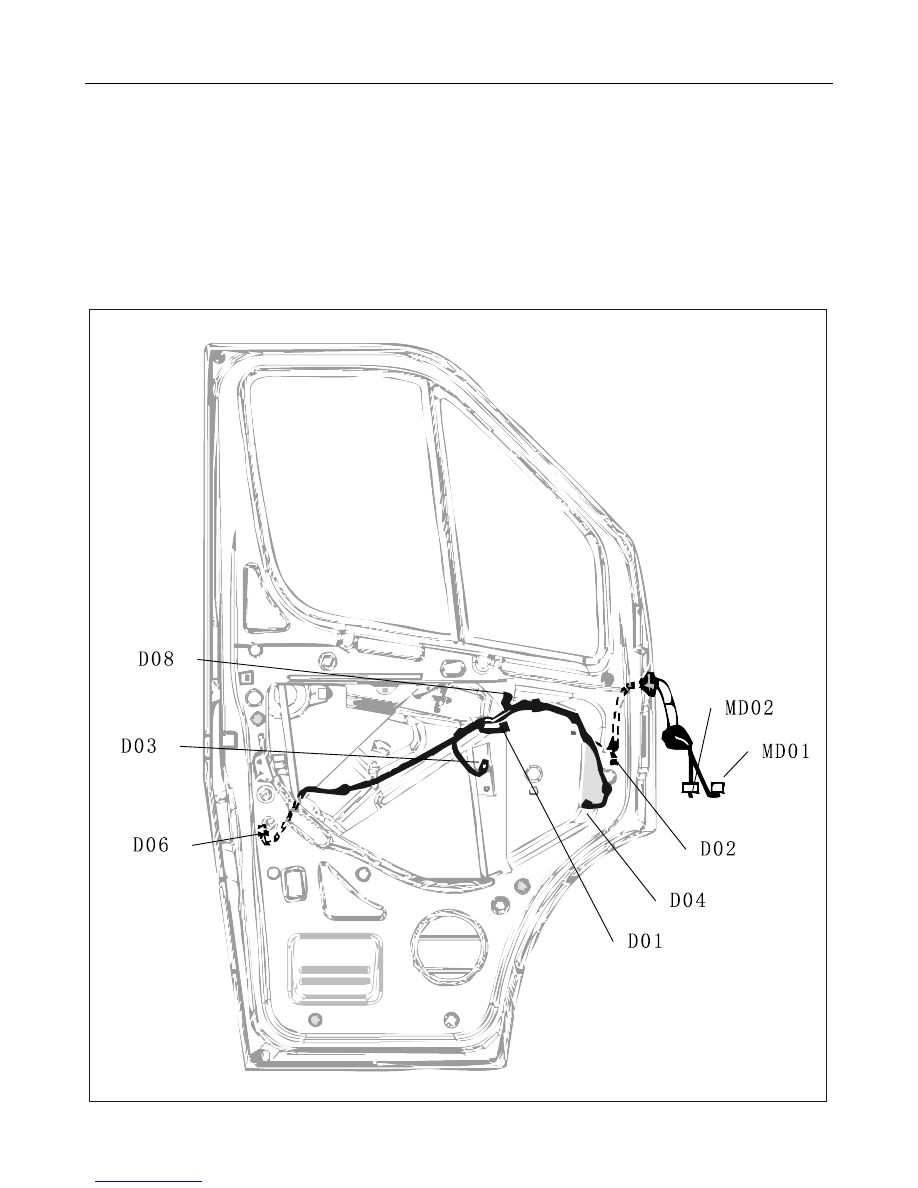

Left front door harness specification

Identification code

Name

D01

Left window regulator motor

D02

Left electric rear view mirror

D03

Window regulator main switch

D04

Left door loud speaker

D06

Left door lock actuator

D08

Electric rear view mirror switch

MD01

Connected to left main harness

MD02

Connected to left main harness

EC

EC

EC

EC Circuit

Circuit

Circuit

Circuit Diagram

Diagram

Diagram

Diagram

- 256 -

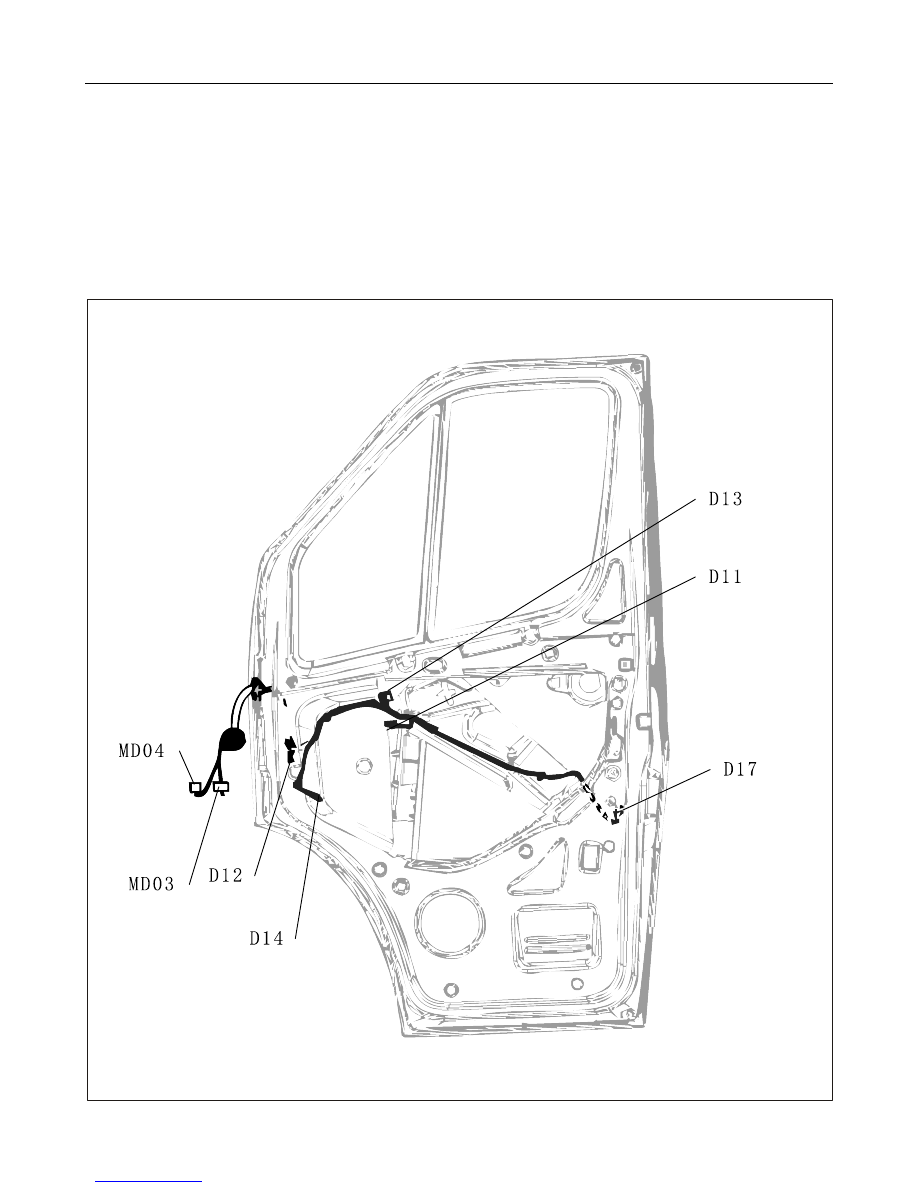

Right front door harness specification

Identification code

Name

D11

Right power window motor

D12

Right electric rear view mirror

D13

Power window auxiliary switch

D14

Right door loud speaker

D16

Right door lock actuator

MD03

Connected to right main harness

MD04

Connected to right main harness

EC

EC

EC

EC Circuit

Circuit

Circuit

Circuit Diagram

Diagram

Diagram

Diagram

- 257 -

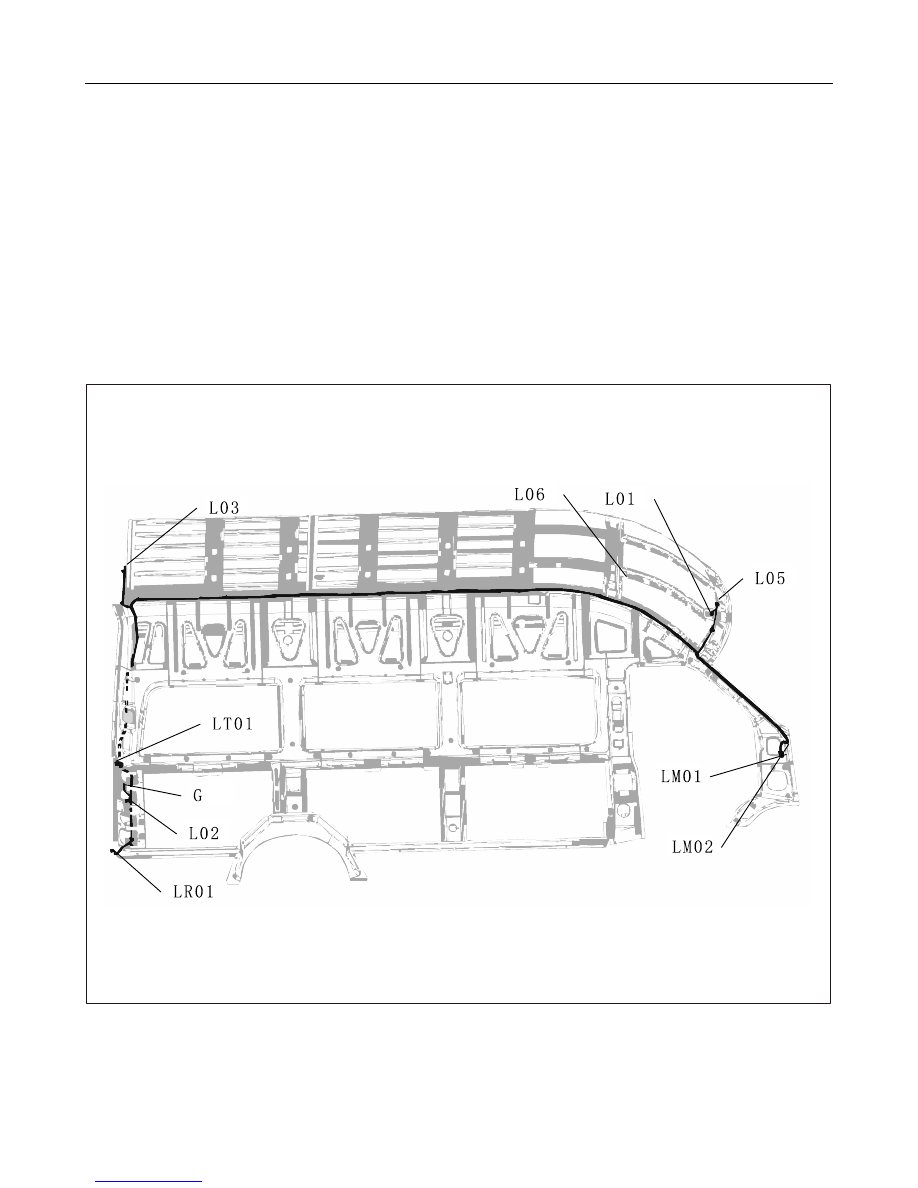

Left tail lamp harness specification

Identification code

Name

L01

Front ceiling lamp

L02

Left rear combination lamp

L03

High-mounted brake lamp

L04

Reversing radar ECU

L05

Antenna amplifier

L06

Rear blower

LR01

Connected to reversing radar harness

LT01

Connected to left back door harness

LM01

Connected to main harness 1

LM02

Connected to main harness 2

Ground

G

EC

EC

EC

EC Circuit

Circuit

Circuit

Circuit Diagram

Diagram

Diagram

Diagram

- 258 -

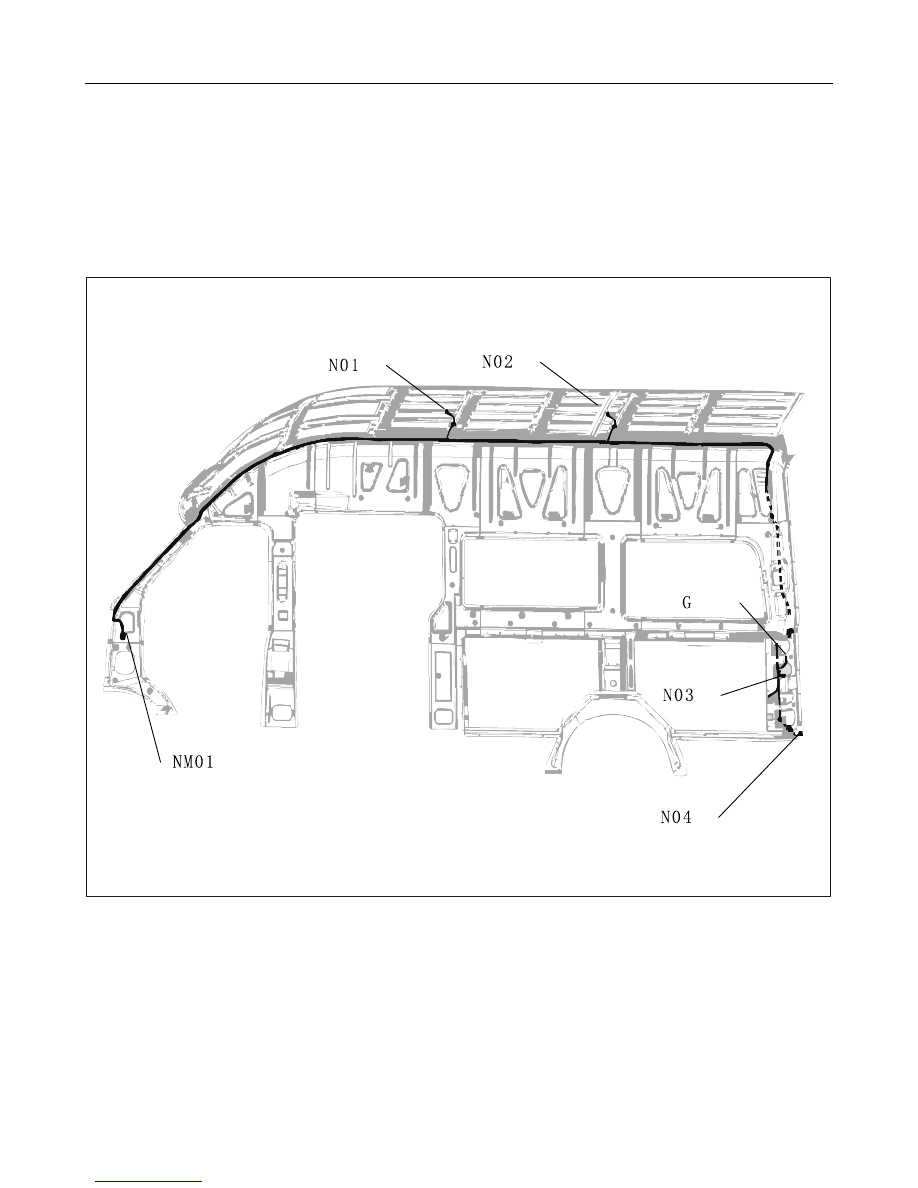

Right tail lamp harness specification

Identification code

Name

N01

Intermediate ceiling lamp

N02

Rear ceiling lamp

N03

Right rear combination lamp

N04

Right rear fog lamp

NM01

Connected to right main harness

Ground

G
