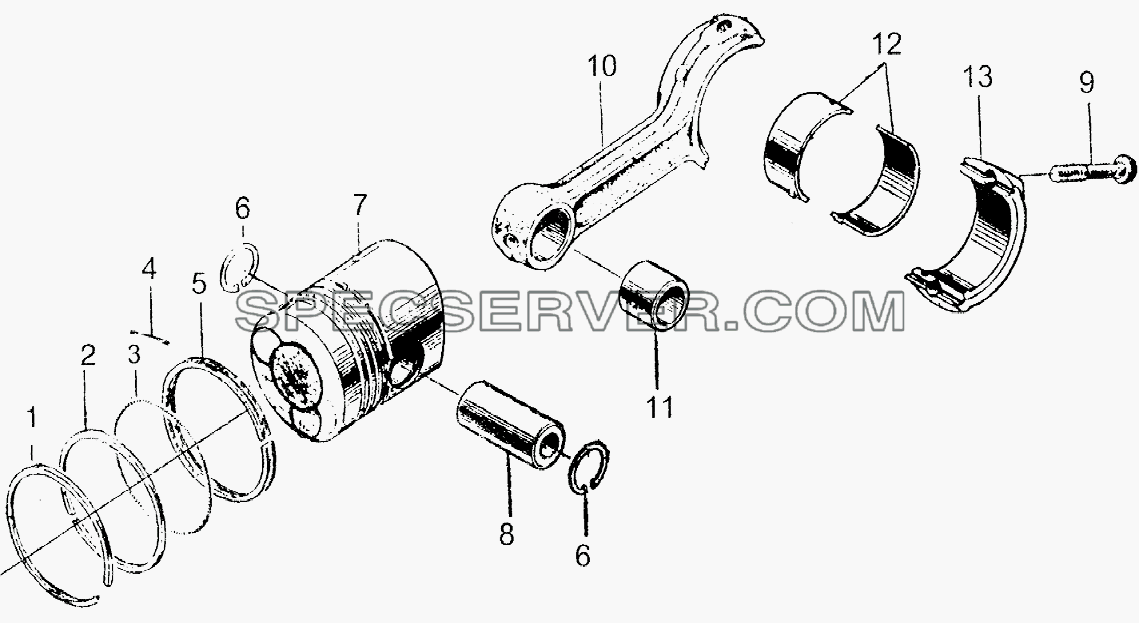

№		Номер детали	Наименование запчасти
1		YSD490Q-04001	Ist compression ring
2		YSD490Q-04002	2nd compression ring
3		YSD490Q-04102	Spring
4		YSD490Q-04103	Spring lock
5		YSD490Q-04101	Oil ring
6		YSD490Q-04006	Piston pin snap ring
7		YSD490Q-04005	Piston
8		YSD490Q-04004	Piston pin
9		YSD490Q-04204	Connecting rod bolt
10		YSD490Q-04202	Connecting rod
11		YSD490Q-04201	Connecting rod bush
12		YSD490Q-04003	Connecting rod bearing,upper and lower halves
13		YSD490Q-04203	Connecting rod cap

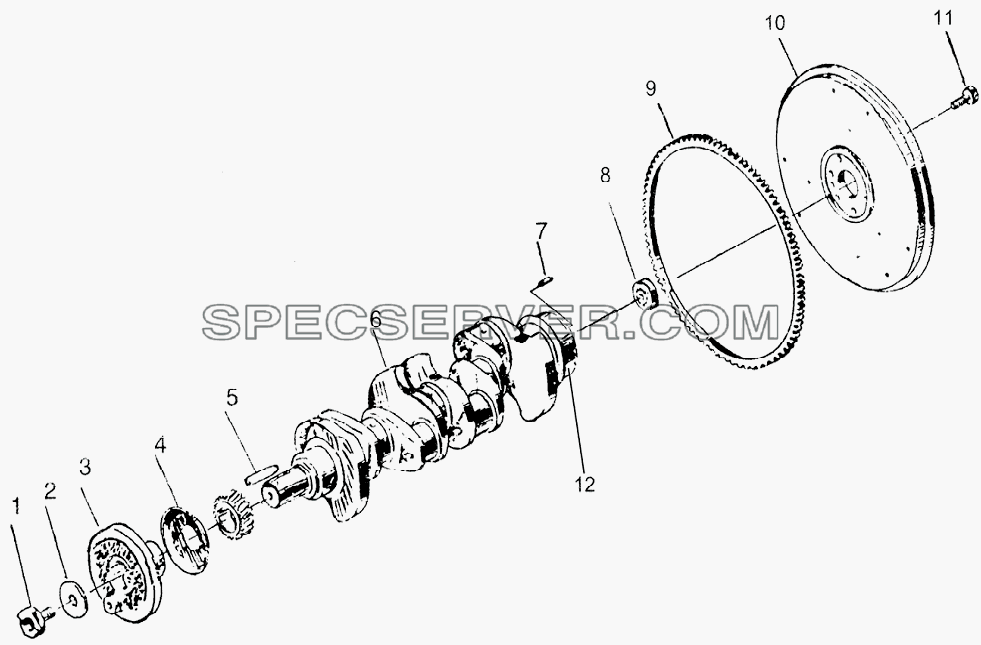

Crankshaft and flywheel для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		YD495Q-05008	Botl
2		Y480G-05006	Washer
3		YSD490Q-149-05006	Crankshaft pulley
4		YSD490Q-05005	Oil thrower
5		GB1096-79	Flatx key
6		YSD490Q-05003	Crankshaft
7		GB119-86	Pin
8		GB/T276-94	Ball bearing
9		YSD490Q-05102	Flywheel gear ring
10		YSD490Q-05101	Flywheel
11		YSD490Q-05002	Flywheel bolt
12		YSD490Q-05004	Oil throwerrear

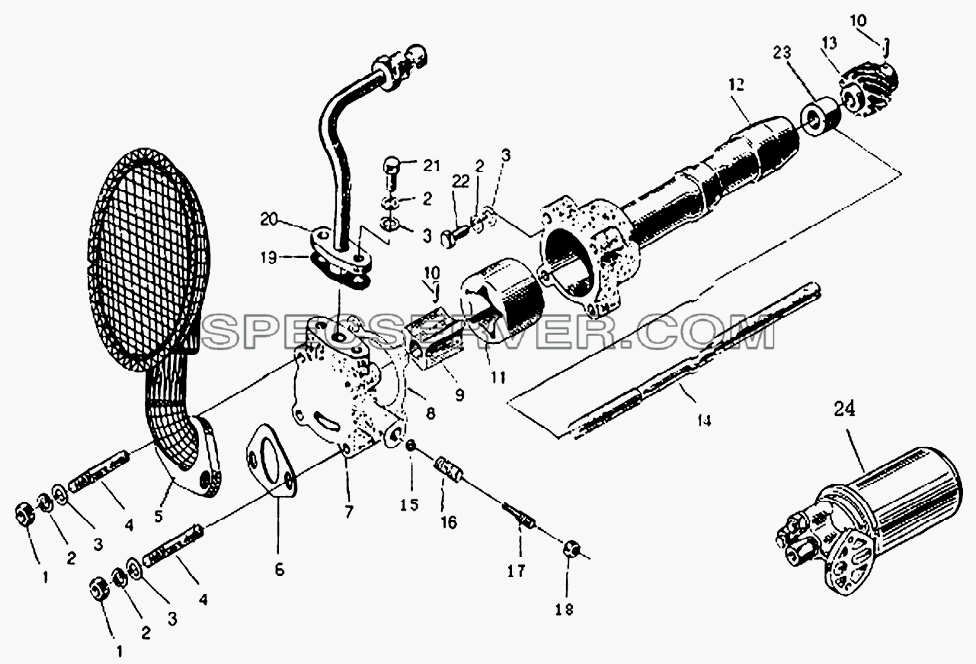

Lubrication oil pump and oil pipe assembly для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		GB6170-86	Nut
2		GB859-87	Spring washer
3		GB848-85	Washer
4		GB899-88	Stud
5		YSD490Q-09110	Gauze filer weldment
6		YSD490Q-09104	Gasket
7		YSD490Q-09105	Oil pump cover
8		YSD490Q-09107	Oil pump washer
9		YSD490Q-09122	Inner rotor
10		GB119-86	Pin
11		YSD490Q-09108	Outer rotor
12		YSD490Q-09132	Oil pump housing
13		YSD490Q-09101	Oil pump driving gear
14		YSD490Q-09121	Oil pump shaft bush
15		GB308-89	Steel ball
16		YSD490Q-09103	Relief walve spring
17		YSD490Q-09102	Adjusting bolt
18		GB6176-86	Nut M8X1
19		YSD490Q-09200	Oil outlet ppipe flange gasket
20		GB5783-86	Bolt
21		GB5783-86	Bolt
22		GB899-88	Stud
23		YSD490Q-09131	Oil pump shaft bush
24		Y480G-09300	Oil filter assy

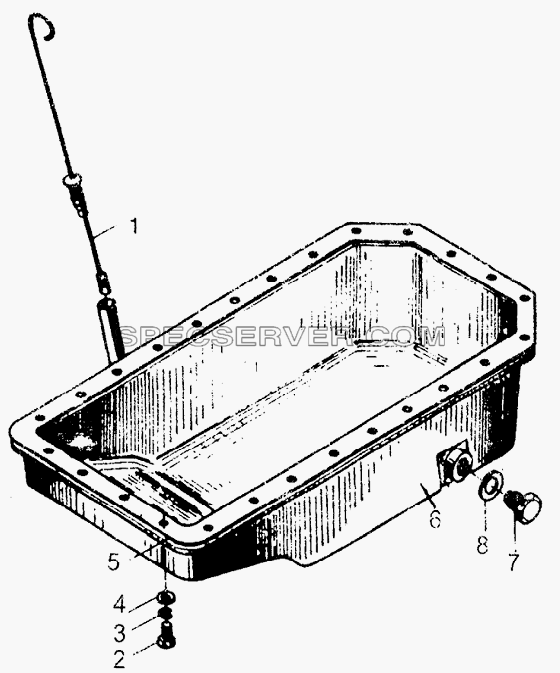

Oil sump для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		YSD490Q-15-01400	Oil dipstick unit
2		GB5783-86	Bolt
3		GB93-87	Spring washer
4		GB848-85	Washer
5		YSD490Q-01018	Oil sump gasker
6		YSD490Q-15-01700	Oil stump unit
7		Y480Q-67-01703	Drain screw plug
8		Y480G-01704a	Washer

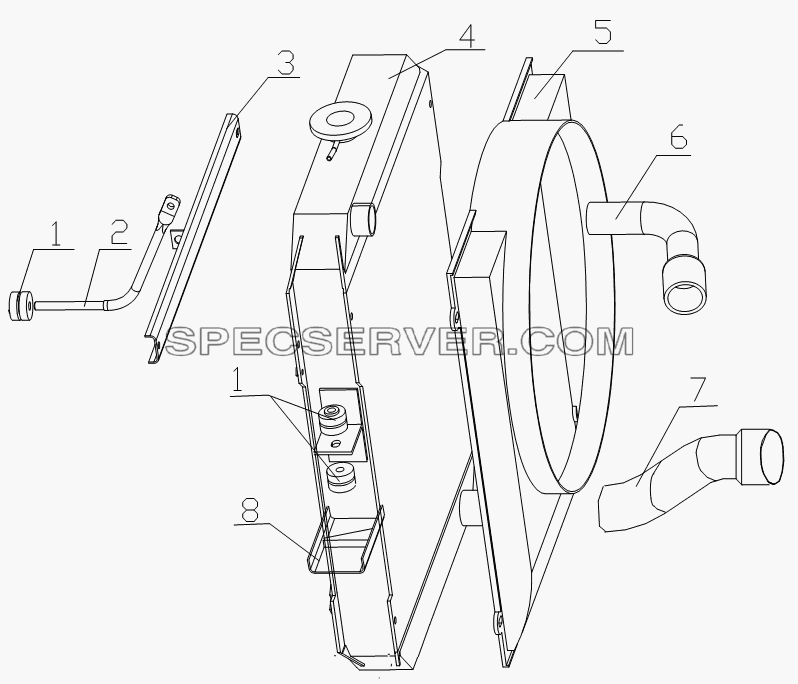

1300D4-hcG Cooling system equipment для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1300015J1	radiator support soft mat
2		1300011D4-hcG	radiator drag rod
3		1300040D4	radiator bearing cross beam unit
4		1301010D4-hcG	radiator unit
5		1309011D4-hcG	wind protector
6		1303011D4-hcG	radiator water inlet hose
7		1303012D4-hcG	radiator water outlet hose
8		1300021D4-hcG	radiator left fastening bracket
8		1300022D4-hcG	radiator right fastening bracket
