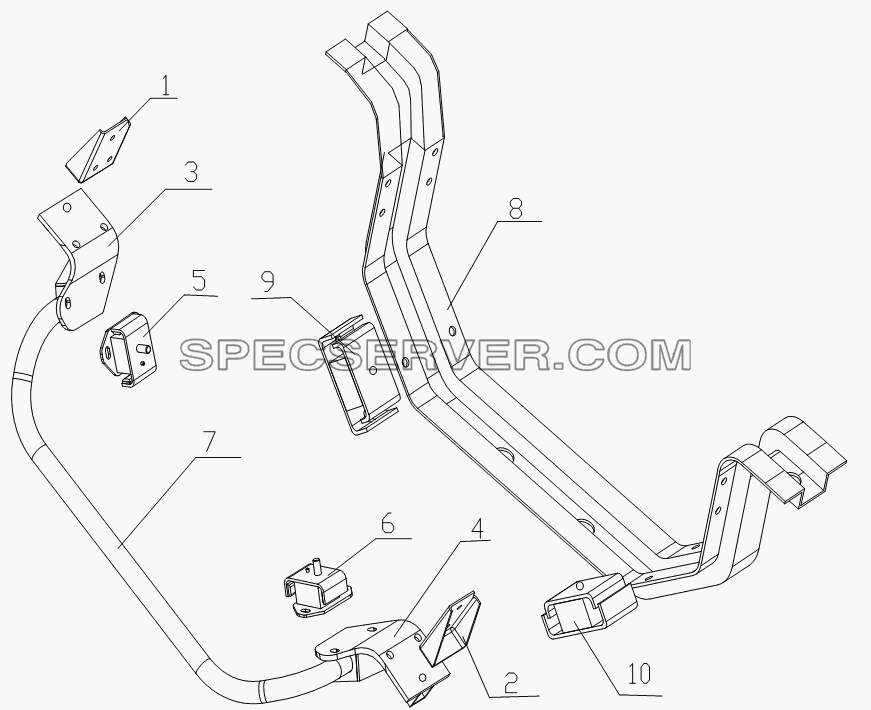

Запчасти: 1001D4 Engine suspension для HFC 1020KR-D127

1001D4 Engine suspension для HFC 1020KR-D127 (список запасных частей)

1001D4 Engine suspension для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1001010D4 engine front supporting cross beam uint
1 1001014D4 connecting bracket
2 1001013D4 connecting bracket
3 1001040D4 right supporting plate welding unit
4 1001030D4 left supporting plate welding unit
5 1001020J1 front supporting plate right cushion block unit
6 1001010J1 front supporting plate left cushion block unit
7 1001011D4 engine front supporting cross beam
8 1001051Z8 engine rear bracket
9 1001010Z8 engine rear support right cushion block unit
10 1001020Z8 engine rear support left cushion block unit

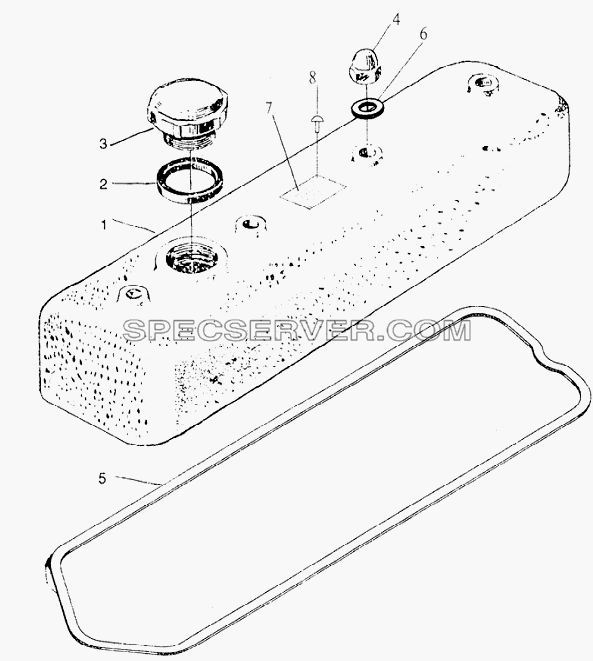

Запчасти: Cylinder head cover для HFC 1020KR-D127

Cylinder head cover для HFC 1020KR-D127 (список запасных частей)

Cylinder head cover для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 YSD490Q-03004 Cylinder head bonnet
2 Y480G-03003a Oil filler cap gasket
3 Y480G-03002 Oil filler cap
4 GB923-88 Nut M10
5 YSD490Q-03005 Cylinder head bonnet gasket
6 GB848-85 Washer
7 YSD490Q-03021A Name plate
8 GB827-86 Rivet 2x5
Запчасти: Cylinder head, thermostat, intake manifold and exhaust manifold для HFC 1020KR-D127

Cylinder head, thermostat, intake manifold and exhaust manifold для HFC 1020KR-D127 (список запасных частей)

Cylinder head, thermostat, intake manifold and exhaust manifold для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 YSD490Q-03101 Cylinder head
2 YSD490Q-03102 Valve guide
3 Y485-03021 Oil seal
4 YSD490Q-03011 Lifting eye
5 GB93-87 Spring washer
6 GB5783-86 Bolt
7 YSD490Q-03002a Rear cover
8 YSD490Q-03023 Gasket
9 Y480G-01103 Plug
10 YSD490Q-03105a Injector sleeve
11 YSD490Q-03013 Valve
12 YSD490Q-03013 Valve
13 YSD490Q-03014 Valve
14 YSD490Q-07100 Intake manifold
15 GB5783-86 Bolt
16 GB5783-86 Bolt
17 GB848-85 Washer
18 GB6170-86 Nut
19 StudM8x45 Stud
20 GB6170-86 Nut
21 GB848-85 Washer
22 YSD490Q-03001 Valve rocker bracket stud
23 YSD490Q-03006 Gasket
24 YSD490Q-7-08001 Exhaust manifold
25 YSD190-7-08002 Gasket
26 GB5783-86 Bolt
27 YSD490-11301 Thermostat cover
28 YSD490-11302 Gasket
29 YSD490-11300 Thermostat
30 YSD490-11304 Thermostat housing
31 YSD490-03016 Thermostat housing gasket
32 YD480Q-59-11310 Water temp sensor
33 GB5783-86 Bolt
34 GB5783-86 Bolt
35 YSD490Q-07004 Intake bend pipe gasdct
36 YSD490Q-26-07200 Electricity heating unit
37 YSD490Q-07005 Intake bend pipe
38 CB93-87 Washer 10
39 YSD490Q-1-01001 Warm wind Take over

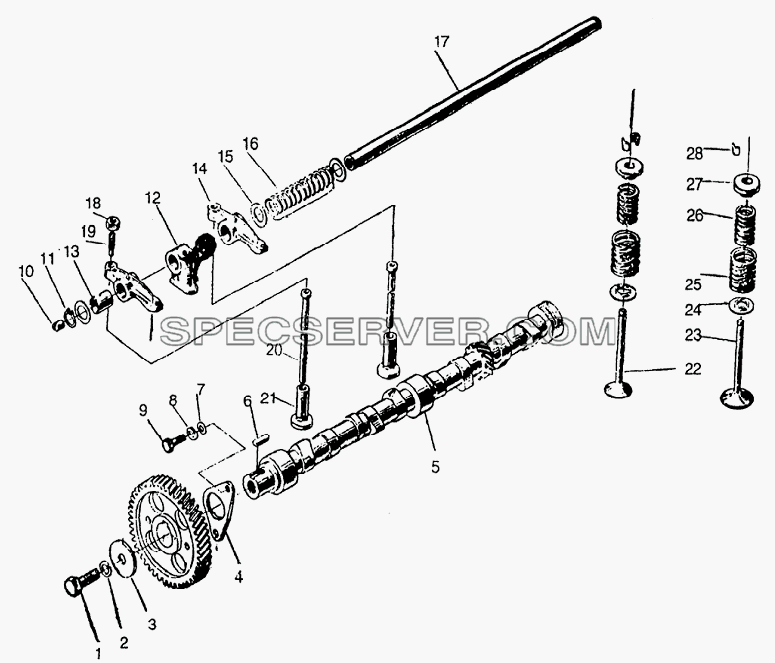

Запчасти: Valve-actuating mechanism для HFC 1020KR-D127

Valve-actuating mechanism для HFC 1020KR-D127 (список запасных частей)

Valve-actuating mechanism для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 GB5783-86 Bolt
2 GB93-87 Spring washer
3 Y480G-02012 Camshaft timing clamping plate
4 YSD400Q-02010 Camshaft thrust plate
5 YSD490Q-02010 Camshaft
6 GB1096-79 Flatx key
7 GB848-85 Washer
8 GB93-87 Spring washer
9 GB5783-86 Bolt
10 YSD490Q-03208 Rocker shaft screw plug
11 GB894.1-86 Retainer ring 10
12 YSD490Q-03202 Rocker shaft bracket
12 YSD490Q-03207 Rocker shaft rear bracket
13 YSD490-03212 Rocker arm bush
14 YSD490Q-03211 Rocker
15 YSD490Q-03026 Washer
16 YSD490Q-03204 Rocker shaft spacer spring
17 YSD490Q-03205a Rocker shaft
18 GB6171-86 Nut M8x1
19 YSD490Q-03201 Adjusting screw
20 YSD490Q-06003 Push rod
21 YSD490Q-06002A Valve tappet
22 YSD490Q-03014 Valve
23 YSD490Q-03014 Valve
24 YSD490Q-03010 Valve spring lower seat
25 YSD490Q-03007 Outer valve spring
26 YSD490Q-03017 Inner valve spring
27 YSD490Q-03009 Valve spring upper seat
28 YSD490Q-03008 Valve collets

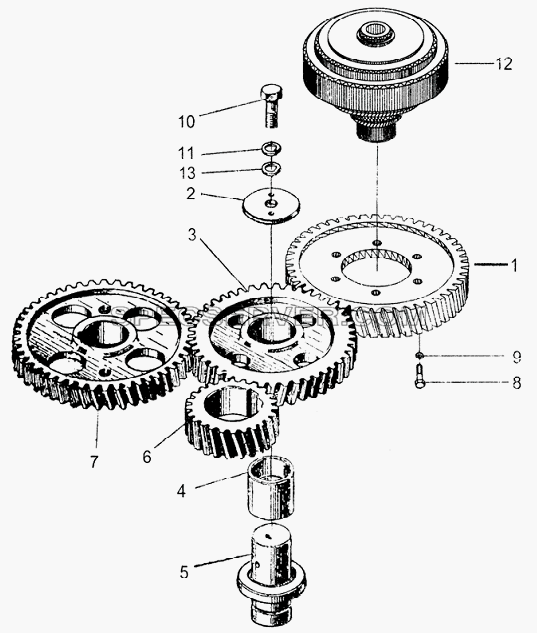

Timing gear train для HFC 1020KR-D127 (список запасных частей)

Timing gear train для HFC 1020KR-D127 (список запасных частей)

Timing gear train для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 YSD490Q-02003a Fuel injection pump timing gear
2 YSD490Q-02008 Idle gear clamp
3 YSD490Q-02005a Idle gear
4 YSD490Q-02006 Idle gear shaft
5 YSD490Q-02007 Idle gear shaft
6 YSD490Q-02009a Crankshaft timing gear
7 YSD490Q-02011a Camshaft timing gear
8 GB5783-86 Bolt
9 GB93-87 Spring washer
10 GB5782-86 Bolt
11 GB93-87 Spring washer
12 YSD490Q-02100 Angle in advance
13 GB848-85 Washer

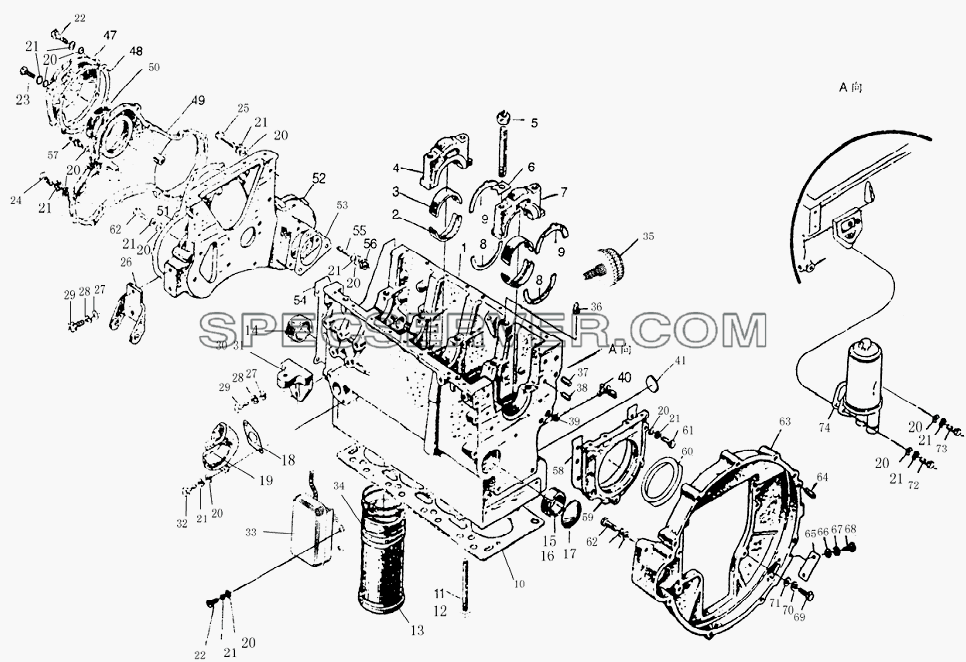

Cylinder block, timing gear casing and flywheel housing для HFC 1020KR-D127 (список запасных частей)

Cylinder block, timing gear casing and flywheel housing для HFC 1020KR-D127 (список запасных частей)

Cylinder block, timing gear casing and flywheel housing для HFC 1020KR-D127 (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 YSD400Q--01111C cylinder block
2 YSD490Q--01015 main bearing?upper half
3 YSD4900—01016 main bearing?lower half
4 YSD490Q--01112 main bearing cap
5 YSD490Q--01114 main bearing slud
6 YSDD490Q--01115 main bearing slud lock washer
7 YSDD490Q--01113 rear main bearing cap
8 YSD4900--01008 crandshaft thrust bearing,lower half
9 YSD490Q--01007 crandshaft thrust bearing,upper half
10 YSD490Q--01020a cylinder head gasket
11 YSD490Q--01004 long cylinder head slud
12 YSD490Q--01005 short cylinder head slud
13 YSD490Q--01003 cylinder liner
14 YSD490Q--01023 front camshaft bush
15 YSD490Q--01024 middle camshaft bush
16 YSD490Q--01025b rear camshaft bush
17 YSD490Q--01103 plug
18 YSD490Q--01011 inlet pipe gasket
19 YSD490Q--01013 inlet pipe
20 GB848-85 Washer
21 GB93-87 Spring washer
22 GB5783-86 Bolt
23 GB5783-86 Bolt
24 GB5783-86 Bolt
25 GB898-88 stud M8--M8X1X22
26 YSD490Q-12006 generator bracket
27 GB848-85 Washer
28 GB93-87 Spring washer
29 GB5783-86 Bolt
30 YSD490Q-47-01001 front mounting bracket
31 YSD490Q-47-01002 front mounting bracket
32 GB5783-86 Bolt
33 YSD490Q-01200a breathing filter
34 YSD490Q-01003 Water seal
35 YSLA480Q-5-01500 sensor for oil gauge
36 YSD490Q-01101 plug
37 YSD490Q-01105a screw plugI
38 Y480G-01106a screw plugII
39 YSD490Q-01014a connect pipe
40 YSD490Q-16-01300 drain cock
41 Y480G-01104 plug
42 Y480G-01004 oil filter gasket
43 GB5782-86 Bolt
44 GB5782-86 Bolt
45 GB848-85 Washer
46 GB93-87 Spring washer
47 YSD490Q-02017 Front cover
48 YSD490Q-002016 FrOnt cover Of timing gear case
49 YSD490Q-02013a ront cover gaskct Of TIMING GEAR CASE
50 HG4-692-67 Oil seal
51 YSD490Q-02014 Timing gear case cover gasket
52 WSD490Q-02001 Timing gear casing
53 Y480G-02001 Furl injection pump gasdet
54 YSD490Q-01001 Timing gear case gasket
55 GB898-88 stud M8--M8X1X22
56 GB6170-86 Nut
57 YSD490Q-02015 Pointer
58 YSD490Q-01009a Real oil seal cover gasdet
59 YSD490Q01012a Real oil seal cove
60 HG4-692-67 Oil seal
61 GB5783-86 Bolt
62 GB5783-86 Bolt
63 YSD490Q-01010a Flywheel housing
64 GB119-86 Pin
65 YSD490Q-01019 Inspection cover
66 GB97.1-85 Washer 6-140HV
67 GB93-87 Spring washer
68 GB818-85 Bolt M6x12
69 GB5783-86 Bolt
