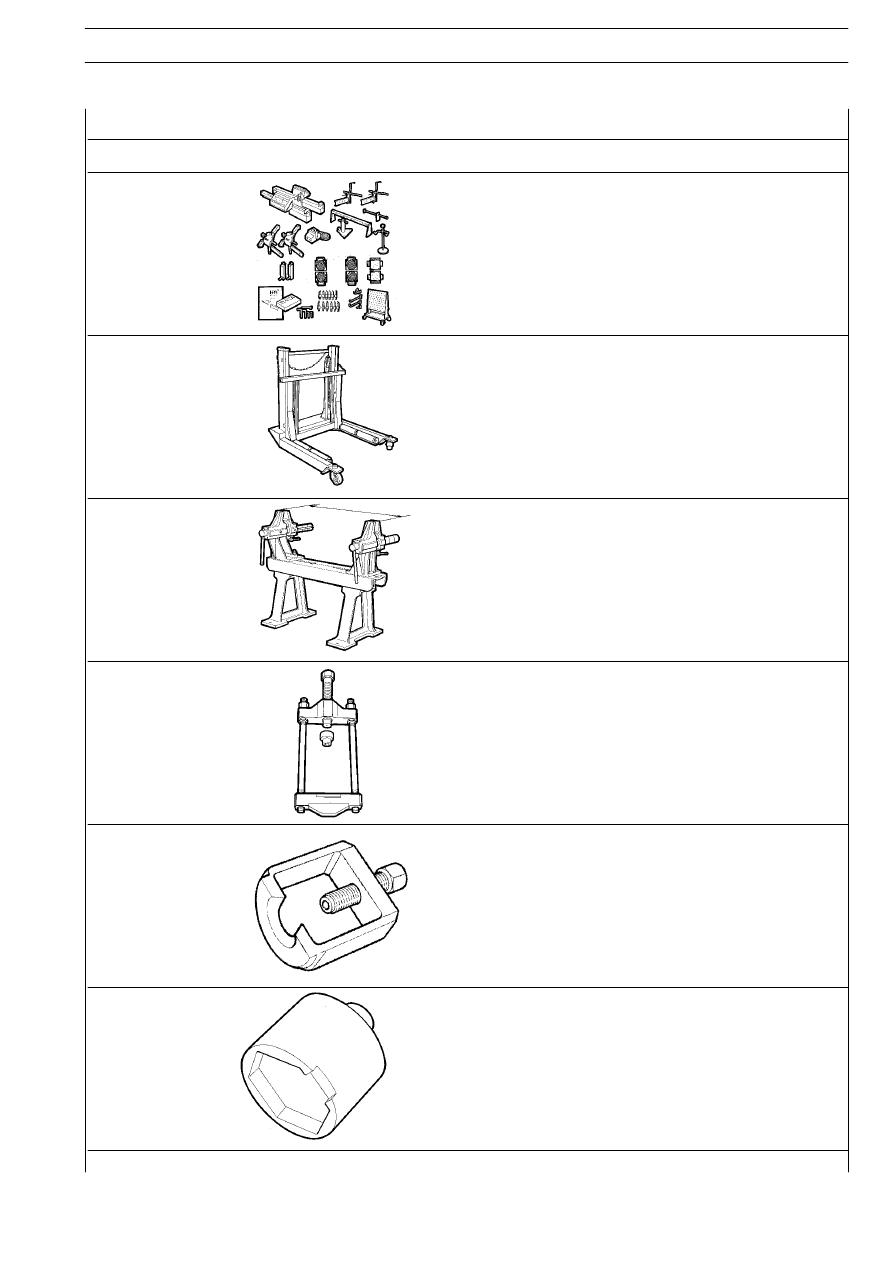

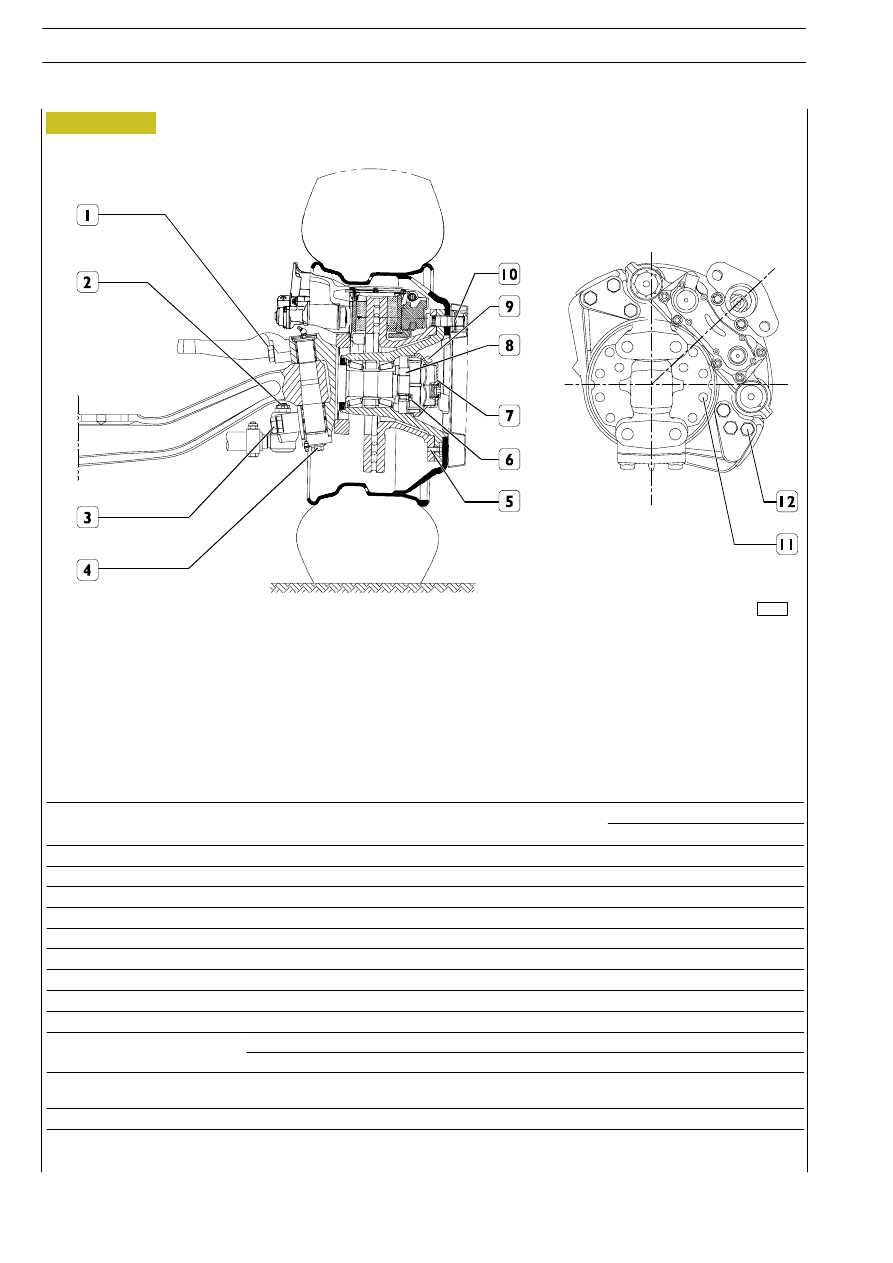

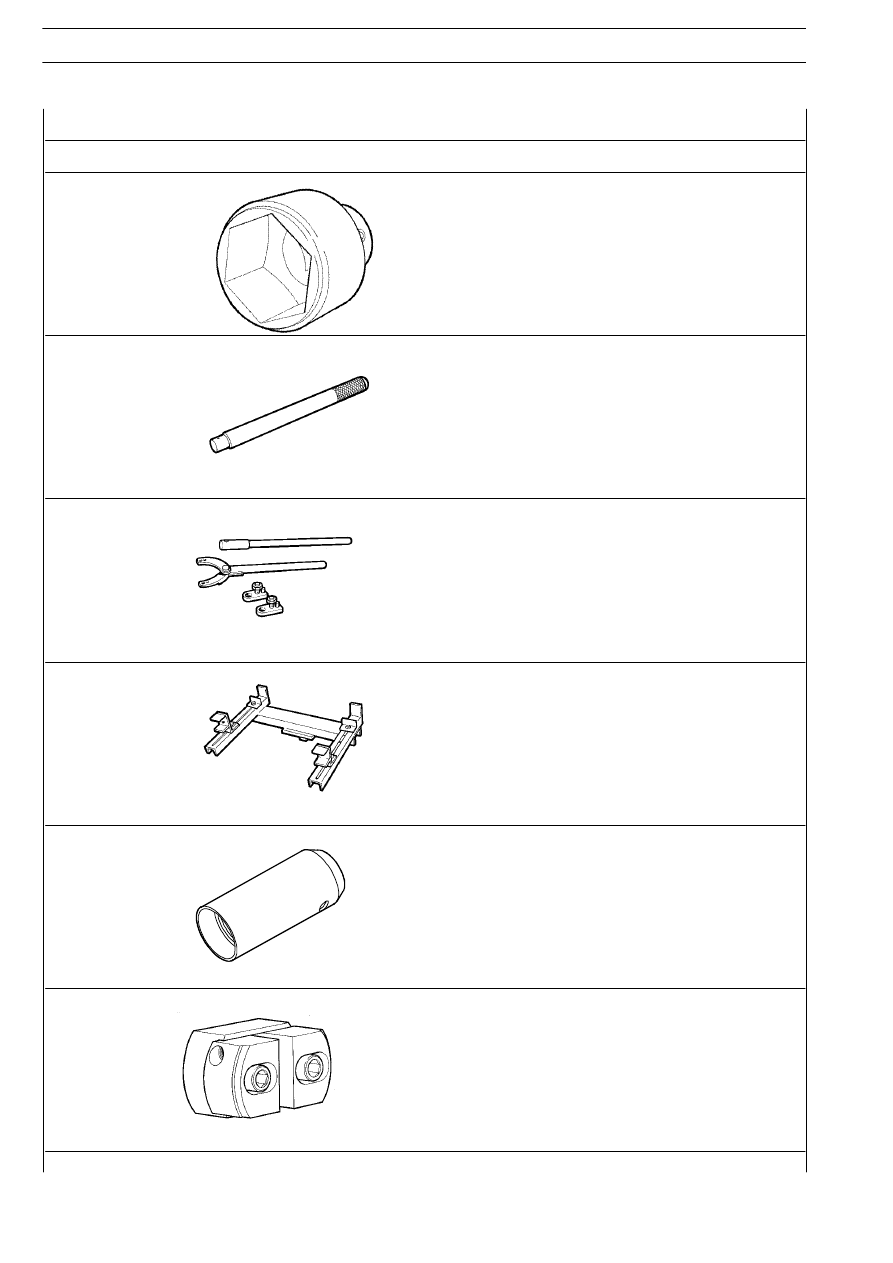

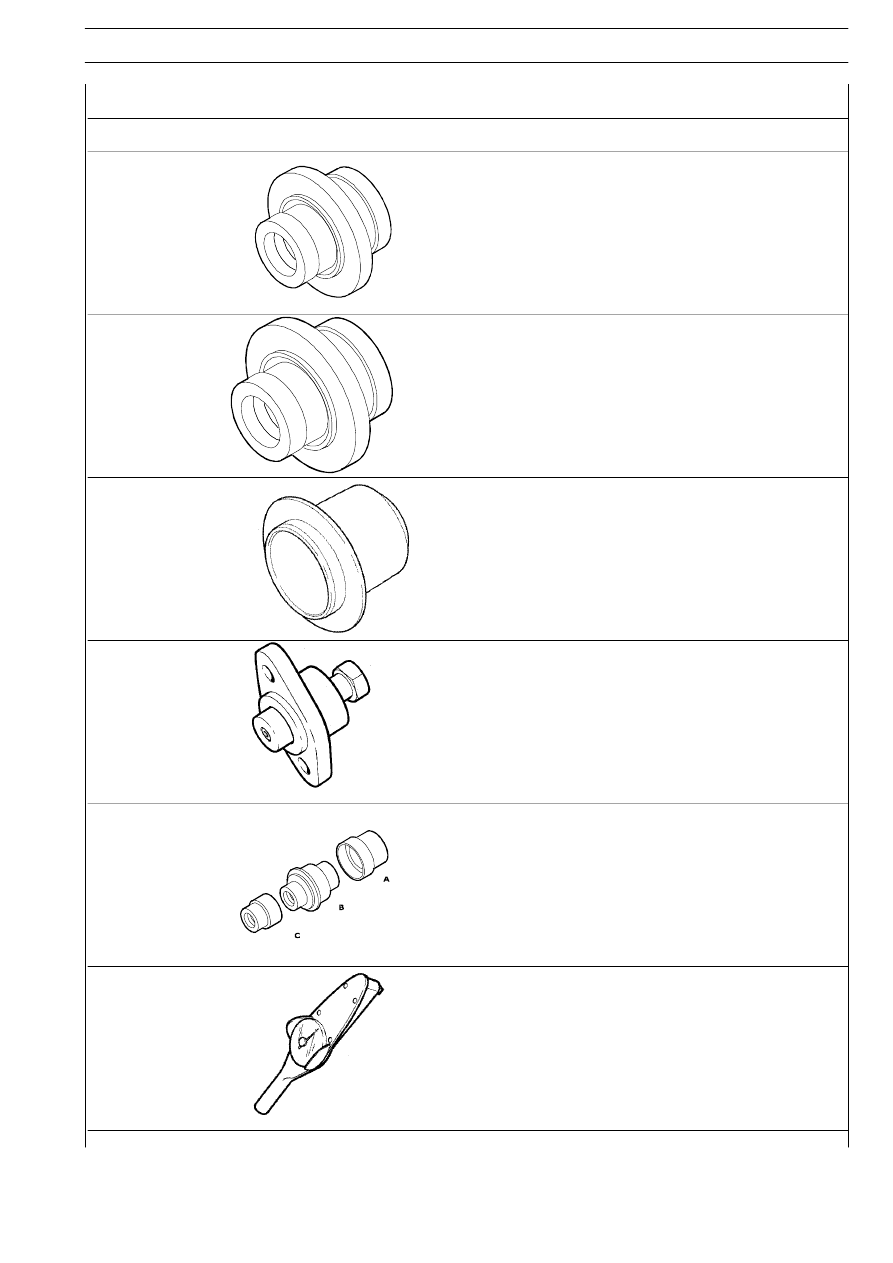

FRONT AXLES 5842/5 - 5851/5
Base - February 2003
PART
TORQUE
PART
Nm
(kgm)
1
Self-braking hexagonal head cap screw to clamp cross tie rod lever on steering knuckle
515.5
± 24.5
(52.6
± 2.5)
2
Castellated nut for articulated joint pin
201
± 20
(20.5
± 2)
3
Self-braking hexagonal head cap screw to clamp longitudinal lever on steering knuckle
515.5
± 24.5
(52.6
± 2.5)
4
Flanged hexagonal head cap screw to clamp lower thrust block cover on steering knuckle
336
± 17
(34.2
± 1.7)
5
Hexagonal head cap screw to clamp brake disc on wheel hub
40
± 4
(4
± 0.4)
6
Socket head cap screw to fasten wheel bearing adjusting clamp
27.5
± 2.5
(2.8
± 0.2)
7
Wheel hub cover
133.5
± 13.5
(13.6
± 1.3)
8
Wheel bearings securing ring nut
388.5
± 18.5
(39.7
± 1.9)
9
Tapered threaded plug for wheel hub cover
27
± 2
(27.5
± 2)
10 Wheel lock nuts
Axle 5842/5 (vehicles 130)
490
± 50
(49.9
÷ 5)
10 Wheel lock nuts
Axle 5851/5 (vehicles 150)
627,5
± 62,51
(63.9
÷ 6.4)
11
Self-locking hexagonal-head screw for fastening the brake backing plate to the
steering knuckle
313
± 16
(32
± 1.6)
12 Self-locking hexagonal head screw for fastening disk brake calipers to the plate
313
± 16
(32
± 1.6)
73840
Figure 9
