64

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

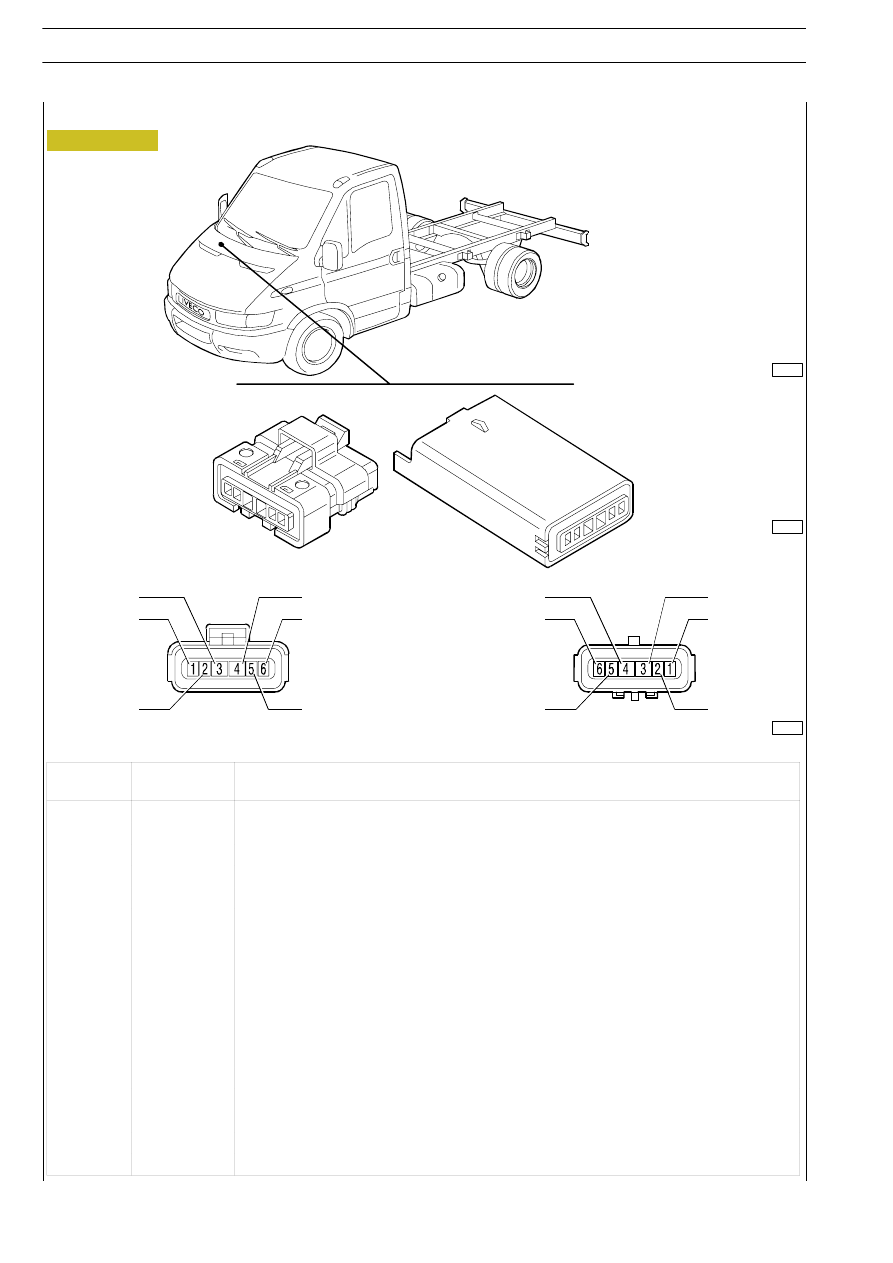

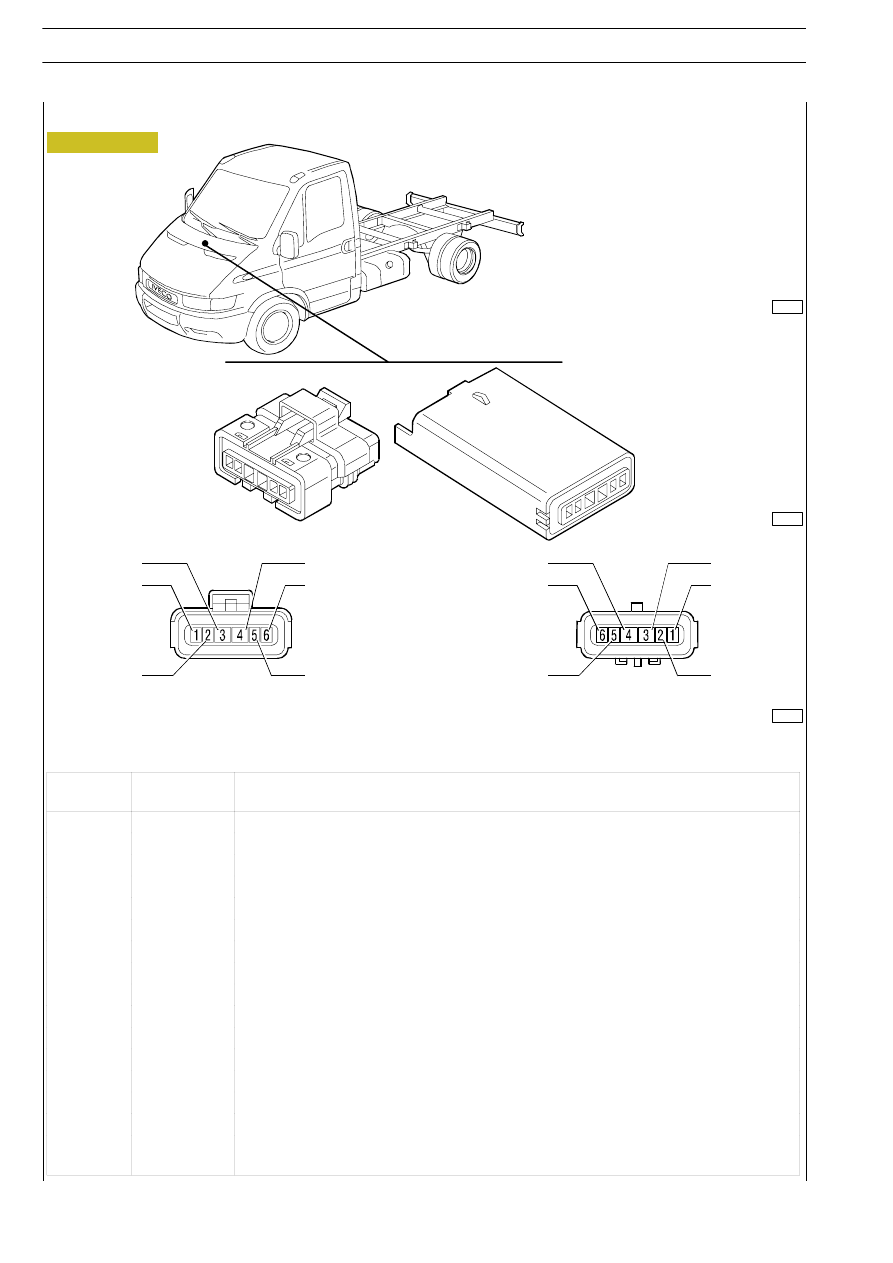

Cable

colour code

Function

1

8090

Supply (+15)

2

8091

To pin 26 of electronic control unit for vehicle raising/lowering control

72037A

3

1194

To 38-pin diagnostic connector (cell 15)

72037A

4

7772

Supply (+30)

5

8420

Suspension levelling control

6

2294

To 38-pin diagnostic connector (cell 16)

Connection between cab/bonnet cable and self-levelling suspension cable

72037A

8091

8090

1194

8420

2294

7772

8420

2294

7772

8091

8090

1194

Figure 64

8587

8592

8593

ELECTRIC/ELECTRONIC SYSTEM

65

D

AILY

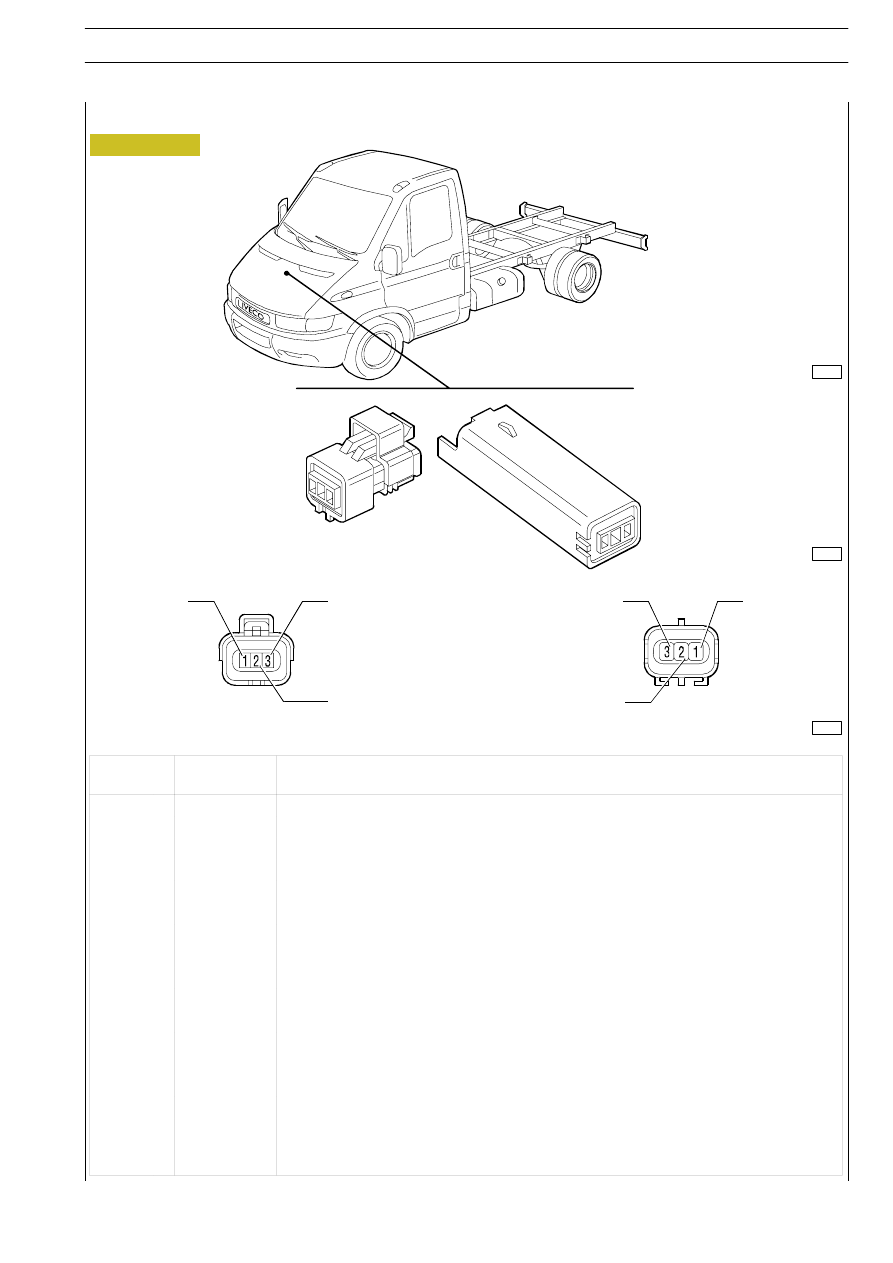

Ref.

Cable

colour code

Function

1

6008

Self-levelling suspension system failure signal

72037B 2

5411

Tachometric signal

3

1363

Positive with vehicle stop signal switch engaged

Connection between cab/bonnet cable and self-levelling suspension cable

72037B

6008

1363

5411

1363

5411

6008

Figure 65

8587

8612

8613

66

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

Cable

colour code

Function

1

9133

To electronic control unit for switching on total power takeoff (connector P2 cell 3)

2

9134

To electronic control unit for switching on total power takeoff (connector P2 cell 4)

72038A

3

9135

To electronic control unit for switching on total power takeoff (connector P2 cell 5)

72038A

4

9136

To electronic control unit for switching on total power takeoff (connector P2 cell 6)

5

0056

To electronic control unit for switching on total power takeoff (connector P2 cell 7)

6

0057

To electronic control unit for switching on total power takeoff (connector P2 cell 8)

Connection between cab/bonnet cable and total power takeoff cable

72038A

9134

9133

9135

0056

0057

0056

9136

0057

9136

9134

9133

9135

Figure 66

8587

8592

8593

ELECTRIC/ELECTRONIC SYSTEM

67

D

AILY

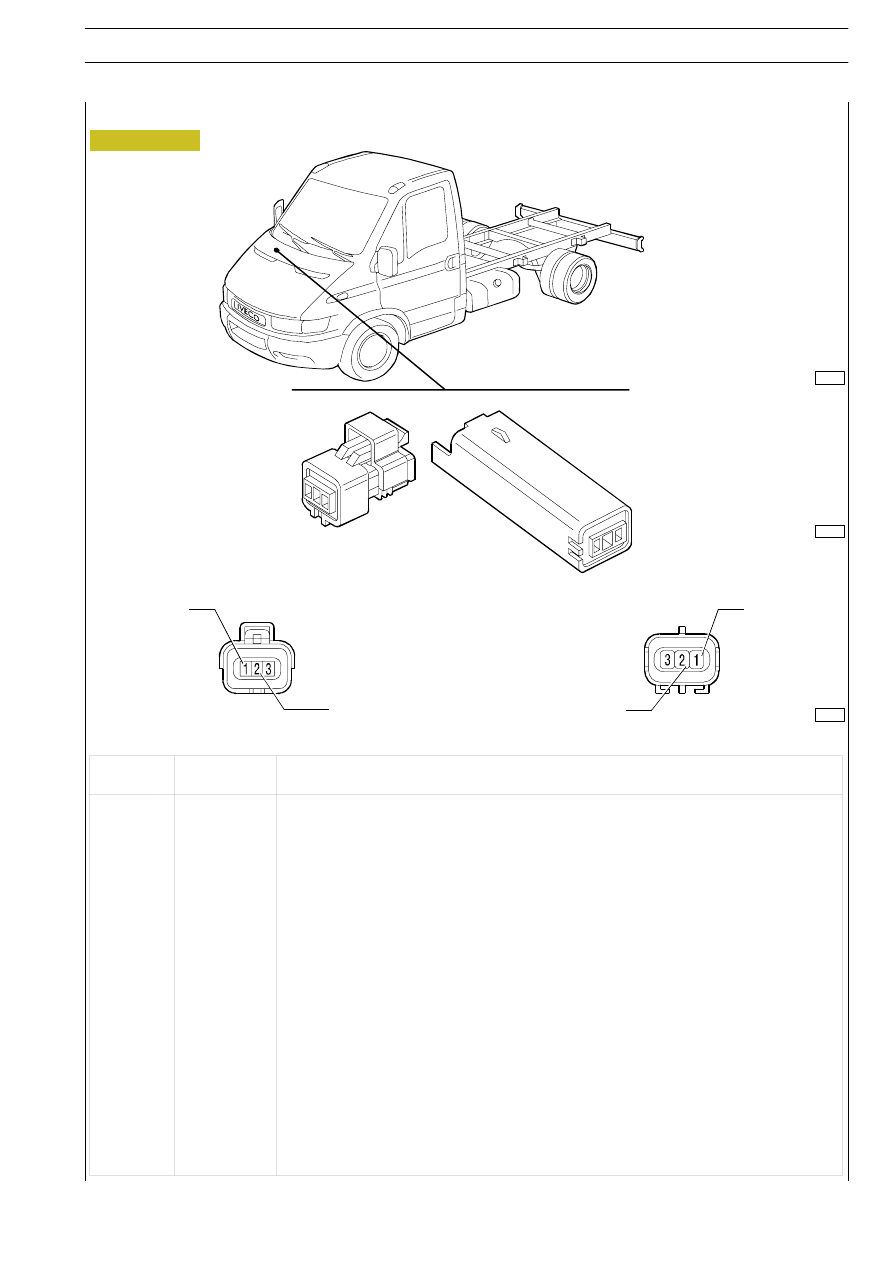

Ref.

Coble

colour code

Function

1

9131

To switch for total power takeoff engaged signal

72038B 2

0000

Earth

3

-

Spare

Connection between cab/bonnet cable and total power takeoff cable

72038B

0000

9131

0000

9131

Figure 67

8587

8612

8613
