ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

Cable colour

code

Function

1

7772

Supply (+30)

2

-

Spare

40011A

3

5156

Supply (+15)

40011A 4

-

Spare

(white)

5

0000

Earth

(white)

6

0000

Earth

7

-

Spare

8

-

Spare

1

5517

Supply (+15)

2

0058

Earth

40011B

3

5517

Tachometric signal

40011B 4

5516

To transmitter for tachometer

(yellow)

5

-

Spare

(yellow)

6

-

Spare

7

-

Spare

8

-

Spare

1

-

Spare

2

-

Spare

40011D

3

-

Spare

40011D 4

2400

To instrument cluster with warning lights

(brown)

5

-

Spare

(brown)

6

5517

Tachometric signal

7

2300

To instrument cluster with warning lights

8

-

Spare

Connection between cab/bonnet cable and cable for tachometer

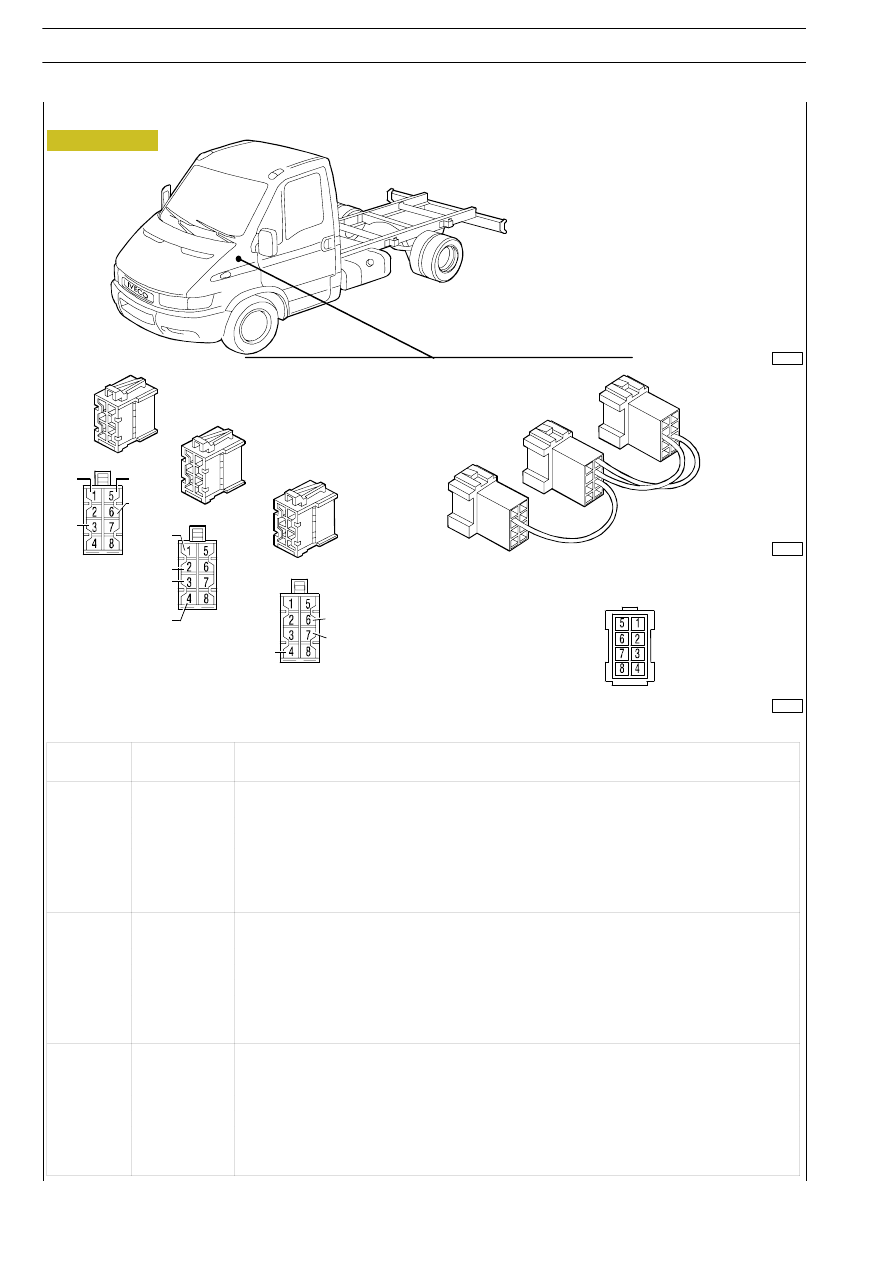

A

B

D

0000

0000

7772

5156

5517

0058
5517

5516

5517

2300

2400

8596

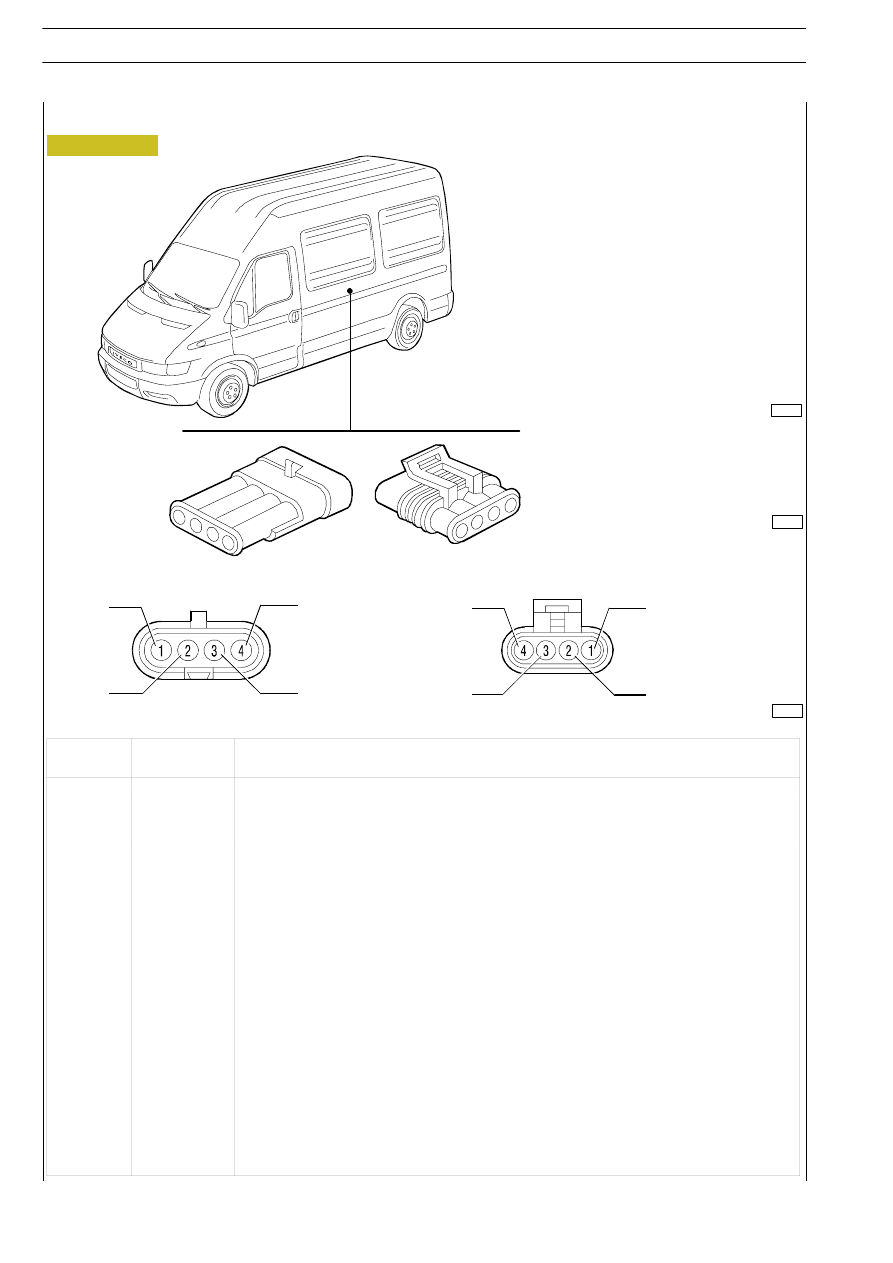

Figure 56

8587

8594

8595

ELECTRIC/ELECTRONIC SYSTEM

57

D

AILY

Ref.

Cable colour

code

Function

1

2283

Rear fog guard

72025A

2

0000

Earth

72025A

3

4418

Rear roof lamp supply

4

0003

Switching on interior lights

Connection between frame cable and right tail lamp cable

2283

0000

4418

0003

0000

2283

4418

0003

72025A

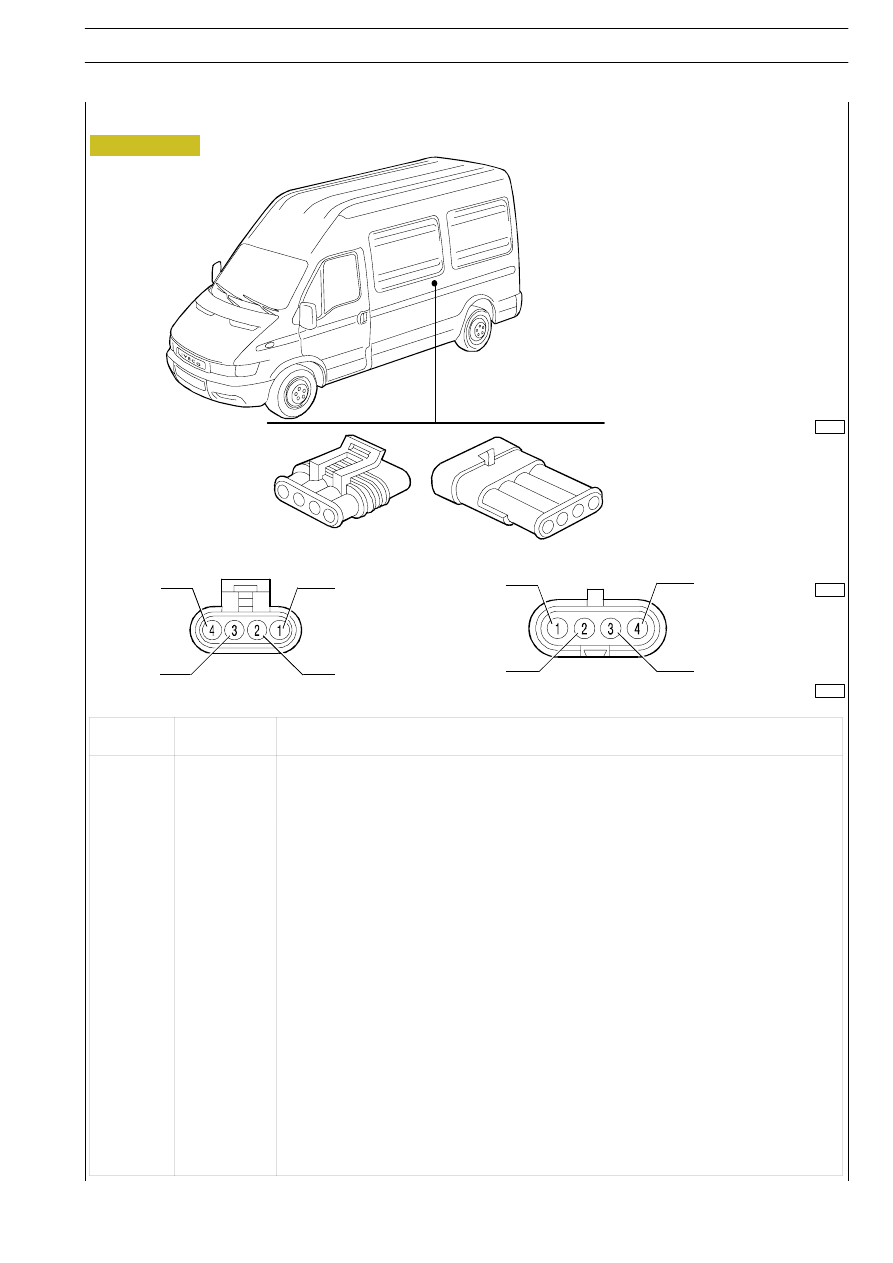

Figure 57

8597

8598

8599

58

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

Cable colour

code

Function

1

1125

Direction  indicator

72025B

2

1172

Stop light

72025B

3

3335

Side light

4

2227

Reversing light

Connection between frame cable and right tail lamp cable

3335

72025B

2227

1172

1125

3335

2227

1172

1125

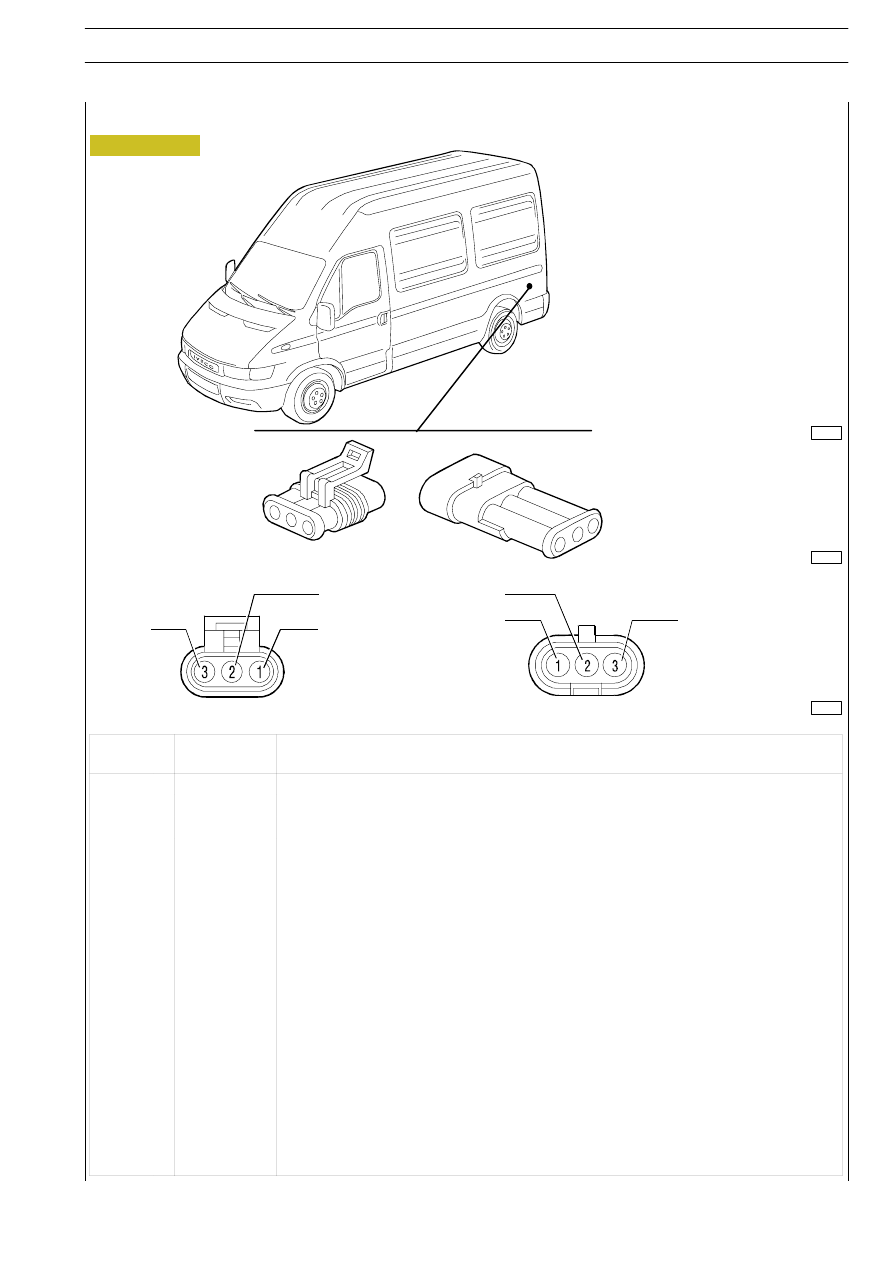

Figure 58

8597

8600

8601

ELECTRIC/ELECTRONIC SYSTEM

59

D

AILY

Ref.

Cable colour

code

Function

1

2227

Reversing light

72026A 2

2283

Rear fog guard

3

0000

Earth

Connection between frame cable and left tail lamp cable

72026A

2227

2283

0000

2227

2283

0000

Figure 59

8603

8602
