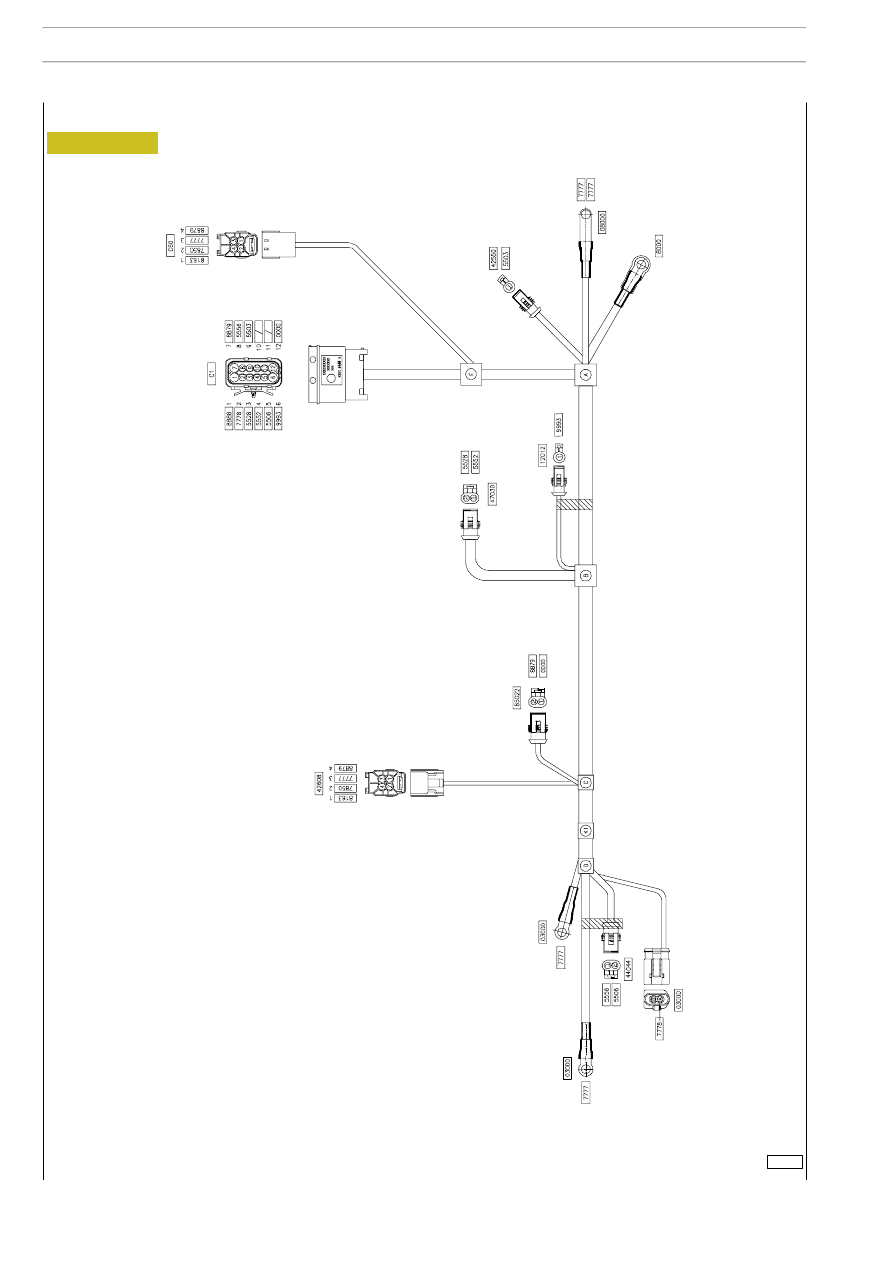

Figure 40/2

101862

37/3

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Revi - February 2005

ELECTRIC/ELECTRONIC SYSTEM

37/4

D

AILY

Component code

Description

03000

Self-rectifying alternator with integrated voltage regulator

08000

Starter motor

12012

A/C compressor

42550

Engine oil low pressure indicator switch

42608

Three-level pressure switches

44044

Low engine oil level indicator control

47030

Transmitter for engine water temperature thermometer

85022

Electromagnetic coupling for engine cooling

C1

Engine service harness connector to cab/hood harness

C60

Three-level pressure switch cable joint with cabin/hood cables

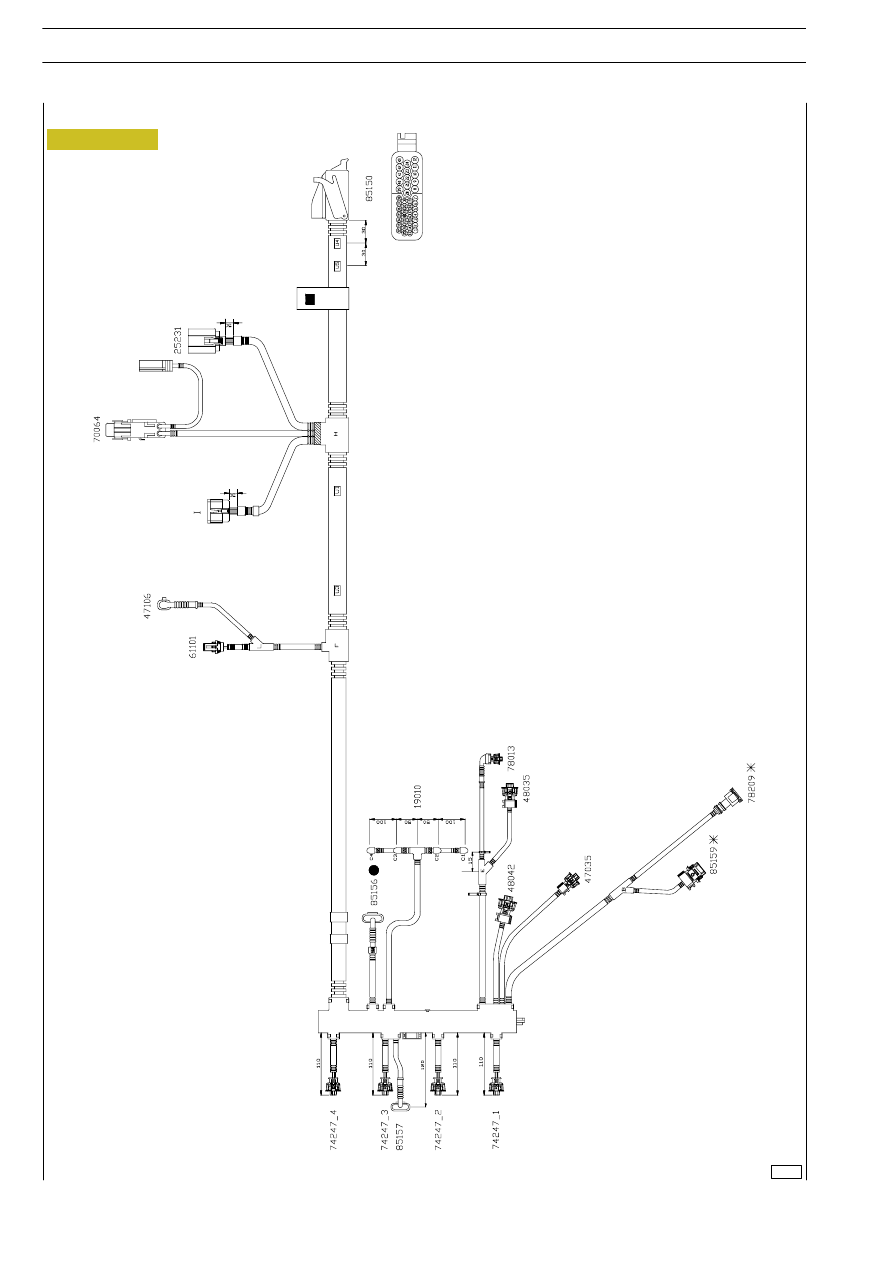

Figure 41

74268

38

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

ELECTRIC/ELECTRONIC SYSTEM

39

D

AILY

Component code

Description

85150

EDC center

I

Connection to hood cab cable

47035

Coolant temperature sensor

85157

Fuel pressure sensor

78247

Electrical injection electro valve

48042

rpm sensor on distributor

48035

Engine rpm sensor

78013

Pressure adjustment electro valve

47106

Fuel heat on switch

D 85156

EDC blower air pressure sensor

61101

Fuel heat resistor

19010

Preheat plug

25231

Plug insert centre

70064

1-way fuse holder

* 85159

Environment air temperature and pressure sensor for EDC

* 78209

EGR electro valve

D Without EGR

* With EGR
