Iveco Daily. Manual - part 367

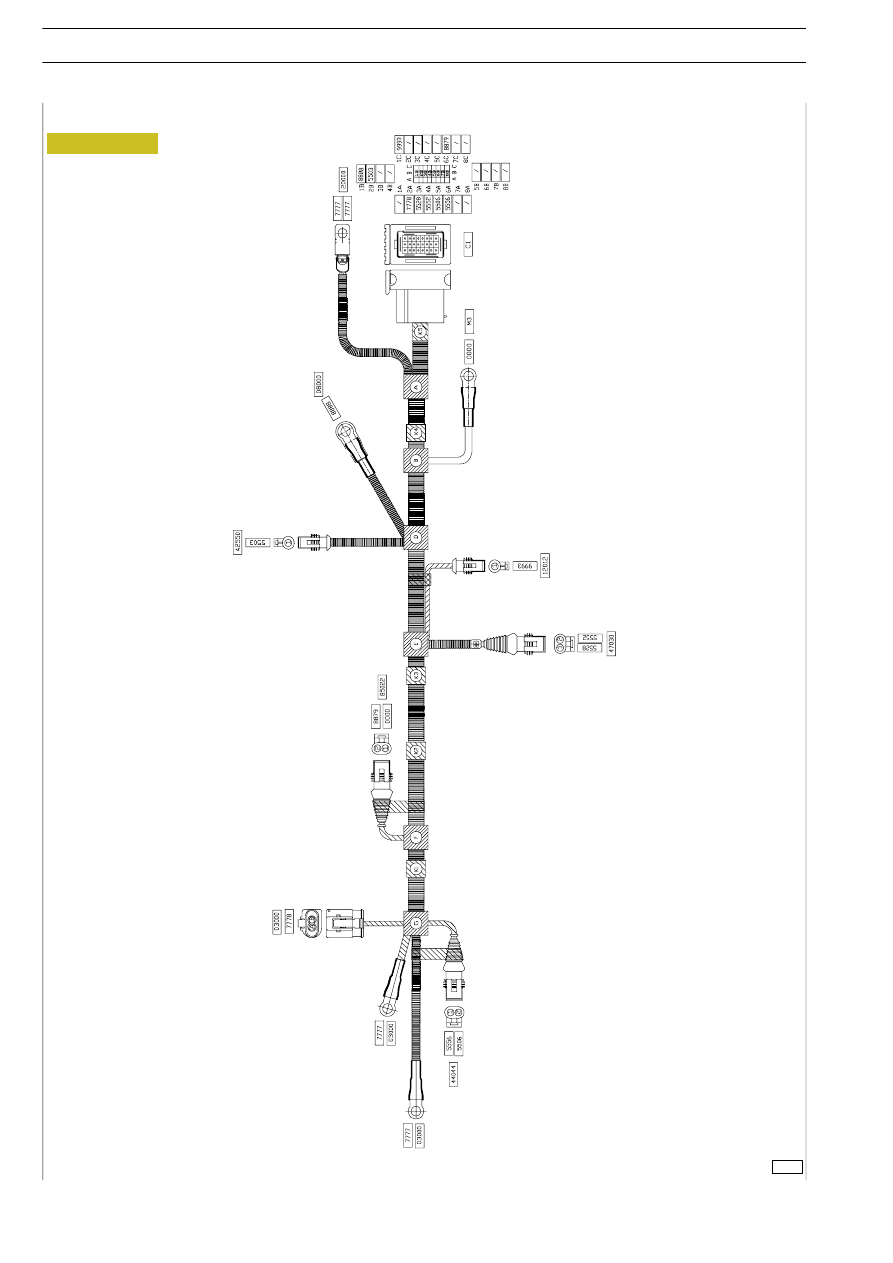

Figure 40

74267

36

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Base - May 2004

ELECTRIC/ELECTRONIC SYSTEM

37

D

AILY

Base - May 2004

Description

00000

Ground

03000

Self-rectifying alternator with integrated voltage regulator

08000

Starter motor

12012

A/C compressor

20000

Starter battery

42550

Engine oil low pressure indicator switch

44044

Low engine oil level indicator control

47030

Transmitter for engine water temperature thermometer

85022

Electromagnetic coupling for engine cooling

C1

Engine service harness connector to cab/hood harness

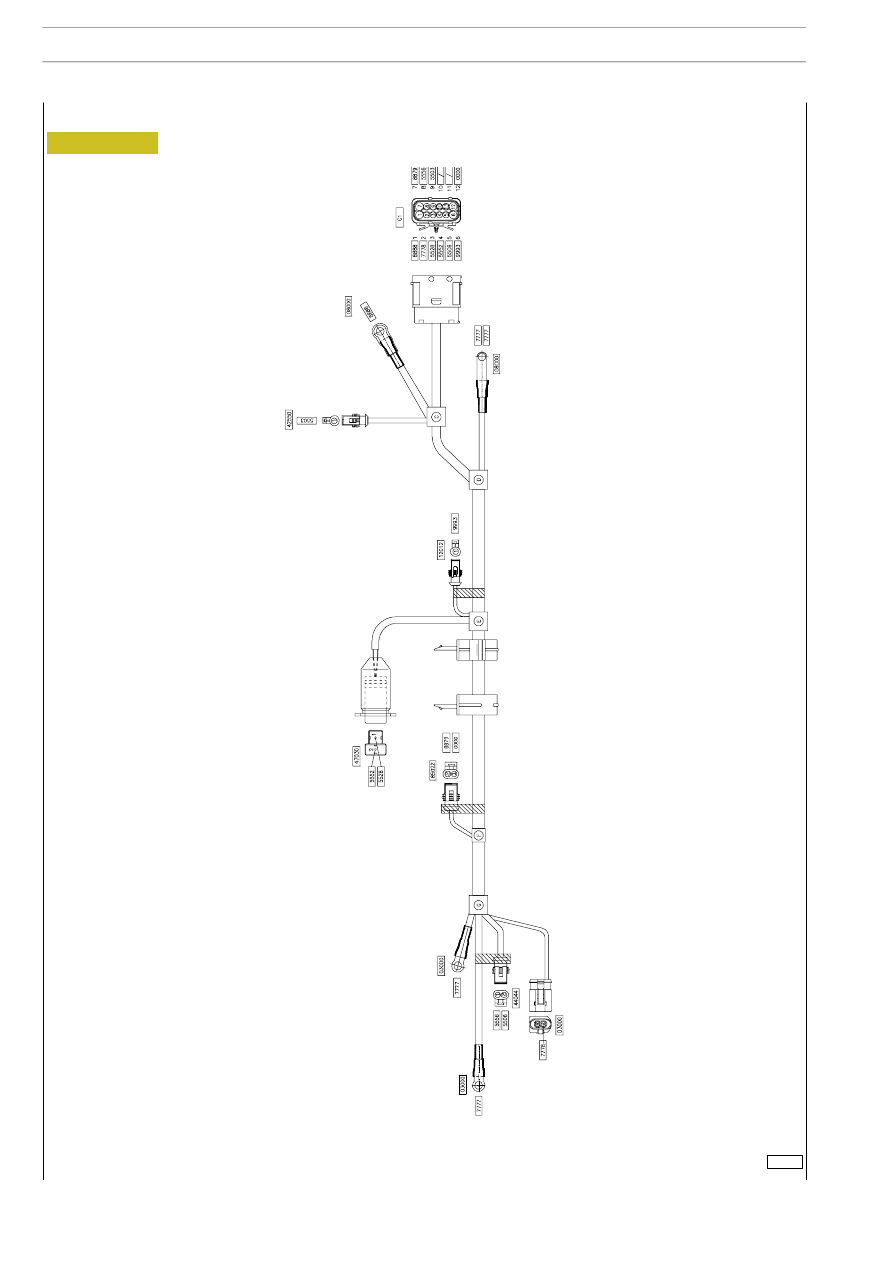

Figure 40/1

101861

37/1

ELECTRIC/ELECTRONIC SYSTEM

D

AILY

Revi - February 2005

ELECTRIC/ELECTRONIC SYSTEM

37/2

D

AILY

Component code

Description

03000

Self-rectifying alternator with integrated voltage regulator

08000

Starter motor

12012

A/C compressor

42550

Engine oil low pressure indicator switch

44044

Low engine oil level indicator control

47030

Transmitter for engine water temperature thermometer

85022

Electromagnetic coupling for engine cooling

C1

Engine service harness connector to cab/hood harness
