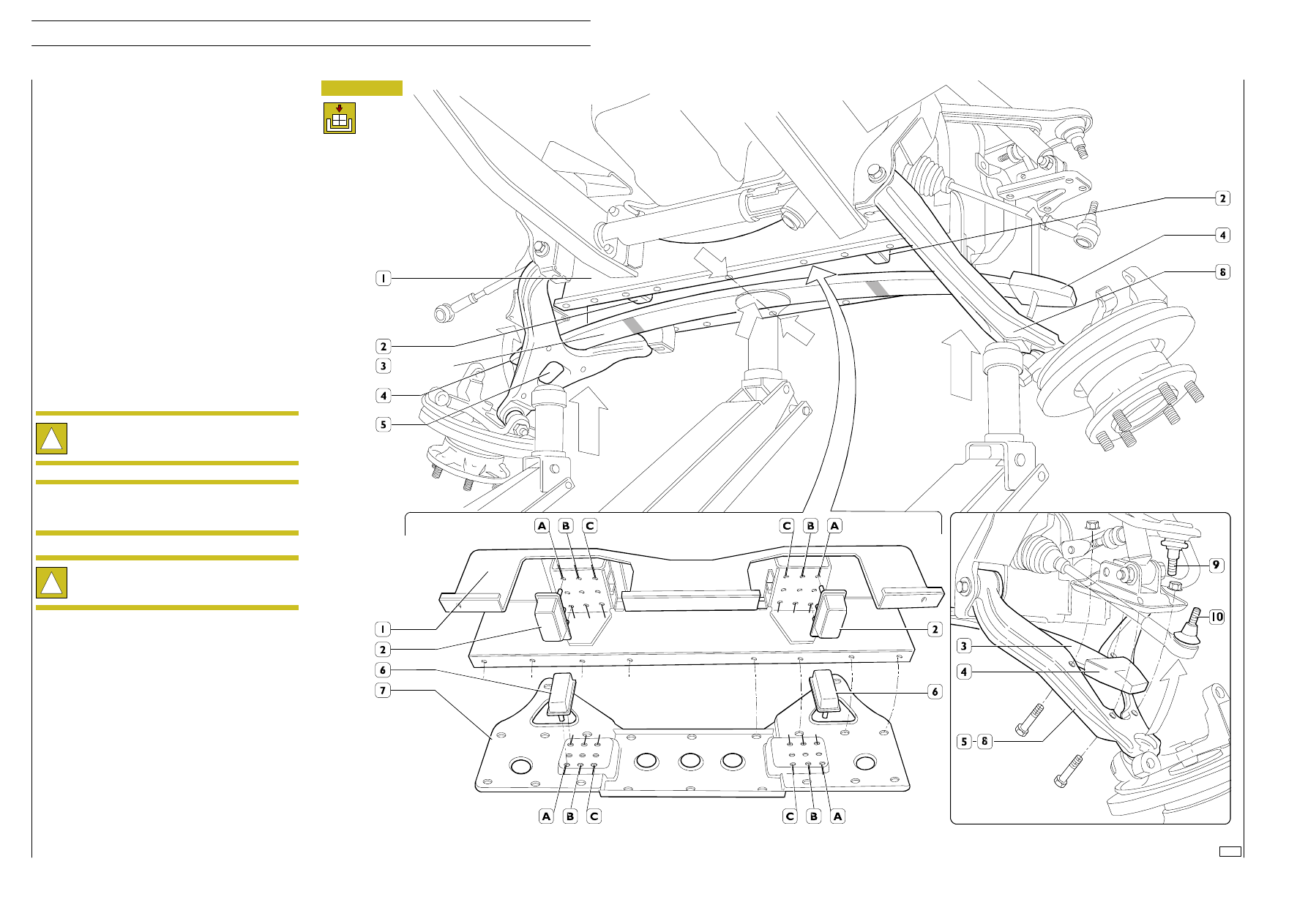

Carry out the operations described for removal in reverse
order, but you must take the following precautions:

- fit the top flexible plugs (2) in the cross member (1) at

the position found during disassembly;

- fit the flexible plugs (4) onto the ends of the new leaf

spring (3);

- fit the leaf spring (3) into the cross member and

support it with a hydraulic lift;

- with two lifts arranged under the stub axles, lift them

together, checking that the flexible plugs (4) of the leaf
spring (3) get correctly positioned in the honeycomb
of the bottom suspension arms (5 and 8) and the
centre line (

⇒) of the leaf spring is aligned with the

central holes (

⇒) della traversa (1), of the cross

member (1), max. error

±2 mm;

- then complete refitting by tightening the screws or

nuts to the required torque;

- position the bottom flexible plugs (6) on the cover (7)

at the position found during disassembly;

- mount the cover (7) and tighten the screws and nuts

to the required torque.

The nylon self-locking nuts must be replaced with
new ones every time they are taken down.

For axle 5817 tighten the nut (24) (Figure 23) fixing
the link rod to a torque of 44

± 9 Nm.

Refitting

To block rotation of the pins of the swivel heads
(9 - 10), insert a suitable Allen wrench into the
hexagon sunk in it.

NOTE

FRONT MECHANICAL SUSPENSIONS

AILY

Base - May 2004

Figure 25

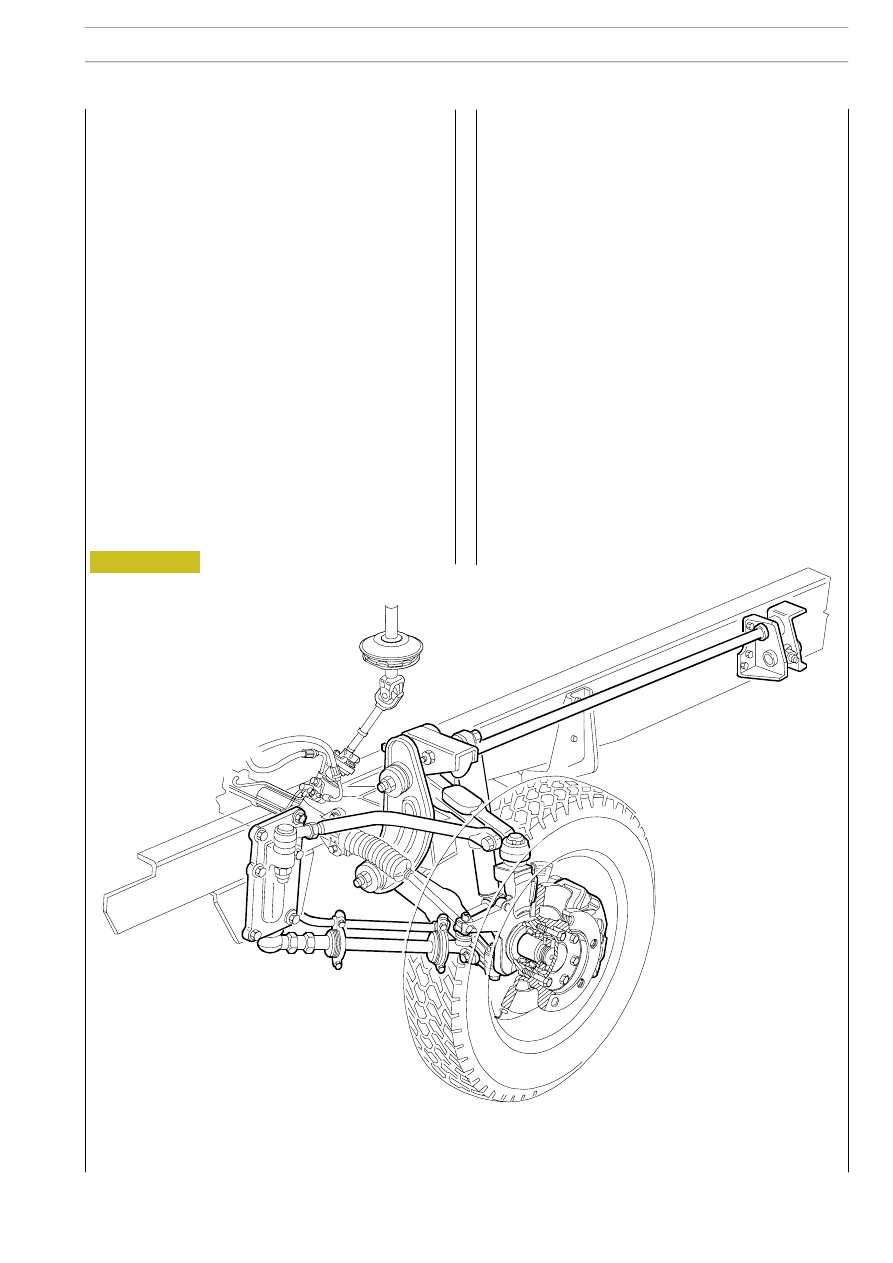

ASSEMBLY DRAWING OF FRONT TORSION BAR SUSPENSION

The hydraulic shock absorbers are the double-acting
telescopic type.

The side tie rods are mounted at the front to the chassis
frame mounting by means of adjustable link pins, and at the
rear to the transverse levers.

The purpose of the stabilizer bar, mounted on the bottom
reaction screw stays, is to maintain the parallelism between
the axis of the wheels and the chassis frame, cancelling any
load unbalance on the wheels mounted on the same axle.

The purpose of the rubber pads fixed on the top mounting
of the shock absorbers is to limit the upward movement of
the suspension.

(Axle 5819 - vehicles 35C - 40C - 45C - 50C)

Description

The torsion bar suspension is composed of:
- two bottom suspension arms.

- two top suspension arms;

- two longitudinal torsion bars;

- two hydraulic shock absorbers;

- two bottom reaction tie rods;

- two top reaction tie rods;

- a stabilizer bar;

- two rubber pads.

The longitudinal torsion bars are anchored at the front to the
top suspension arms and at the rear to a mounting secured
to the chassis frame.

FRONT MECHANICAL SUSPENSIONS

AILY

Base - May 2004

TORSION BAR SUSPENSION

FRONT MECHANICAL SUSPENSIONS

AILY

Base - May 2004

Torsion bar suspension with independent wheels, stabilizer bar

Models

Torsion bar suspension with independent wheels, stabilizer bar

and hydraulic shock absorbers

35 C

40 C

45 C

50 C

Torsion bar diameter

Top tie rod adjustment distance

378

± 0.15 mm

Top tie rod adjustment distance

220.4

± 0.15 mm

Bottom tie rod adjustment distance

364.5

± 0.15 mm

Bottom tie rod adjustment distance

300.4

± 0.15 mm

Front shock absorbers

Models:

35 C - 40 C - 45 C - 50 C

Mannesmann - Sachs

Arvin Meritor

Distance between centre of eyes:

Open

430

 3

444

 3 mm

Closed

280

 3

286

 3 mm

Stroke

150

158 mm

Stabilizer bar diameter

Models:

35 C - 40 C - 45 C - 50 C

Stabilizer bar diameter

FRONT MECHANICAL SUSPENSIONS

AILY

Base - May 2004

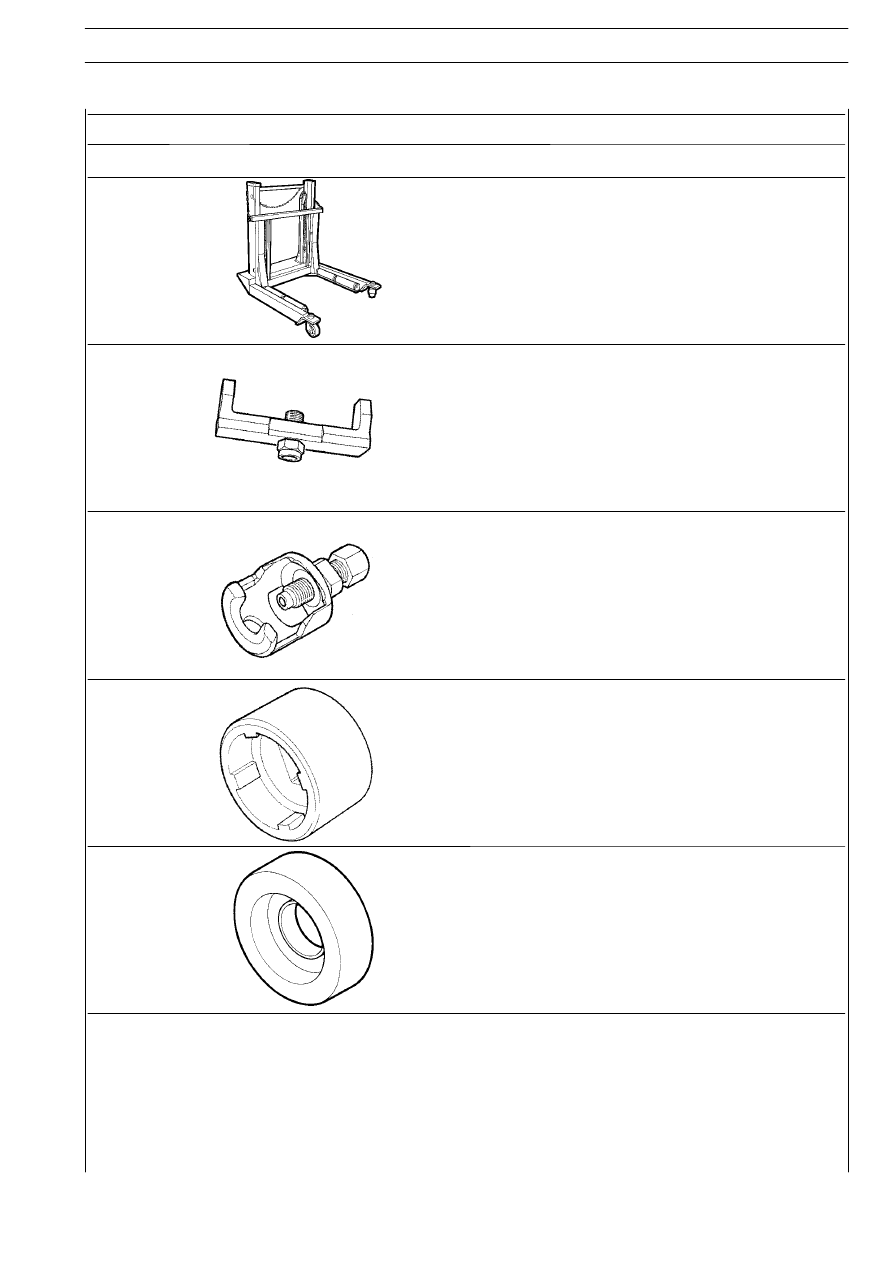

TOOL NO.

DESCRIPTION

Hydraulic trolley for wheel removal - refitting

99321024

Extractor to take out tie rod link pins

99347060

Extractor to take out steering tie rod link pins and suspension arms

99347074

Wrench for ring nut securing link pins

99357144

Tool for disassembling and reassembling front suspension flexible
bushings

99374241
