Iveco Daily Euro 4. Manual - part 206

109109

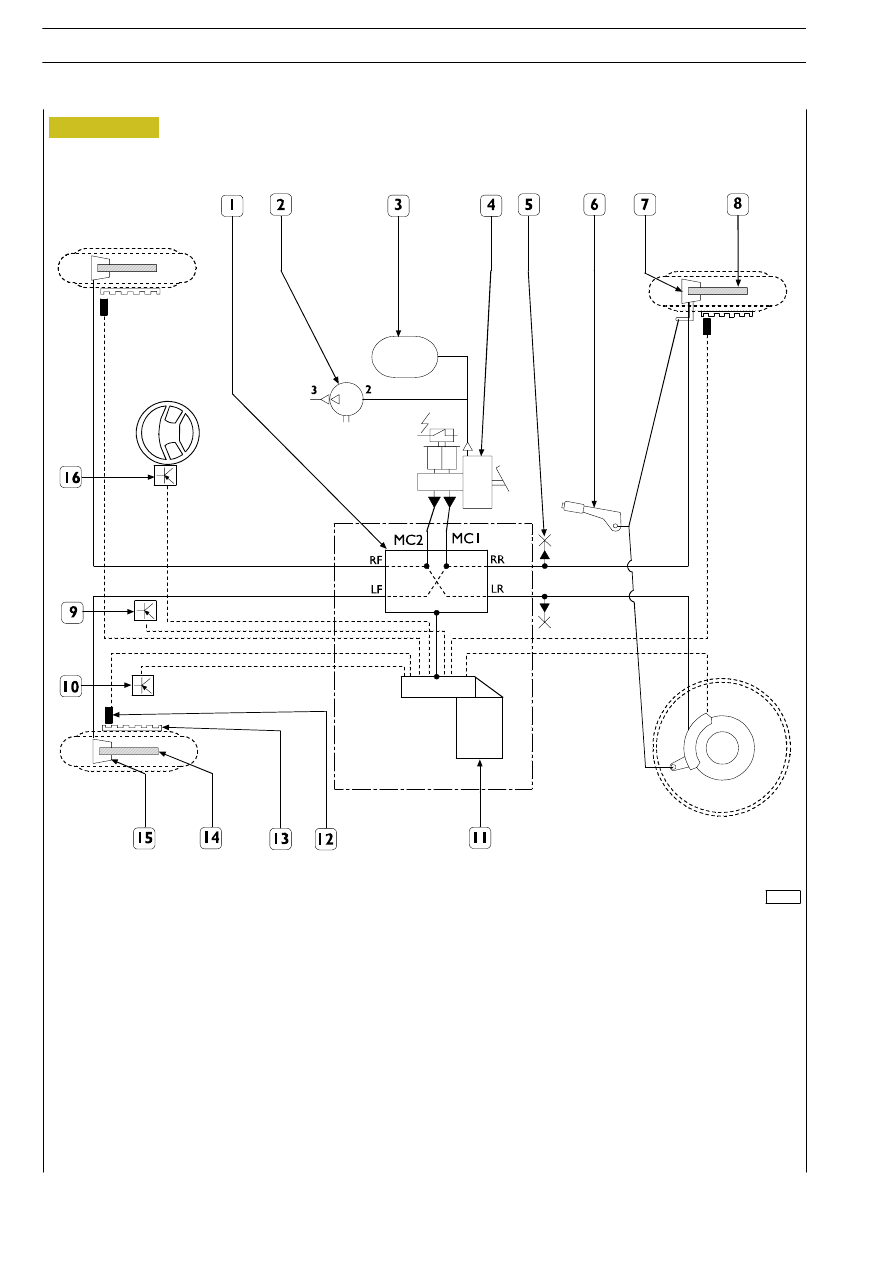

Figure 24

1. Electro-hydraulic modulator - 2. Vacuum pump - 3. Vacuum tank - 4. Servo brake - 5. Hydraulic pressure test point -

6. Parking brake lever - 7. Rear brake caliper - 8. Rear brake disc - 9. Yaw sensor - 10. Longitudinal acceleration sensor -

11. Electronic control unit -12. Wheel revolutions sensor - 13. Phonic wheel - 14. Front brake disc -

15. Front brake caliper - 16. Steering angle sensor

HYDRO-PNEUMATIC SYSTEM - BRAKES

AILY

URO

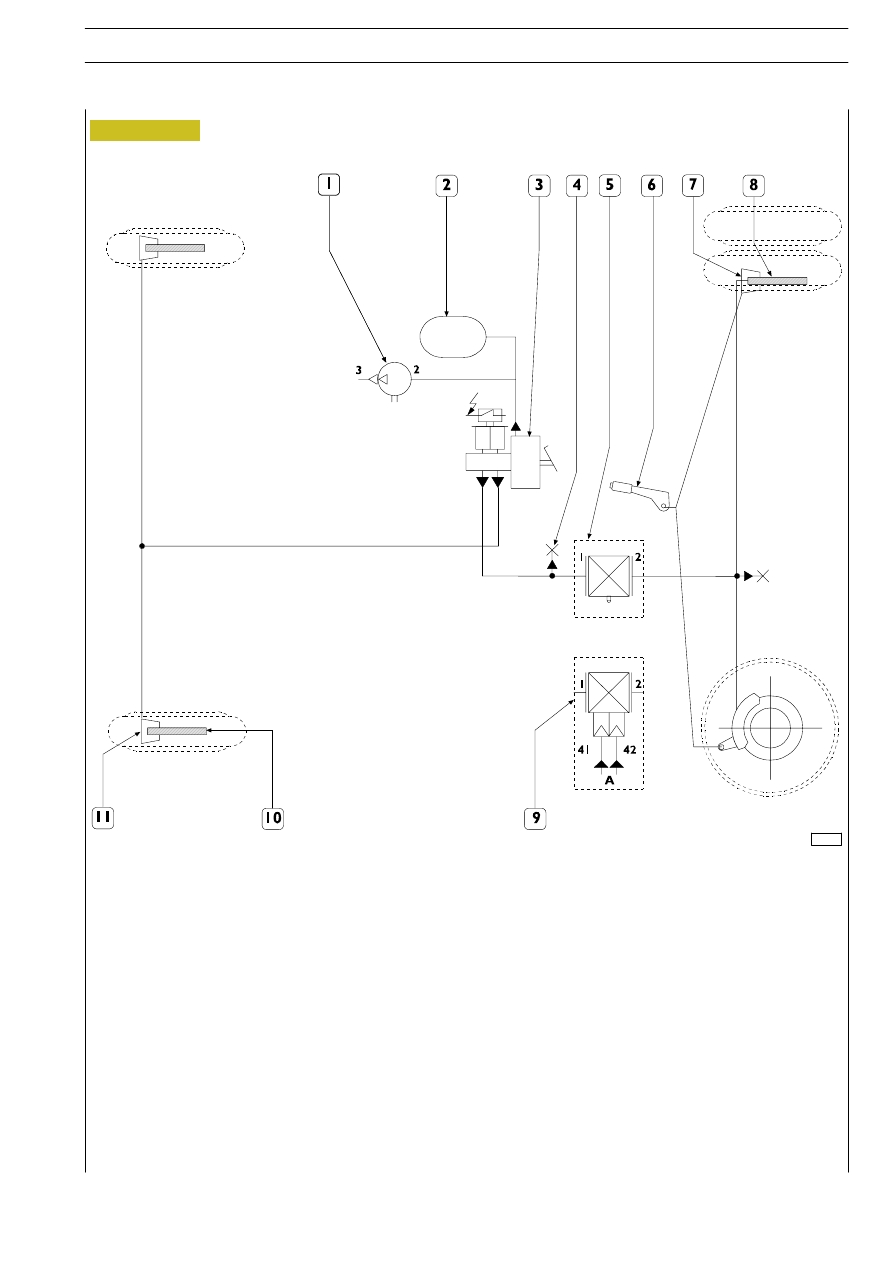

Figure 25

1. Pressure reducer - 2. Vacuum tank (2 litres for 35C, 40C vehicles, 5 litres for 45C / 50C / 60C / 65C vehicles) -

3. Servo brake - 4. Hydraulic pressure test point - 5. Dual mechanical operated load proportioning valve (for vehicles with

mechanical suspensions) - 6. Parking brake lever - 7. Rear brake caliper - 8. Rear brake disc - 9. Dual pneumatic operated load

proportioning valve (for vehicles with pneumatic suspensions) - 10. Front disc brake - 11. Front brake caliper - A. From the

pneumatic suspension circuit.

109110

HYDRO-PNEUMATIC SYSTEM - BRAKES

AILY

URO

Figure 26

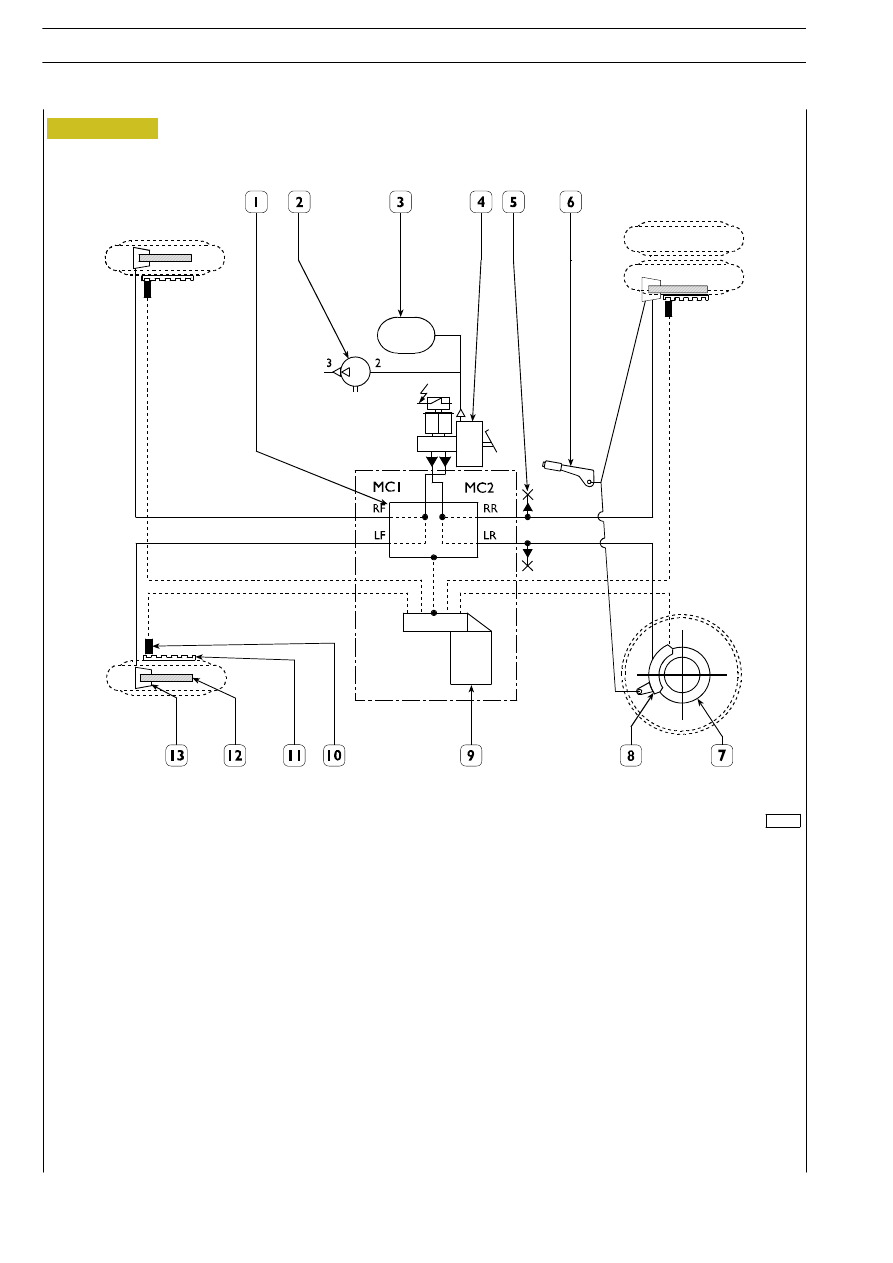

1 Electro-hydraulic modulator - 2. Vacuum pump - 3. Vacuum tank - 4. Servo brake - 5. Hydraulic pressure test point -

6. Parking brake lever - 7. Rear brake disc - 8. Rear brake caliper - 9. Electronic control unit -

10. Wheel revolutions sensor - 11. Phonic wheel - 12. Front brake disc - 13. Front brake caliper.

109111

HYDRO-PNEUMATIC SYSTEM - BRAKES

AILY

URO

109112

Figure 27

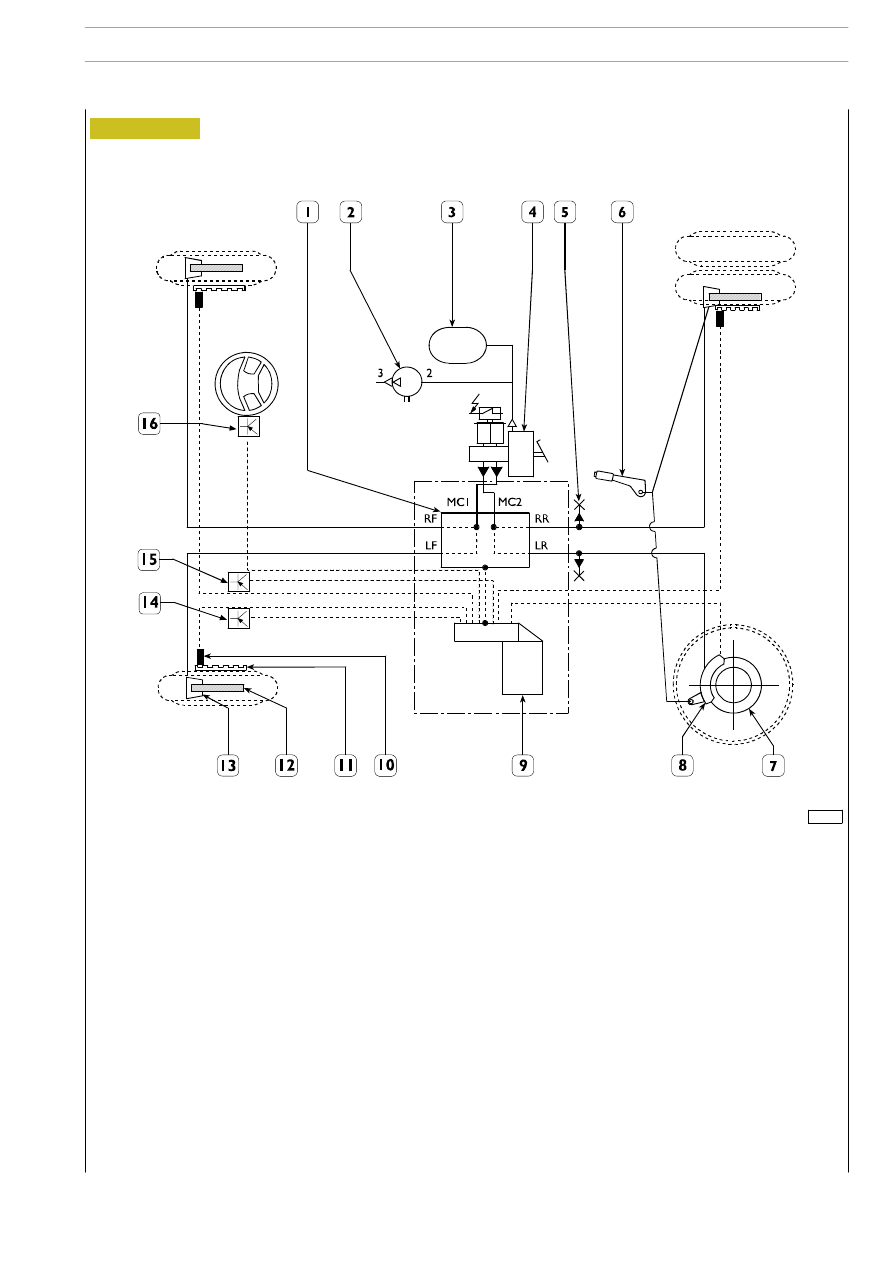

1 Electro-hydraulic modulator - 2. Vacuum pump - 3. Vacuum tank - 4. Servo brake - 5. Hydraulic pressure test point -

6. Parking brake lever - 7. Rear brake disc - 8. Rear brake caliper - 9. Electronic control unit - 10. Wheel revolutions sensor -

11. Phonic wheel - 12. Front brake disc - 13. Front brake caliper. - 14. Yaw sensor - 15. Longitudinal acceleration sensor -

16. Steering angle sensor

HYDRO-PNEUMATIC SYSTEM - BRAKES

AILY

URO
