Iveco Daily Euro 4. Manual - part 139





64

REAR AXLE 450511

D

AILY

E

URO

4

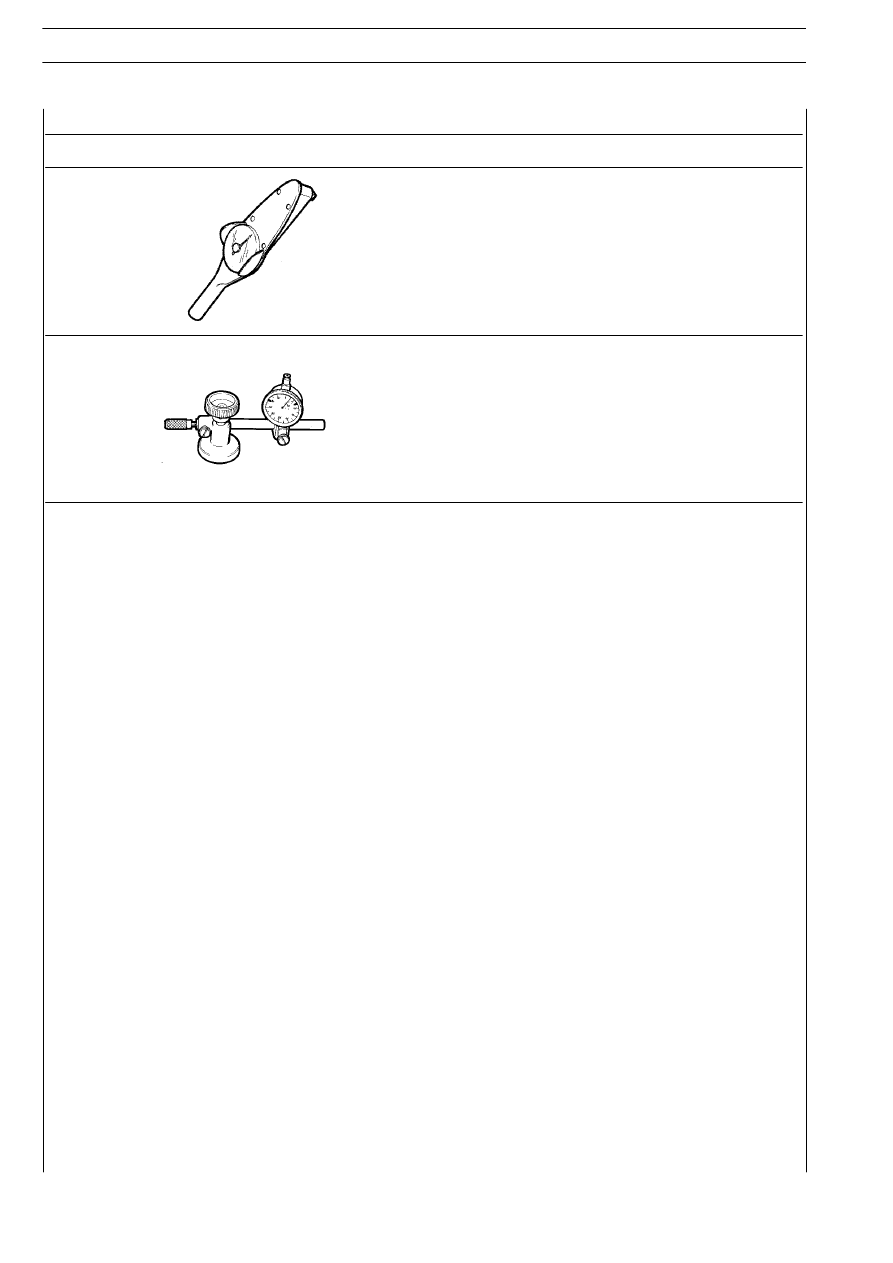

TOOL NO.

DESCRIPTION

99389819

Torque wrench (0 to 10 mm) with 1/4” square attachment

99395728

Dial gauge with support to be used with the tools to determine the
adjustment thickness of the bevel pinion

Figure 5

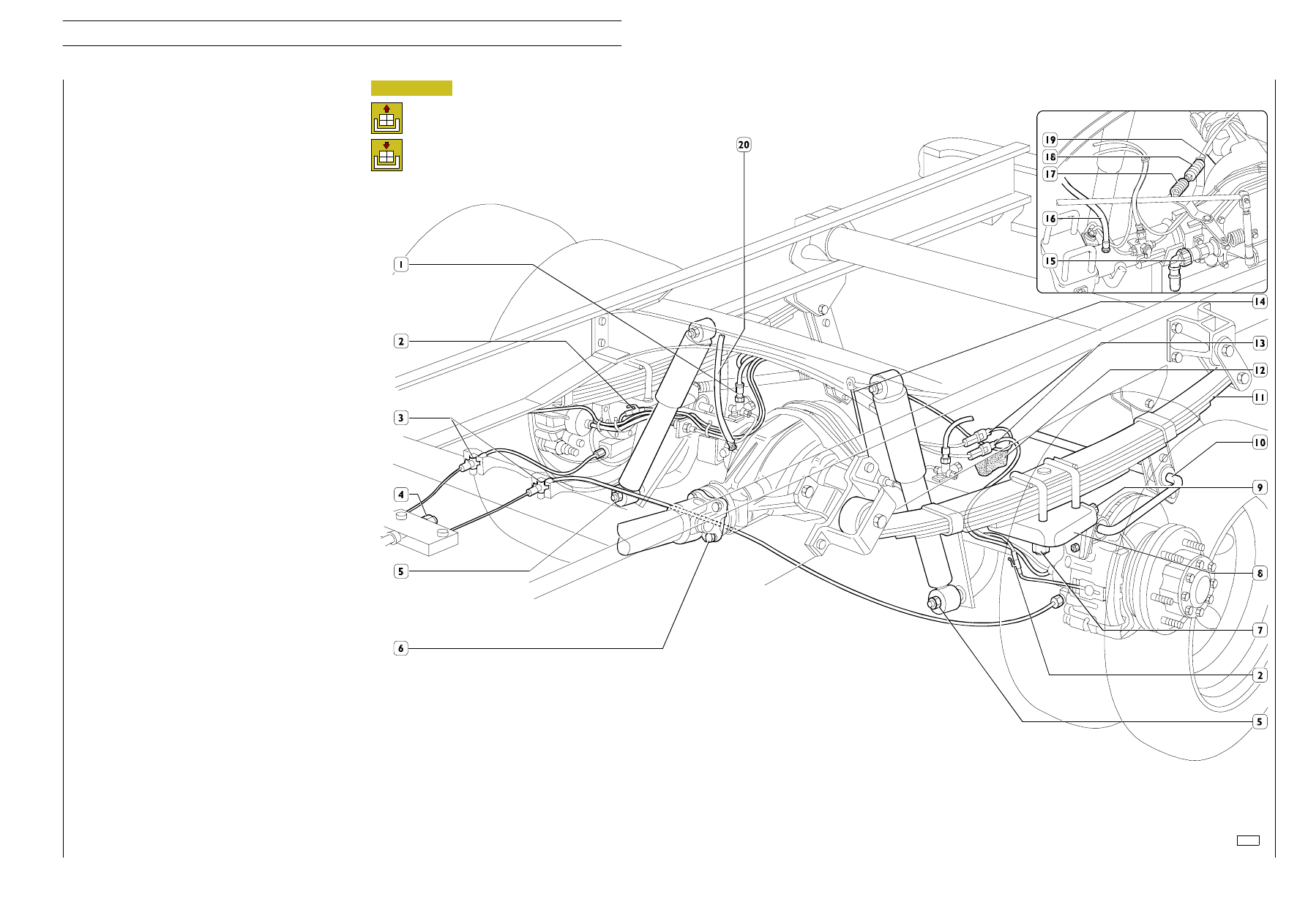

Position the vehicle on level ground and lock the front wheels.

Loosen the nuts securing the rear wheels.

Lift the vehicle at the back and set it on stands.

Put the hydraulic trolley 99321024 under the rear wheels. Take out
the nuts securing the wheels.

Unscrew the handbrake adjustment nut (4). Free the cables from the
vehicle crosspiece, unhooking the retaining clamps (3).

Unscrew the screws (6) securing the propeller shaft.

Disconnect the electric cables for indicating brake lining wear (2) and
(13), for the ABS speed sensors, if present.

Disconnect the braking corrector adjustment tie (14) from the axle
housing.

Unscrew the nuts (5) securing the shock absorbers.

Disconnect the oil pipe (1) from the fitting secured to the axle
housing.

Unscrew the screws (9) securing the stabilizer bar (10) to the axle.

Disconnect the pipe (16) from the axle housing oil vapour vent.

For axles with differential locking only

Release spring (17) and unthread flexible tie rod (18) from bracket
(19).

Disconnect the electric cable of the differential locking indicator
transmitter (15).

For all vehicles

Position a hydraulic jack equipped with the mounting 99370617
under the axle.

Unscrew the nuts (7) of the brackets (8) securing the axle to the leaf
spring (11).

Lower the hydraulic jack and extract the axle.

52121

Refitting

For refitting, carry out the operations described for removal in
reverse order, observing the required tightening torques for the
screws and/or nuts.

At procedure completion:

- Check the thread of the brackets joining the leaf springs to the

axle. If there are any irregularities, rectify the thread (operation
500412) or replace the brackets.

- Bleed the air from the brake hydraulic system as described under

the relevant heading (operation 784010).

- Adjust the handbrake control ties as described under the

relevant heading (operation 502710).

- Lock the nuts or screws to the required tightening torque.

- Check for self-locking nuts having been replaced;

- Check the state of the flexible pads (12) and replace them if they

have deteriorated (operation 500417).

- Check for rear axle box lubrication oil correct level.

Removal

REAR AXLE 450511

65

D

AILY

E

URO

REAR AXLE REMOVAL - REFITTING

66

REAR AXLE 450511

D

AILY

E

URO

4

101965

44609

44611

44612

44613

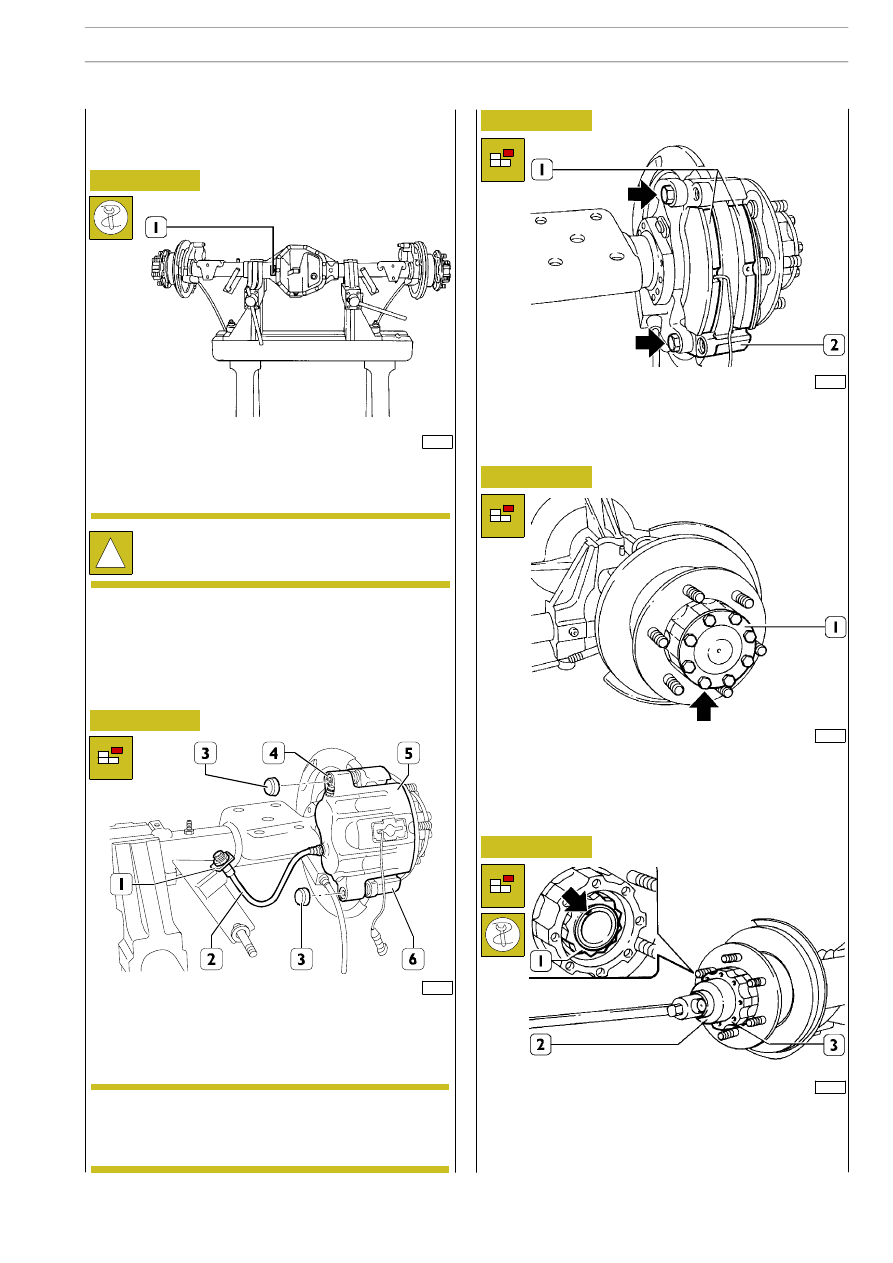

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

525010

OVERHAULING THE REAR AXLE
ASSEMBLY

Set the entire rear axle assembly on stand 99322215.

Disconnect the pipe (2) from the support bracket (1).
Remove caps (3), take off screws (4), then remove brake
caliper (5) from support (6).

Unthread braking pads (1). Take off screws (

→) and detach

support (2).

Take out the screws (

⇒) and remove the drive shaft (1).

Lift up the notch (

⇒) of the ring nut (1). Using the wrench

99355087 (2) remove the ring nut (1), take out the washer
and extract the wheel hubs (3).

!

The identification data of the rear axle unit are given
on the plate (1) fixed near to the leaf spring
attachment support.

525030

Wheel hub overhaul

The thread of the screws securing the brake caliper
is treated with adhesive. Therefore, they must not
be reused, but replaced with new ones every time
they are removed.

NOTE

REAR AXLE 450511

67

D

AILY

E

URO
