Figure 4
87907

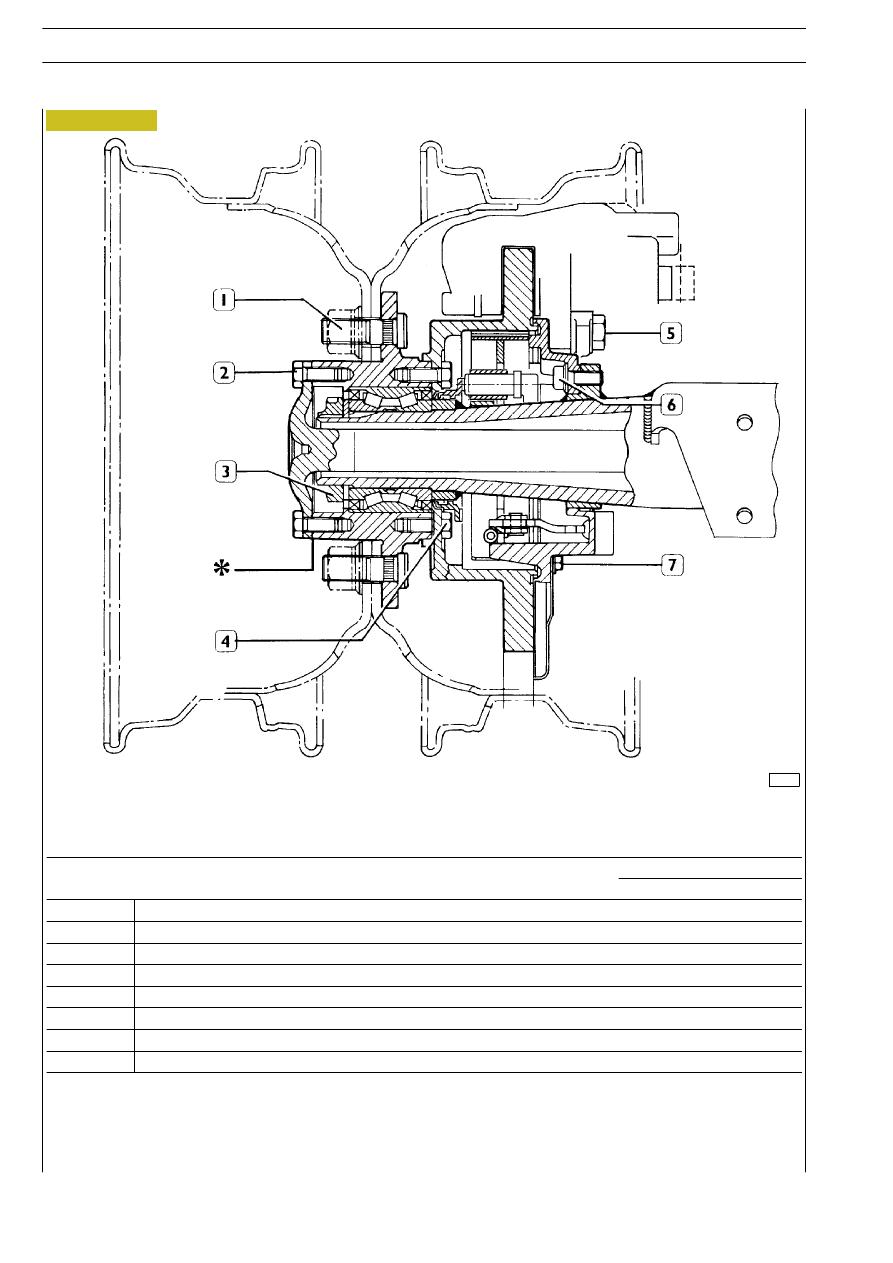

WHEEL HUB SECTION
60
REAR AXLE 450511
D
AILY
E
URO
4
TORQUE
PART
Nm
kgm
1
Wheel retaining nut M18
290
÷ 349
29
÷ 34.9
2
Screw securing drive shaft to the wheel hub M10x1.25
63
÷ 76
6.3
÷ 7.6
3
Ring nut retaining wheel hub bearing M52x1.5
545
÷ 565
54.5
÷ 56.5
4
Screw securing brake disc to wheel hub M10x1.25
69
÷ 76
6.9
÷ 7.6
5
Screw securing caliper mounting to shoe mounting M14x1.5
180
÷ 220
18
÷ 22
6
Screw securing shoe mounting to axle housing M10x1.5
85
÷ 97
8.5
÷ 9.7
7
Screw securing guard
8
0.8
**
Screw securing sensor mounting
5
÷ 7
0.5
÷ 0.7
*
Spread the surface of the drive shaft - wheel hub union with B-type sealant.
** When assembling the screws securing the timing sensor mounting, apply a few drops of LOCTITE 243 thread-lock onto
the thread of the corresponding holes of the bracket welded onto the axle arm.
