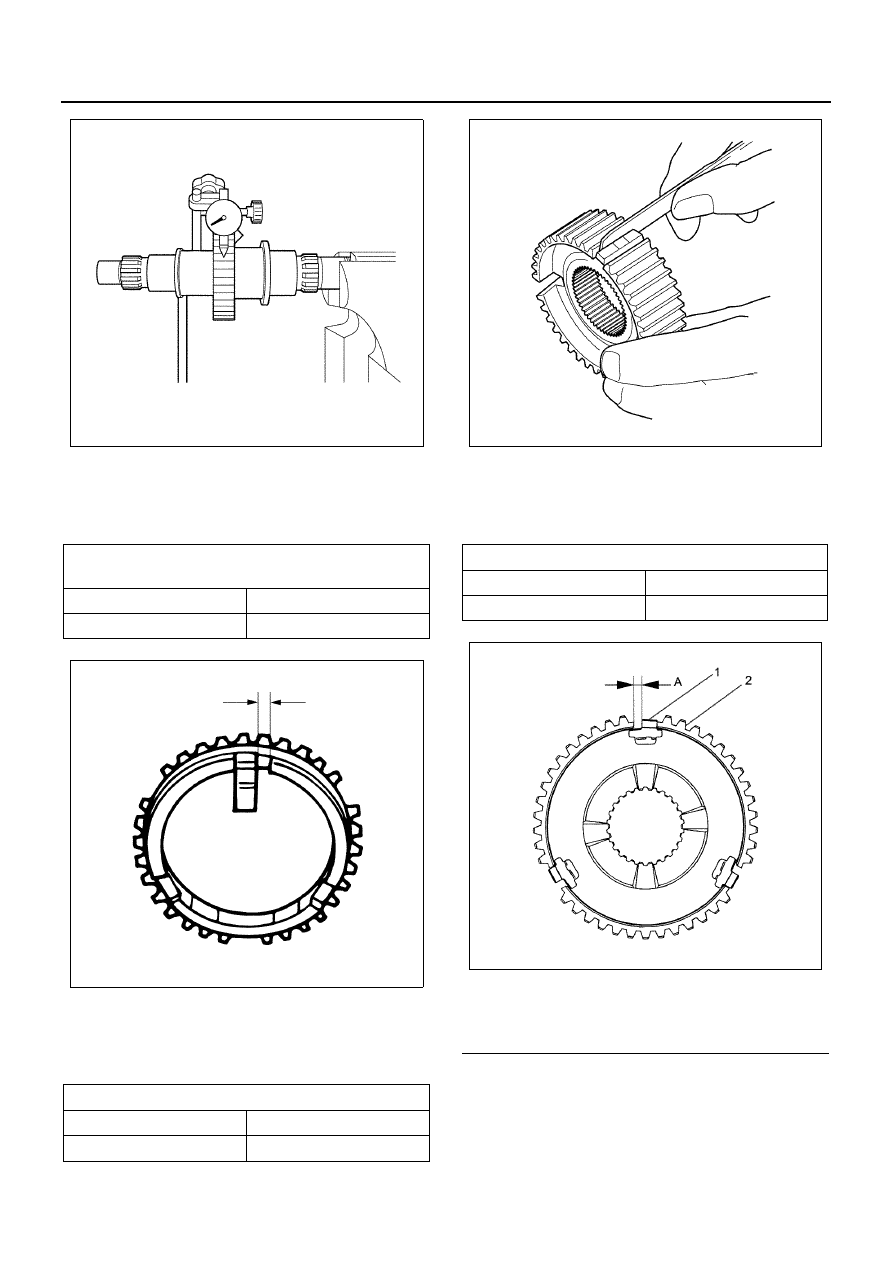

7B-108 Automatic Transmission (Smoother) 17. Use a caliper to measure the gap between the insert key and block ring groove. • If the measured value exceeds the specified value, replace the insert key and block ring. 18. Use a thickness gauge to measure the gap between the insert key and clutch hub. • If the measured value exceeds the specified value, replace the insert key and clutch hub. 19. Use a thickness gauge to measure the gap between the index block and clutch hub. • If the measured value exceeds the limit, replace the index block and clutch hub.

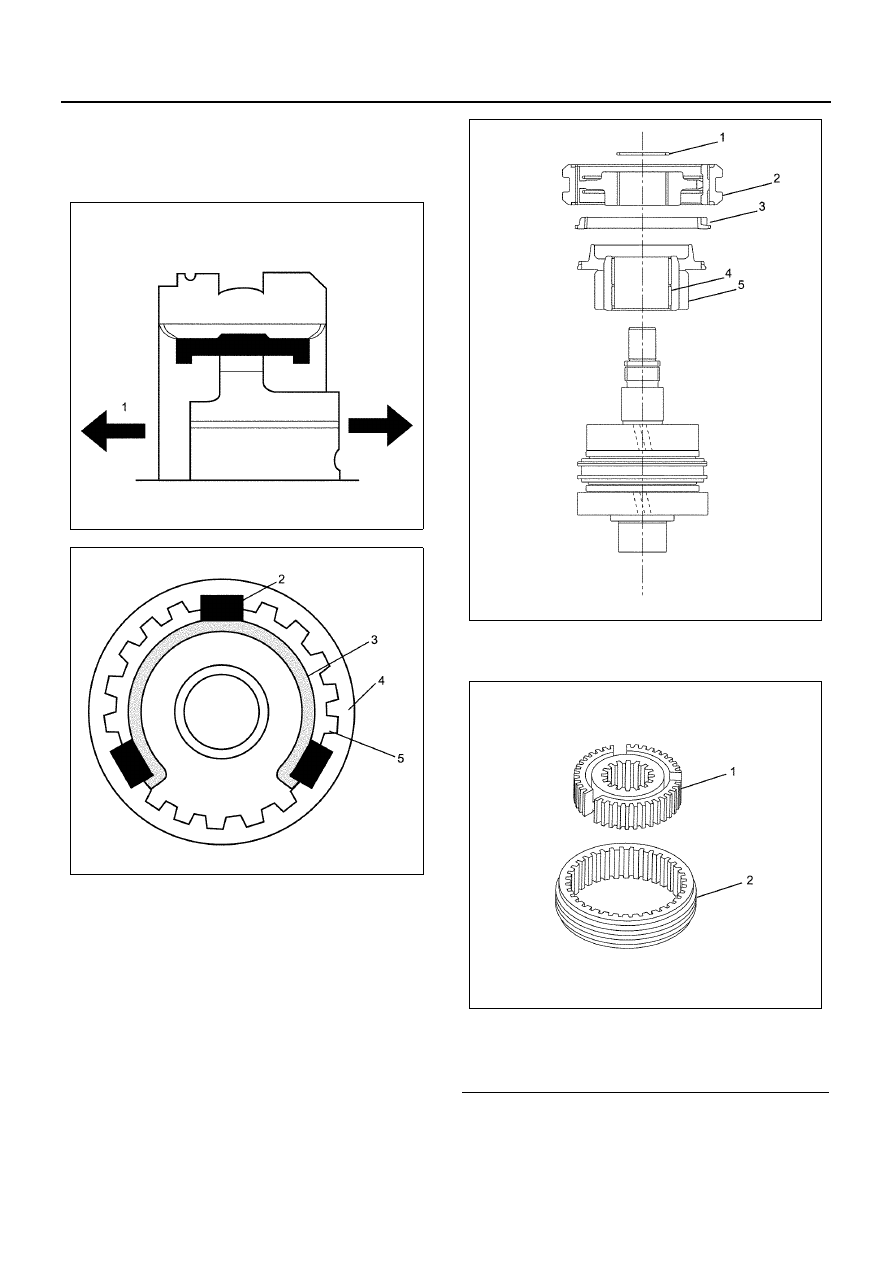

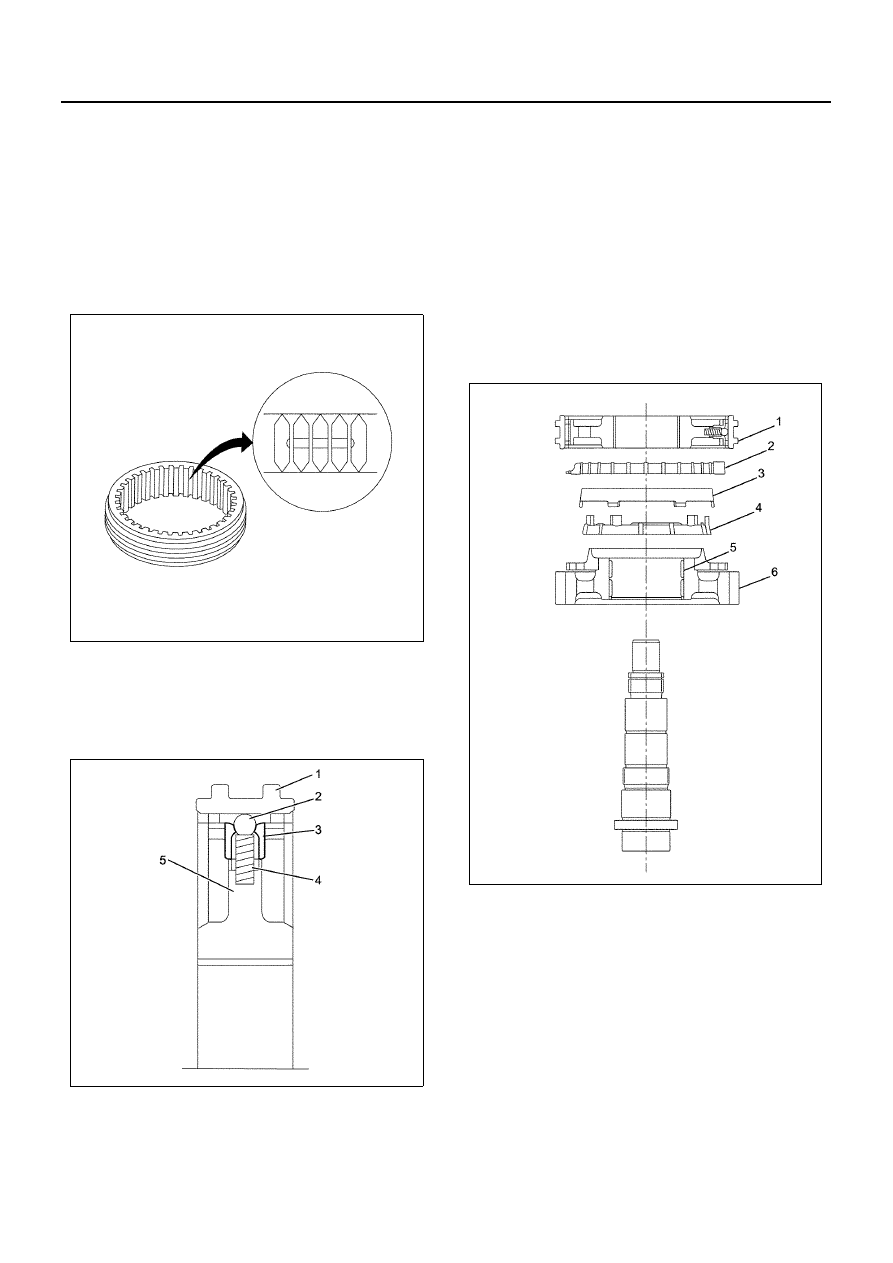

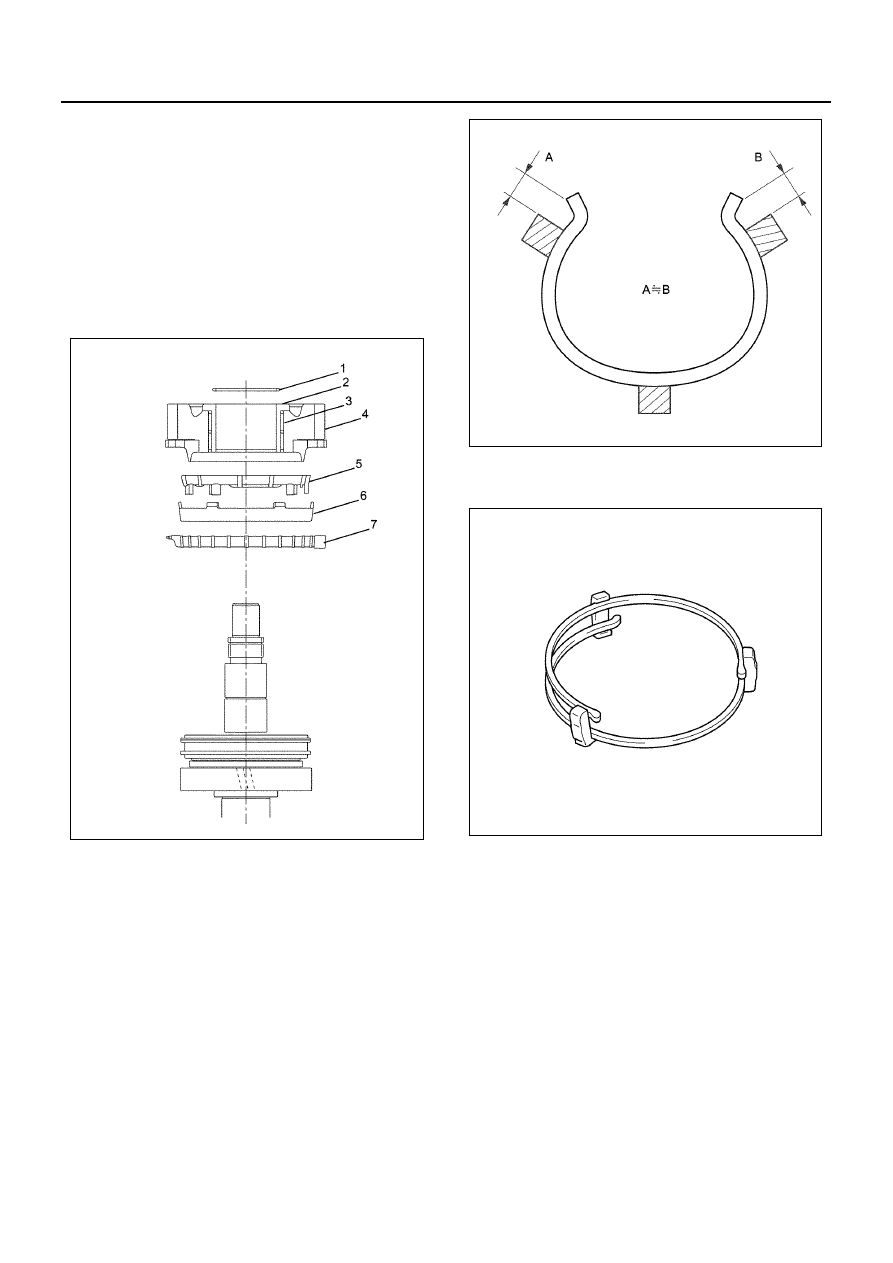

Assembly • Thoroughly clean each part. Gap Between the Insert Key and Block Ring Groove (mm) Specified Value 4th/5th/6th 3.46 — 3.76 Gap Between the Insert Key and Clutch Hub (mm) Specified Value 4th/5th/6th 0.01 — 0.21 N7A1206E N7A1207E Gap Between the Index Block and Clutch Hub (mm) Specified Value 2nd/3rd 4.30 — 4.70 Legend 1. Index Block N7A1208E N7A1209E |
