Isuzu N-Series. Manual - part 865





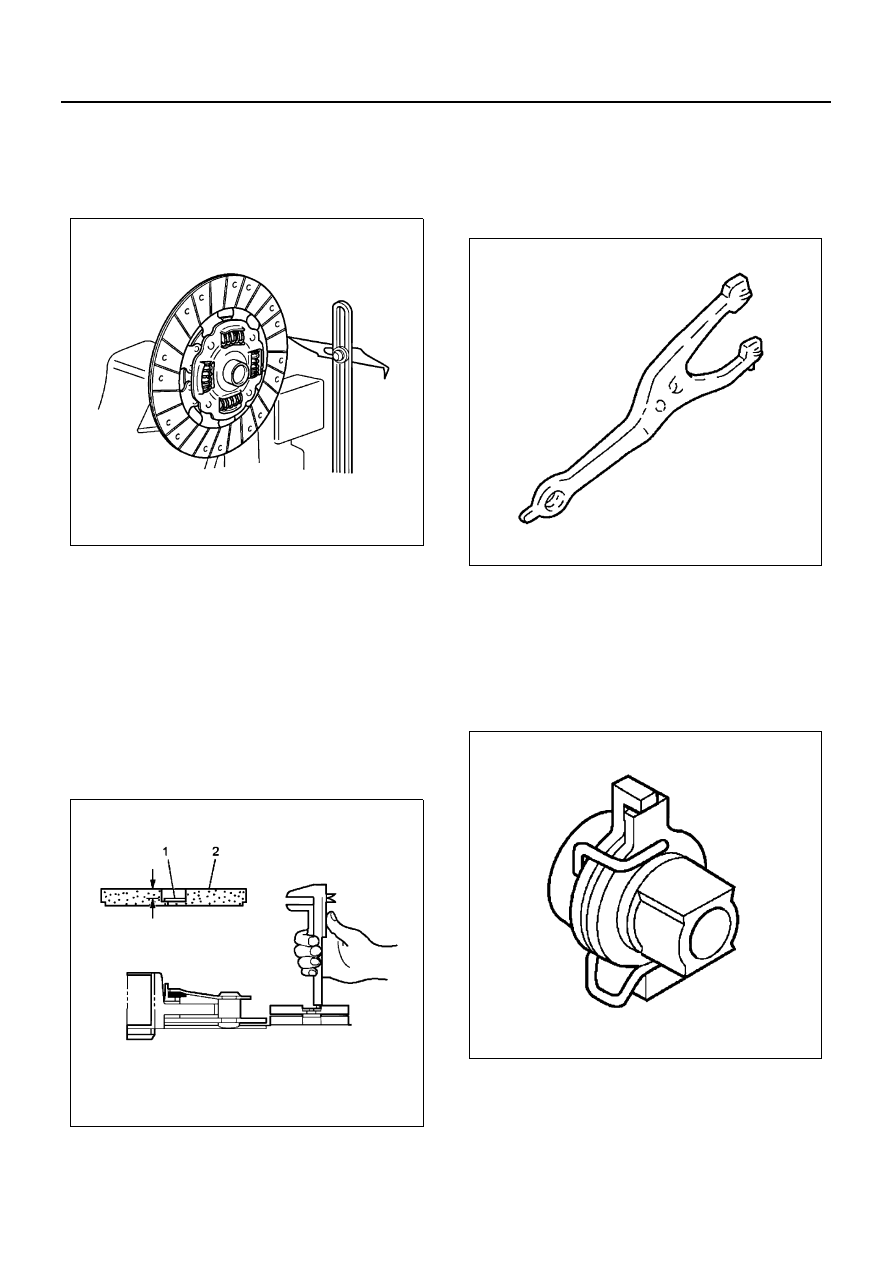

CLUTCH 7C-9

If the measured value exceeds the specified limit,
replace the driven plate assembly.

Driven Plate Spline Free Play
Standard : 0.5 mm (0.020 in) or less
Limit : 1.0 mm (0.039 in)

Driven Plate Rivet Head Depression

• Use the depth gauge to measure the rivet head de-

pression (1) from the facing surface (2).

• Be sure to measure the rivet head depression (1)

on both sides of the driven plate (2).

• If the measured value exceeds the specified limit,

replace the driven plate assembly.

Facing Rivet Head Depression
Standard : 1.4 — 2.0 mm (0.055 — 0.078 in) (Flywheel
side)
1.7 — 2.3 mm (0.067 — 0.090 in) (Transmission side)
Limit : 0.2 mm (0.008 in)

Shift Fork

• Inspect the wear and damage on the release bear-

ing and facing surface.

• Correct a slight stepped wear or surface roughness

with an oil stone.
Replace the shift fork if unrecoverable damage is
found.

• Inspect the wear and damage on the surface of the

support bolt.

Release Bearing

• Inspect the looseness, noise, damage, etc. or wear

of the inside diameter. If any abnormality is found,
replace the part.

Caution:
Never wash the release bearing because this part is
sealed with grease.

Installation

1. Install the shift fork after applying the MO-NO2 type

grease to the contact surfaces of the shift fork.

2. Install the release bearing to the transmission front

part.

N7A0493E

N7A0494E

N7A0495E

N7A0496E

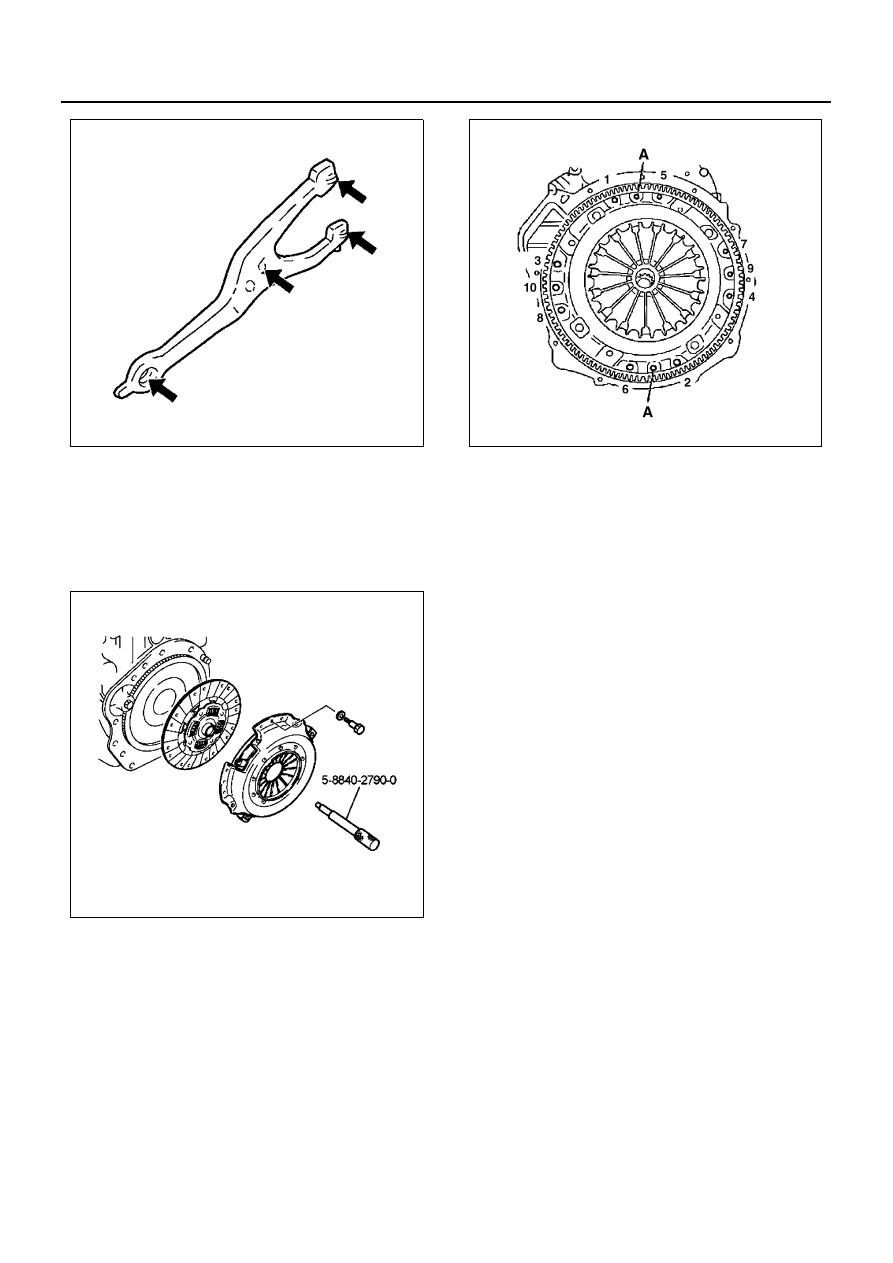

7C-10 CLUTCH

3. Install the clutch disk assembly.
4. Install the pressure plate assembly.

• Clean the facing surfaces and pressure plate

surface of the flywheel and the driven plate.

• Install the driven plate assembly to the flywheel

using pilot aligner 5-8840-2790-0.

• Install the pressure plate assembly, adjusting

to knock pins (A) of the flywheel. And tighten
the pins slowly and equally in numerical order.

Tighten:
Pressure plate to 40 N

⋅m (4.1 kg⋅m / 30 lb⋅ft)

• When installing a new pressure plate assem-

bly, make sure to remove the wiring after the
tightening.

Caution:
Do not beat with hammer when removing the aligner.

5. Install the transmission assembly.

• Refer to TRANSMISSION ASSEMBLY.

N7A0497E

N7A0487E

N7A0498E

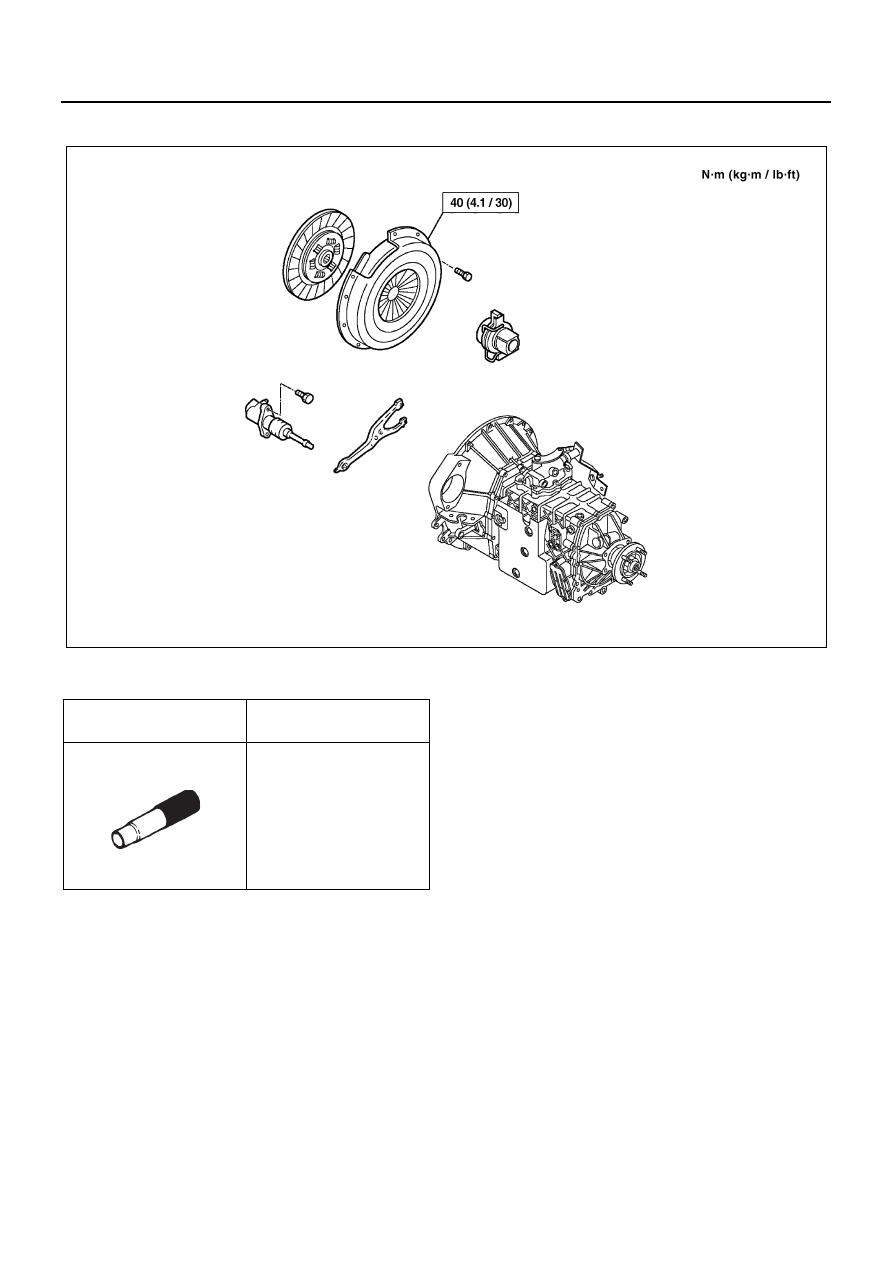

CLUTCH 7C-11

Fixing Torque

Special Tools

N7A0499E

Illustration

Tool Number /

Description / Remarks

5-8840-2790-0 / Clutch

Pilot Aligner

5884027900

7C-12 CLUTCH

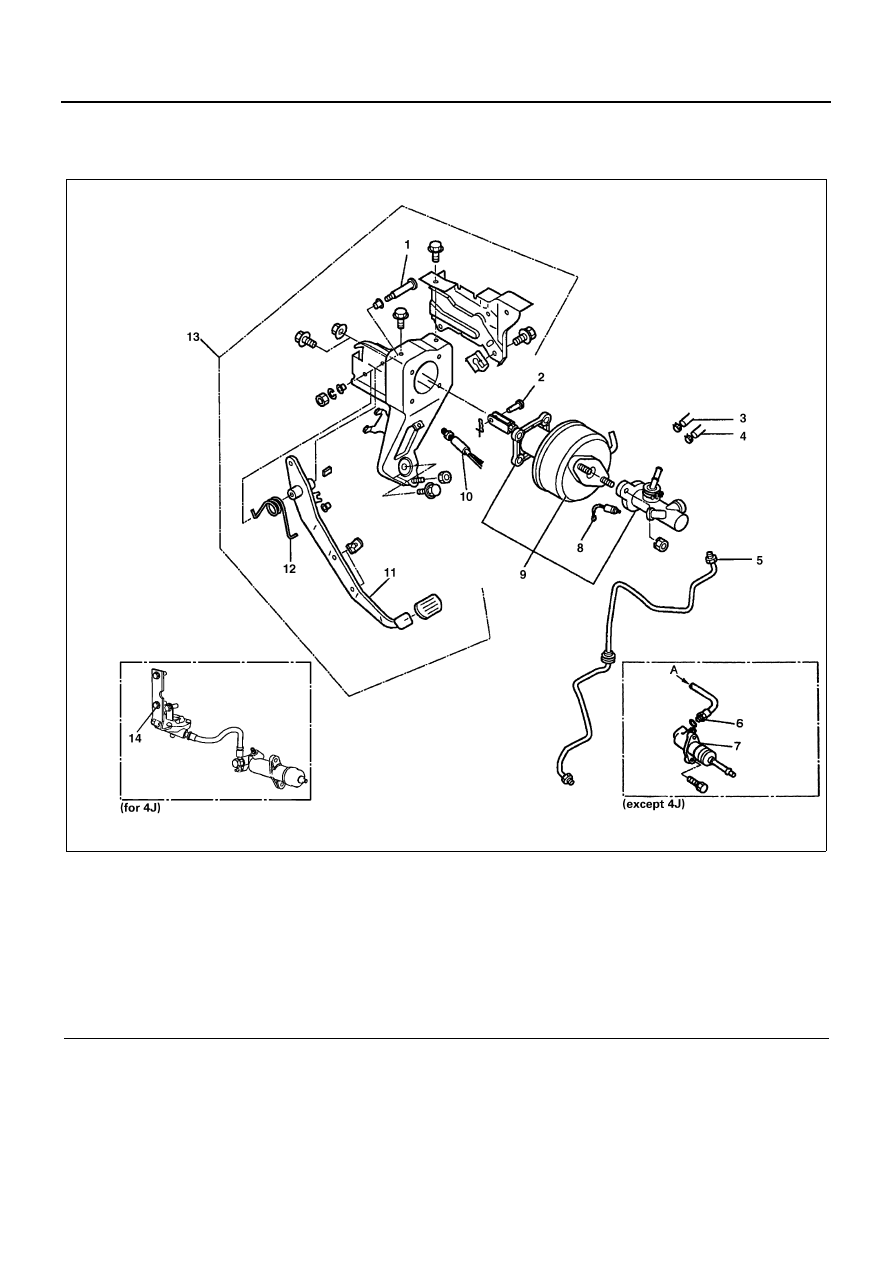

Clutch Control

Components

Removal

• Drain the brake fluid before removal.

Caution:
Do not let brake fluid contact painted surface. Wash it off
immediately.

1. Remove the oil hose and clutch pipe.

2. Remove the vacuum hose.
3. Remove the clutch pedal and bracket assembly.
4. Remove the clutch switch.
5. Remove pin (1).
6. Remove clevis pin (2).

Legend

1. Pin

8. Pressure switch connector

2. Clevis pin

9. Clutch booster and master cylinder assembly

3. Vacuum hose

10. Clutch switch

4. Oil hose

11. Clutch pedal

5. Clutch pipe

12. Return spring

6. Flexible hose

13. Clutch pedal and bracket assembly

7. Slave cylinder

14. Damper cylinder

N7A0500E
