7B-58 MANUAL TRANSMISSION (MSB)
POWER TAKE OFF (PTO)
General Description

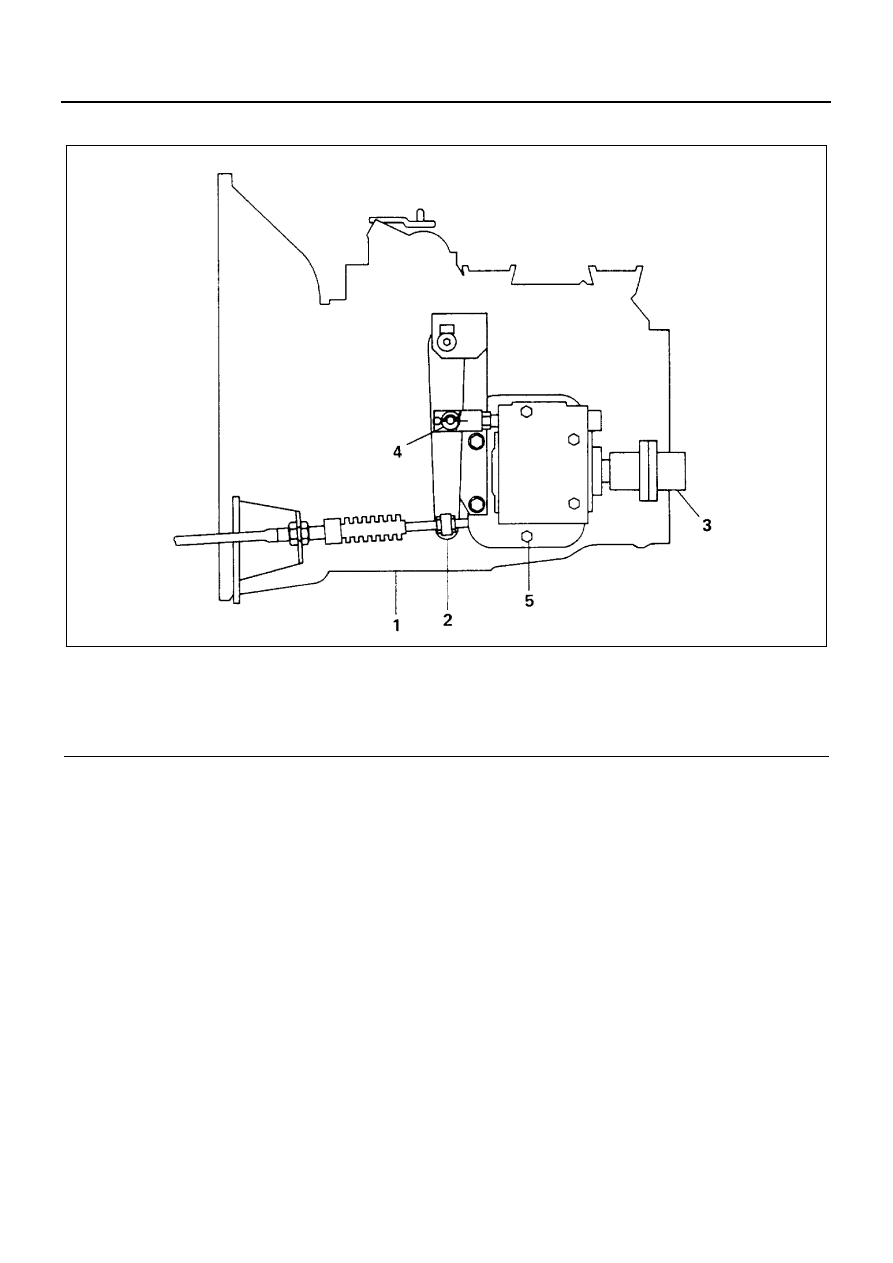

The side PTO is provided at the left side of the transmis-
sion.

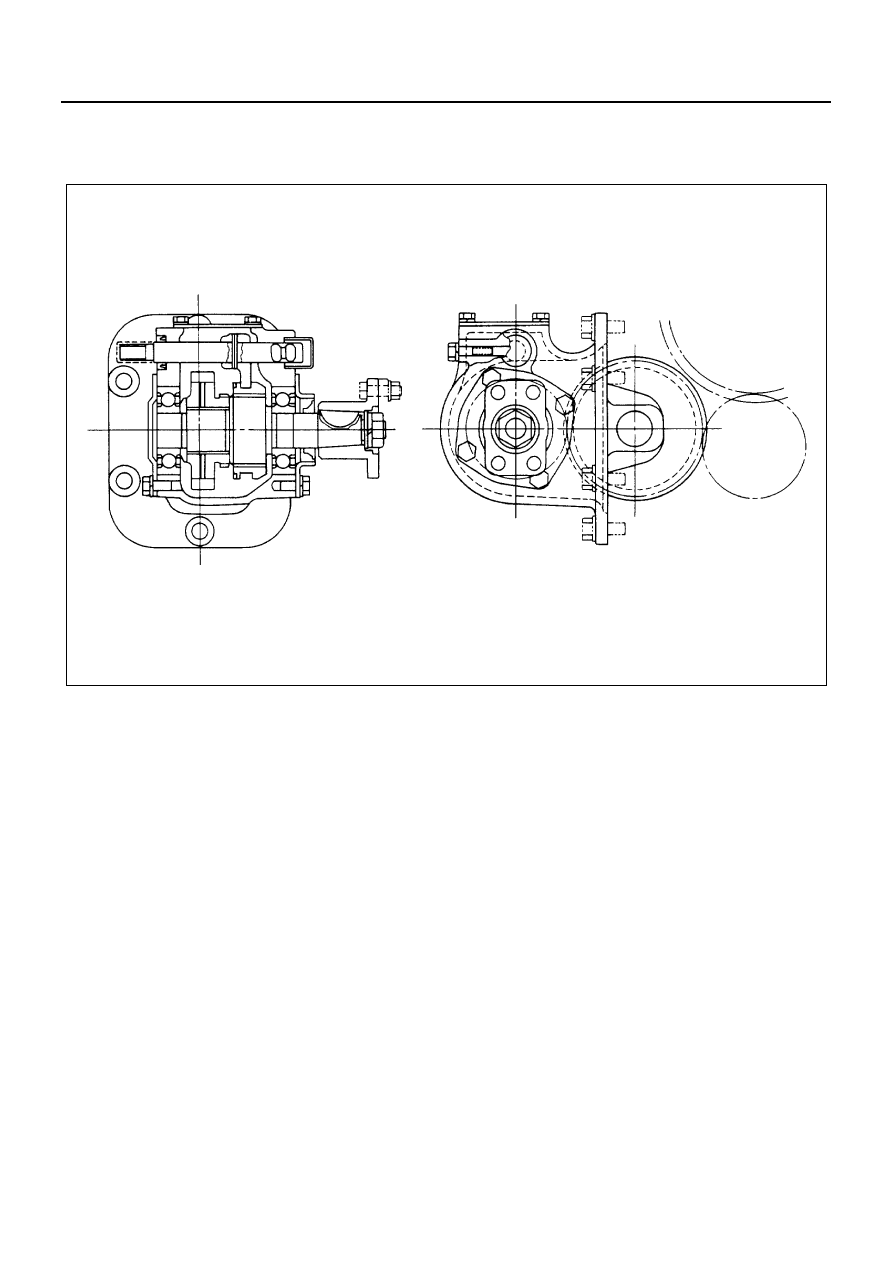

For the gear, the same helical gear as the one used for
the transmission is employed to reduce noises.
The roller type needle bearing is employed for the idle
shaft and the ball bearing for the output shaft to obtain
the increased durability and quietness.

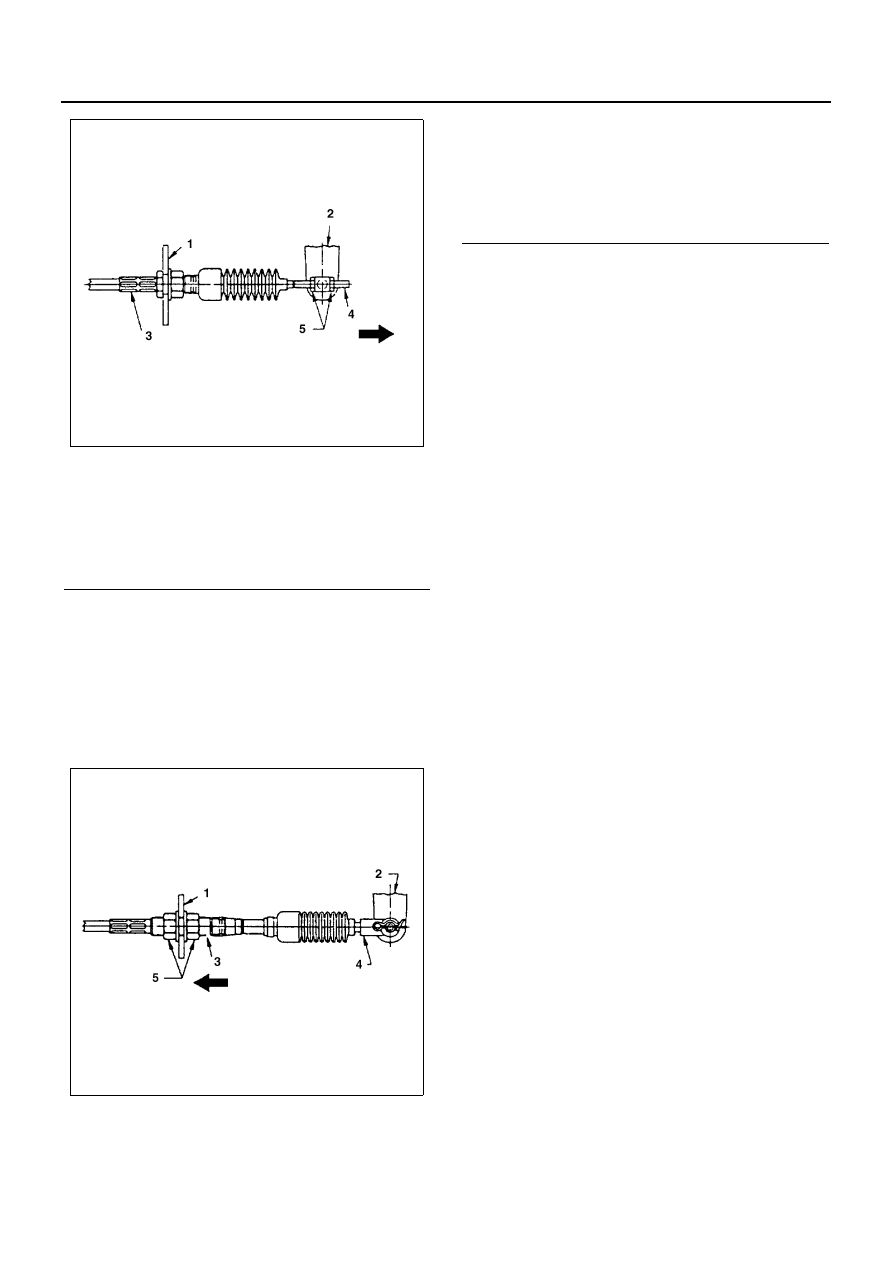

The gear employed is of a constant-mesh type. The
gear engagement control (ON/OFF) by a cable is made
by the shift rod provided at the upper section of the case,
which slides the sleeve on the output shaft through the
shaft arm.
N7A0179E
