SERVICE INFORMATION 00-13

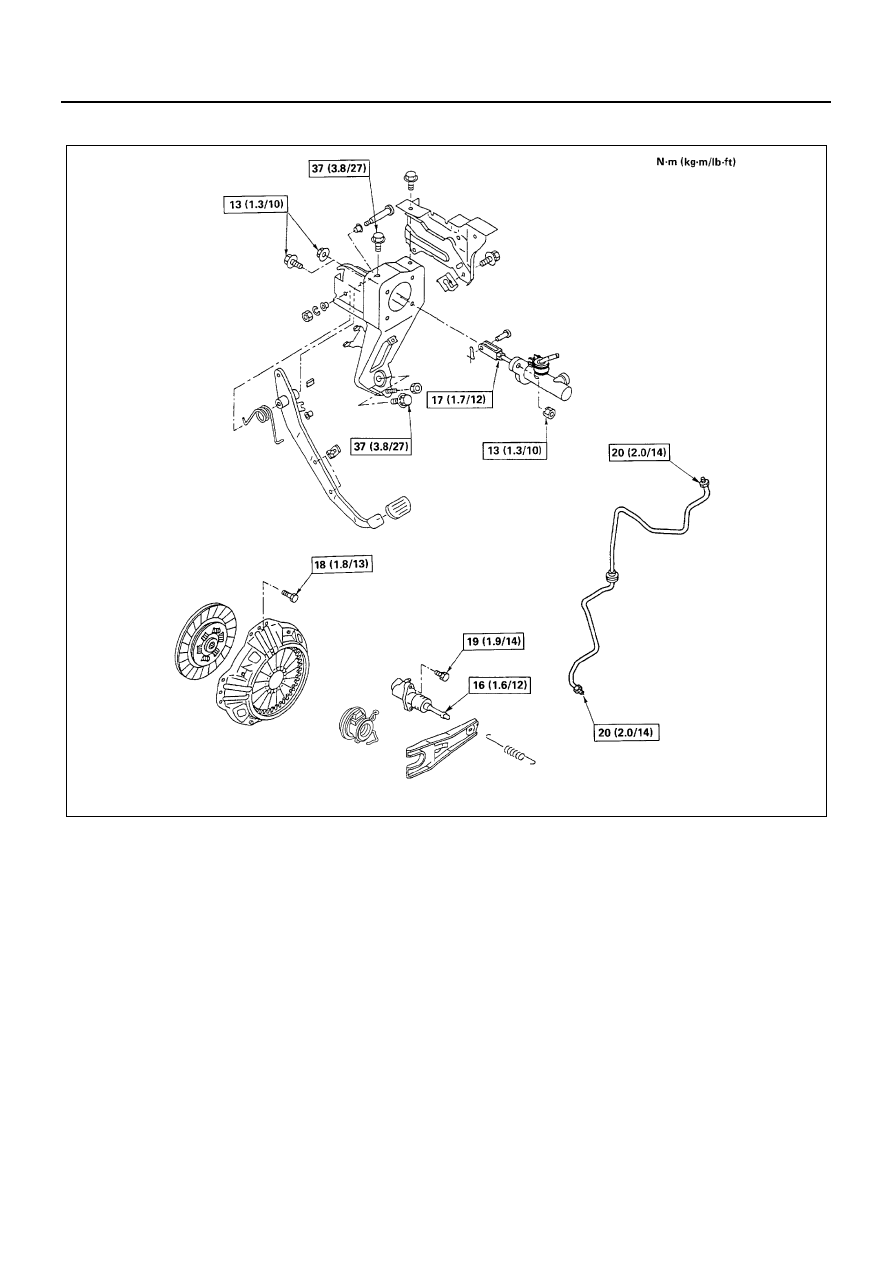

Clutch

N7A0013E

00-14 SERVICE INFORMATION

SPECIAL TOOLS

Transmission

Illustration

Part Number /

Description / Remarks

5-8840-0587-0 / Bearing

Remover

5-8840-2027-0 / Univer-

sal Puller

5-8840-2042-0 / Bearing

Remover

5-8840-2043-0 / Handle

5-8840-2044-0 / Anti-

lash Plate Installer

5-8840-2064-0 / Oil Seal

Installer / For front cover

oil seal install

5884005870

5884020270

5884020420

5884020430

5884020440

5884020640

5-8840-2078-0 / Bearing

Remover

5-8840-2242-0 / Oil Seal

Installer / For rear cover

oil seal install

5-8840-2244-0 / Bearing

Installer

9-8522-1615-0 / Bearing

Installer

9-8529-2201-0 / Spring

Pin Remover

Illustration

Part Number /

Description / Remarks

5884020780

5884022420

5884022440

9852216150

9852922010

SERVICE INFORMATION 00-15

Power Take Off

Clutch

Illustration

Part Number /

Description / Remarks

5-8840-2064-0 / Oil Seal

Installer / For output

shaft oil seal

5-8840-2065-0 / Oil Seal
Installer / For shift rod oil

seal

5-8840-2066-0 / Bearing

Installer / For output

shaft bearing

5-8840-2067-0 / Plug

Installer / For shift rod

cap

9-8529-2201-0 / Spring

Pin Remover

5884020640

5884020650

5884020660

5884020670

9825922010

Illustration

Part Number /

Description / Remarks

5-8525-3001-0 / Pilot

Aligner

5-8840-0013-0 / Bearing

Remover

5-8840-0084-0 / Sliding

Hammer

5-8840-2000-0 / Pilot

Bearing Remover

5-8522-0024-0 / Pilot

Bearing Installer

5852530010

5884000130

5884000840

5884020000

5852200240

MANUAL TRANSMISSION (MSB) 7B-1

MANUAL TRANSMISSION AND CLUTCH

MSB SERIES

SECTION 7B

MANUAL TRANSMISSION (MSB)

Contents

GENERAL DESCRIPTION ................................... 7B-2
ON-VEHICLE SERVICE ....................................... 7B-3

Change Lever Assembly Replacement ............. 7B-3
Gear Control Cable Replacement ..................... 7B-3
Vehicle Speed Sensor Driven Gear Replacement .... 7B-5
Back-up Light Switch and Neutral Switch Replace-
ment................................................................... 7B-6
Rear Oil Seal Replacement ............................... 7B-6
Transmission Assembly Replacement .............. 7B-9
Front Oil Seal Replacement ............................ 7B-13

UNIT REPAIR ..................................................... 7B-15

Major Components .......................................... 7B-15
Top Gear Shaft Assembly, Main Shaft Assembly and
Counter Shaft Assembly.................................. 7B-37

POWER TAKE OFF (PTO) ................................. 7B-58

General Description......................................... 7B-58
Power Take Off (PTO) Replacement............... 7B-59
Unit Repair....................................................... 7B-62
