TURBOCHARGER 6G-9
REASSEMBLY
Reassembly Steps
1. Center Housing and Rotating Assembly
2. Compressor Housing
3. Bolt

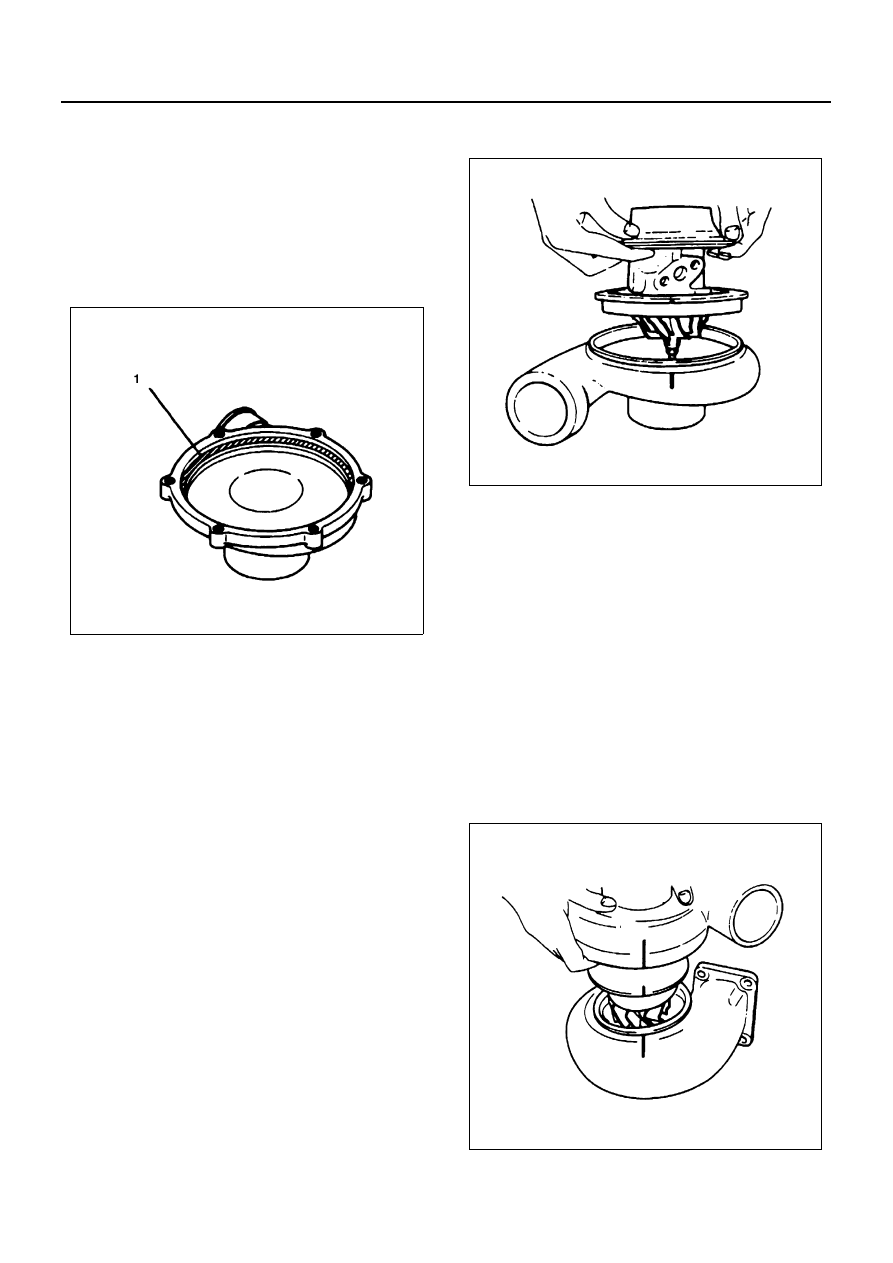

1) Apply Threebond 1215 (1) or equivalent to
flange surface of compressor housing shown in
the illustration.
2) Align the setting marks (applied at disassem-
bly) on the center housing and rotating assem-
bly and the compressor housing.
Handle the parts with extreme care to avoid
damaging the compressor wheel blades.
3) Apply and anti-seizing agent (LOCTITE ANTI-
SEIZE LUBRICANT or the equivalent) to the
new bolt threads.
4) Install the new bolts to the compressor hous-
ing.
5) Tighten the bolts to the specified torque.
Tighten:
• Compressor housing bolt to 4.7 N
⋅m (0.5 kg⋅m / 3.5
lb
⋅ft)
4. Turbine Housing
5. Lock Plate and Bolt
1) Align the setting marks (applied at disassem-
bly) on the center housing and rotating assem-
bly and the turbine housing.
Handle the parts with extreme care to avoid
damaging the turbine shaft wheel blade.
2) Apply and anti-seizing agent (LOCTITE ANTI-
SEIZE LUBRICANT or the equivalent) to the
bolt.
3) Tighten the bolt to the specified torque.
Tighten:
• Turbine housing bolt to 28.0 N
⋅m (2.85 kg⋅m / 20.6
lb
⋅ft)
4) Check that the rotating assembly turns smooth-
ly.
N6A3614E
N6A3615E
N6A3627E
