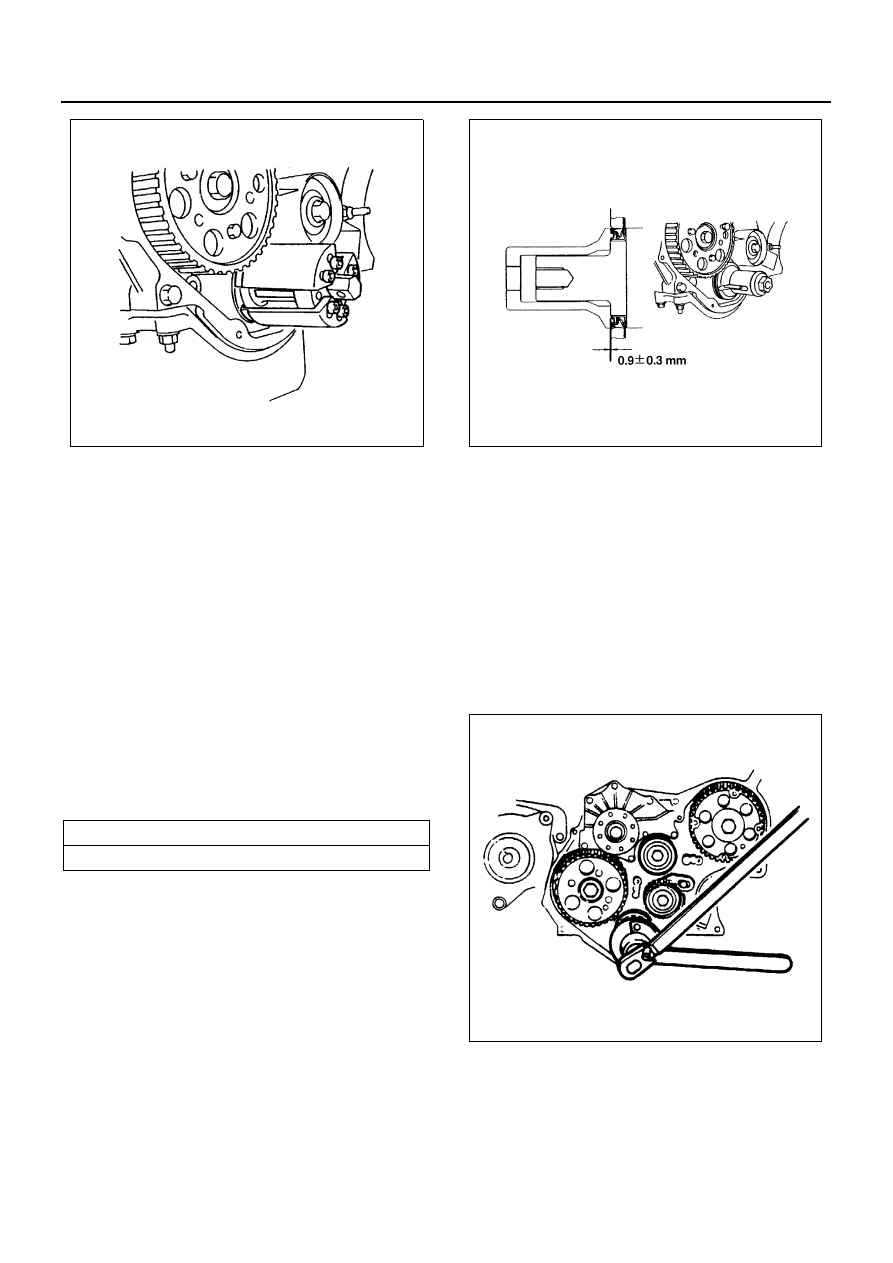

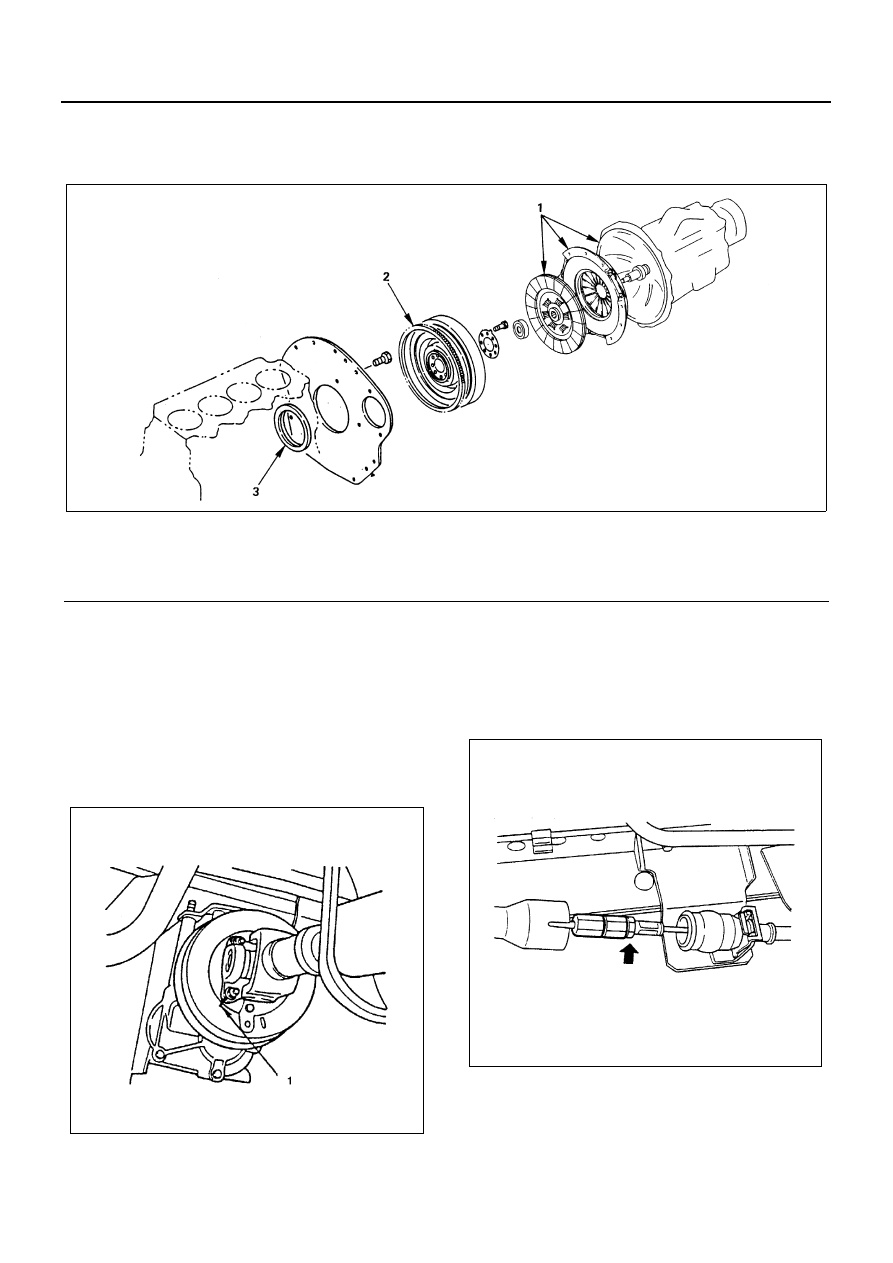

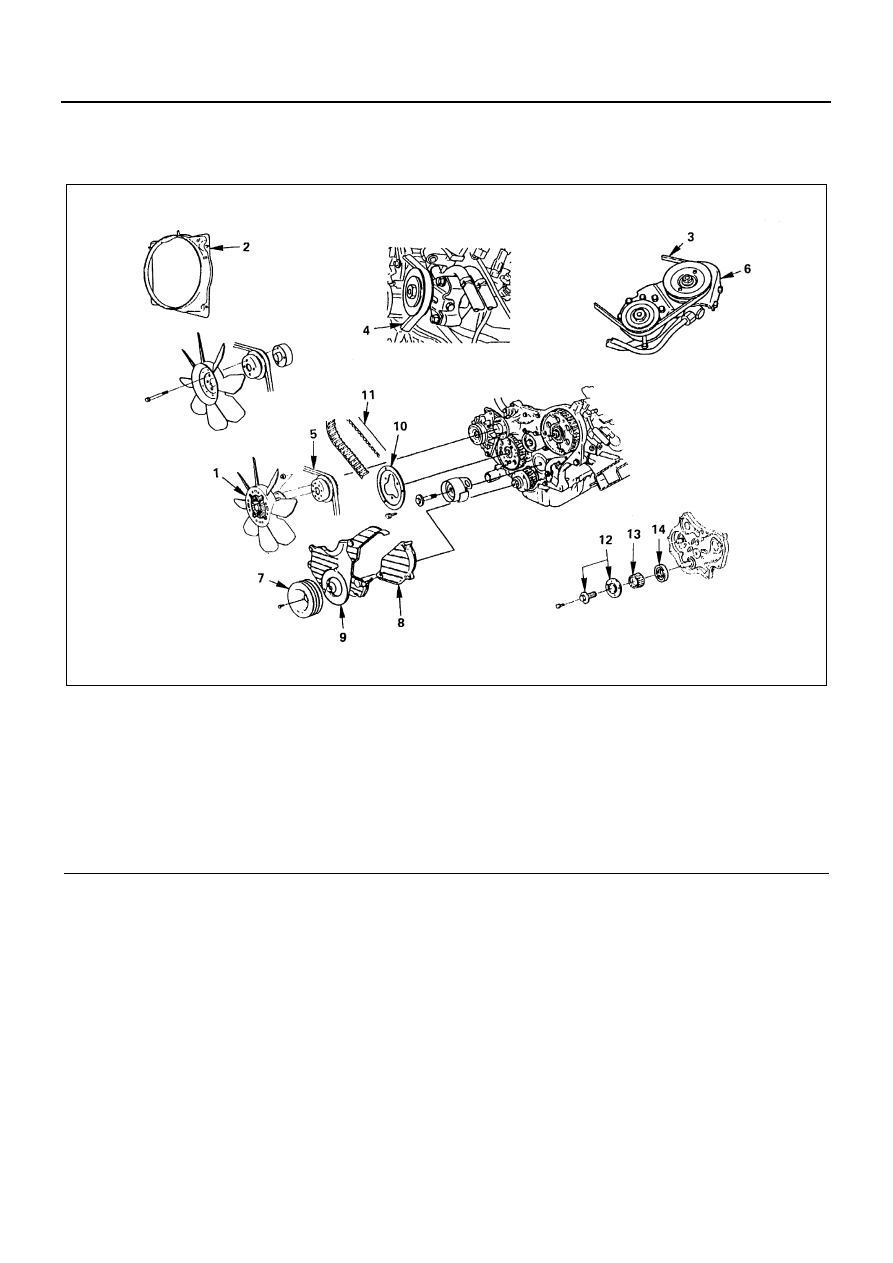

6A1-72 4JB1/4JB1-TC/4JG2/4JH1-TC - ENGINE CRANKSHAFT FRONT OIL SEAL (Belt Drive Type) Component Removal Preparation • Disconnect battery ground cable. 1. Cooling Fan Assembly Model) 7. Crankshaft Damper Pulley 10. Flange; Camshaft Pulley Above works refer to “TIMING BELT (Belt Type)” 12. Crankshaft Pulley Center • Remove the pulley center by using special tool. Remover: 5-8840-0161-0 13. Crankshaft Timing Pulley • Remove the oil seal by using special tool. tool as shown in the illustration to remove the oil Legend 1. Cooling fan assembly 8. Timing pulley upper cover 2. Fan shroud 9. Timing pulley lower cover 3. Power steering pump drive 10. Flange; Camshaft pulley 4. A/C compressor drive belt 11. Timing belt 5. AC Generator drive belt 12. Crankshaft pulley center 6. Power steering pump bracket assembly 13. Crankshaft timing pulley 7. Crankshaft damper pulley 14. Front oil seal N6A3327E |
