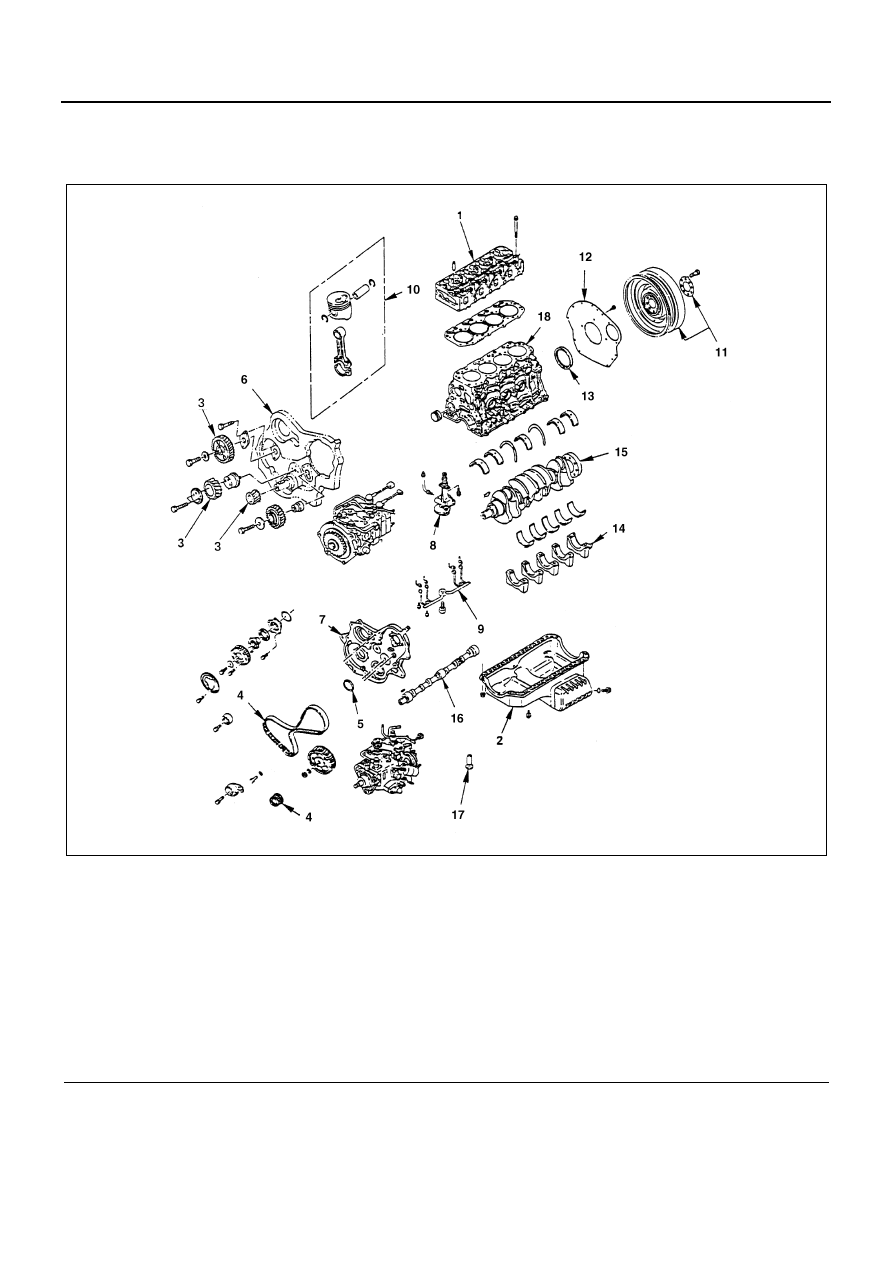

GENERAL ENGINE MECHANICAL 6A-57 CYLINDER BLOCK Component Disassembly 1. Cylinder Head Assembly and Gasket 4. Timing Belt and Pulley Legend 1. Cylinder head assembly and gasket 10. Piston and connecting rod 2. Oil pan assembly 11. Flywheel 3. Timing gear 12. Cylinder block rear plate 4. Timing belt and pulley 13. Crankshaft rear oil seal 5. Front oil seal (Belt Drive Model) 14. Main bearing cap 6. Timing gear housing 15. Crankshaft 7. Timing pulley housing 16. Camshaft 8. Oil pump assembly 17. Tappet 9. Piston cooling oil pipe 18. Cylinder block N6A3192E |
