00-56 SERVICE INFORMATION

FIXING TORQUE

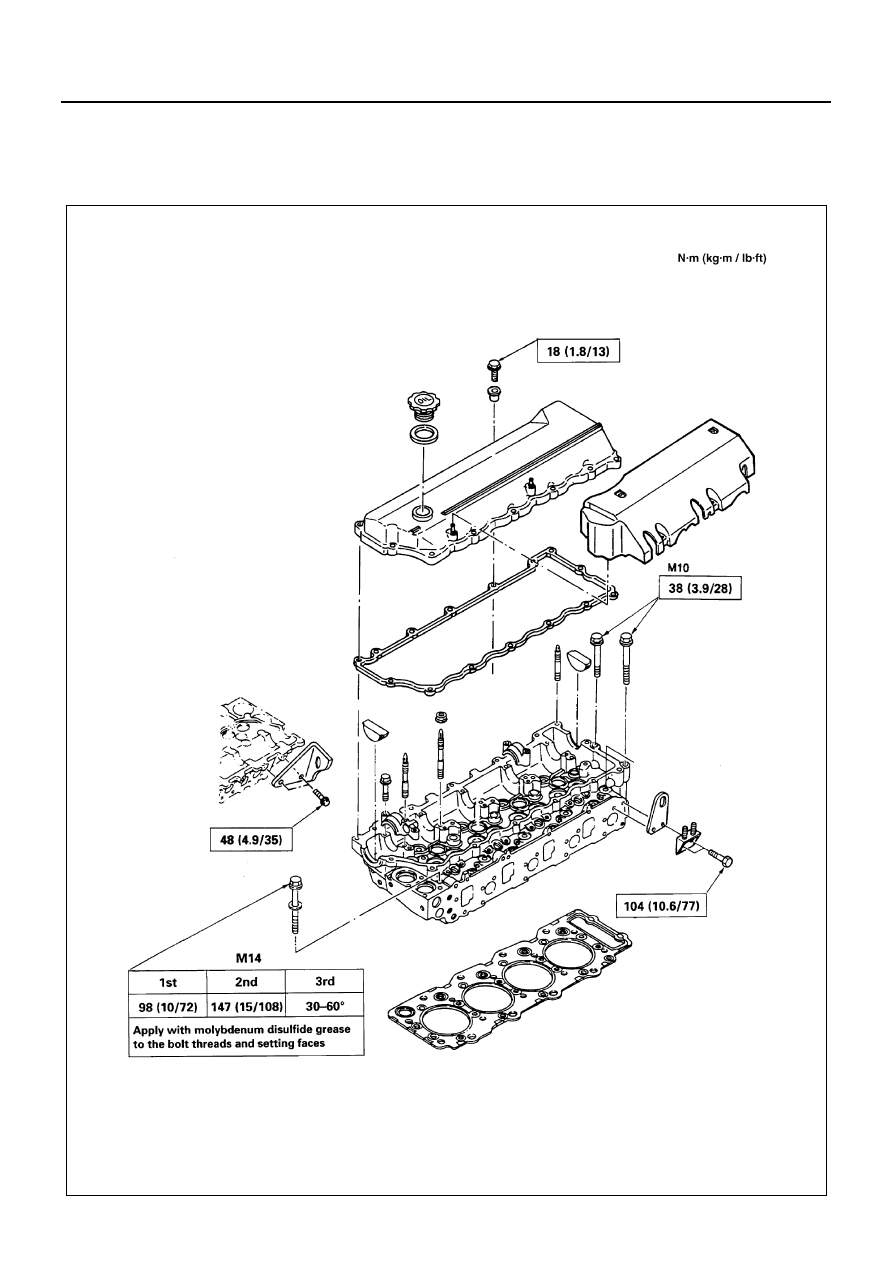

Cylinder Head, Head Gasket and Head Cover

Except for 4HE1-TC (Engine)

N6A0064E

SERVICE INFORMATION 00-57

4HE1-TC (Engine)

N.m (kg.m / lb.ft)

104 (10.6/77)

38 (3.9/28)

M10

18 (1.8/13)

10 (1.0/7)

48 (4.9/35)

18 (1.8/13)

1st

2nd

M14

3rd

90 (10/72)

147 (15/108)

Apply with molybdenum disulfide grease
to the bolt threads and setting faces

30-60

N6A1615E

00-58 SERVICE INFORMATION

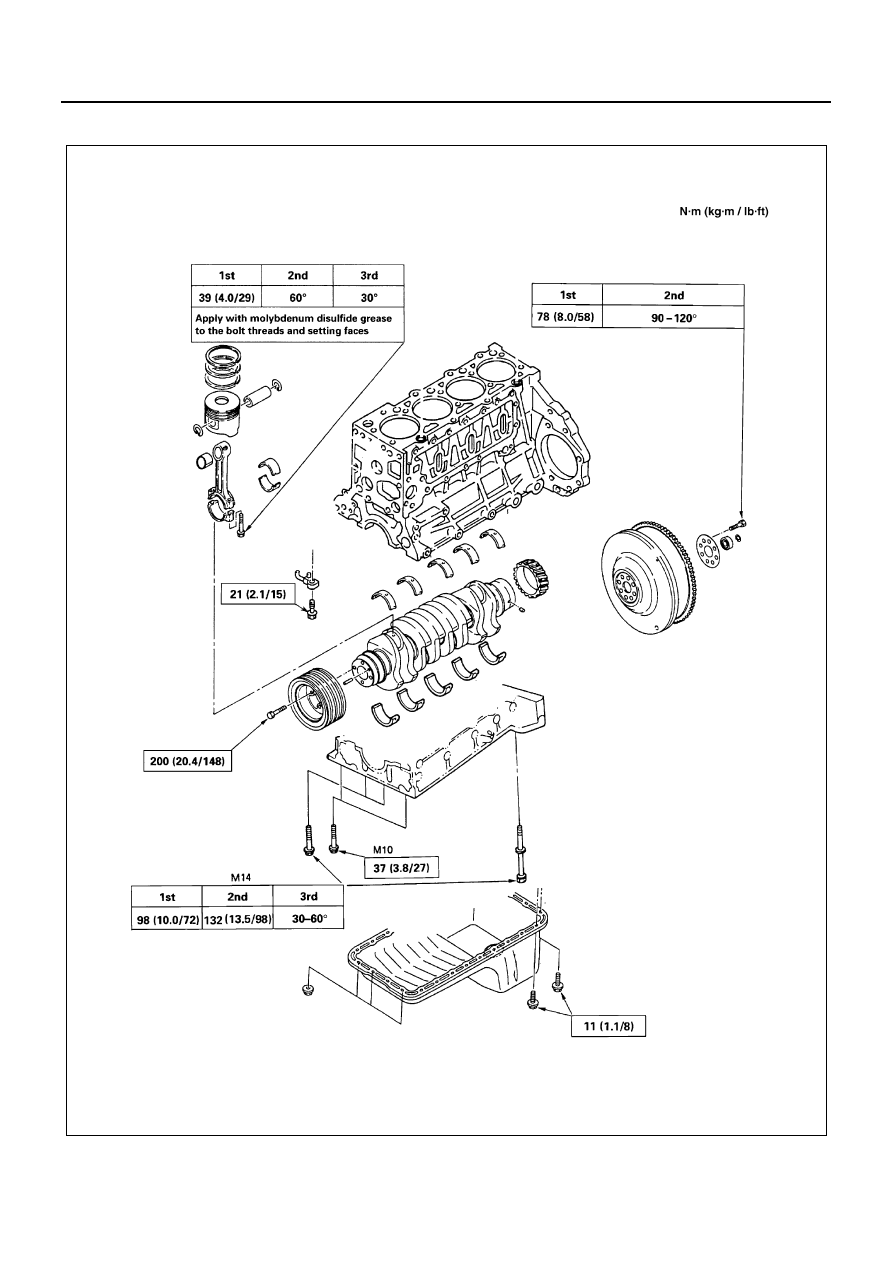

Crankshaft, Flywheel, Damper Pulley, Connecting Rod and Oil Pan

N6A1616E

SERVICE INFORMATION 00-59

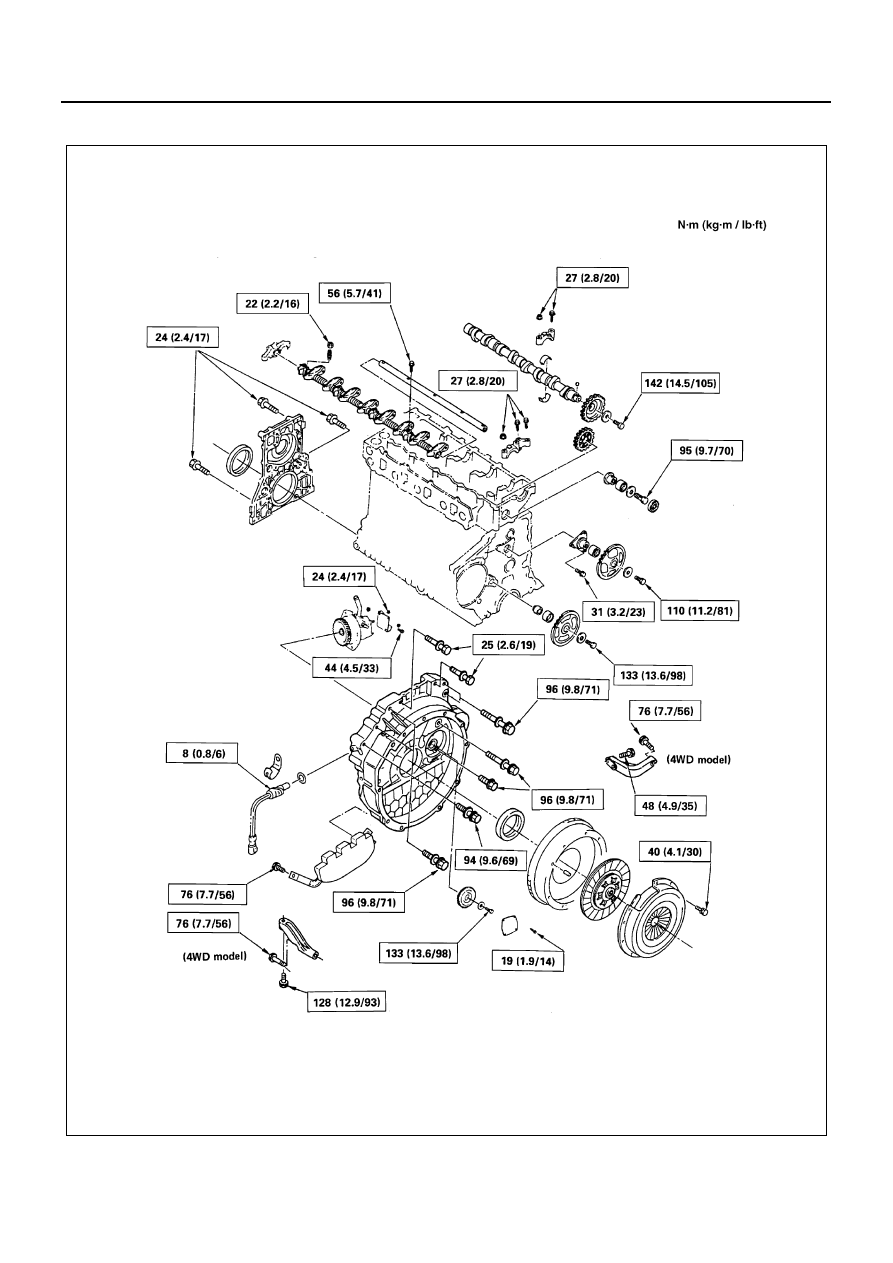

Gear Train, Camshaft, Rocker Arm Shaft, Front Retainer, Flywheel Housing

N6A0067E
