SERVICE INFORMATION 00-53

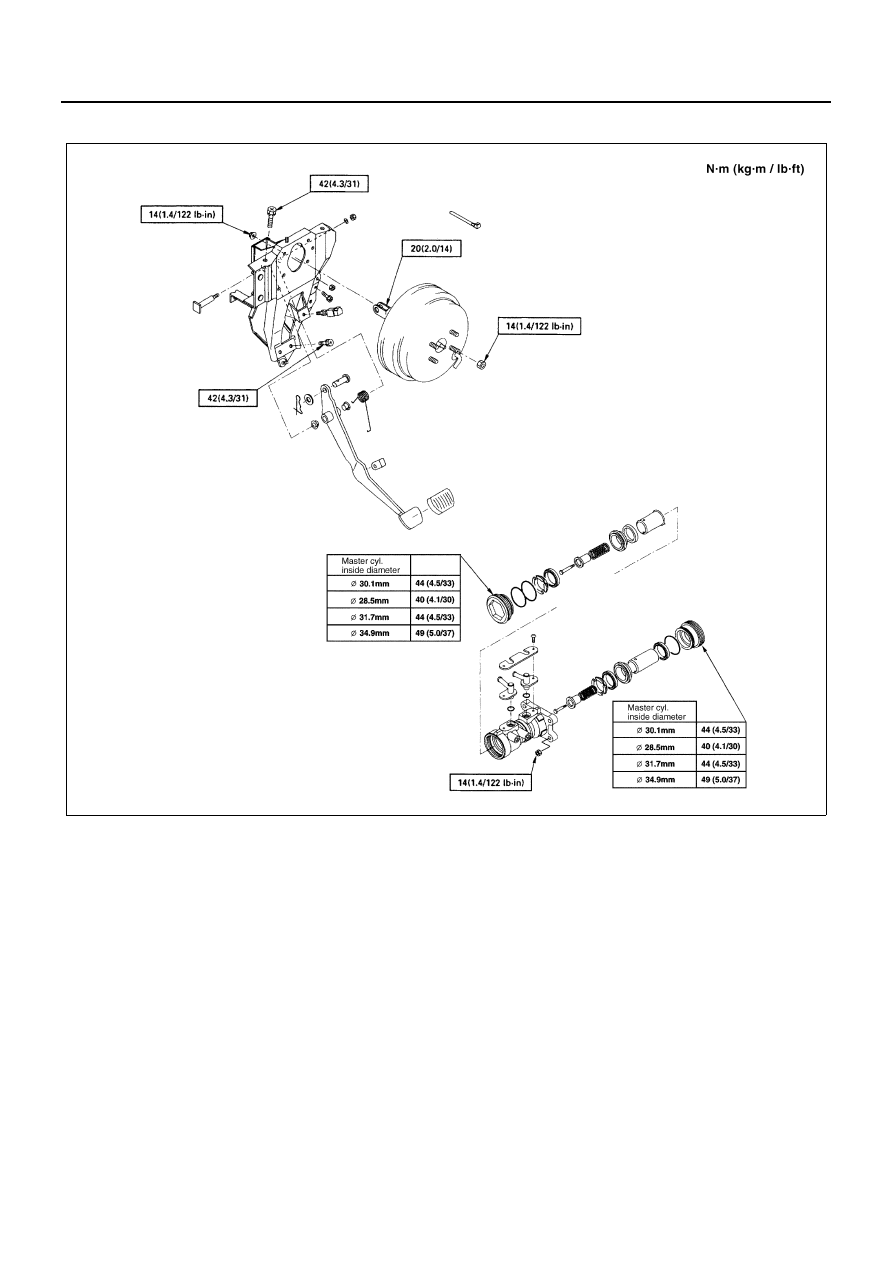

Brake Pedal and Control (Vacuum Booster Type)

N5A0031E

00-54 SERVICE INFORMATION

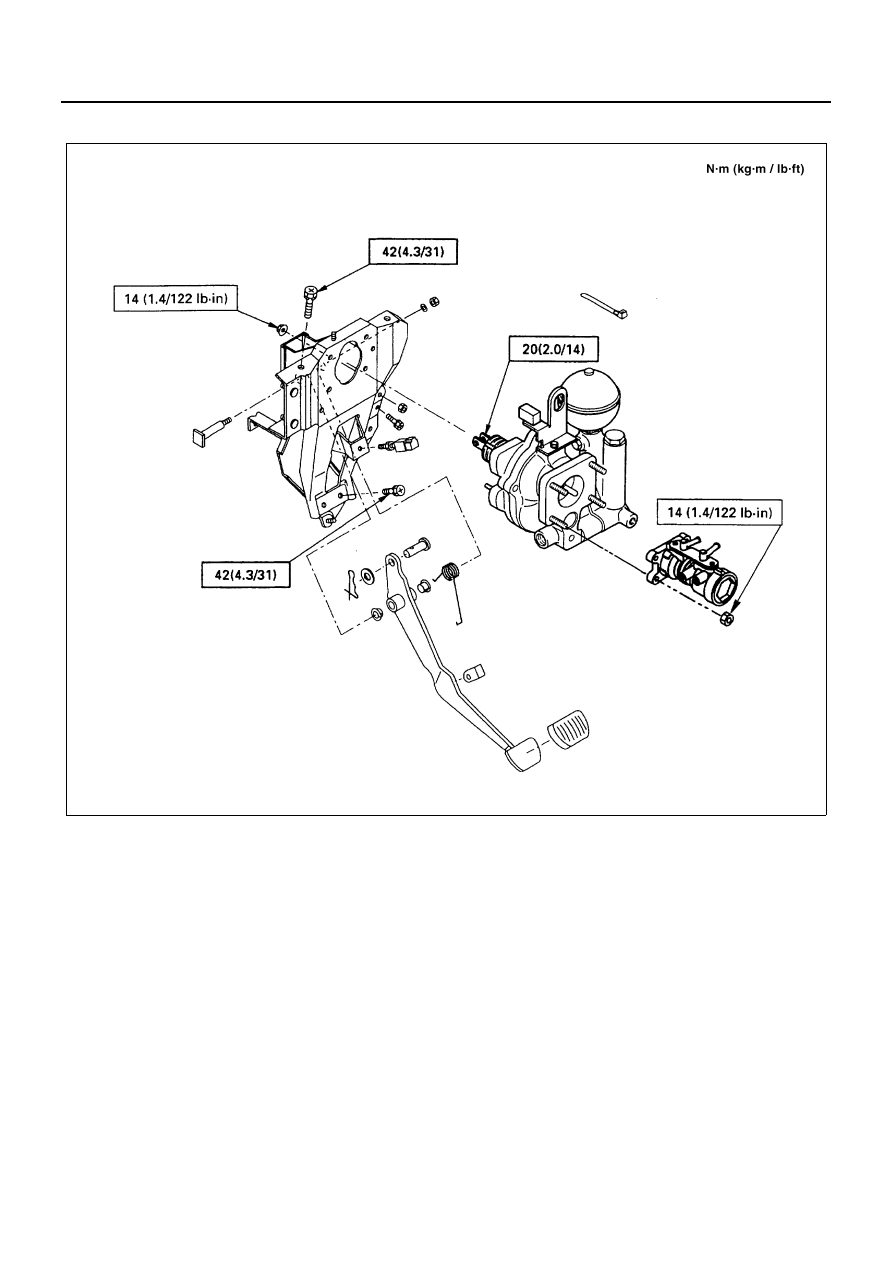

Brake Pedal and Control (Hydraulic Booster Type)

N5A0032E

SERVICE INFORMATION 00-55

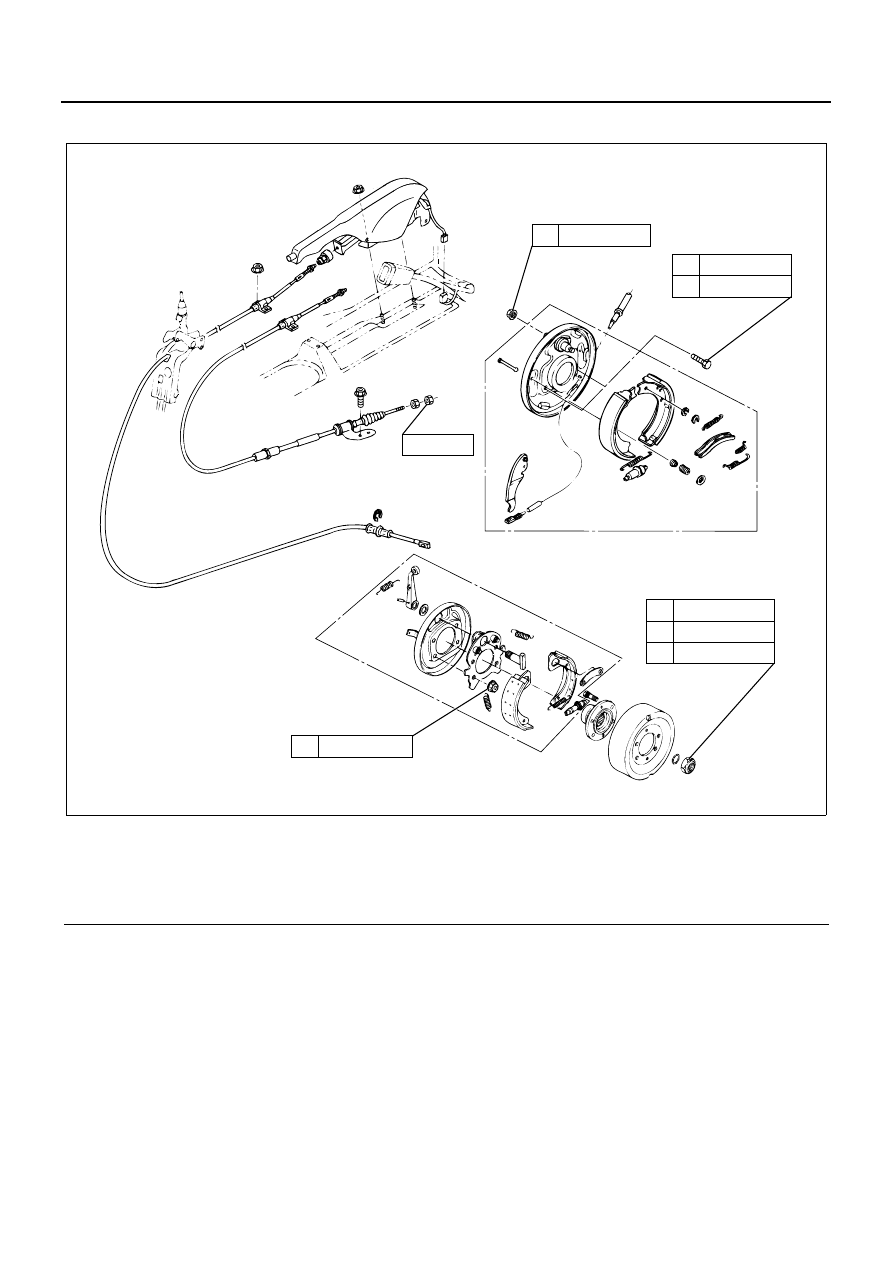

Parking Brake

Legend

1.

φ 178 mm parking brake

4. MSB type transmission

2.

φ 190 mm parking brake

5. MYY type transmission

3.

φ 203 mm parking brake

6. MZZ type transmission

1     113 (11.5/83.3)

13 (1.3/9.6)

1       25 (2.6/18.4)

2     126 (12.9/93.3)

4     226 (23.0/166.7)

5     289 (29.5/213.2)

6     382 (39.0/281.8)

3     127 (13.0/93.7)

N·m (kg·m / lb·ft)

N5A0351E

00-56 SERVICE INFORMATION

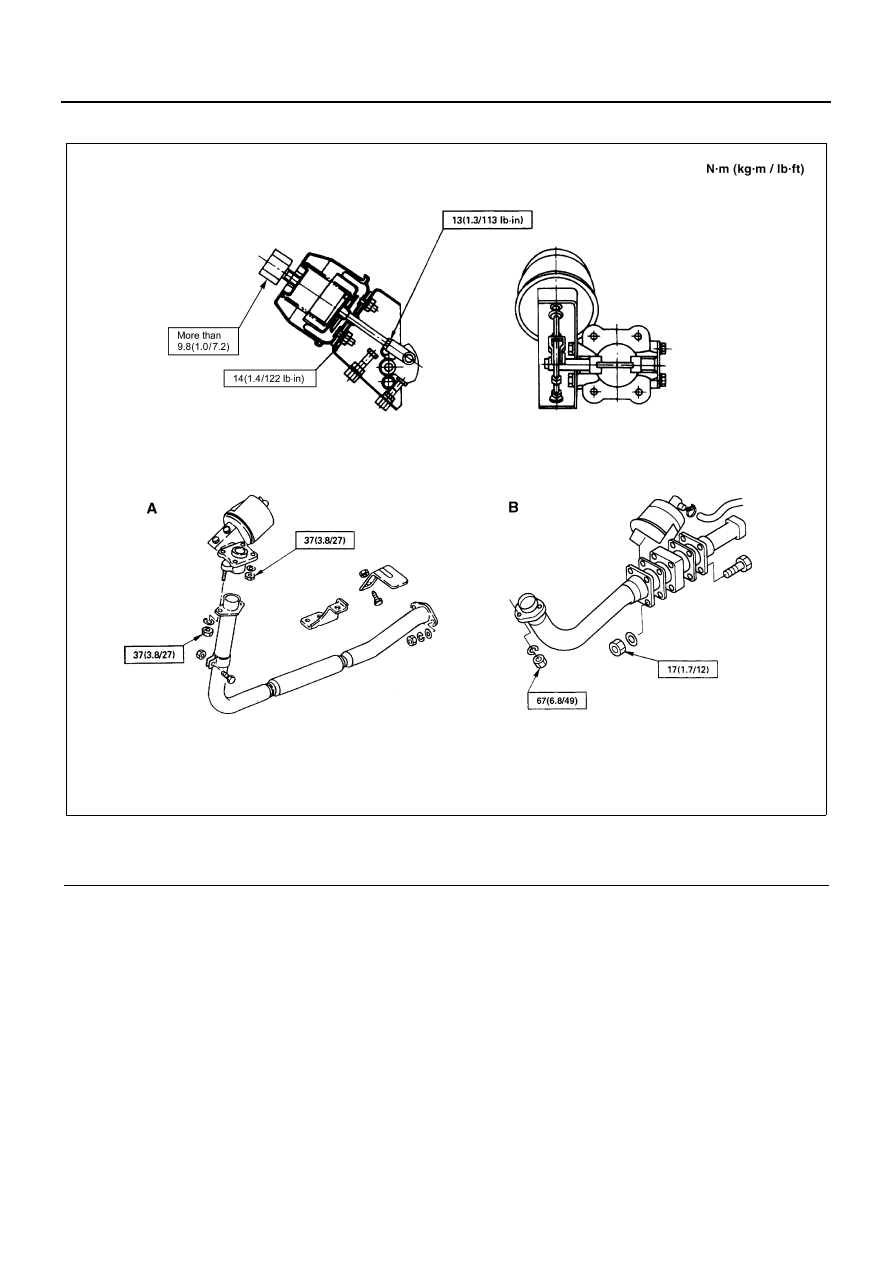

Exhaust Brake

Legend

A. 4J engine without turbocharger

B. 4J engine with turbocharger and 4H engine

N5A0465E
