SERVICE INFORMATION 00-49

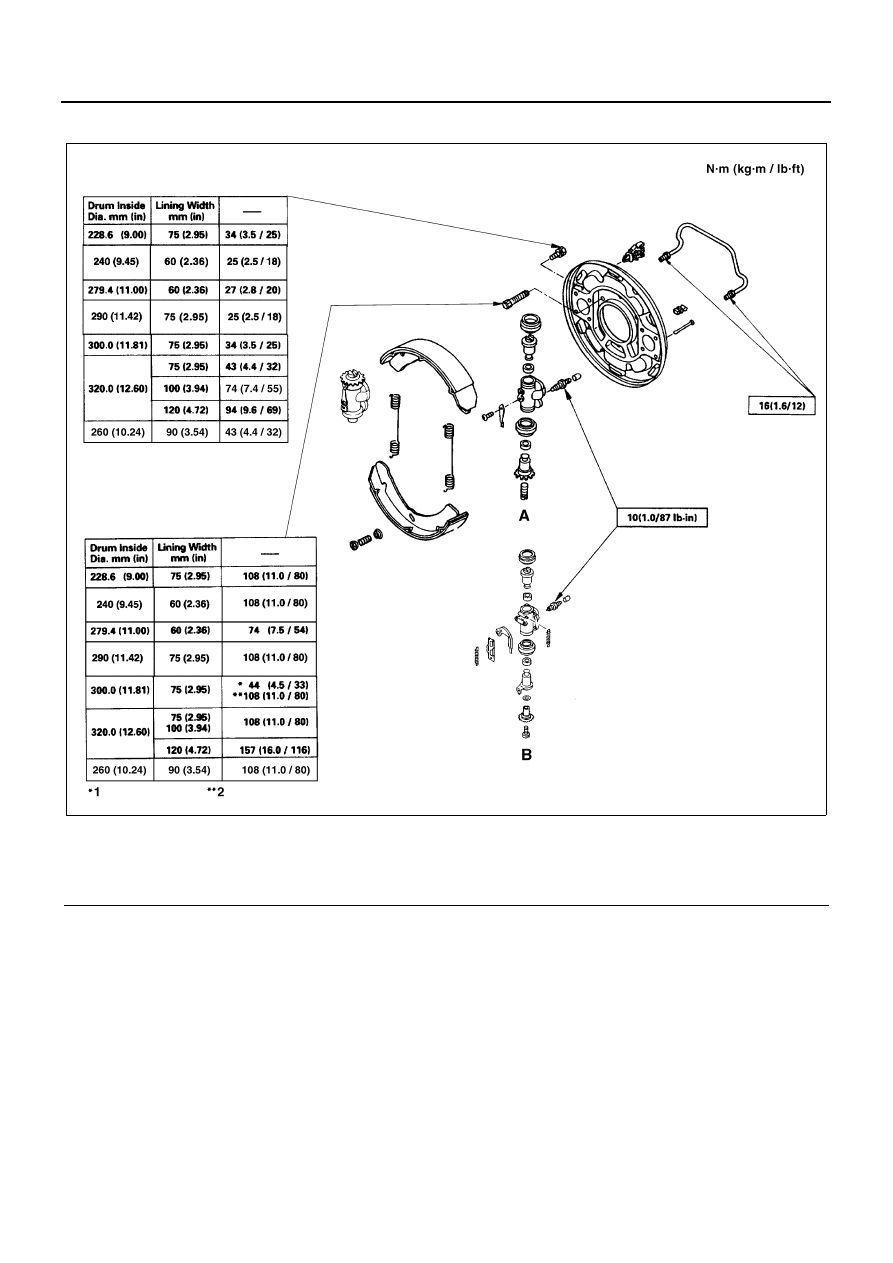

Rear Wheel Brake (Except Drum Inside Diameter 370 mm)

Legend

A. Without auto-adjuster

1. Single tire models

B. With auto-adjuster

2. Dual tire models

N5A0028E

00-50 SERVICE INFORMATION

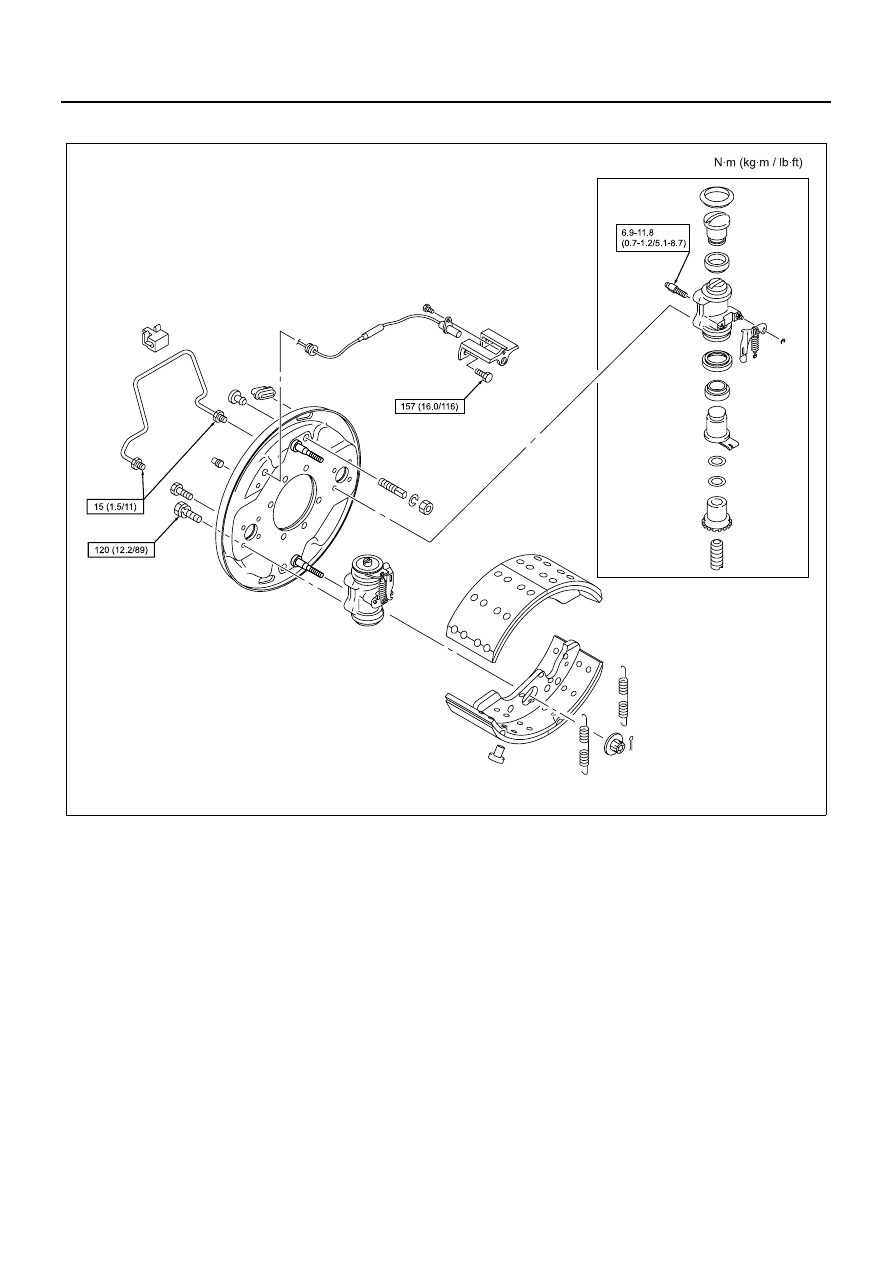

Rear Wheel Brake (Drum Inside Diameter 370 mm)

N5A0463E

SERVICE INFORMATION 00-51

Front Disc Brake (NKR / NPR / NQR)

Legend

A. Leaf spring suspension models (Rigid axle type)

Except

363 mm

363 mm

A

34 (3.5/25)

220 (22.4/162)

162 (16.5/119)

162 (16.5/119)

13 (1.3/9.4)

220 (22.4/162)

N·m (kg·m / lb·ft)

N5A0029E

00-52 SERVICE INFORMATION

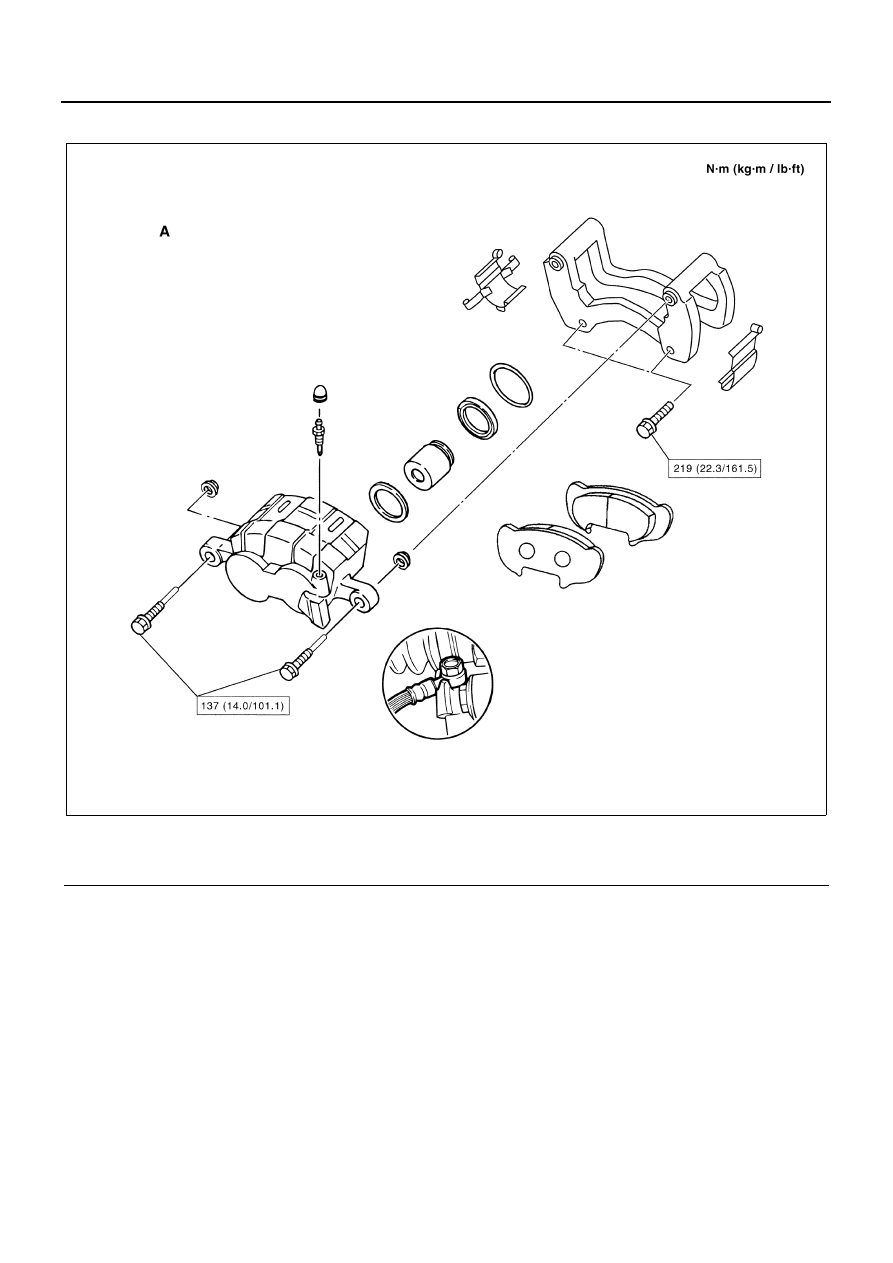

Front Disc Brake (NKR)

Legend

A. Independent suspension models

N5A0030E
