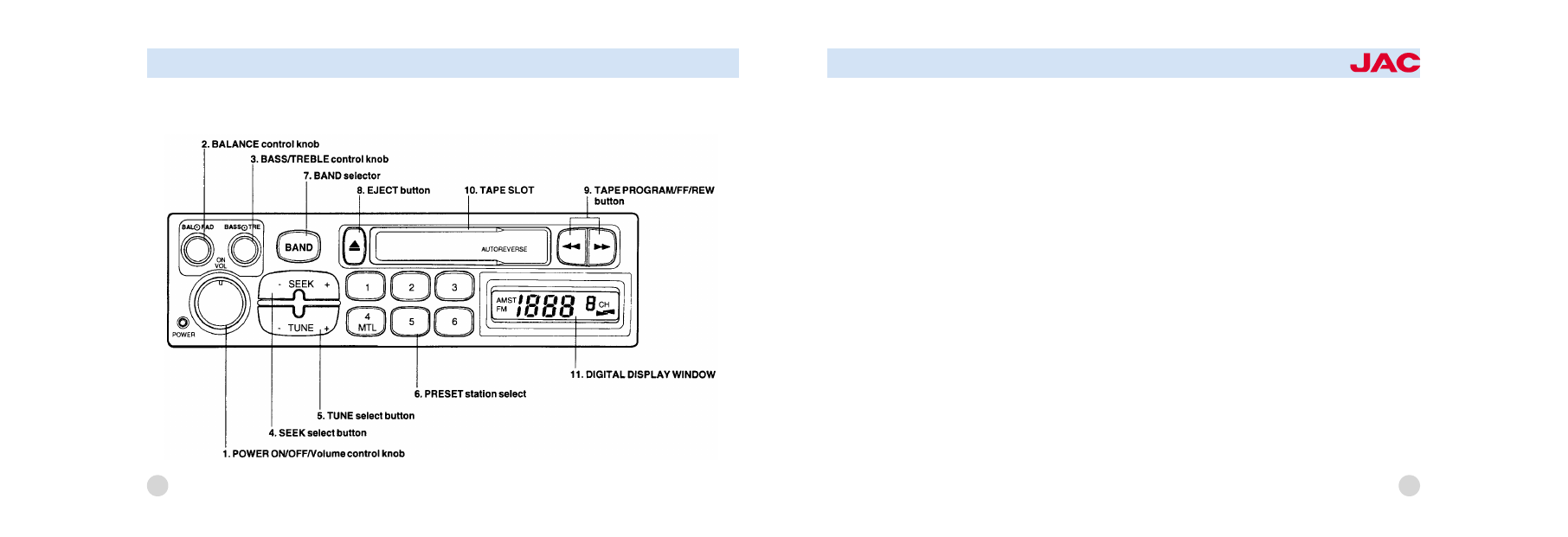

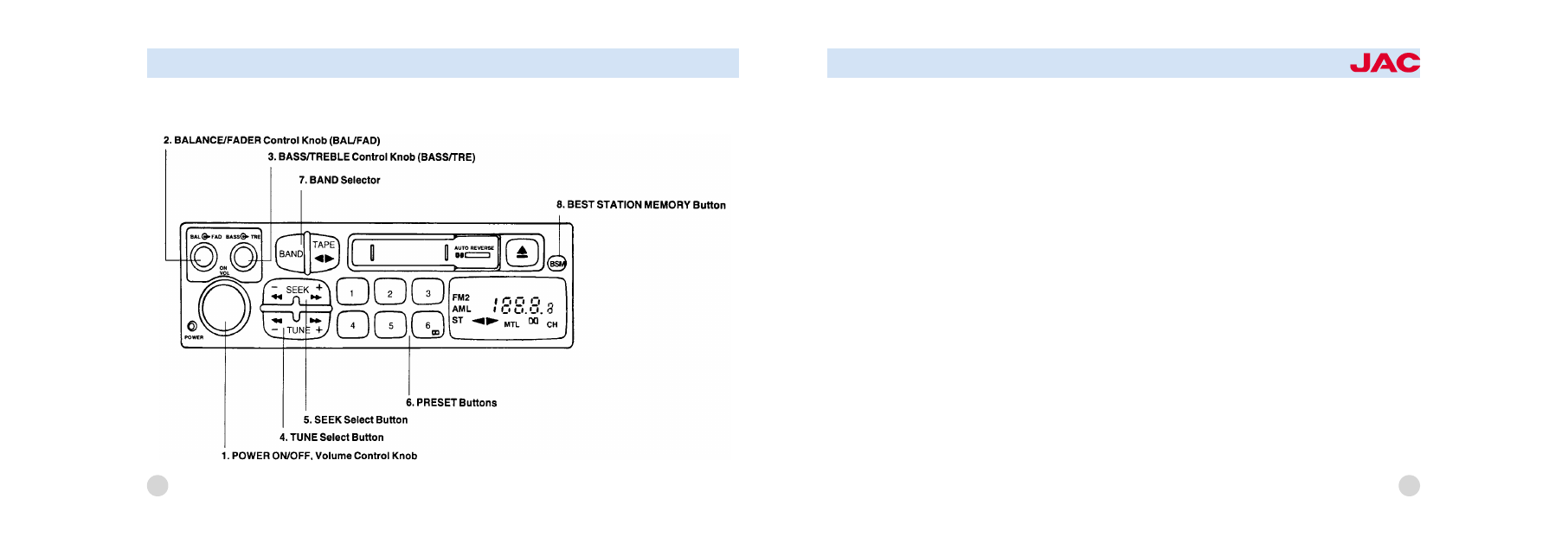

1.POWER
ON/OFF,
VOLUME
CONTROL KNOB
The radio unit may be operated
when the ignition key is in the "ACC"
or "ON" position. Rotate the knob
clockwise to switch the radio unit
on, and to increase the volume.
Turn the knob counterclockwise to
reduce the volume, and to switch
the radio unit off.
2. BASS/TREBLE CONTROL
Press to pop the knob out and turn
to the left or right for the desired
bass tone.
3. BALANCE CONTROL
Press to pop the knob out and turn
it clockwise or counterclockwise
until sound from the left and right
speakers is about equal from your
listening position.
4. SEEK OPERATION
(Automatic Channel Selection)
When the volume control knob is
pressed, the unit will automatically
tune to the next higher frequency.
5. TUNE (Manual) SELECTION
When the upper side of the knob is
pressed, the frequency will in鄄
crease in 0.1 MHZ steps in FM
band, 9 KHZ in AM band and vice
versa
With the button held down for 0.5
Sec. or more, the stop signal
(broadcasting radio wave) is ig鄄
nored, and channel selection con鄄
tinues.
6. PRESET BUTTONS
Six (6) stations for AM, FM respec鄄
tively can be preset in the elec鄄
tronic memory circuit on this unit.
HOW TO PRESET STATIONS
Six AM and six FM stations may
be programmed into the memory
of the radio. Then, by simply
pressing the band select button
and/or on e of the six station select
buttons, you may recall any of
these stations i.nstantly. To pro鄄
gram the stations,follow these
steps:
荫 Press band selector to set the
band for AM, FM and FM12 .
荫 Select the desired station to be
stored by seek, scan or manual
tuning.
荫 Determine the preset station
select button you wish to use to
34
INSTRUMENTS & CONTROLS
access that station.
荫 Press the station select button
for more than two seconds. A se鄄
lect button indicator will show in
the display indicating which select
button you have depressed. The
frequency display will flash after it
has been stored into the memory.
You should then release the but鄄
ton, and proceed to program the
next desired station. A total of 12
stations can be programmed by
selecting on AM and FM stations
per button.
荫 When completed, any preset
station may be recalled by select鄄
ing AM, FM band and the appro鄄
priate Station Button.
7. BAND SELECTOR
Pressing
the
BAND
button
changes the AM, FM1 and FM2
bands . The mode selected is dis鄄
played on LCD .
8. TAPE EJECT BUTTON
To eject the tape, press the button.
9. TAPE PROGRAM
When you press the button whose
arrow is in the same direction as
the tape play arrow in the display
the tape will advance at high
speed.
When you press the button whose
arrow is in the opposite direction to
the tape play arrow in the display
the tape will rewind at high speed.
To stop FF or REW action, press
the opposite button.
When you press two buttons si鄄
multaneously you play the reverse
side of the tape and an
arrow will appear in the display to
show tape direction.
