STEERING LINKAGE 3B3-1

STEERING, SUSPENSION, WHEELS

AND TIRES

SECTION 3B3

STEERING LINKAGE

Contents

GENERAL DESCRIPTION ................................. 3B3-2

Drag Link and Pitman Arm .............................. 3B3-2
Tie Rod Assembly ........................................... 3B3-2
Steering Link Assembly ................................... 3B3-3

ON-VEHICLE SERVICE ..................................... 3B3-4

Drag Link Replacement ................................... 3B3-4
Tie Rod Replacement (2WD Rigid Suspension) ..... 3B3-5
Tie Rod Replacement (NPS) ........................... 3B3-8
Steering Link Replacement (Wishbone Suspension).....3B3-11

3B3-2 STEERING LINKAGE

GENERAL DESCRIPTION

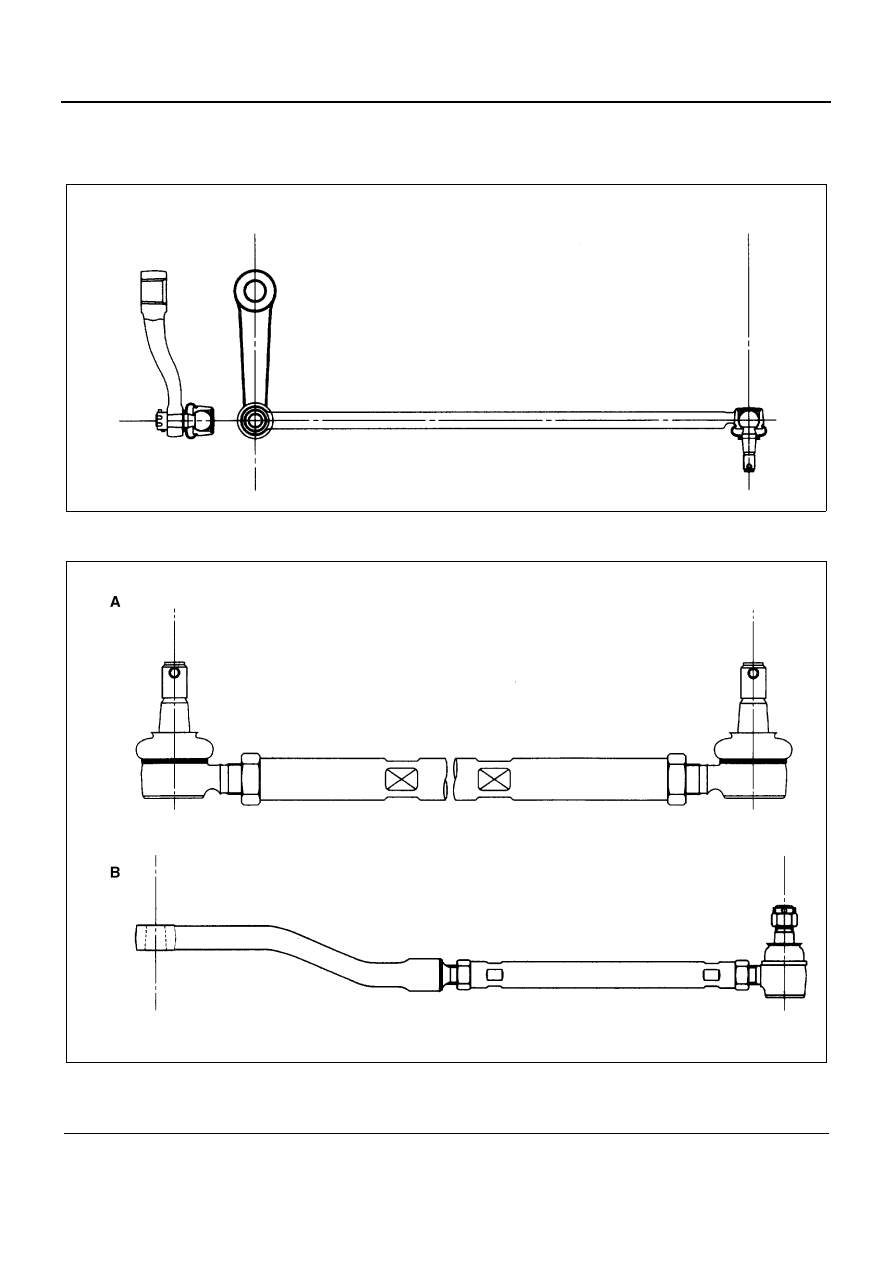

Drag Link and Pitman Arm

Tie Rod Assembly

Legend

A. Rigid suspension

B. NPS

N3A0300E

N3A0301E

STEERING LINKAGE 3B3-3

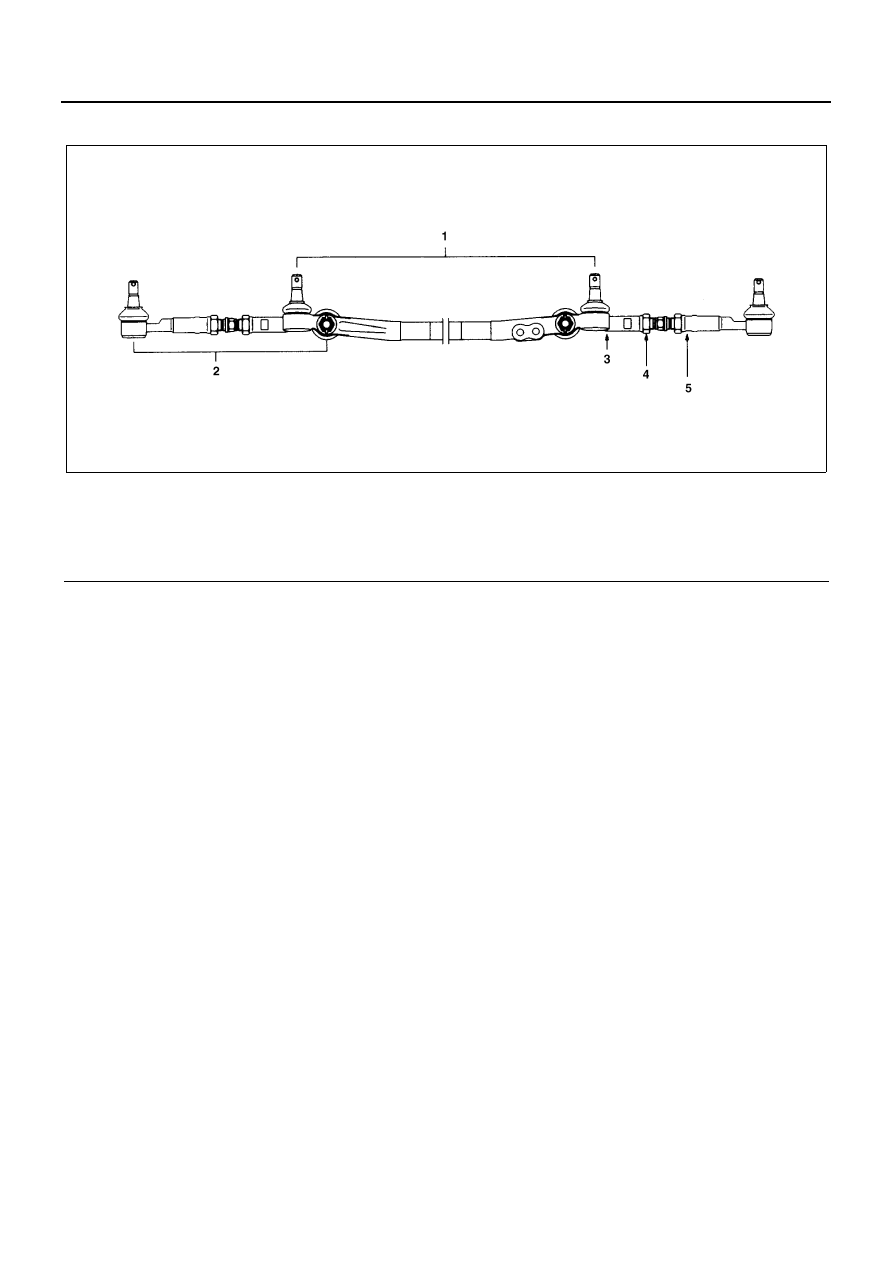

Steering Link Assembly

Legend

1. Center track rod assembly

4. Track rod

2. Outer track rod assembly

5. Rod end (outer)

3. Rod end (inner)

N3A0302E

3B3-4 STEERING LINKAGE

ON-VEHICLE SERVICE

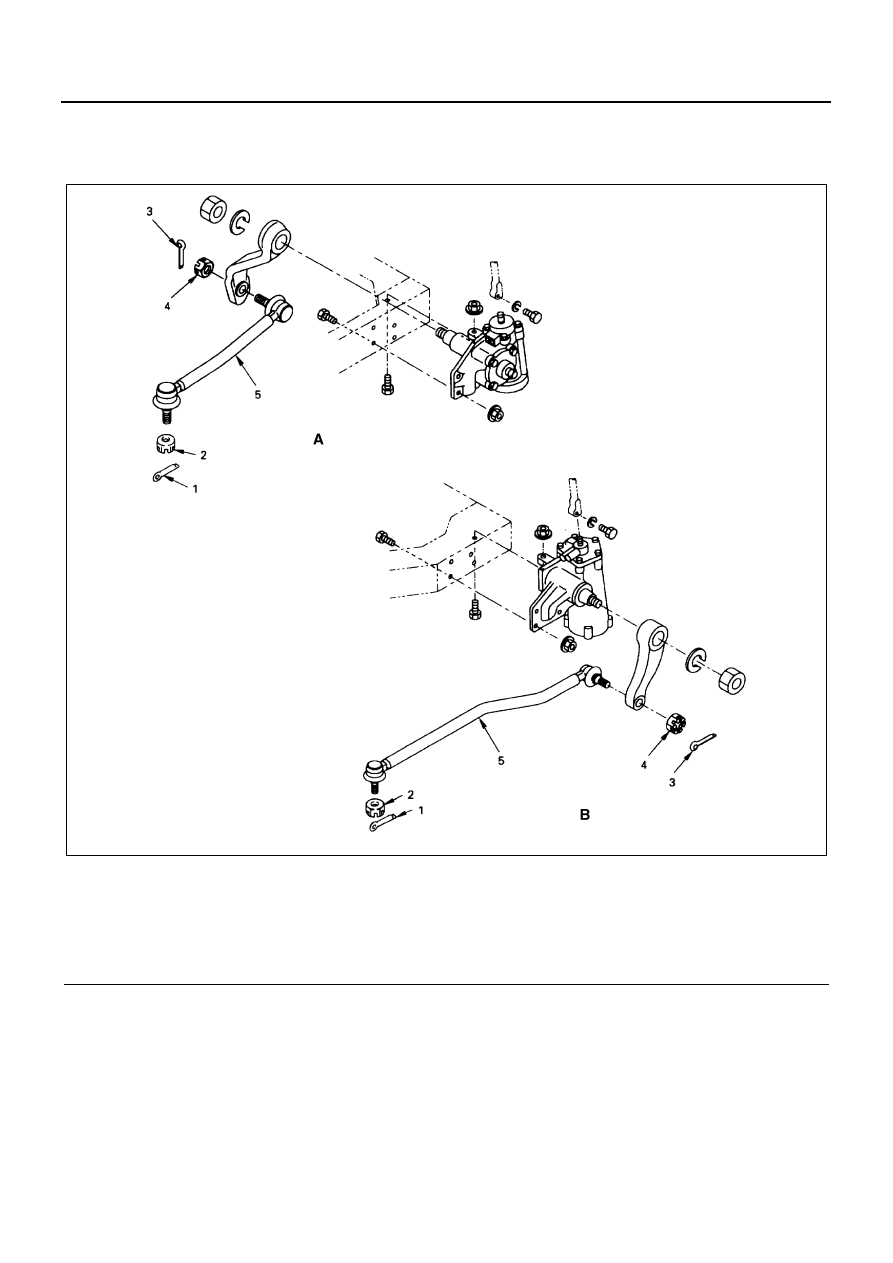

Drag Link Replacement

Removal

1. Cotter Pin
2. Nut
3. Cotter Pin
4. Nut
5. Drag Link

Remove the drag link using a special tool.
Remover: 5-8840-2017-0

Caution:
Be careful not to damage the ball joint boot.

Legend

A. Wishbone suspension

3. Cotter pin

B. Rigid suspension

4. Nut

1. Cotter pin

5. Drag link

2. Nut

N3A0303E
