slice, direction of which is opposite
to direction of the wheel turning. Di鄄
rection of moment produced by fric鄄
tion force on the font shoe is as
same as direction of the push force,
and they both press to the brake
drum, which increases braking effi鄄
ciency of the front shoe and assists
power, so the front brake shoe is
called power -assisted brake shoe;
while direction of moment produced
by friction force on the rear shoe is
just opposite to direction of the push
force, which decreases pressure that
brake shoe applies on brake drum,
so that braking efficiency of the rear
shoe decreases resulting in power
reducing, so the rear brake shoe is
called power -reducing brake shoe.

All above leads to imbalance of
forces that front and rear brake
shoes press on the brake drum, so
this kind of brake is called simple
imbalanced brake.
Clearance between friction disc of the
brake shoe and the brake drum must
be proper, before adjusting the clear鄄
ance, make the front wheel off ground;
adjusting steps are as follows:
Turn worm of the brake arm to adjust
clearance between friction disc at the
camshaft end of the brake assembly
and the brake drum. Adjusting meth鄄
ods are as follows: Face to the worm,
turn the worm clockwise, at the same
time, rotate the brake drum come -
and -go continuously till the brake
drum is suppressed completely, and

then return the worm anticlockwise
by 1/2 -3/4 circle, at this time,
windage of the end of the ed of the
brake drum shaft is 0.25 -0.4mm,
while camshaft end 0.45mm. After
adjusting, do test -drive to check
working condition of the brake and
whether the brake drum heats and
whether the braking distance is prop鄄
er, if not, readjust the vehicle.
2.1.5 Brake valve
Brake valve is a mechanism with
which the whole air brake system
controls the brake.
2.1.6 Maintenance
2.2 Before running, air pressure in
the pipeline should be checked,
when the air pressure is more than
0.6Mpa, the vehicle can start, and

56

the normal running air pressure is
0.74-0.84Mpa; if the air pressure is
lower than this value, check the air
pipeline for leak and check whether
the air compressor works normally.
2.3 Check working condition of the
brake in running whether there is any
trailing or the braking cannot return
and deal with the problems in time. If
the air pressure is lower than
0.45Mpa but the annuciator does not
warn, check the annuciator, replace
if necessary.
2.4 If the brake shoe slice is dam鄄
aged or over worn, replace for new
one; surface of the new liner should
be grinded, and there should be no
oil dirt, scratches, chap on the sur鄄
face. Friction disc must be made of

the same material.
Replacing friction disc or reinstalling
shoe slice shaft and brake camshaft
will damage contact condition be鄄
tween former friction disc and brake
drum, because of which, complete
adjustment must be done.
2.2 Hydraulic brake
1) Brief description of structure
Service brake of trucks of HFC1045
series adopts hydraulic brake and is
mainly composed of vacuum boost鄄
er, vacuum tank, brake master cylin鄄
der,

control

mechanism,

brake

pipeline, front & rear brake, and is
reliable and safe as well as operates
lightly, reacts agilely, etc.
When depress the service brake
pedal, if you feel the braking is weak,

but the brake liquor is sufficient, the
cause of ineffective braking maybe
that there is air in the brake system,
and the air should be deflated ac鄄
cording to the following sequence:
right rear wheel brake - left rear
wheel brake - right front wheel
brake- left rear wheel brake. Method
of air deflation is as follows:
a. Clean up begrime on deflating
screw of the brake master cylinder
and release cylinder
b. Unscrew screw plug of the filling
opening of master cylinder or fluid
pot, and fill brake fluid to full position.
c. After depressing brake pedal sev鄄
eral times continuously, depress e鄄
mergency brake pedal, and loose
deflating bolt to deflate air; repeat

57

HFC1045

series trucks

RRear brake院

The front尧rear axle adopt two -way
self-energizing hydraulic brake.
3) Items to notice in using brake fluid
(1) Brake liquor used in trucks of this
series is compound brake fluid of
JG3 level 渊GB10830冤.
(2) Compound brake fluid of different
brands is forbidden to use.
(3) Compound brake fluid can ab鄄
sorb moisture greatly, and the con鄄
tainer containing the brake fluid
should keep clean, sealed and dry,
sundries like water, organic solvent,
petroleum product, dust etc. are for鄄
bidden to enter, otherwise, brake ef鄄
ficiency will be affected seriously.
(4) When replace for brake fluid of
different brands, the former brake flu鄄
id in the system should be cleaned

these actions for several times till air
in the brake pipeline is exhausted.
When deflating, pay attention not to let

the reserved fluid leak completely, or
air will come into the pipeline again.
c. Fill brake liquor into the oil reser鄄

voir fully.
2) Structure of the brake
Front brake:

58

59

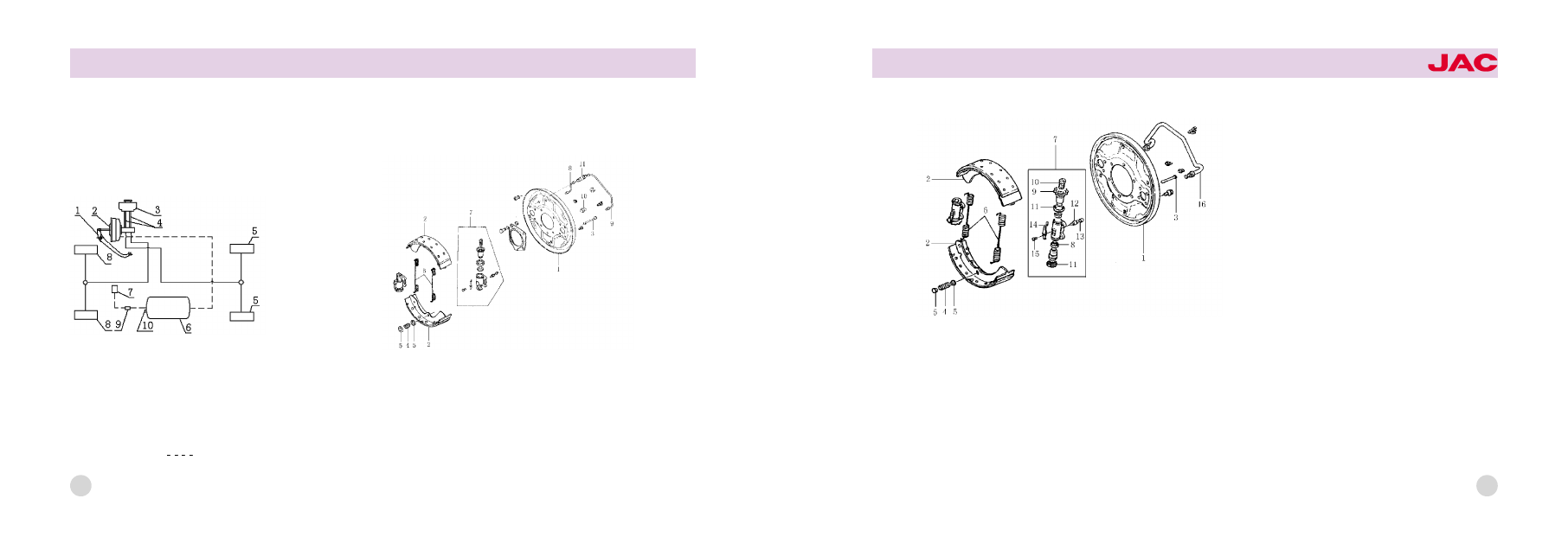

schematic diagram hydrostatic

brake system

1. Brake pedal曰 2.Vacuum booster and

main cylinder assembly

3.Reservoir曰 4. Connection hose曰

5.Rear brake曰 6.Vacuum cylinder

7.Intake manifold曰 8.Front brake曰

9. Vacuum check valve

10.Connect to vacuum-alarm

要要

要hydraulic tube

vacuum tube

1. backboard of the front brake曰 2. Brake shoe slice assembly曰
猿. Brake shoe press spring drag rod曰 源援 Brake shoe press spring曰
缘. Brake shoe press spring seat曰 远. Return spring of brake shoe曰
7. Release cylinder assembly of front brake曰
8. Front connection pipe assembly曰 9. Rear connection pipe assembly曰
10.Check the hole for jam曰 11. Three-way fitting曰

1援 Back board of the rear brake曰 圆援 Brake shoe with friction disc assembly曰
猿援 Brake shoe press spring drag rod曰 源援 Brake shoe press spring曰
缘. Brake shoe press spring seat曰 远援 Return spring of brake shoe曰
7 . Release cylinder block of the rear brake曰 8 . Release cylinder rubber cup曰
9 . Release cylinder plug of the rear brake曰
10 . Adjuting bolt of the release cylinder plug曰
11. Release cylinder cover曰 12 .Stopper claw曰
13. Fixing screw of the stopper claw曰 14. Deflation screw of release cylinder曰
15. Cover of deflation screw of the release cylinder曰 16. Brake pipe assembly

HFC1045

series trucks

with alcohol, if there is no alcohol,
the following steps can be taken:
a. Discharge all the brake fluid, and
fill brake fluid JG3 into the oil reser鄄
voir nearly full for instead, and then
discharge all brake fluid in the
pipeline completely to clean the for鄄
mer brake fluid.
b. Refill the brake fluid according to
specification.
c. After adjusting of the brake system
finishing, free stroke of the brake
pedal should be 8 -12mm, or the
master cylinder will work under ab鄄
normal condition, which will lead to
faults like overheating of the brake
drum.

2.2.1 Service brake
1) Brief description of structure
Service brake adopts hydraulic drum
type, and its front brake and rear
brake adopt double acting leading
shoe type; the service brake is com鄄
posed of brake baseboard, brake re鄄
lease cylinder, brake shoe & liner as鄄
sembly and return spring assembly.
2) Adjusting of the service brake
As the service brake liner is worn
gradually in using, clearance be鄄
tween the liner and the brake drum
increases, it must be adjusted to en鄄
sure braking efficiency. Adjusting is
shown as follows:
Jack up the wheel and take off the
seal stopper, toggle the adjusting
gear of the release cylinder plug ac鄄

cording to arrow direction at base鄄
board adjusting hole side with a
special adjusting screwdriver, at the
same time, rotate the brake drum
come-and-go continuously until the
brake drum is hooped completely,
and then return adjusting gear of the
brake release cylinder plug by 5 -9
teeth to make the clearance between
brake drum and friction disc be 0.2-
0.45mm; after all these, the brake
drum will turn agilely.
3) Using and inspection
After the brake shoe slice is over
worn, it should be replaced for new
one. Surface of the new slice should
be grinded, and there should be no
oil dirt, scratches or chap etc. on the
surface.

Clearance adjusting should be done
in every maintenance class. When
stop the vehicle, touch four brake
drums with hands to check their tem鄄
perature, if the temperature is too
high, readjust the clearance. Seal
condition of the release cylinder
should also be checked regularly, if
there is any oil leak, replace rubber
ring immediately to prevent a series
of faults such as overheating of the
brake drum.
2.2.2. Vacuum power take-off
1) Brief description of structure
2) Vacuum booster equipped to
trucks of HFC1045 series adopts
double diaphragm and is mainly
made up of outer casing return
spring, control valve, rubber film, and

sound damping device etc.
2) Adjusting
The vacuum booster has been ad鄄
justed in the factory; do not disas鄄
semble it in using in case of di鄄
aphragm damage.

渊IX冤Wheel and spare wh -
eel regulator

1. Wheel

1) Brief description
A truck has 7 wheels in all, one of
which is spare wheel and installed
on lower side of the rear frame.
Specification of the tire is 6.50-16 or
6.50R16袁and the air pressure is
about 530Kpa.

2) Using and maintenance
It爷s very important to charge the tire
according to specification, so that a
longer running mileage can be
gained; to run as there is no air or
the air is insufficient is forbidden. It爷s
normal that air temperature of the tire
increases a little in running; to de鄄
crease air pressure by deflating is
forbidden. Check the air pressure in
the tire under cold condition, if size
of the road pattern is proper (two
center prints contact the ground)
when the vehicle is under loading, it
indicates that the tire pressure is nor鄄
mal.
Rust and other sundries on the rims
should be cleaned up when installing
tires, talcum powder had better be

HFC1045

series trucks

60

61

scattered between the inner tire and
the outer tire. Front and rear wheel
nuts should be tightened by two
times in installation; at first, tighten
the nuts in turn to align the wheels,
and then tighten them to specified
torque in diagonal sequence.
After the vehicle running for a certain
time, check the tire nuts for loose鄄
ness, if the nuts are loose, tighten
them according to specified torque.

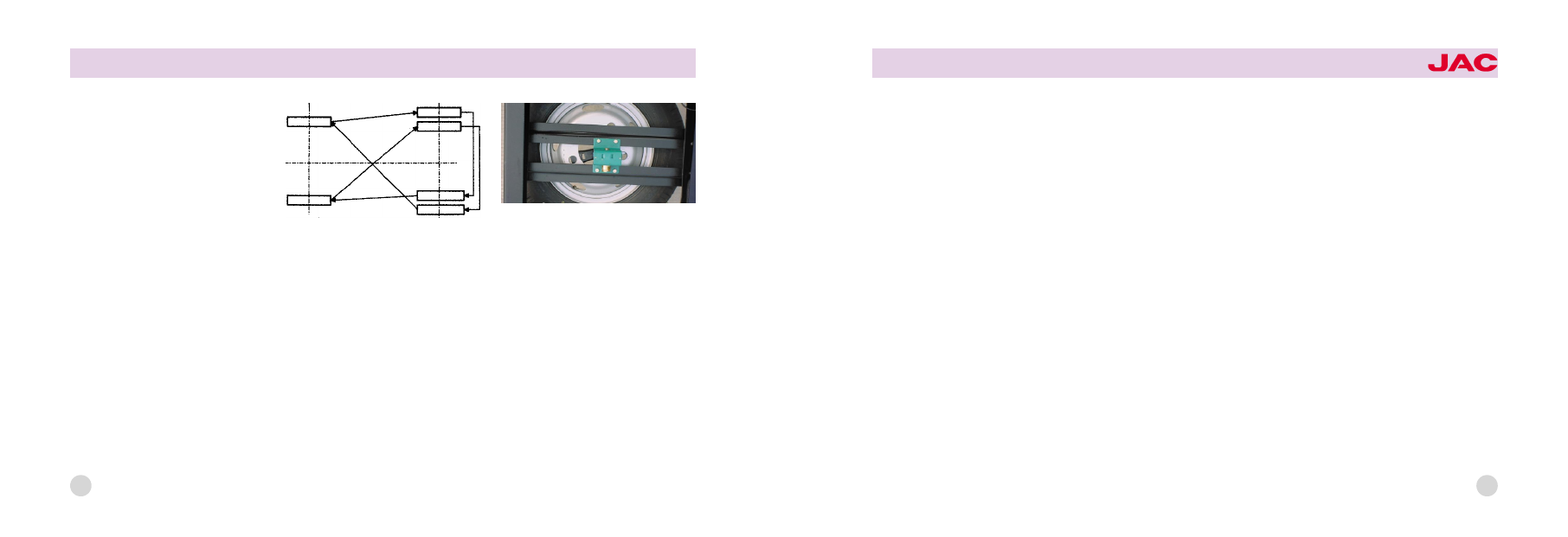

3) Transposition of tire
Transposition of tires should be done
in 2

nd

class maintenance to ensure

even wearing. Tires are usually
changed with each other across. (As
shown in the right above picture)

2. Spare wheel regulator

1) Description of structure and using

Spare wheel regulator (picture

right below) adopts inner engaged
driving gear of suspension chain
type. The regulator is fixed to the
frame, when rise the spare wheel,
you only need to fix the spare wheel
on the wheel bracket; after rocking it
tightening with hands, return by 15毅in
reversing direction.

2) Maintenance of spare wheel regu鄄
la

Check whether the spare tire is

loose, whether chain and wheel
bracket spring rupture before every鄄
day using; if there is anything wrong,
replace

immediately.

Lubricant

should be applied to the driving
parts of the regulator in case of rust
and for convenient rising.

62

63

IV尧Electrical apparatus

(玉) Starter, generator and regulator

(域) Lighting device

(芋) Accumulator

(郁) Sensor

HFC1045

series trucks















Content   ..  1319  1320  1321  1322   ..
