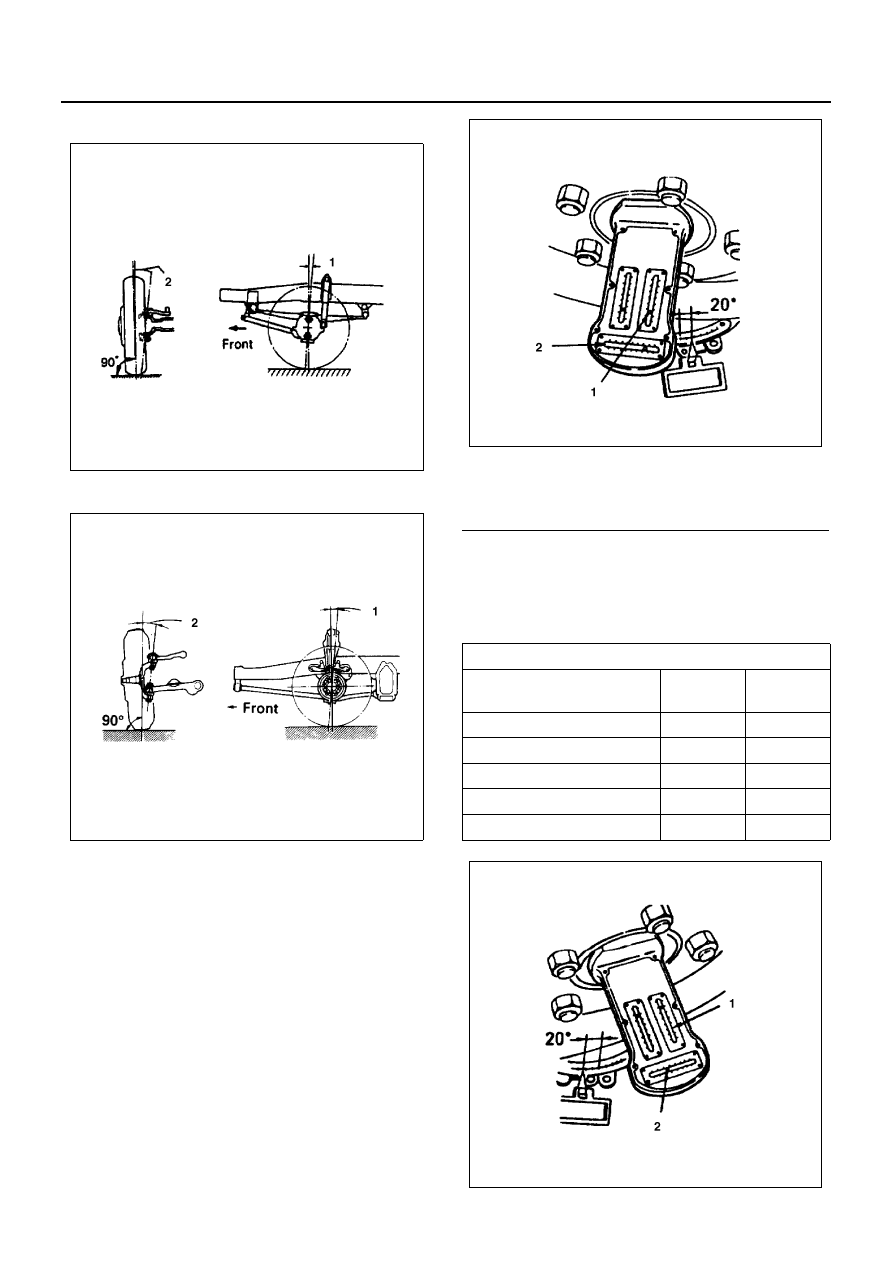

SERVICE INFORMATION 00-21 • NPS • Wishbone Suspension Notice: 2. When the front wheels are turned 20 degrees, cal- ibrate the caster and king pin scales to zero turning 3. Turn the steering wheel in the opposite direction until the front wheels are steered 20 degrees in the N3A0028E N3A0029E Legend 1. Caster angle Caster Angle and King Pin Inclination (deg.) Caster Angle King Pin Inclination NHR 1 °30′±1° 7 °15′ NKR Rigid Suspension 3 °00′±1° 12 °00′ NPR, NQR 2 °45′±1° 12 °00′ Wishbone Suspension 1 °00′±1° 9 °45′±30′ NPS 2 °00′±1° 7 °15′ N3A0030E N3A0031E |
