8-164 CAB AND CHASSIS ELECTRICAL

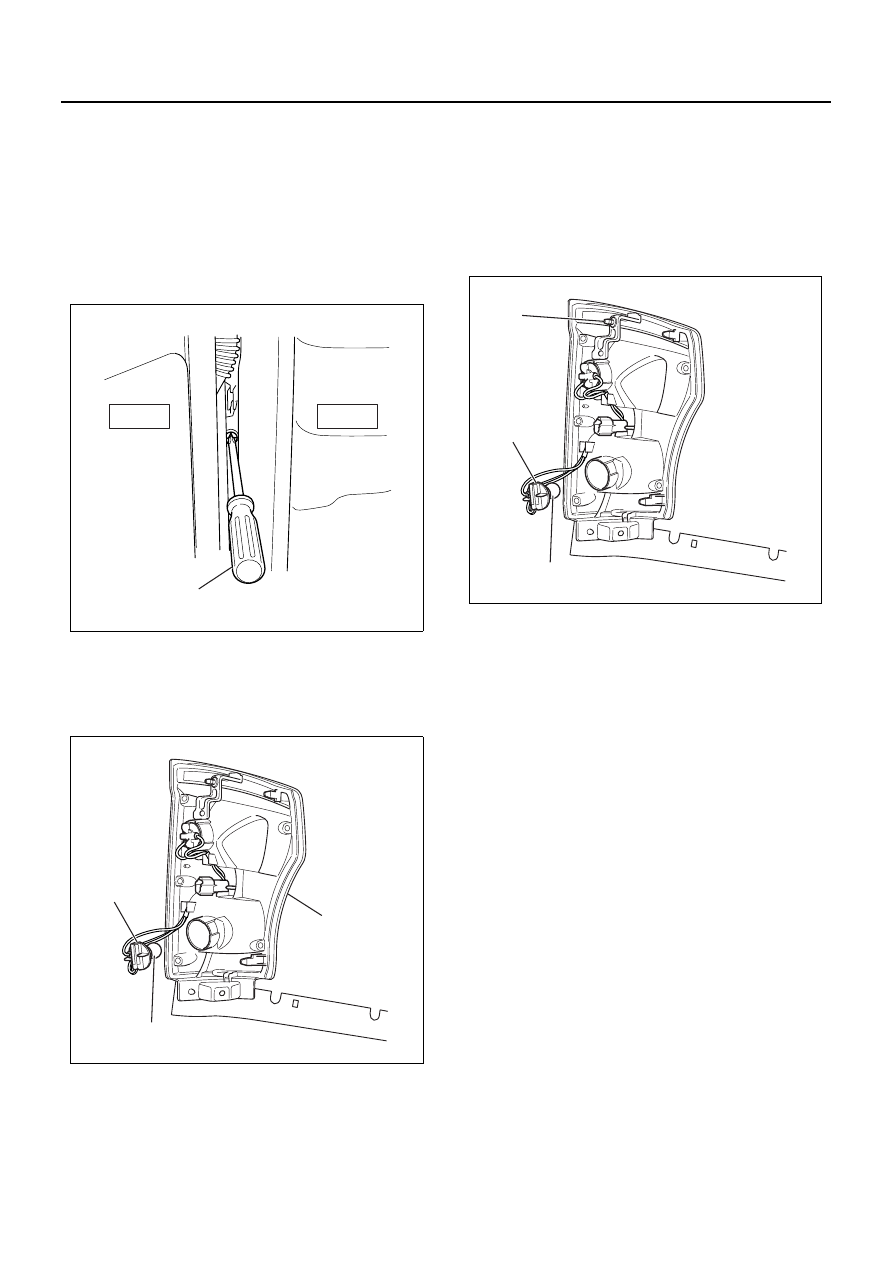

Cornering Light Bulb Replacement

Removal

1. Remove the battery ground cable at the battery.
2. Remove the front combination light.

• Open the cab door. Insert a screwdriver (1) into

the space between the cab and the cab door.
Use the screwdriver to force out the stud pin at
the center of the grommet (the pin securing the
front combination light).

• Remove the fixing screw.
• Remove the two catches.
• Remove the front combination light (1) connec-

tor.

3. Remove the cornering light bulb.

• Turn the cornering / clearance bulb socket (3)

to the left to remove it.

• Press the bulb (2) in and turn it to the left to re-

move it from the socket.

Installation

1. Install the cornering / clearance bulb.

• While pressing the bulb (2), turn it clockwise to

fit.

Notice:
Do not let the glass portion dirty with sebum etc.

• Turn the bulb socket (3) clockwise to fit.

2. Installation procedure of front combination light as-

sembly

• Connect the connector of the front combination

light assembly.

• Position it by aligning two pawls with the groove

of H/L.

• Fit the iron PIN (1) in the upper portion of the

side by aligning it with the center of correspond-
ing grommet.

Notice:
Push it into securely with a force of approx. 250 N (25
kgf) until click is heard.

• Pull the front combination light assembly lightly

toward the front of vehicle to make sure that the
PIN and grommet are engaged securely.

• Tighten one bolt in the lower portion of front

combination light assembly.

3. Hook the seal rubber on two projections under H/L.
4. Connect the battery ground cable.
5. Check lighting of each light.

Door side

Cab side

1

N8A5471E

1

3

2

N8A5477E

1

3

2

N8A0442E

CAB AND CHASSIS ELECTRICAL 8-165

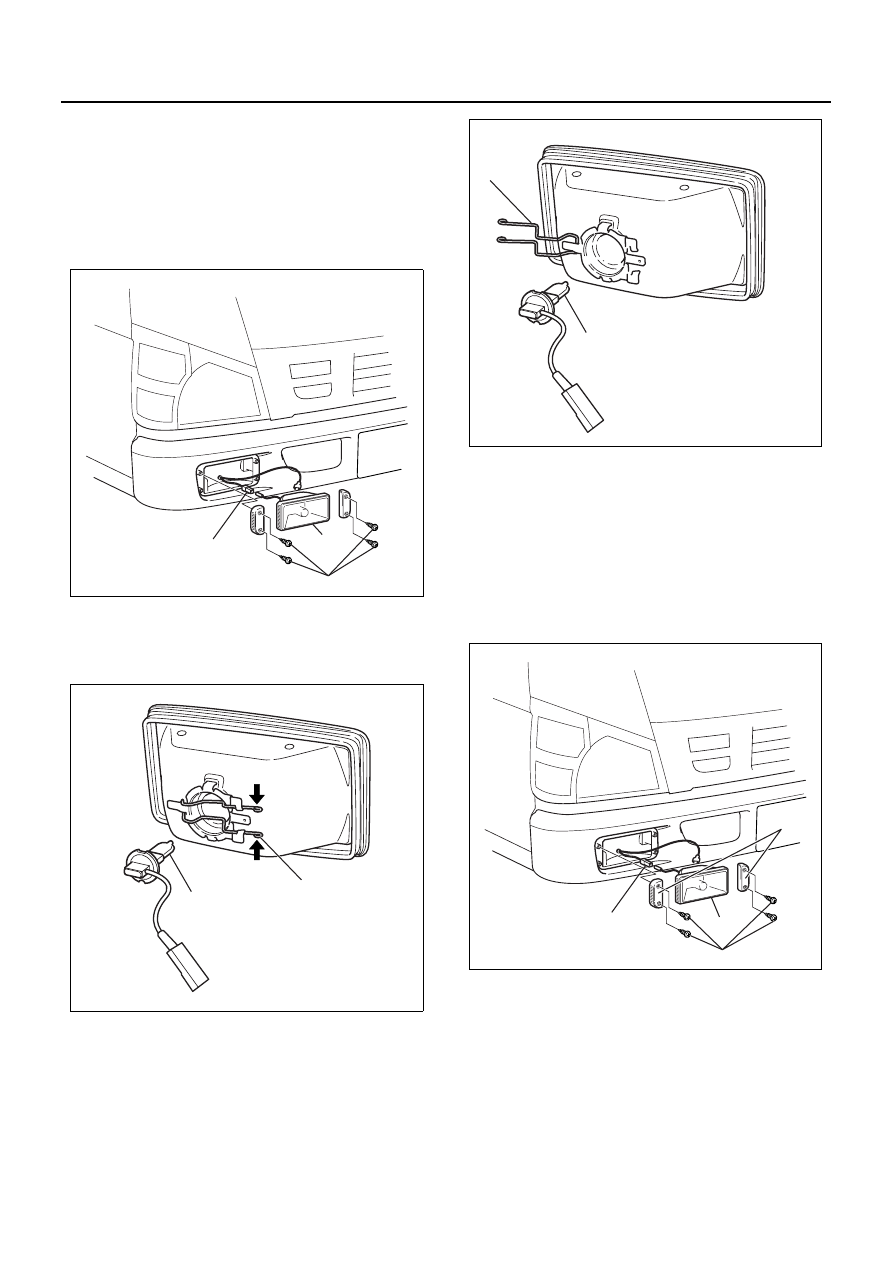

Fog Light Bulb

Removal

1. Remove the battery ground cable at the battery.
2. Remove the four screws (1) to remove the cover

which holds fog light assembly (2).

3. Remove the connector (3).
4. Remove the fog light assembly (2).

5. Bulb

• Push the clip (1) inward as arrow to remove.
• Remove the bulb (2).

Installation

1. Install the fog light bulb.

• Set the fog light bulb (2).
• Hook the clip (1) to secure fog light bulb.

2. Connect the two locations of connector (4).
3. Install the fog light assembly.

• Hold the fog light (2) with right and left covers

(1) and secure it with four screws (3).

Notice:
Make sure that “TOP” mark on the lens comes upside.

4. Connect the battery ground cable.
5. Check lighting.

2

1

3

N8A5478E

1

2

N8A5479E

1

2

N8A0443E

2

1

4

3

N8A0444E

8-166 CAB AND CHASSIS ELECTRICAL

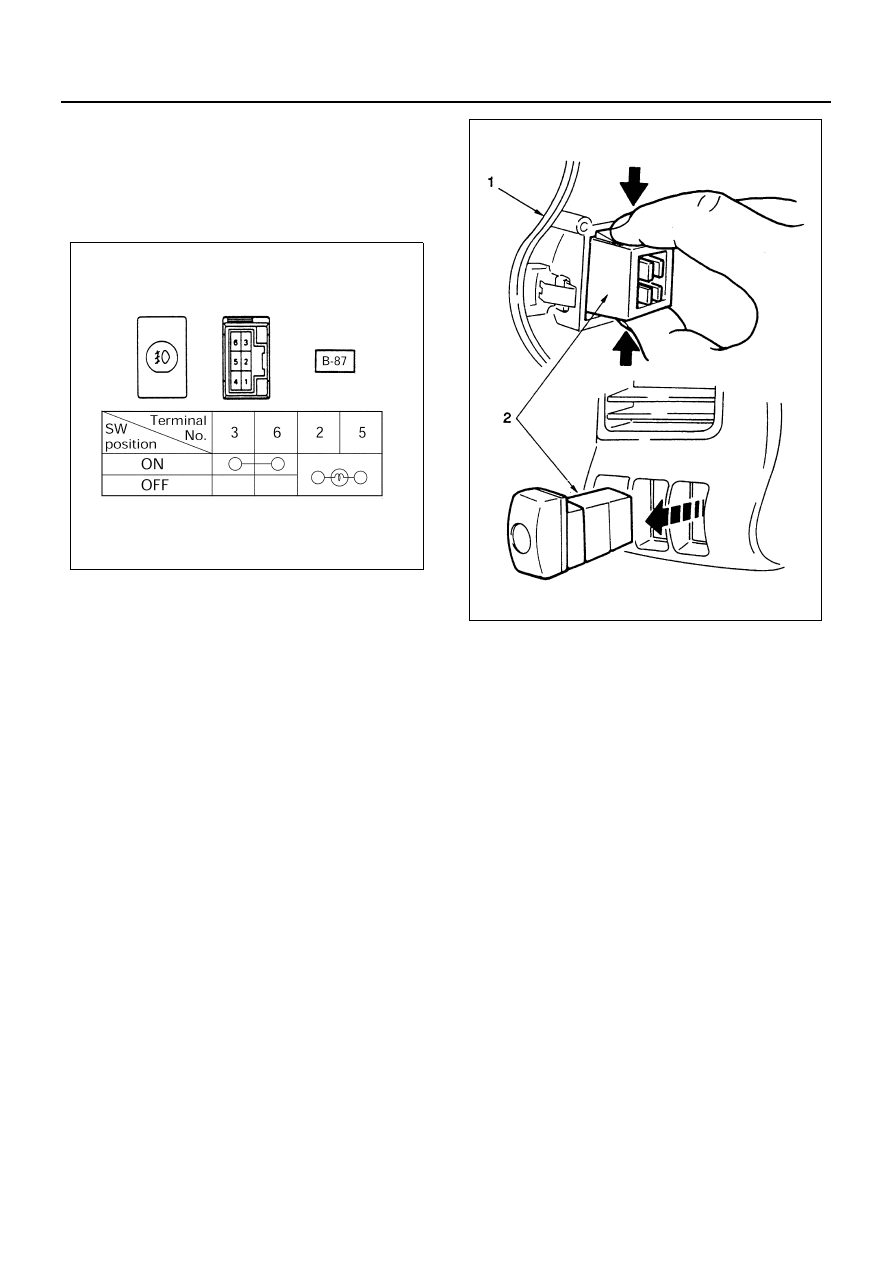

Fog Light Switch

Inspection
Check the continuity between the connector terminals
while operating the switch.
Replace the switch when the result of inspection is
found abnormal.

Removal
Preparation:
Disconnect the battery ground cable.

1. Meter Cluster

Refer to “METER AND WARNING/INDICATOR
LIGHT” in this section.

2. Fog Light Switch

Release the lock pushing the switch from the back
side of the meter cluster.

Installation
To install, follow the removal steps in the reverse order.

N8A0435E

N8A5160E

CAB AND CHASSIS ELECTRICAL 8-167

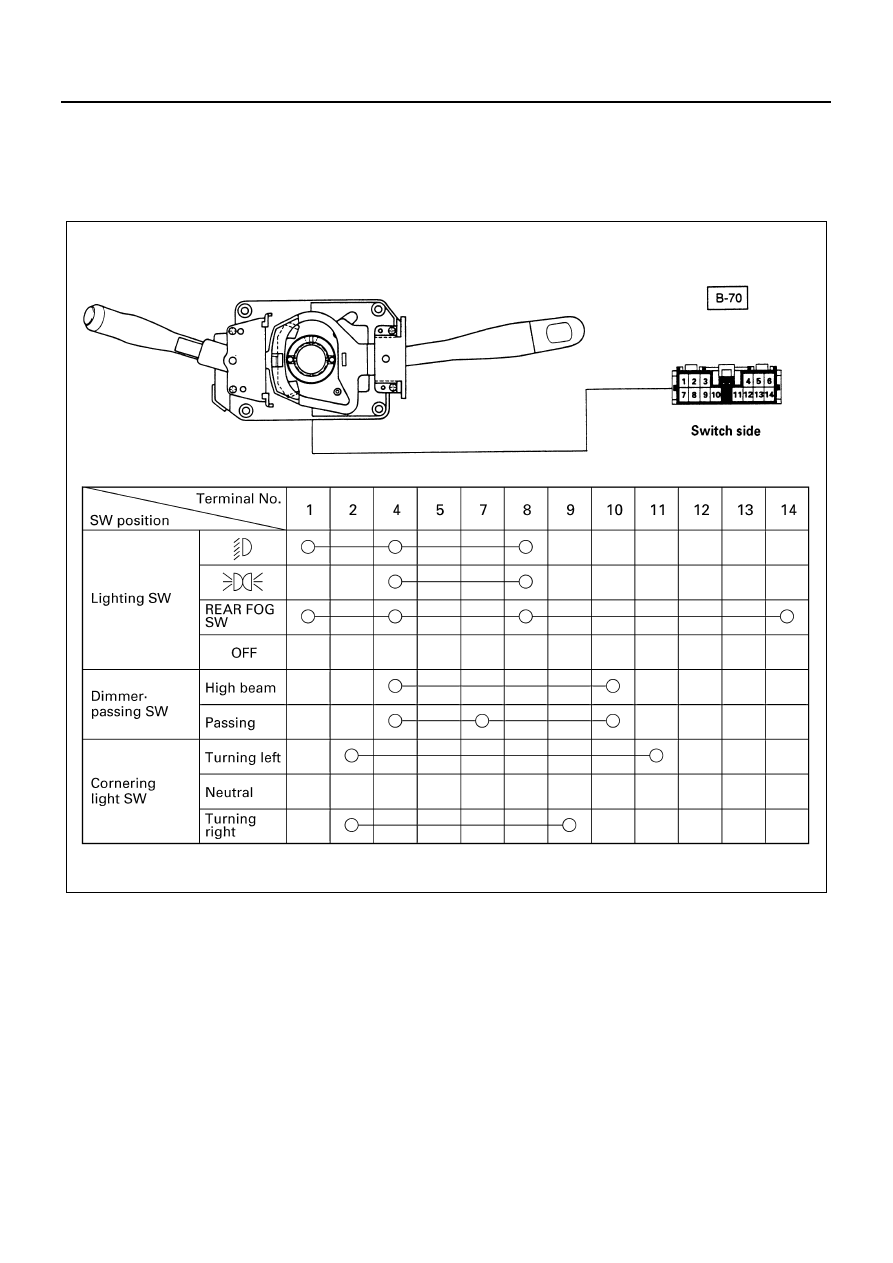

Combination Switch (Lighting Switch, Dimmer, Passing Switch, Cornering Light Switch and Rear
Fog Light Switch)

Inspection
Check the continuity between the connector terminals while operating the switch.
Replace the switch when the result of inspection is found abnormal.

Removal
Preparation:
Disconnect the battery ground cable.

1. Horn Pad

1) Hold the horn pad and pull it upward.

2. Steering Wheel

1) Remove the steering shaft nut.
2) Remove the steering wheel by using steering

wheel remover.
(Refer to Section 3B4 “STEERING COLUMN”
for steering wheel removal steps.)

3. Steering Cowl

Remove the four screws.

4. Combination Switch

1) Remove the four screws.
2) Disconnect the connector.

N8A5162E
