8-28 CAB AND CHASSIS ELECTRICAL

Notice:
The fuse numbers (1) — (28) indicated on the fuse la-
bels are expressed as

 —

 in the circuit dia-

grams of this manual.

10 A

(18)

SRS

10 A

(19)

ENG. (BACK UP) HSA

15 A

(20)

HORN, HAZARD

10 A

(21)

ABS (IG)

10 A

(22)

STARTER

10 A

(23)

HEAD LIGHT RH

10 A

(24)

HEAD LIGHT LH

15 A

(25)

MARKER LAMP

15 A

(26)

COND. FAN

10 A

(27)

RR FOG

10 A

(28)

ECM. ENG.

F-1

F-28

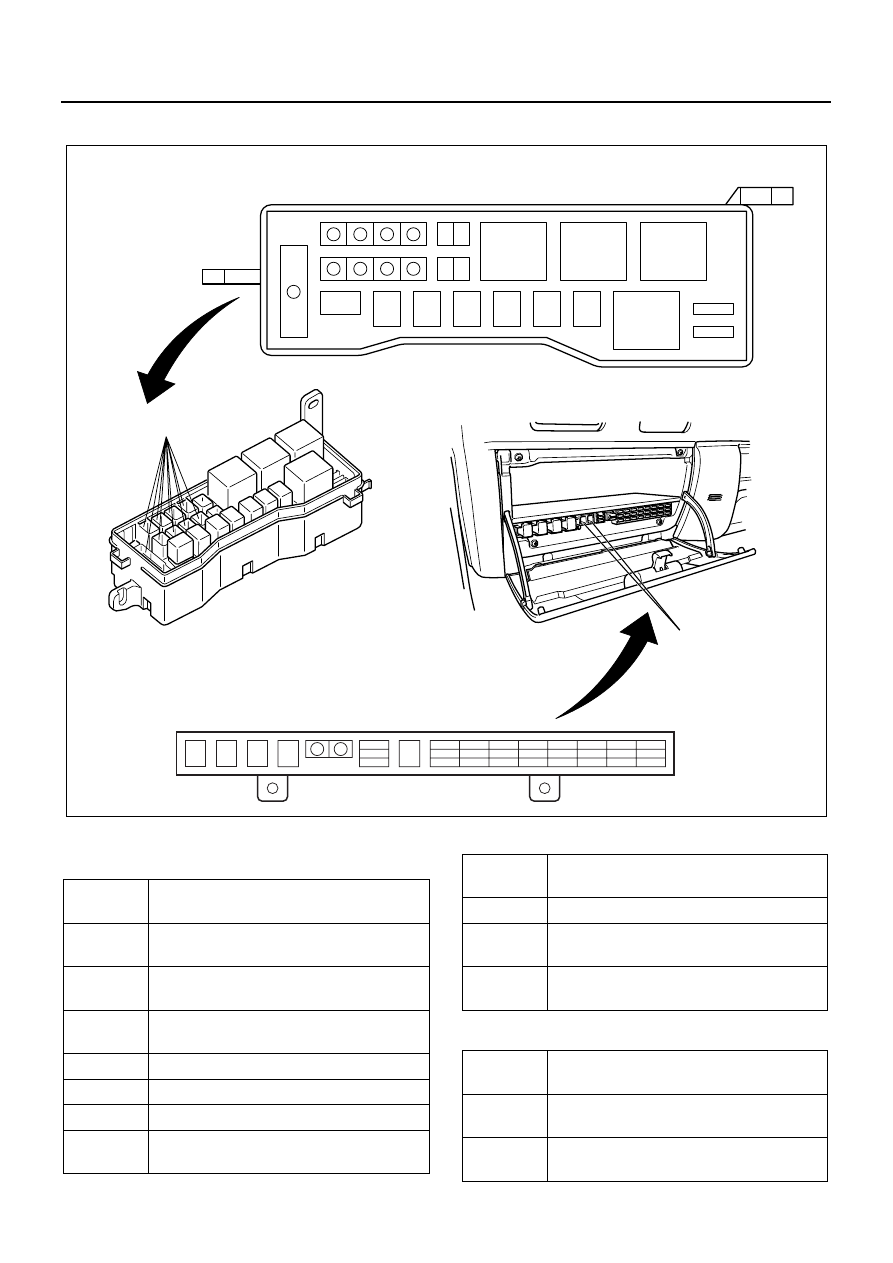

CAB AND CHASSIS ELECTRICAL 8-29

Fusible Link

For 12 Volt (4JB1 / 4JG2)

For 12 Volt (4JH1)

Relay box
(Installed on the left side rear of the cab)

1

6

2

7

3

8

4

9

5

Fusible link

Fusible link

26

FUSE

PULLER

25

N8A5047E

100 A

(1)

MAIN

50 A

(2)

KEY

60 A

(3)

GLOW

30 A

(4)

HEAD LAMP

(5)

—

(6)

—

(7)

—

60 A

(8)

STARTER

60 A

(9)

ABS

30 A

(25)

HEATER

30 A

(26)

POWER WINDOW

100 A

(1)

MAIN

50 A

(2)

KEY

60 A

(3)

GLOW

8-30 CAB AND CHASSIS ELECTRICAL

For 24 Volt (4HF1 / 4HG1 / 4HE1 except Hong Kong)

For 24 Volt (4HE1 for Hong Kong)

For 24 Volt (4HK1)

Notice:
The fusible link numbers (1) — (26) are expressed as

 —

 in the circuit diagrams of this manual.

30 A

(4)

HEAD LAMP

(5)

—

(6)

—

(7)

—

60 A

(8)

STARTER

60 A

(9)

ABS

30 A

(25)

HEATER

30 A

(26)

POWER WINDOW

100 A /

120 A

(1)

MAIN

40 A

(2)

KEY

60 A

(3)

GLOW

30 A

(4)

HEAD LAMP

(5)

—

(6)

—

(7)

—

60 A

(8)

STARTER

40 A

(9)

ABS

100 A /

120 A

(1)

MAIN

40 A

(2)

KEY

60 A

(3)

GLOW

30 A

(4)

HEAD LAMP

(5)

—

(6)

—

(7)

—

60 A

(8)

STARTER

40 A

(9)

ABS

100 A /

120 A

(1)

MAIN

40 A

(2)

KEY

60 A

(3)

GLOW

30 A

(4)

HEAD LAMP

40 A

(5)

ECM. ENG.

60 A

(6)

CERAMIC HEATER

60 A

(7)

NEES

60 A

(8)

STARTER

40 A

(9)

ABS

FL-1

FL-26

CAB AND CHASSIS ELECTRICAL 8-31

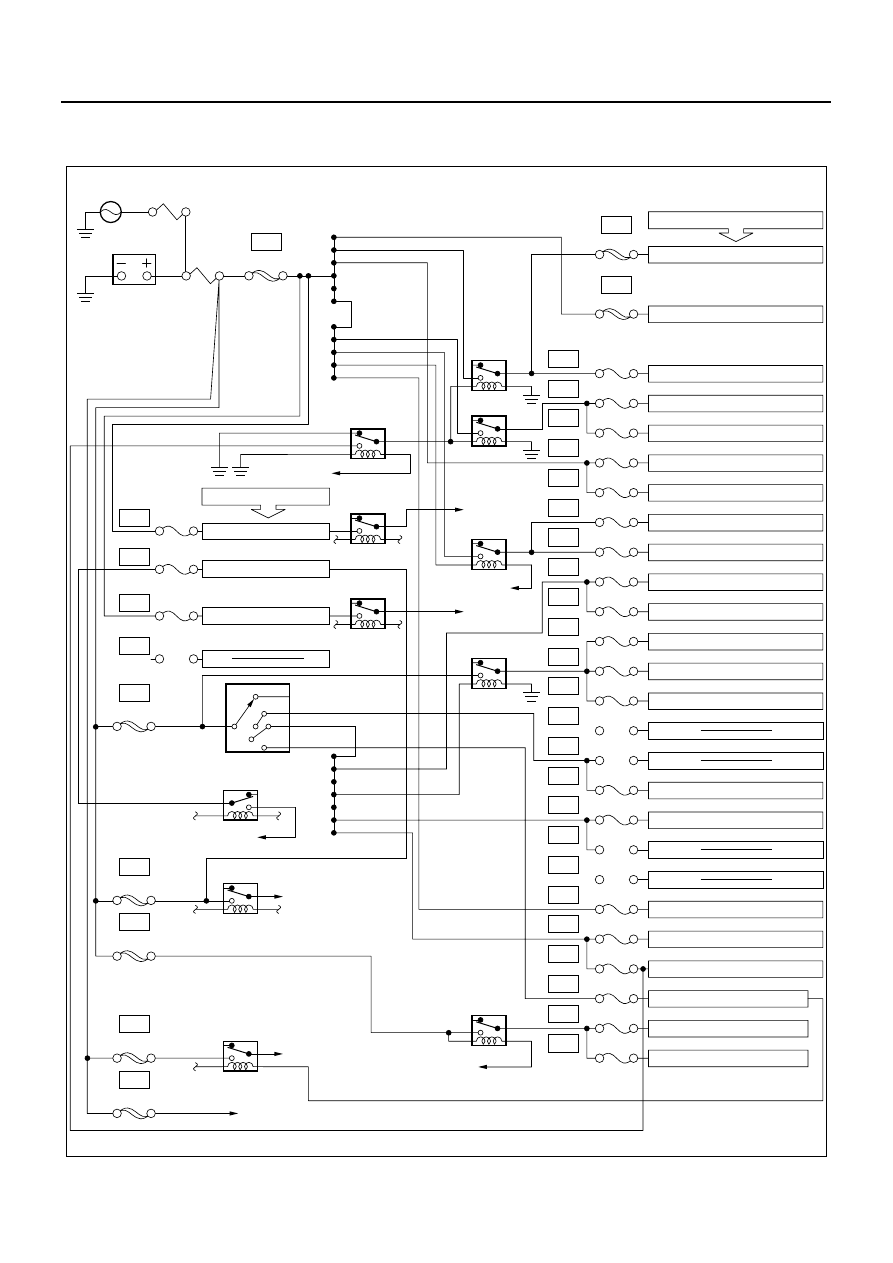

Fuse Block Circuit

For 12 Volt-4JB1 / 4JG2 Engine

HEATER &

A/C RELAY

10A

HEAD LIGHT LH

F-24

10A

HEAD LIGHT RH

F-23

10A

STARTER

F-22

15A

GENERATOR

F-21

10A

ABS (IG)

F-20

15A

HORN, HAZARD

F-19

F-18

F-17

10A

METER

F-16

15A

AUDIO (IG), CIGAR LIGHTER

F-15

F-14

F-13

10A

H/LAMP LEVEL

F-12

10A

TURN LIGHT

15A

F-11

15A

FRONT WIPER & WASHER

F-10

10A

FUEL CUT

F-9

10A

EGR

F-8

10A

TAIL LIGHT

F-7

F-25

10A

FRT FOG LIGHT, CORNERING LAMP

F-6

10A

STOP LIGHT

F-5

15A

AUDIO (B), DOOR LOCK

F-4

15A

REAR HEATER

F-3

15A

EXH. BRAKE, FUEL HEATER

F-2

10A

AIR CON

F-1

30A

POWER WINDOW

FL-26

30A

HEAD LAMP

FL-4

30A

FL-25

HEATER

INDICATION ON LABEL

INDICATION ON LABEL

KEY ON

RELAY

EXH.BRAKE

RELAY

TAIL

RELAY

HEAD LIGHT

RELAY

COMBINATION SWITCH

STARTER

STARTER

RELAY

CONDENSER FAN

ABS UNIT

GLOW PLUG

GLOW PLUG

RELAY

CONDENSER FAN

RELAY

KEY SW OFF

ACC

ON

ST

60A

GLOW

FL-3

60A

ABS

FL-9

60A

STARTER

FL-8

50A

KEY

FL-2

REAR FOG

RELAY

REAR FOG

COMBINATION

SWITCH

CHARGE

WARNING

RELAY

MARKER LIGHT

100A

MAIN

FL-1

MARKER

LIGHT

RELAY

15A

F-26

10A

F-27

F-28

GENERATOR

GENERATOR B

RR FOG

COND. FAN

MARKER LAMP

N8A5584E
