2-130 CAB AND FRAME

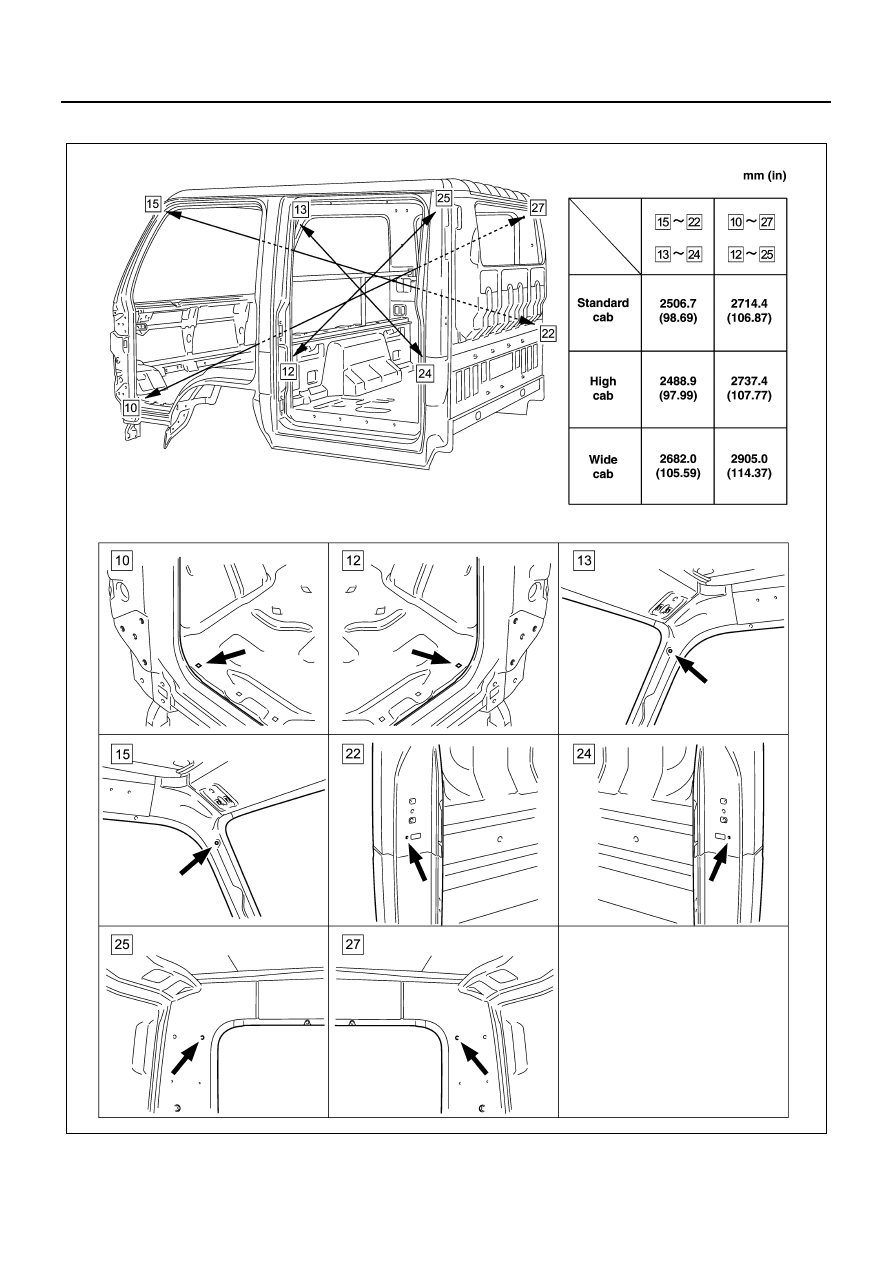

Body Dimensions (Room Diagonal Sizes, Double Cab Model)

N2A0188E

CAB AND FRAME 2-131

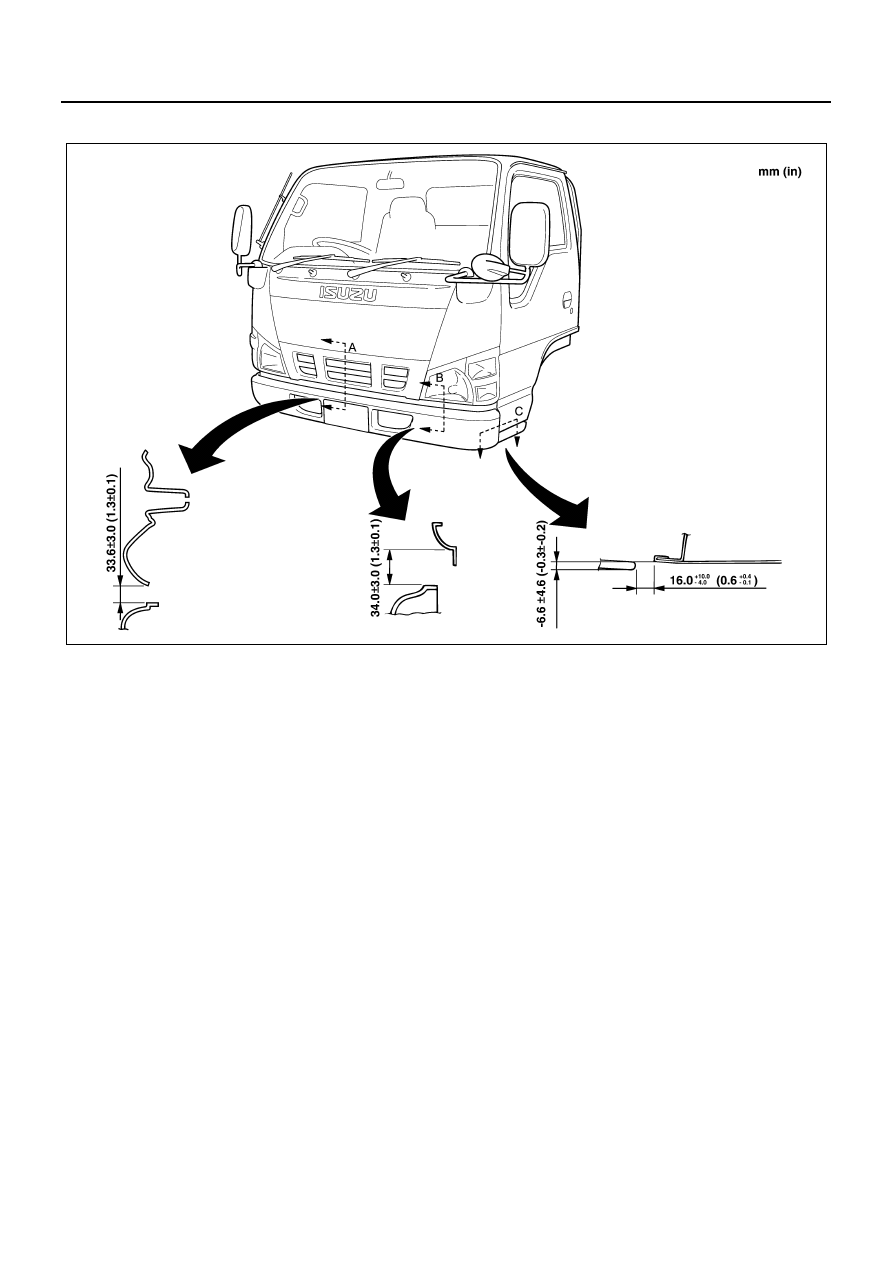

Body Dimensions (Front Bumper Installation Basic Sizes)

• Section B parallelism (difference in clearance) size

Vertical 3.0 mm (0.1 in) or less

• Section C parallelism (difference in clearance) size

Vertical 3.0 mm (0.1 in) or less
Horizontal 5.0 mm (0.2 in) or less

• Section D parallelism (level difference) size

Vertical 3.0 mm (0.1 in) or less
Horizontal 5.0 mm (0.2 in) or less

N2A0189E

2-132 CAB AND FRAME
