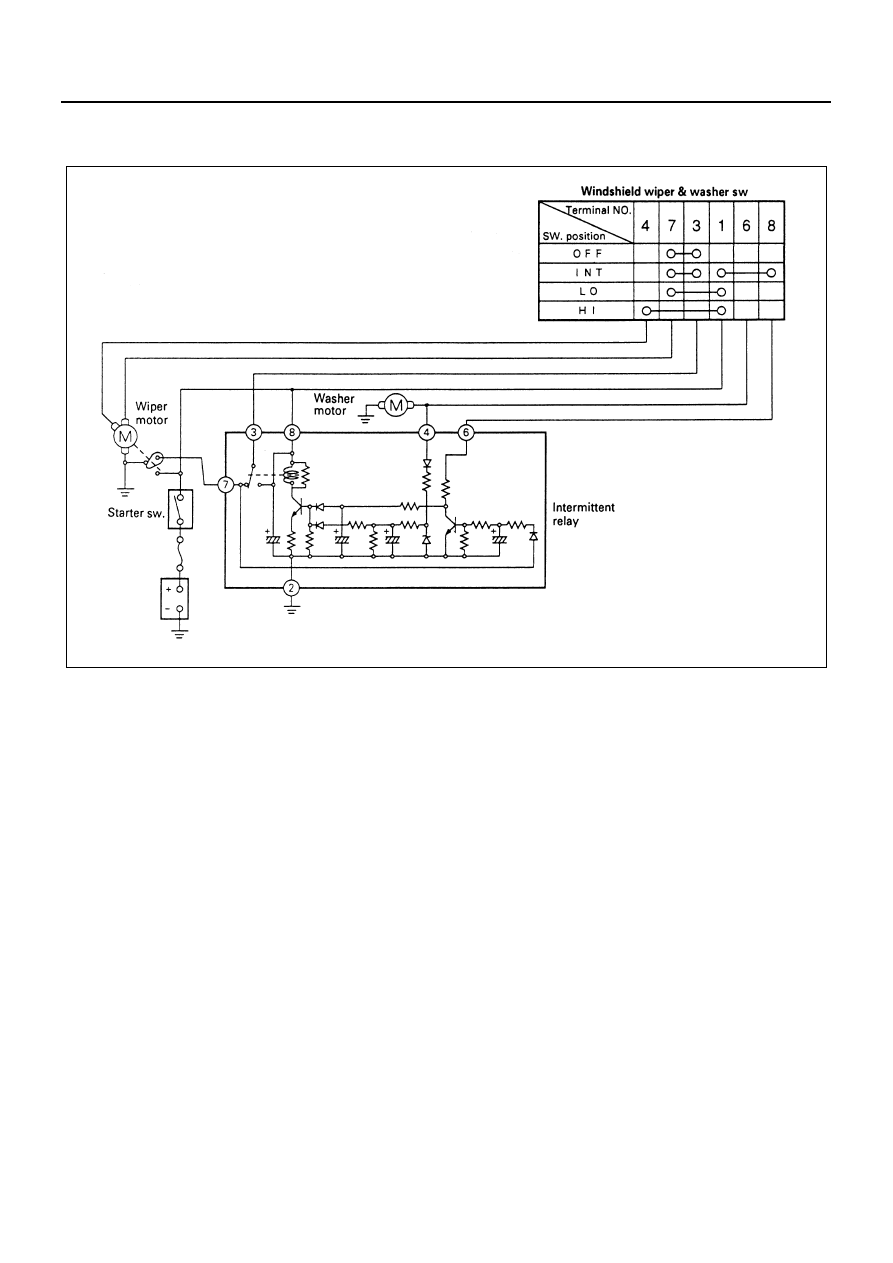

CAB AND CHASSIS ELECTRICAL 8-261 Intermittent Relay Circuit Diagram Removal 1. Glove Box Open the lid and remove the four screws. 2. Intermittent Relay 1) Press A position with your finger and pry up B position with the tip of a screw-driver. 2) When the relay moves up by about 2/3 of its size, tilt and take off the relay to avoid interfer- 3) Disconnect the connector. N8A0267E |
